Differential Assembly: Testing and Inspection
PROBLEM SYMPTOMS TABLEUse the table to help find the cause of the problem. The causes of the problem are listed in order of probability in the "Suspected area" column. Check each part in order. If necessary, replace these parts.

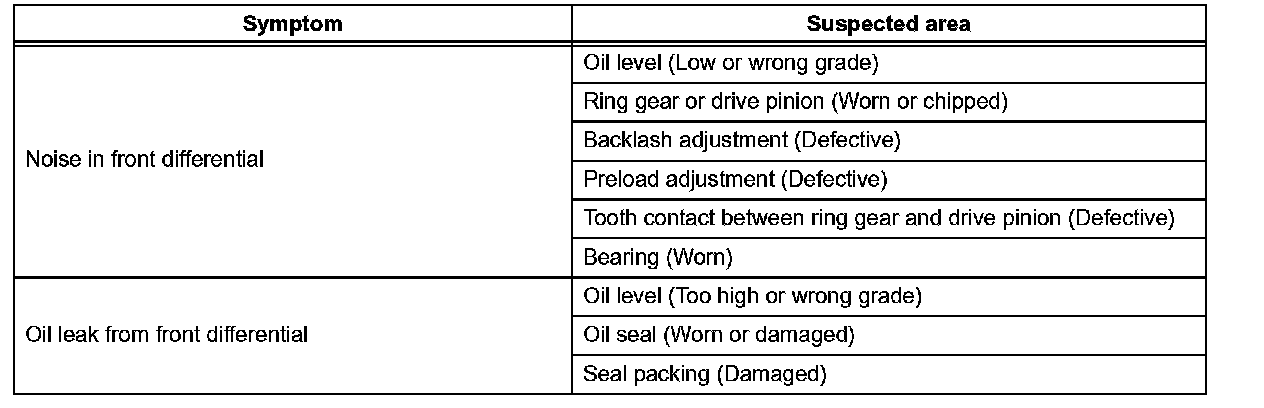

Front Differential (For 4WD):

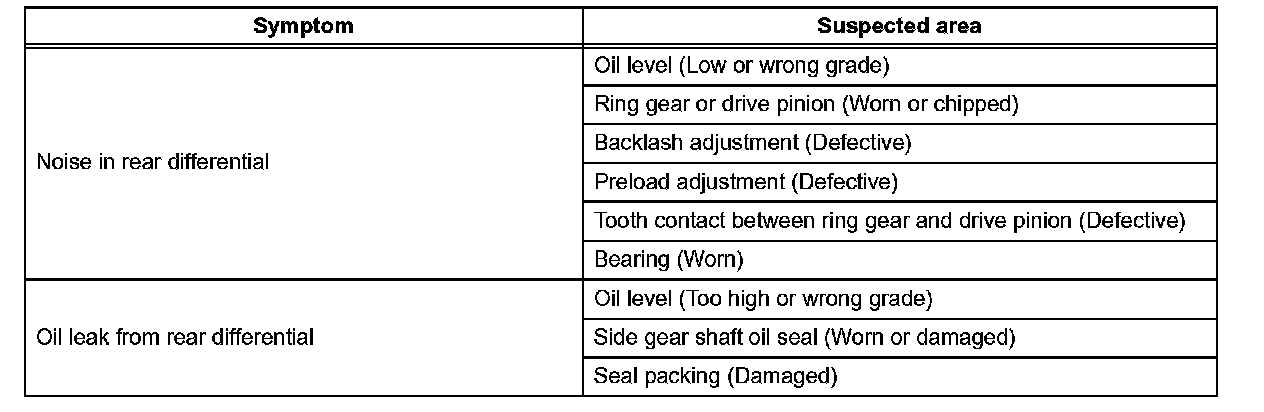

Rear Differential (For 3GR-FSE):

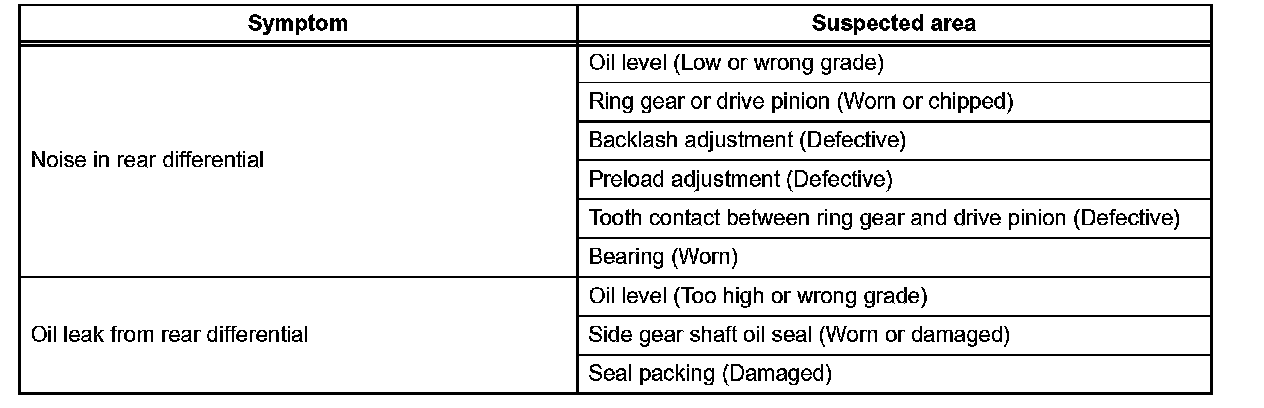

Rear Differential (For 3UZ-FE):
