Part and System Name List

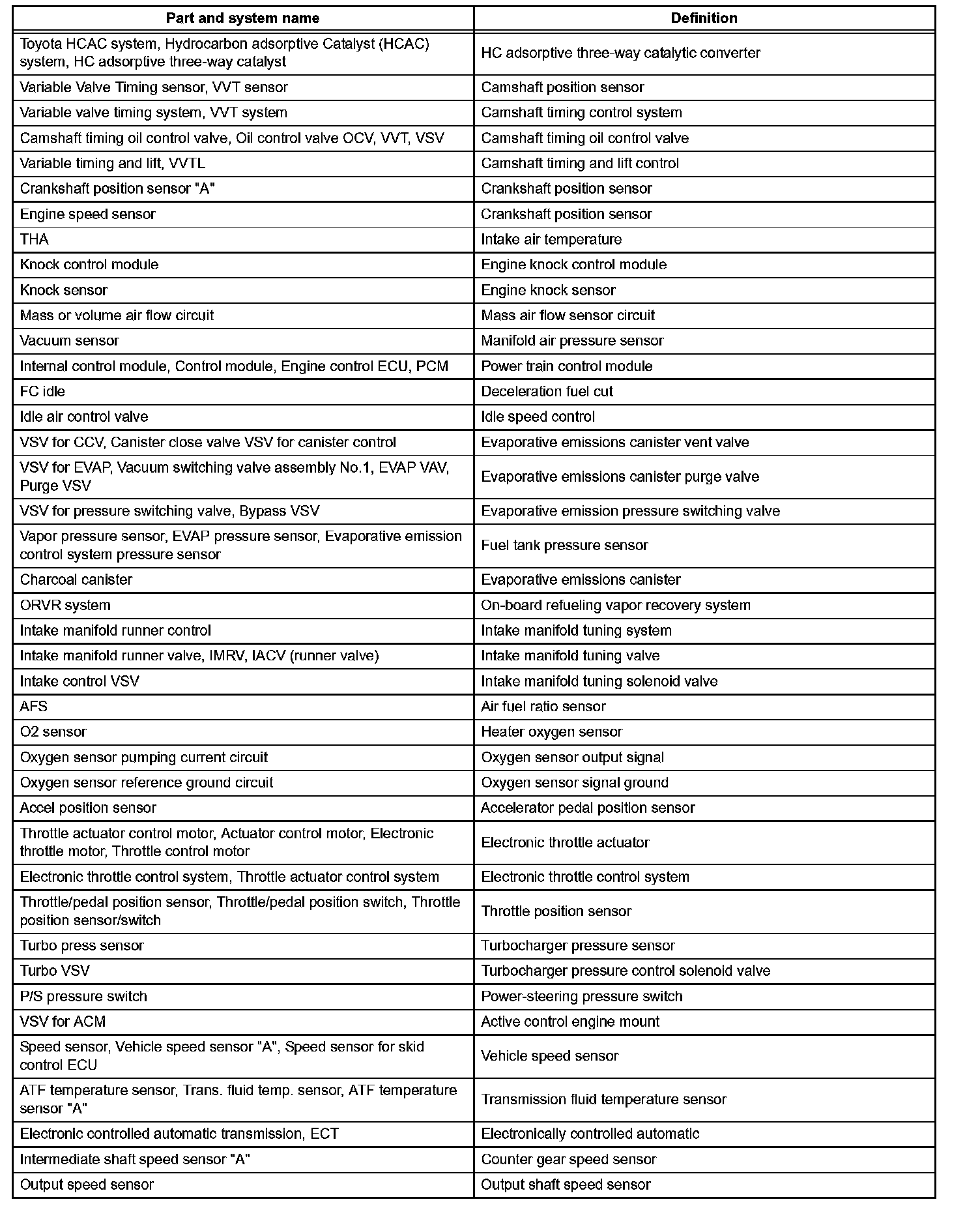

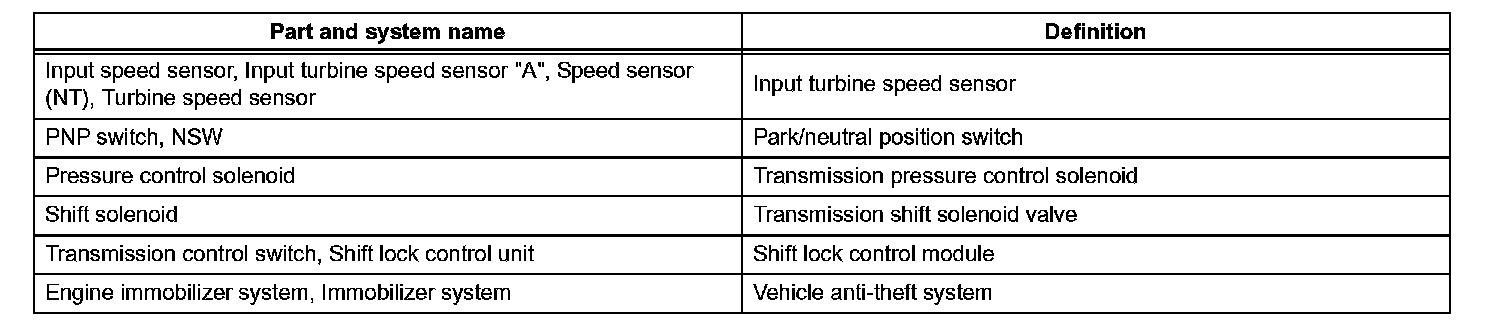

PART AND SYSTEM NAME LIST








This reference list indicates the part names used in this manual along with their definitions.
