VII. Work Procedure For GS 300 AWD

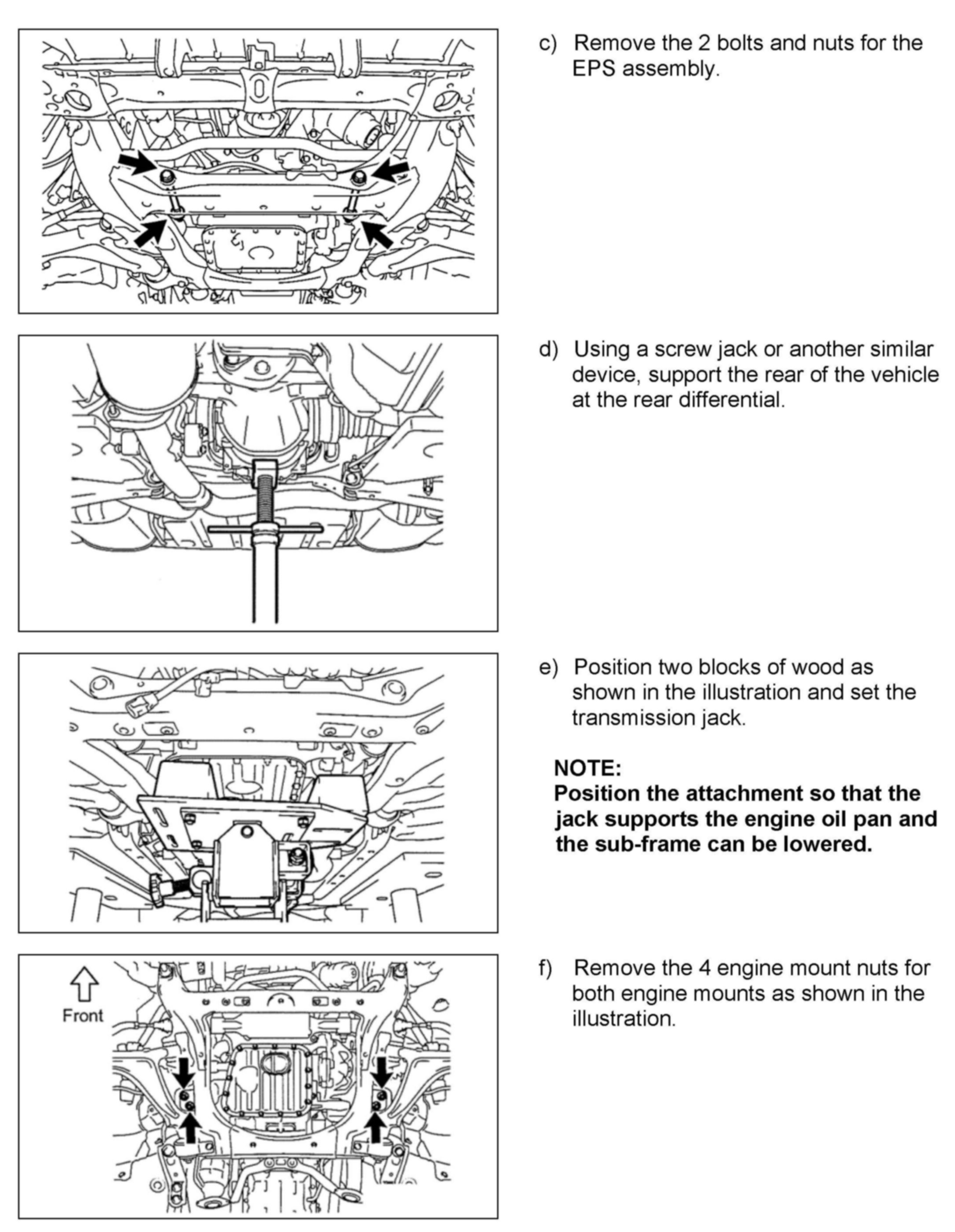

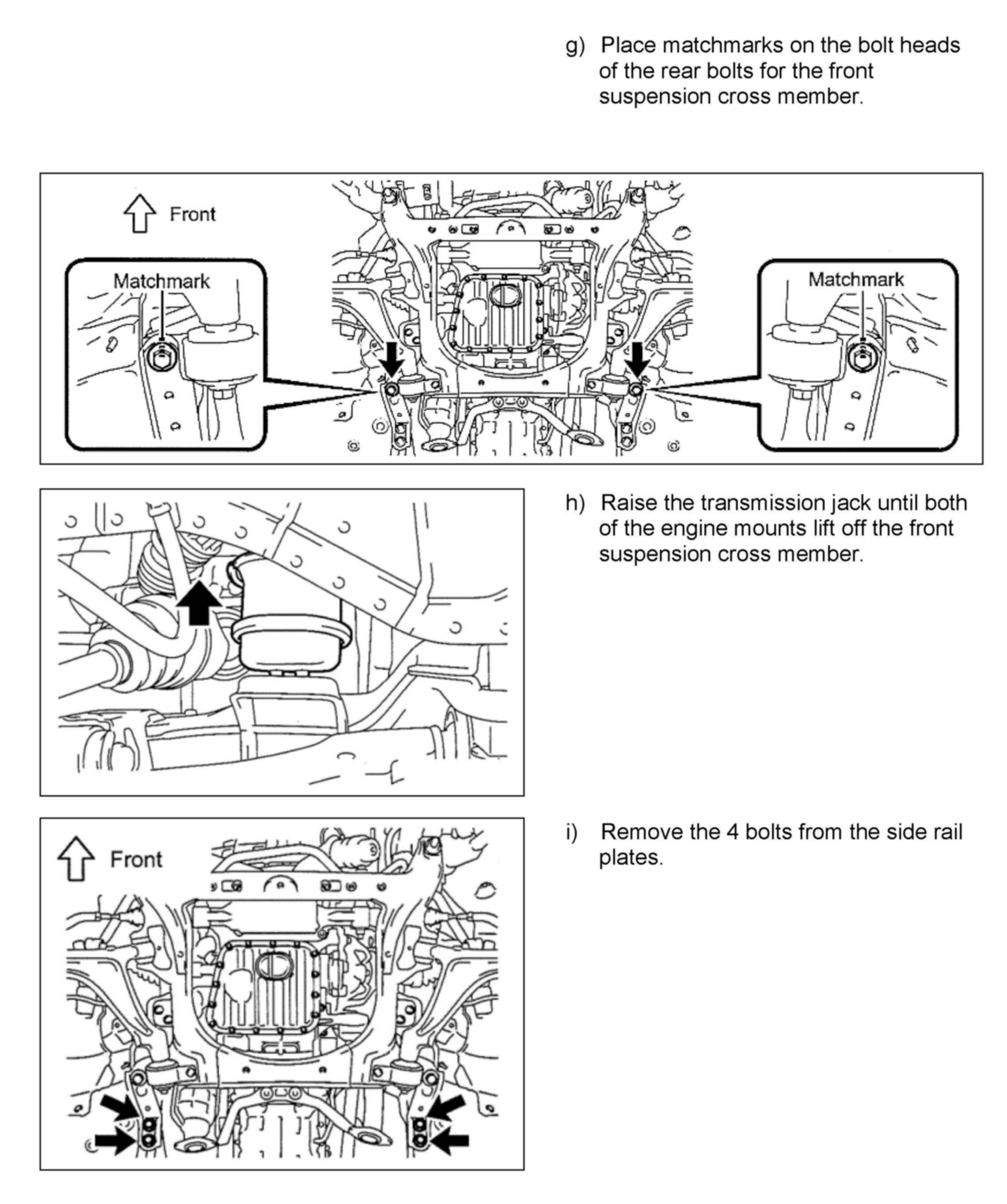

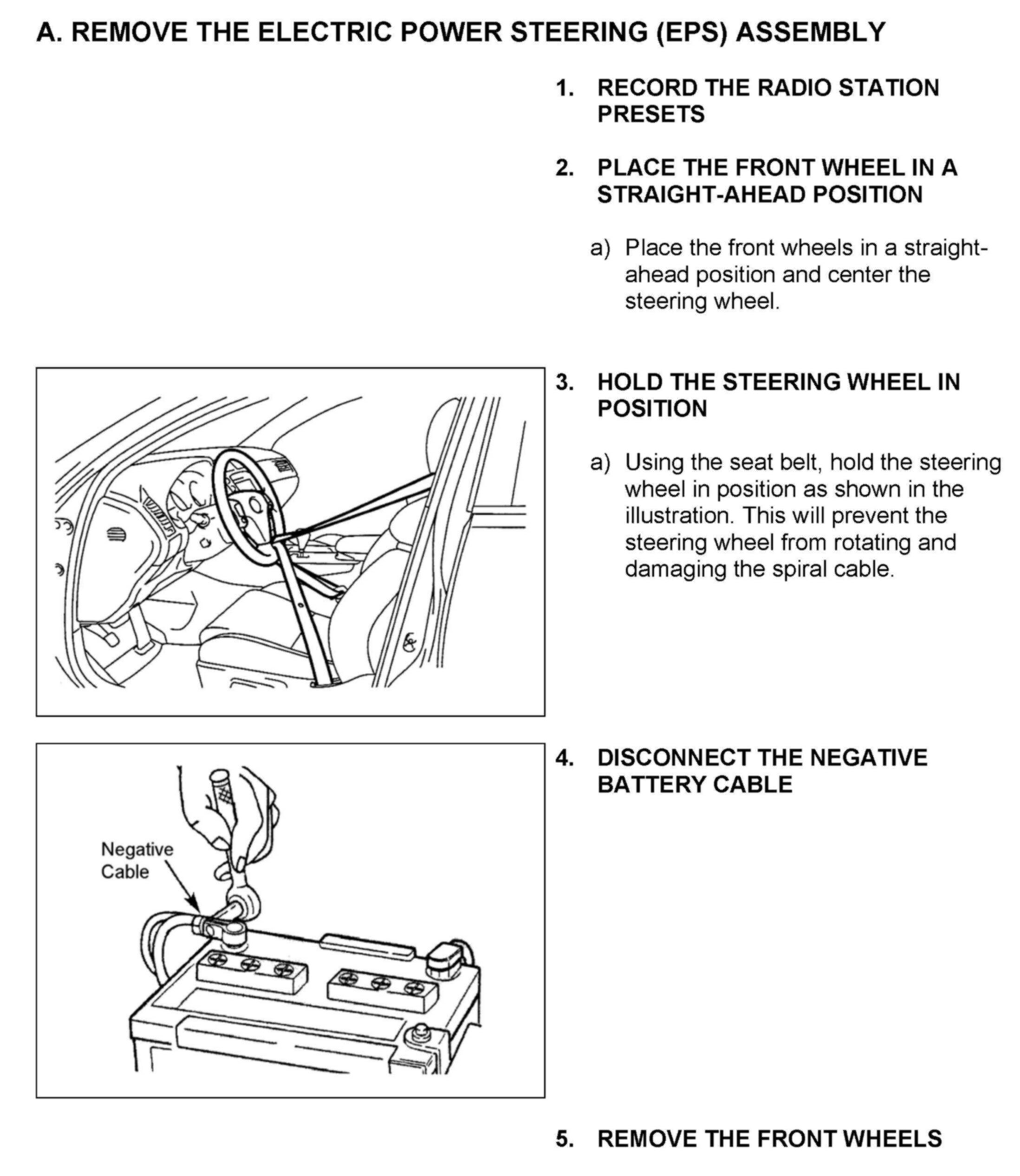

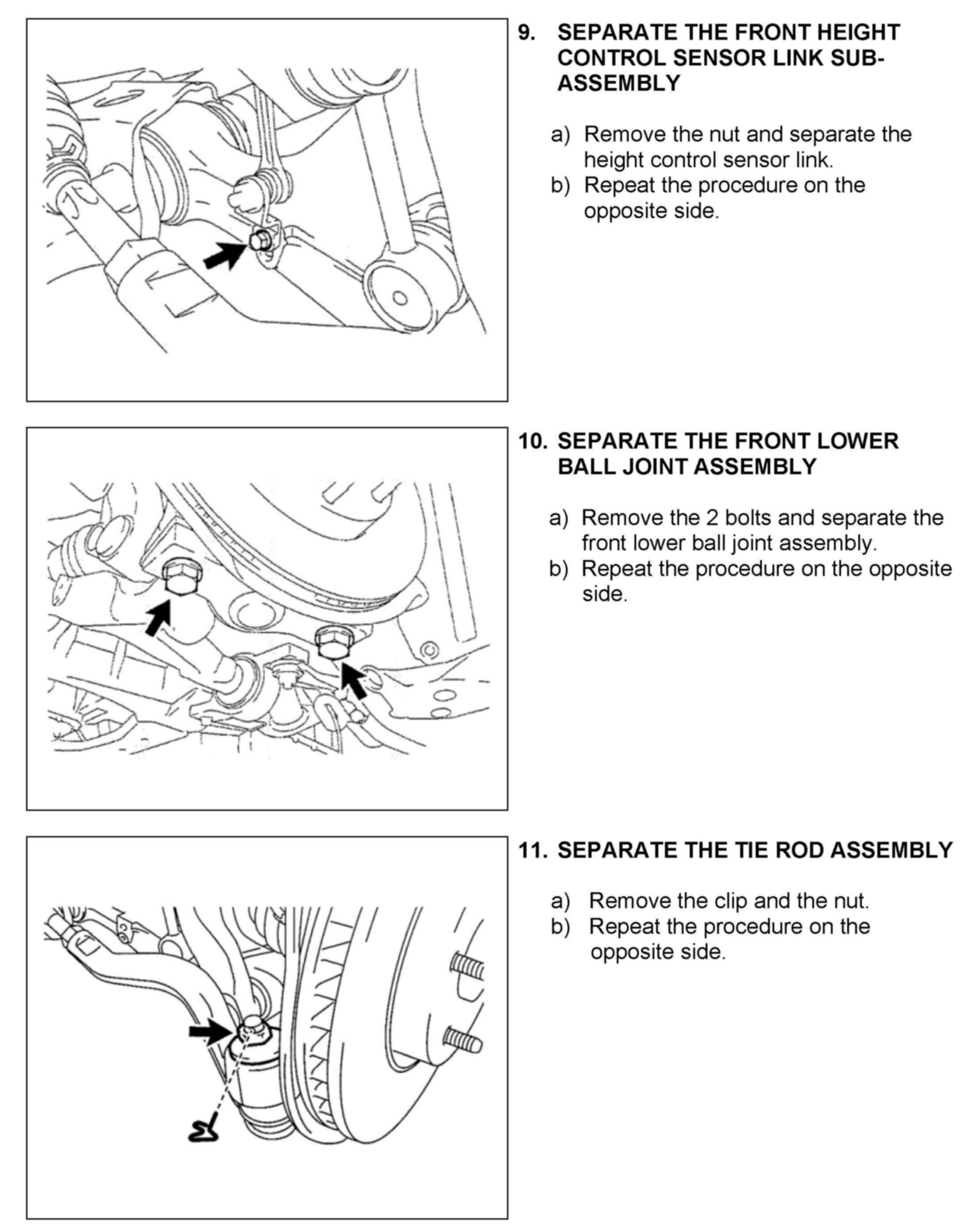

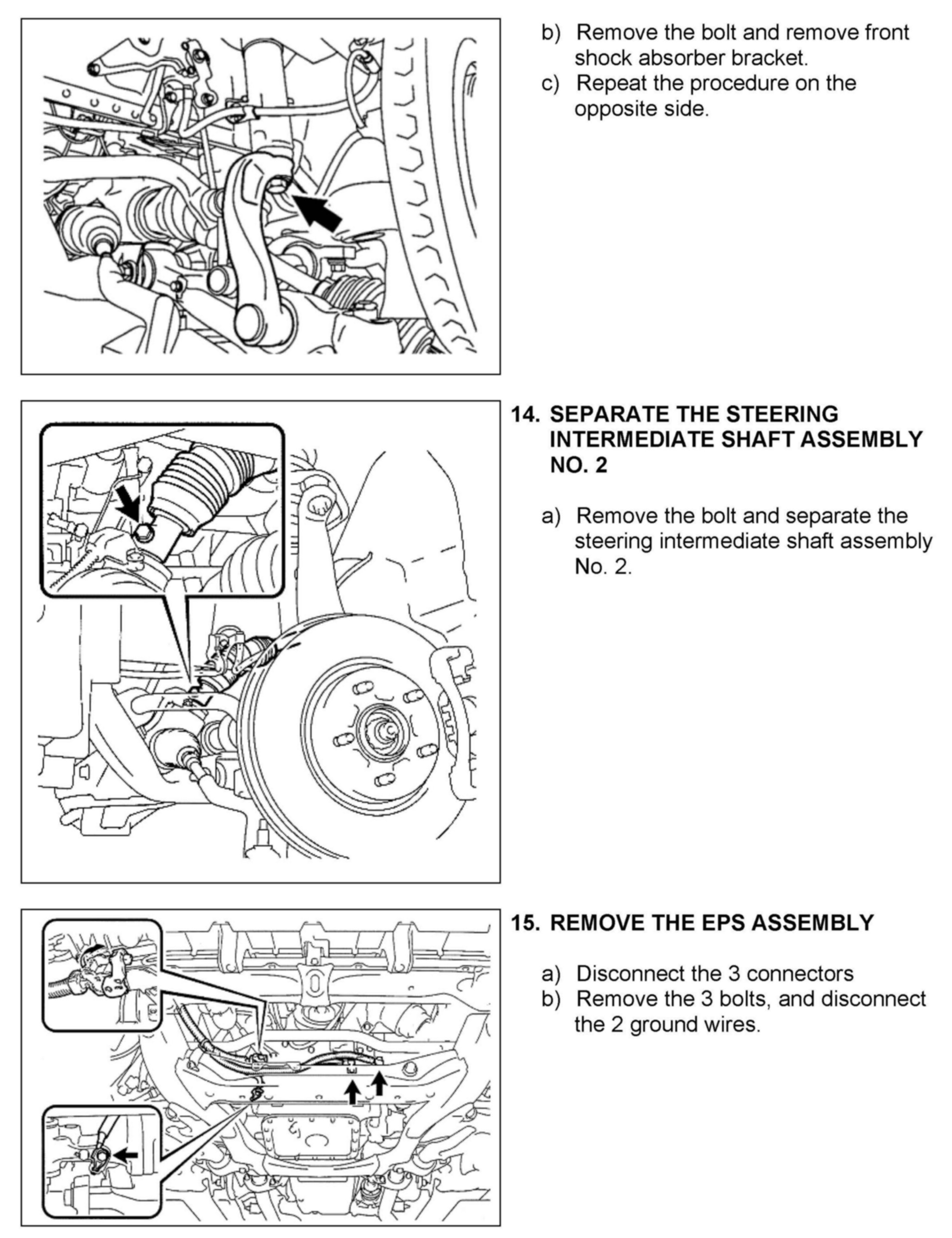

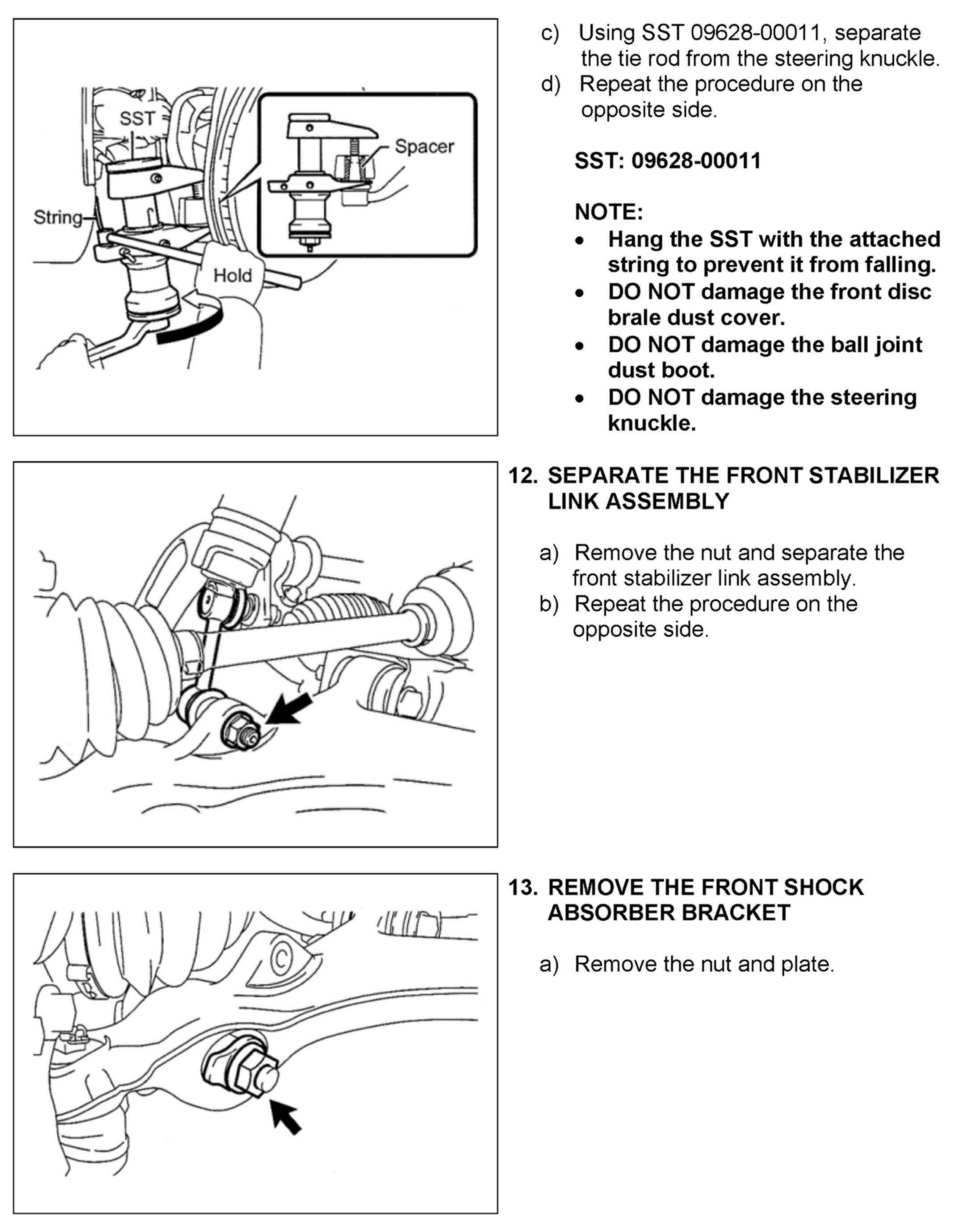

A. REMOVE THE ELECTRIC POWER STEERING (EPS) ASSEMBLY

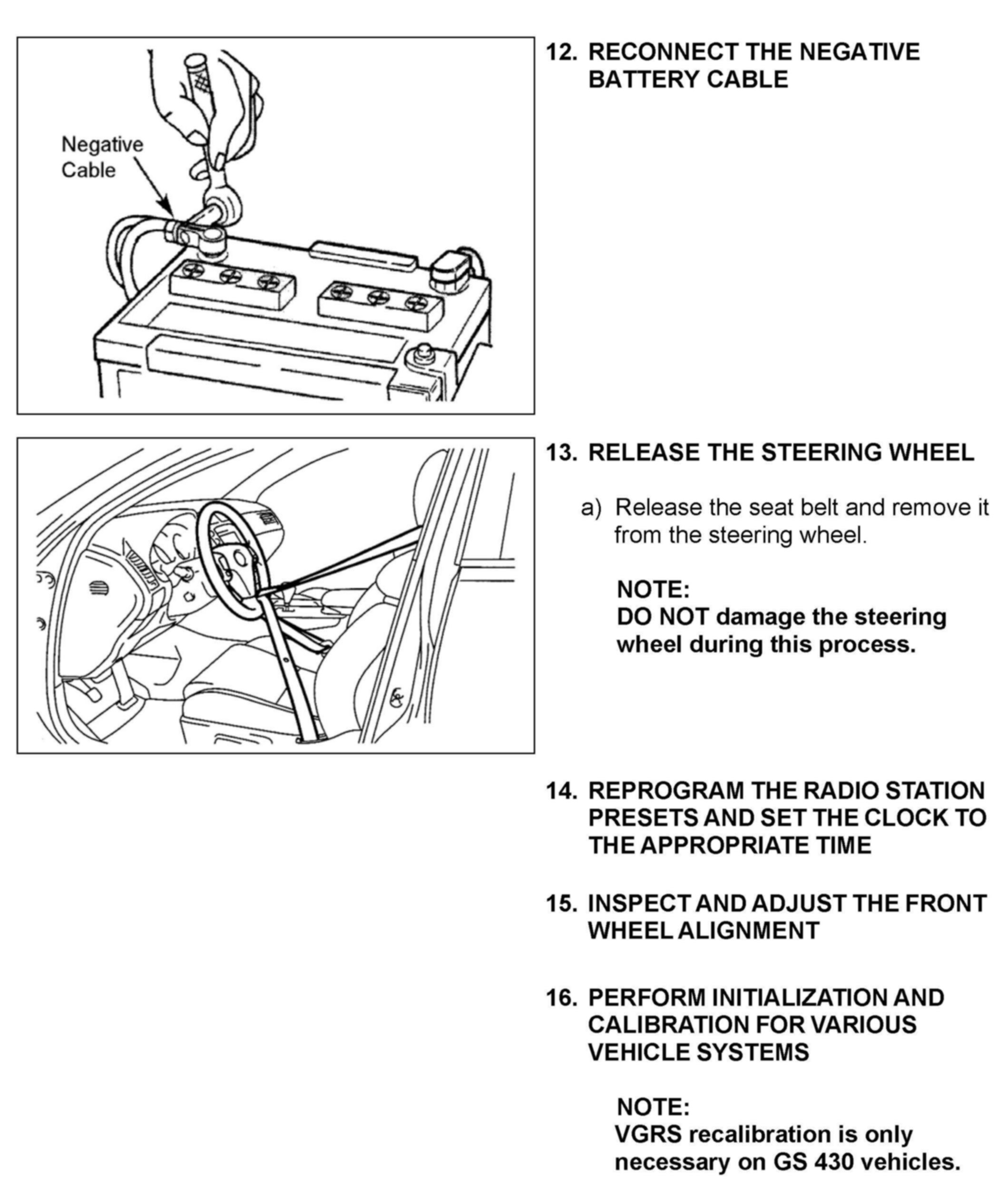

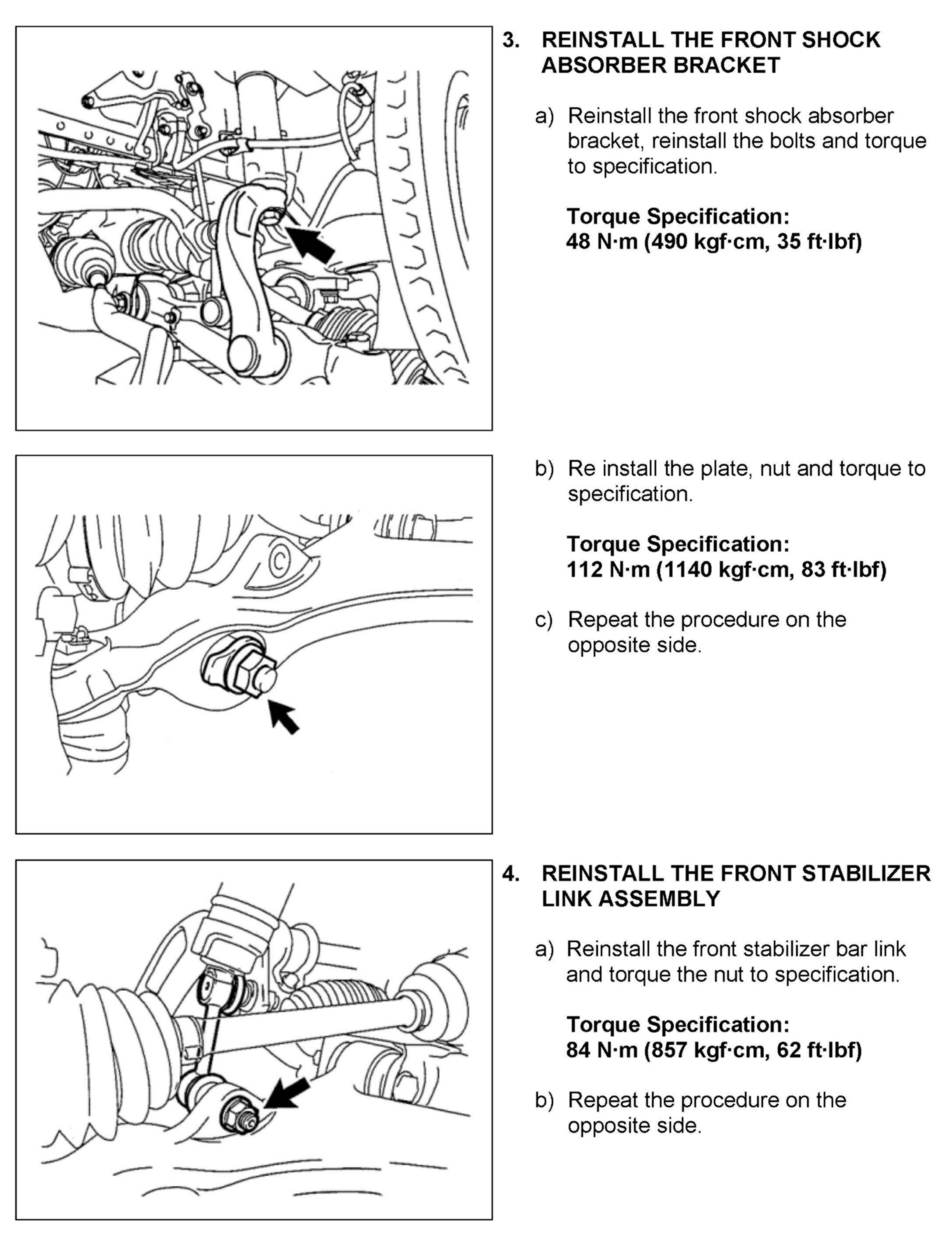

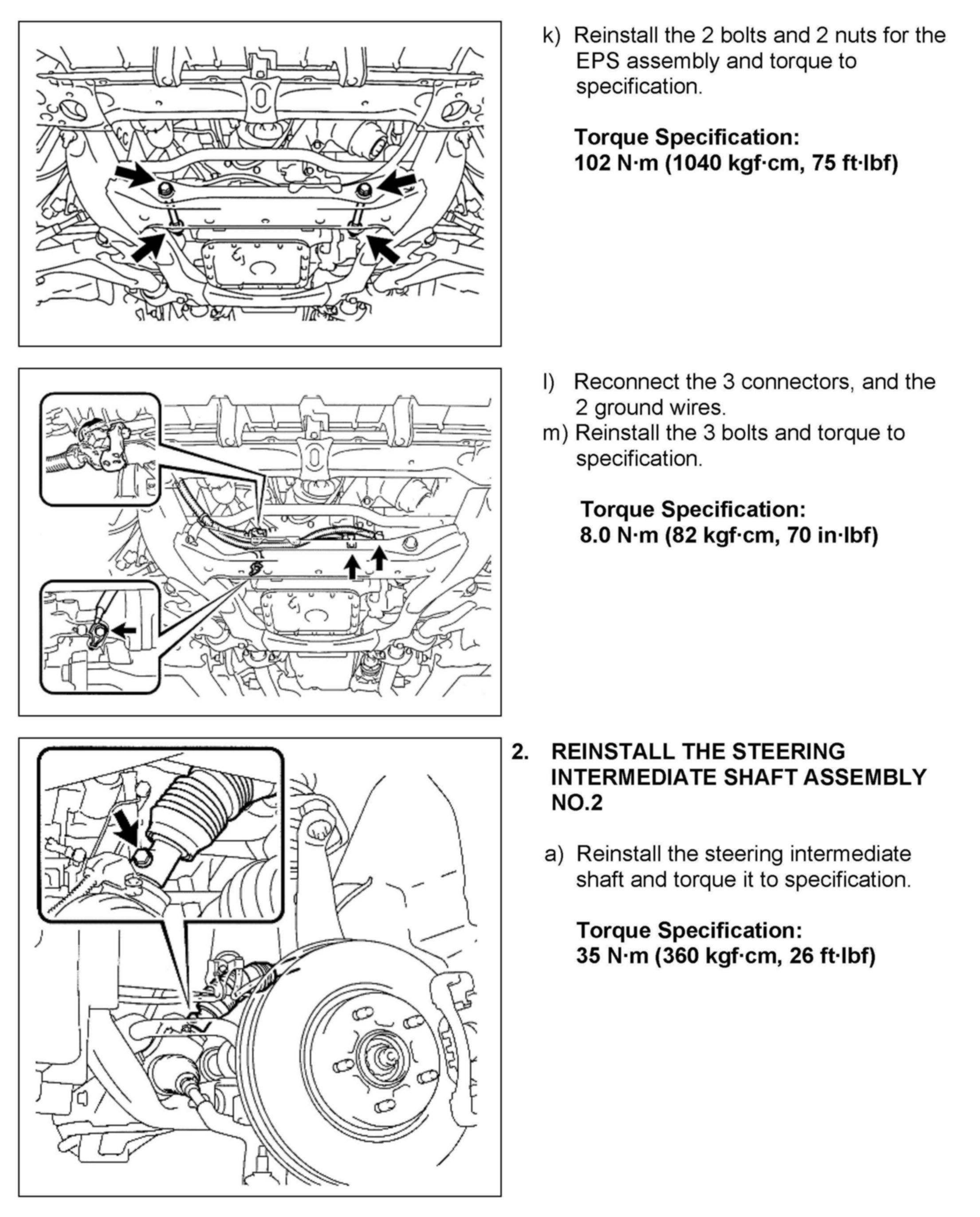

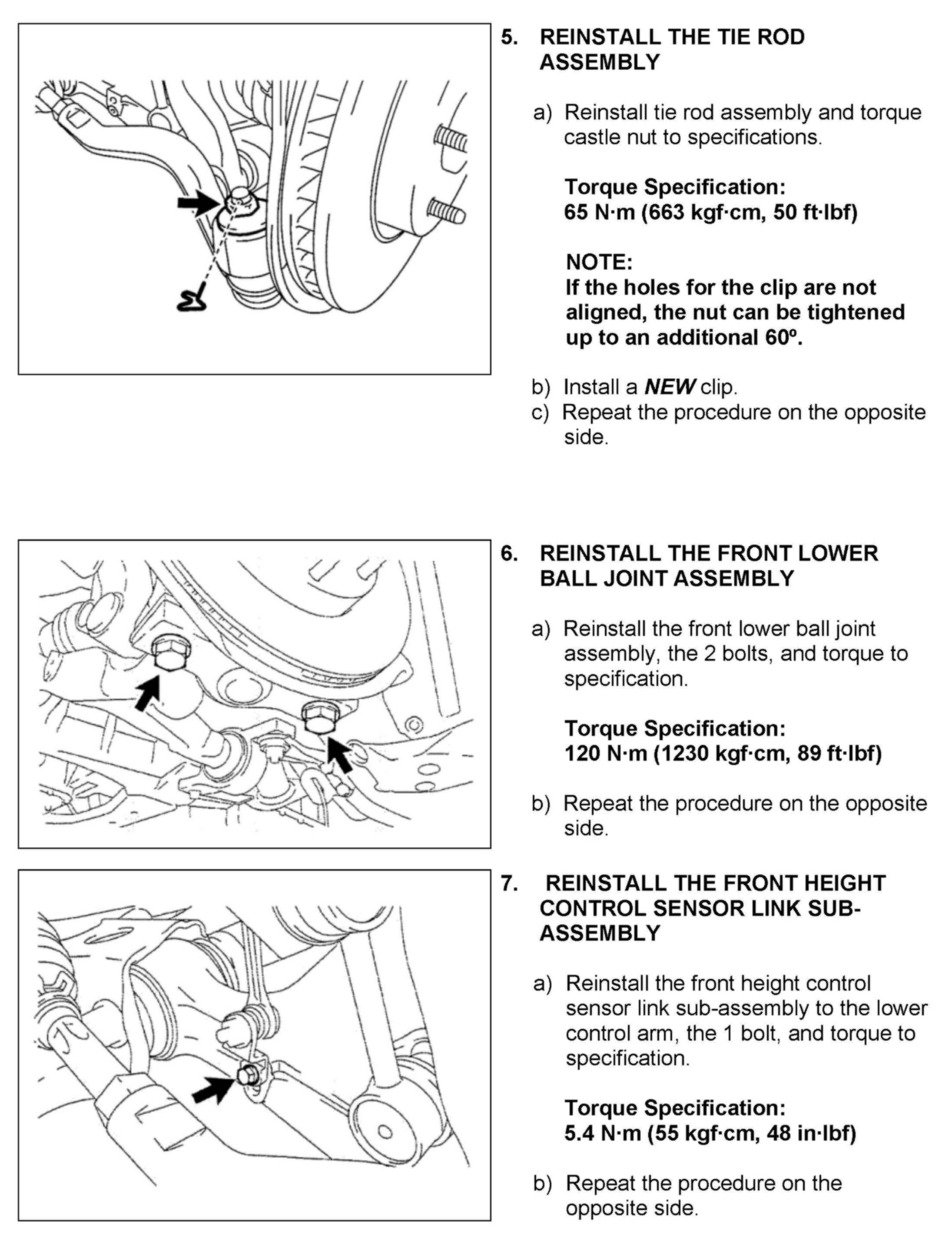

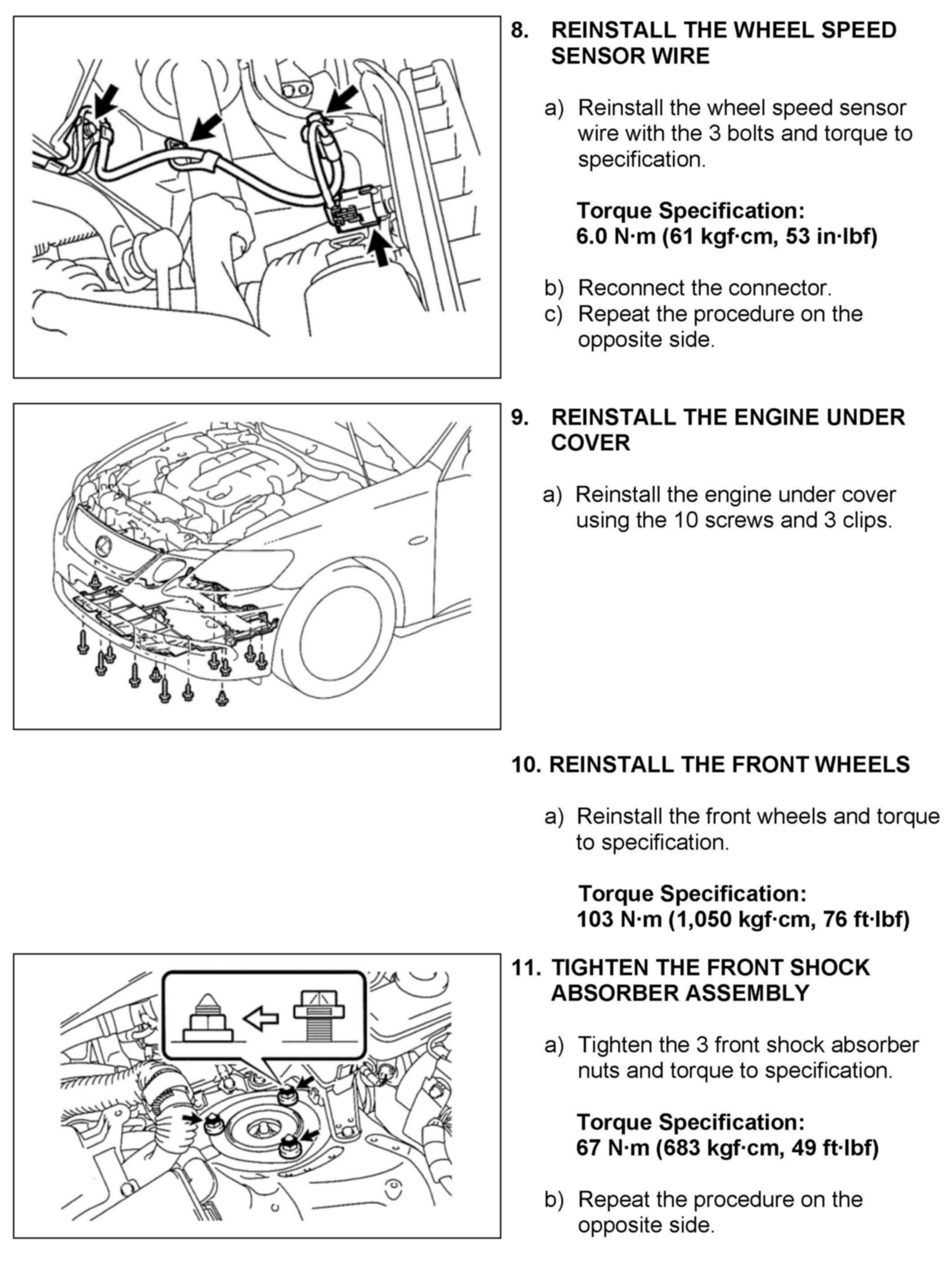

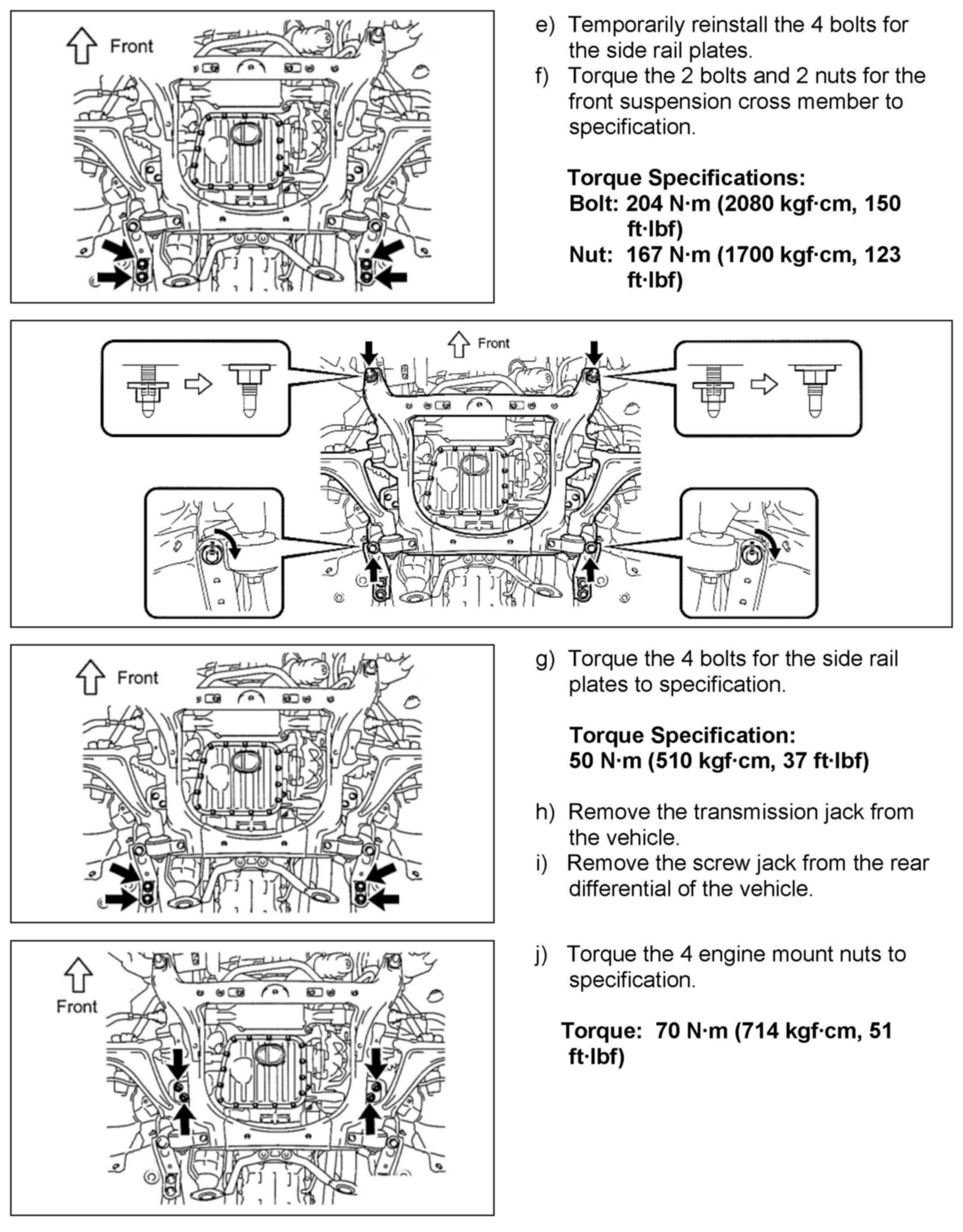

B. INSTALL THE NEW ELECTRIC POWER STEERING (EPS) ASSEMBLY
