VII. Work Procedure For GS 300 2WD & GS 430 Vehicles

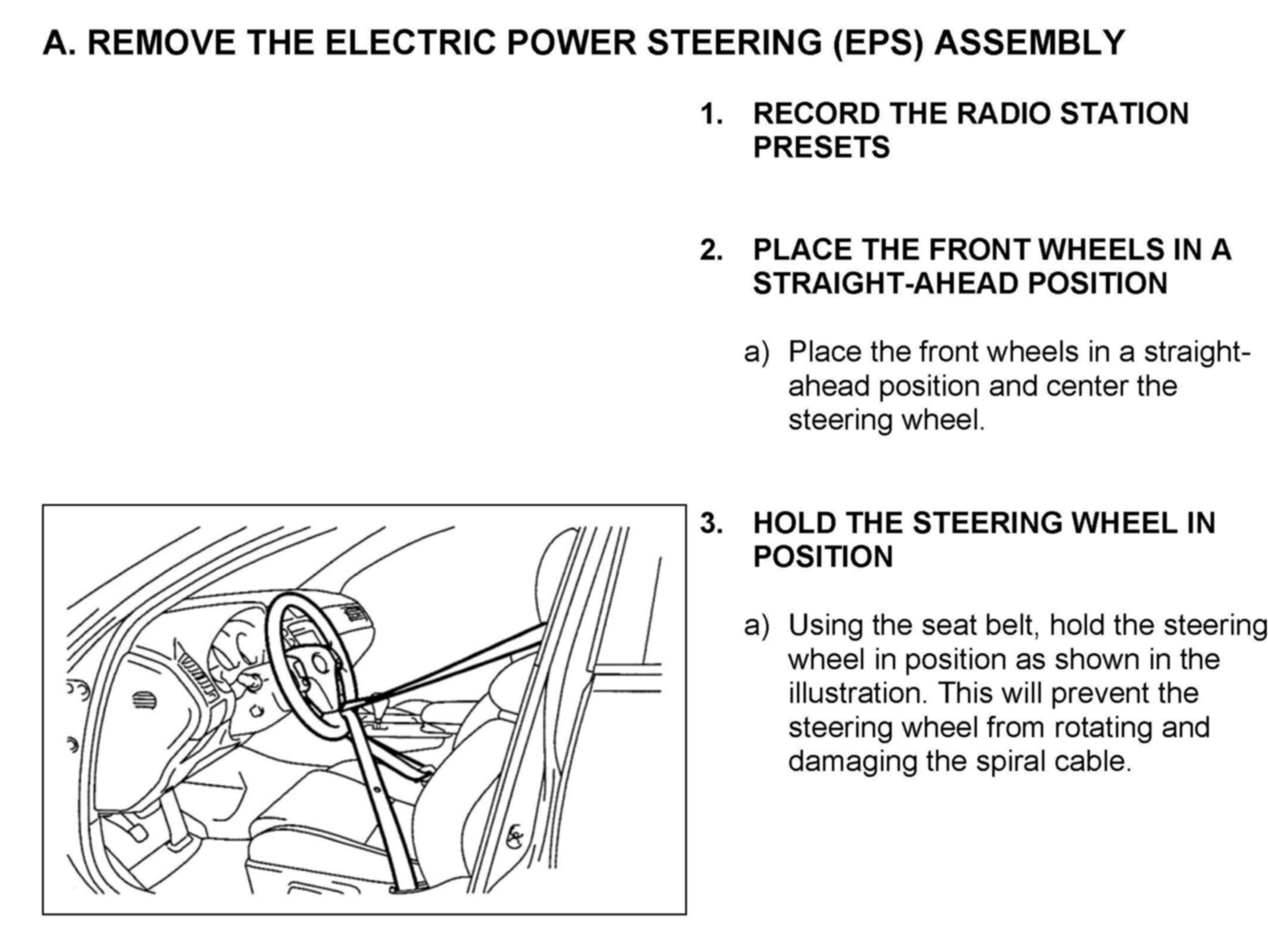

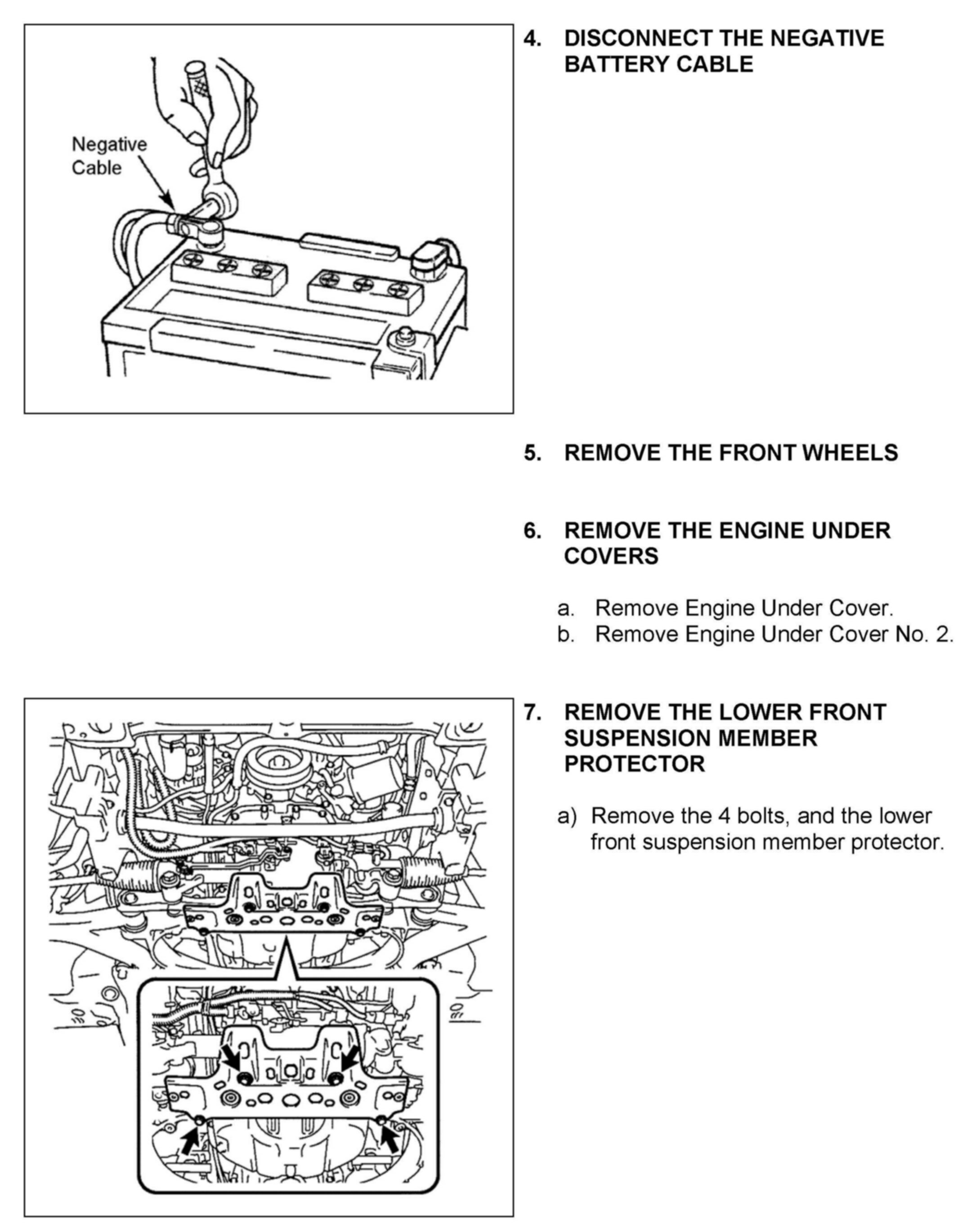

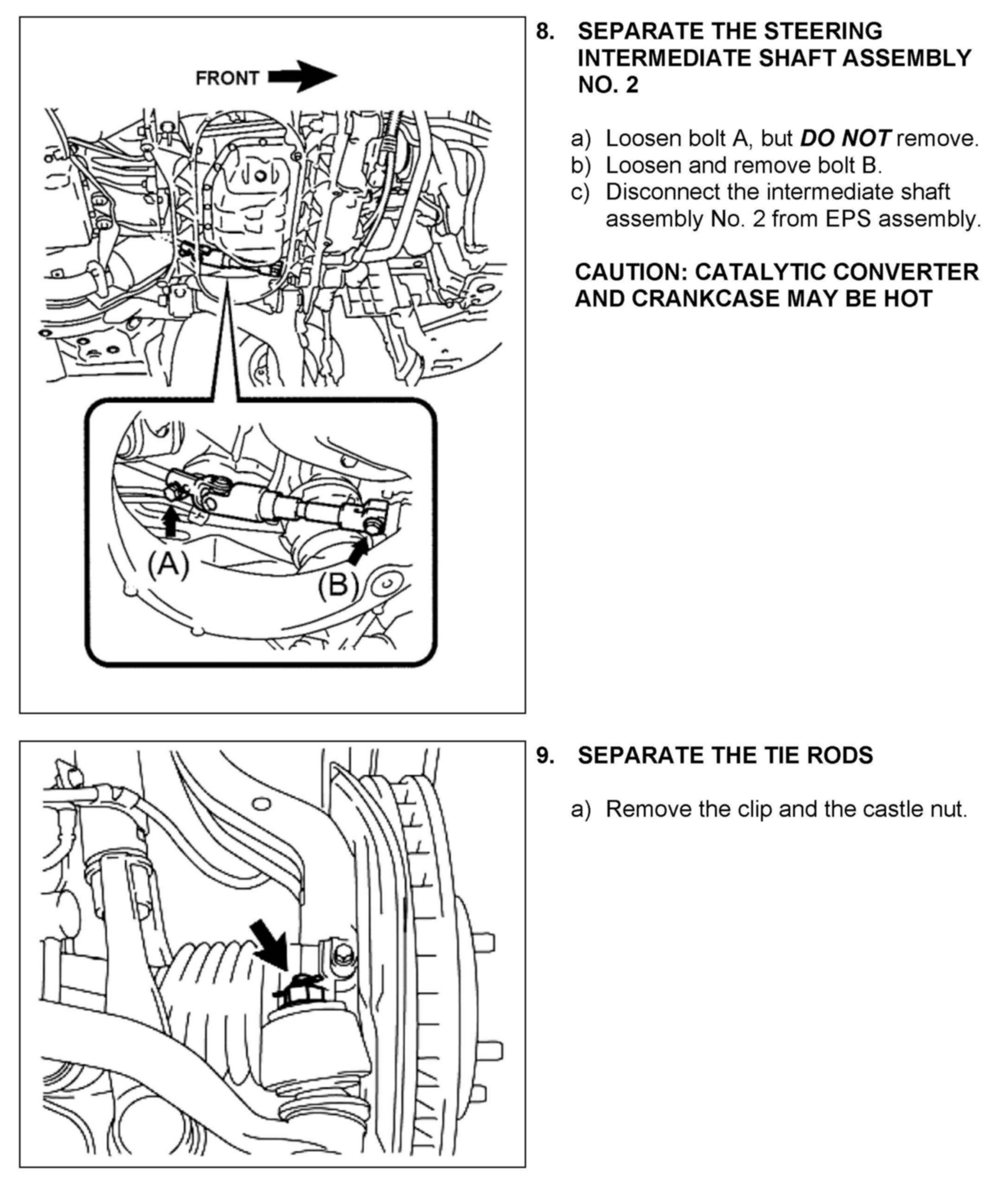

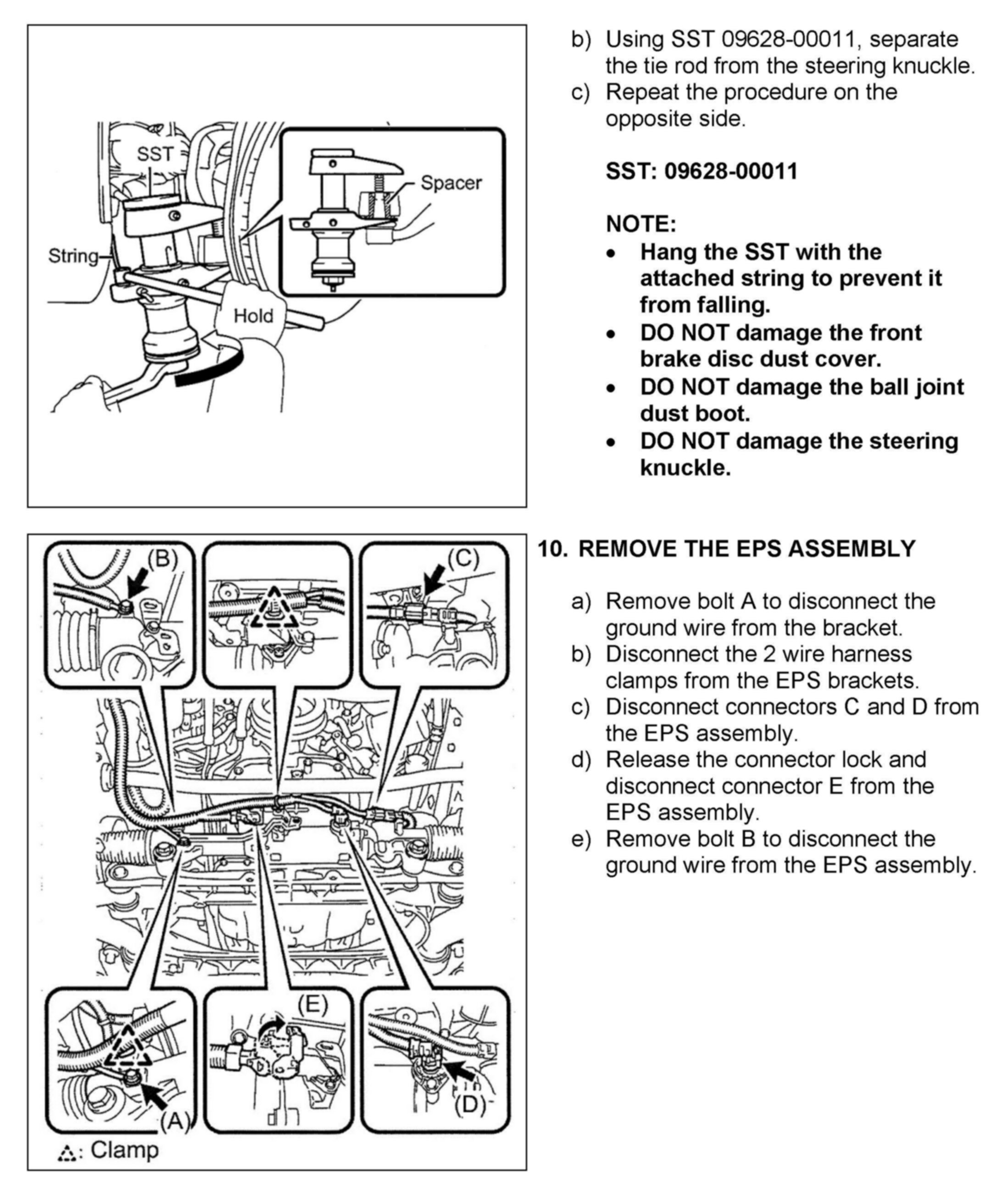

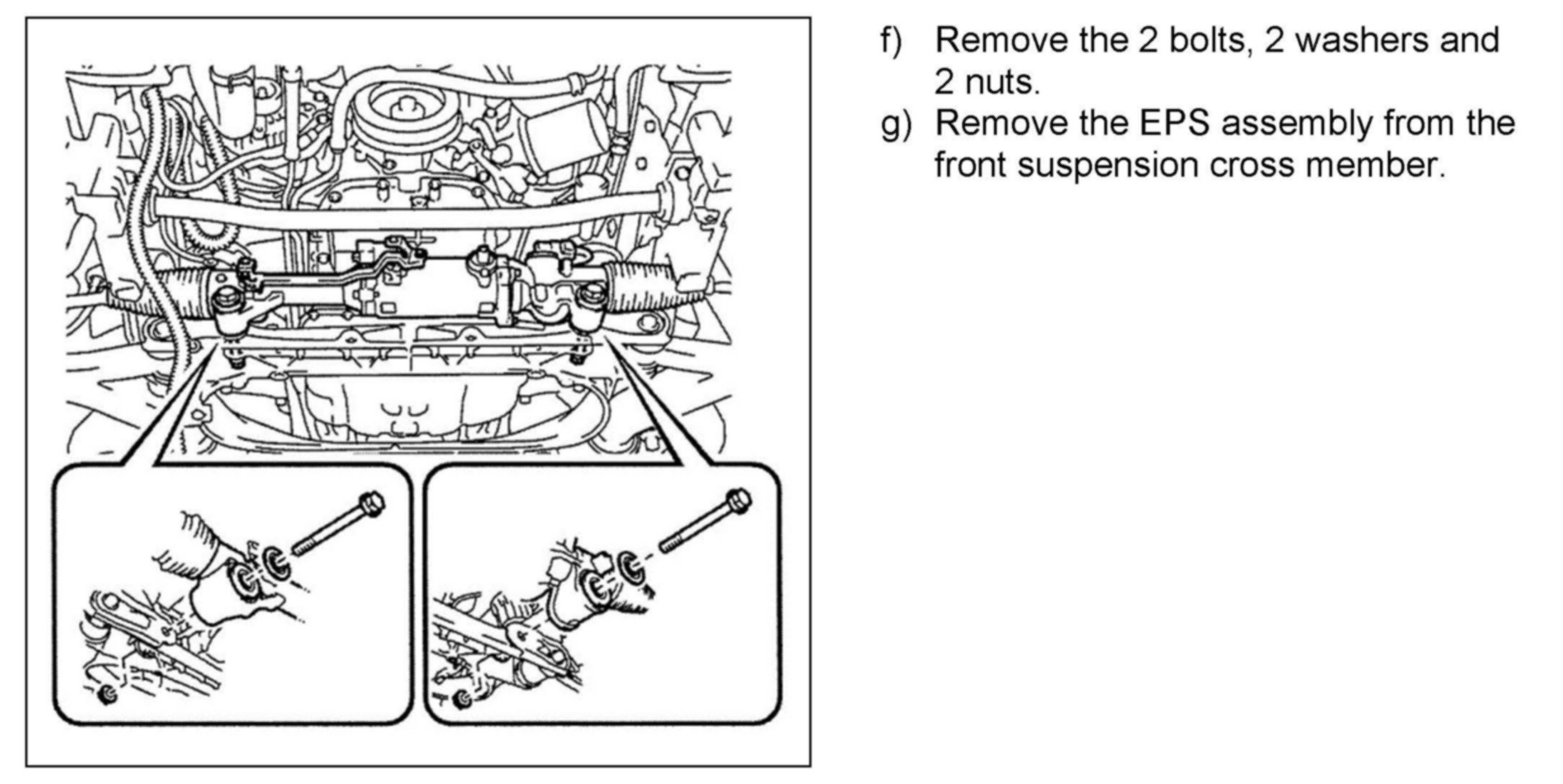

A. REMOVE THE ELECTRIC POWER STEERING (EPS) ASSEMBLY

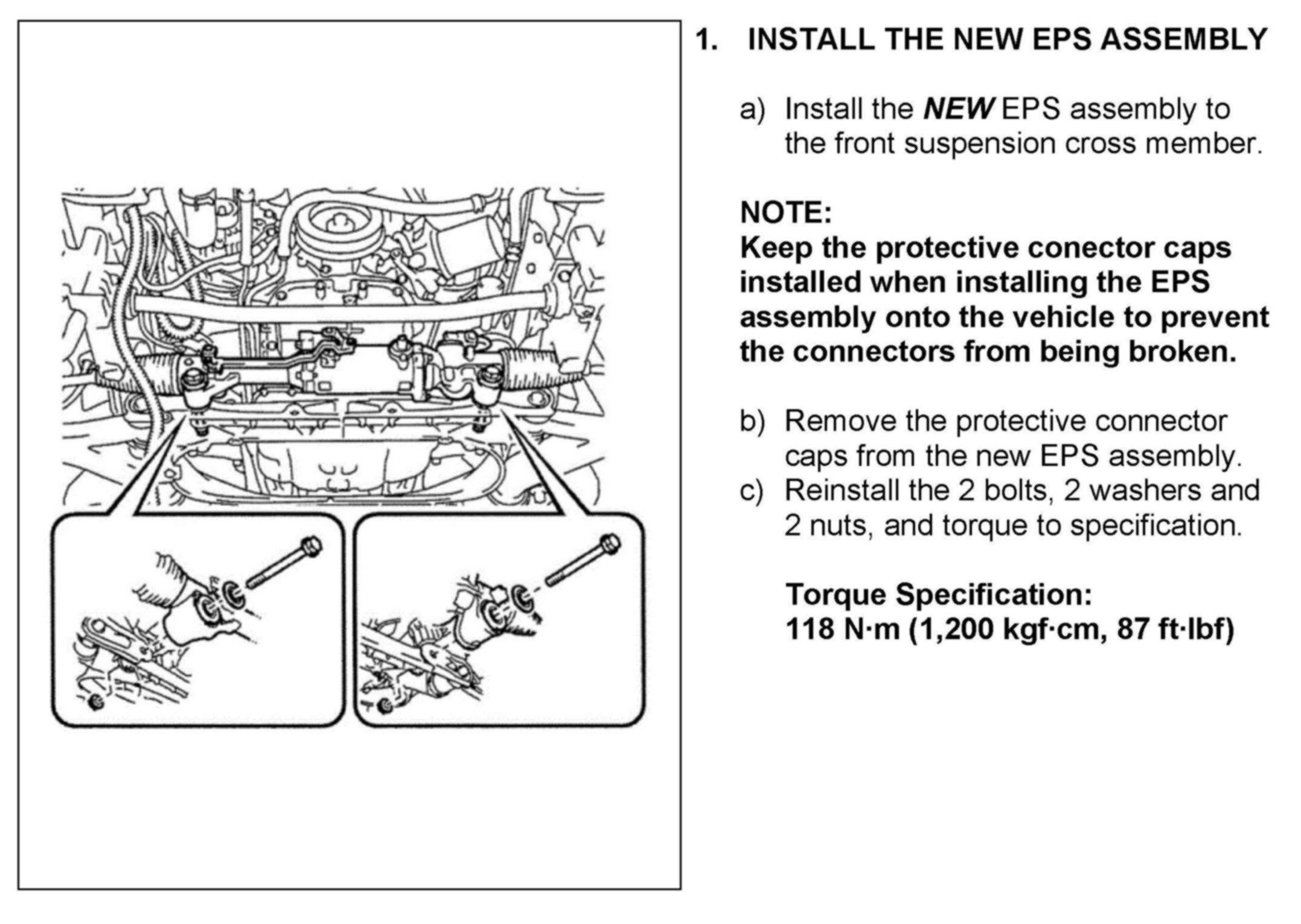

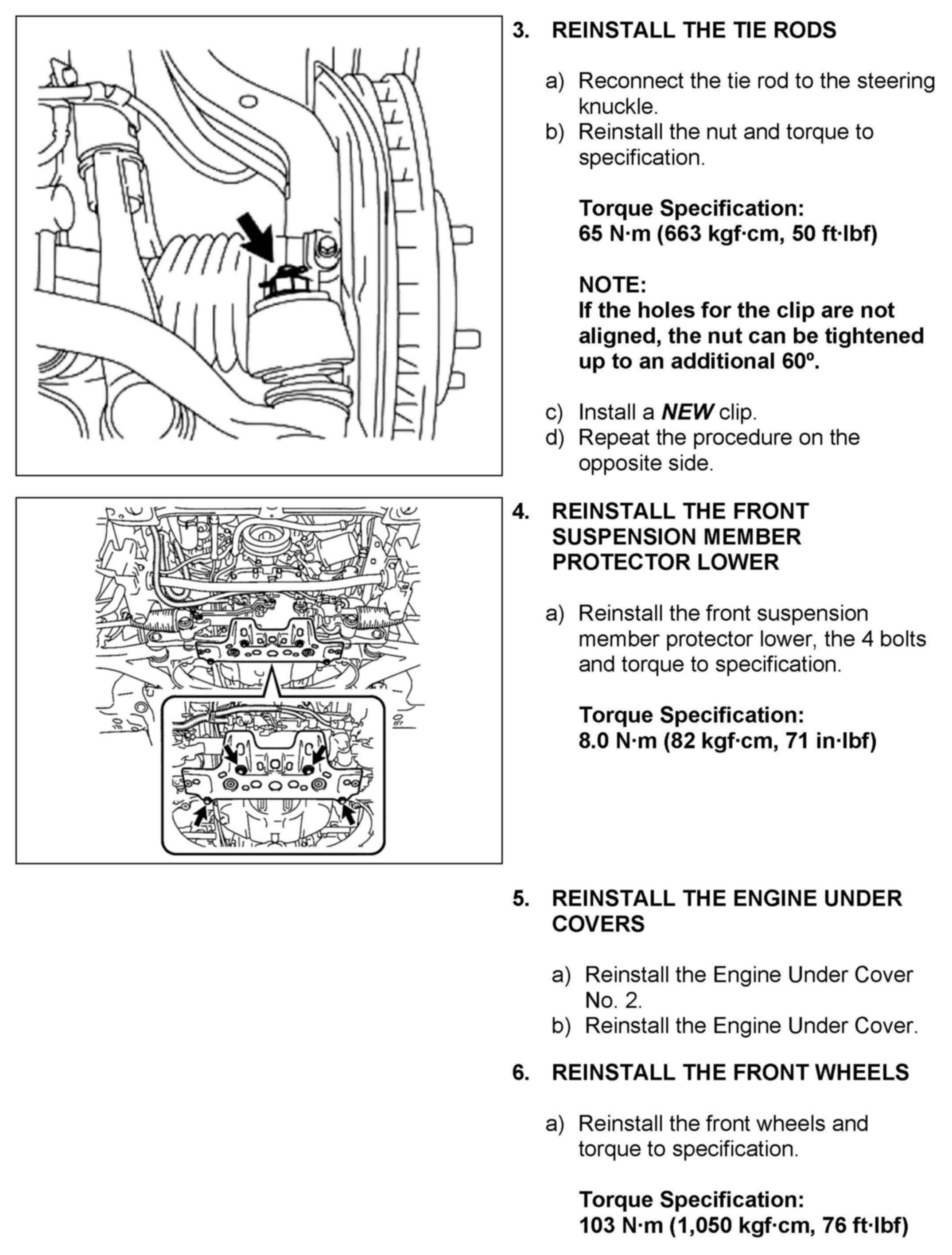

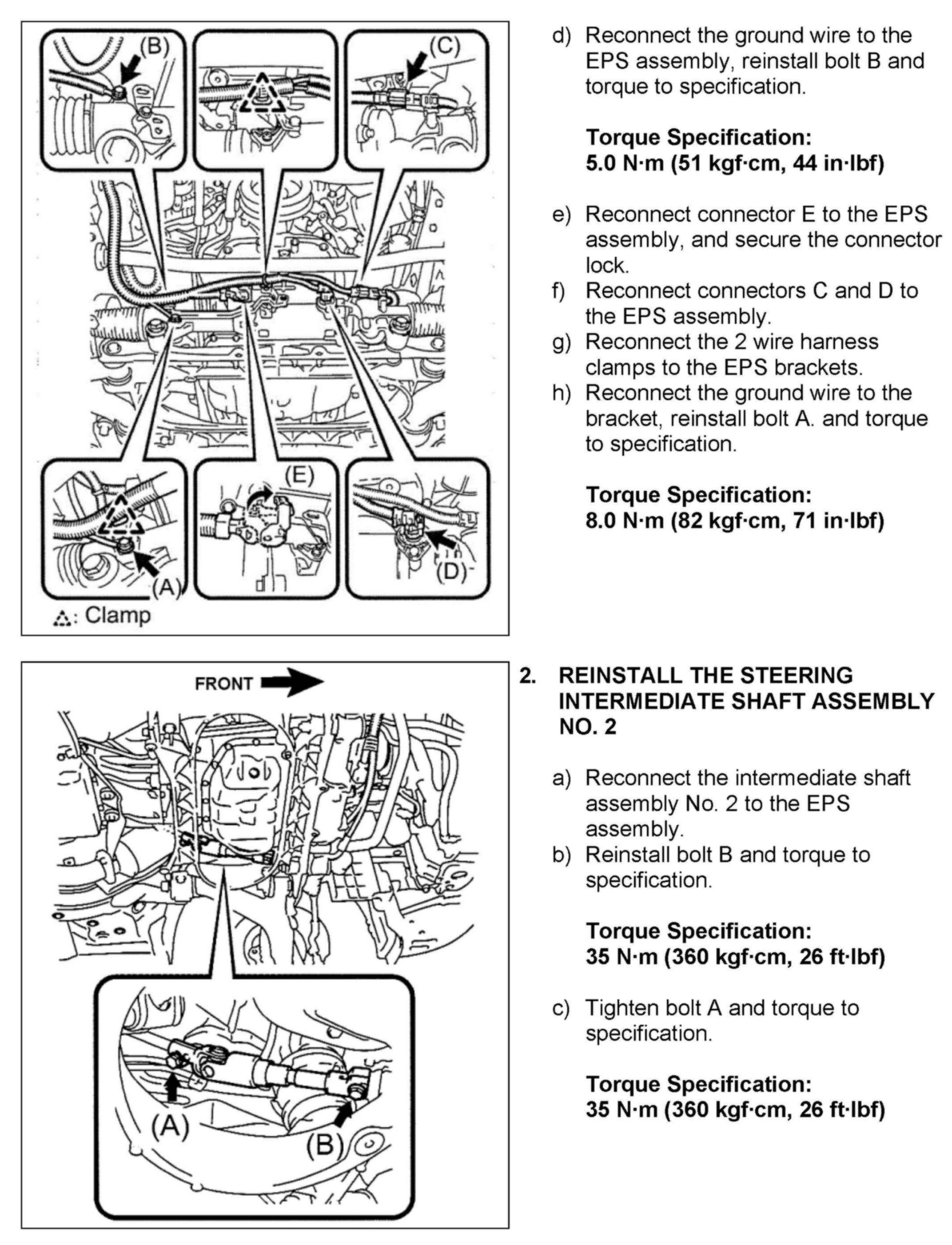

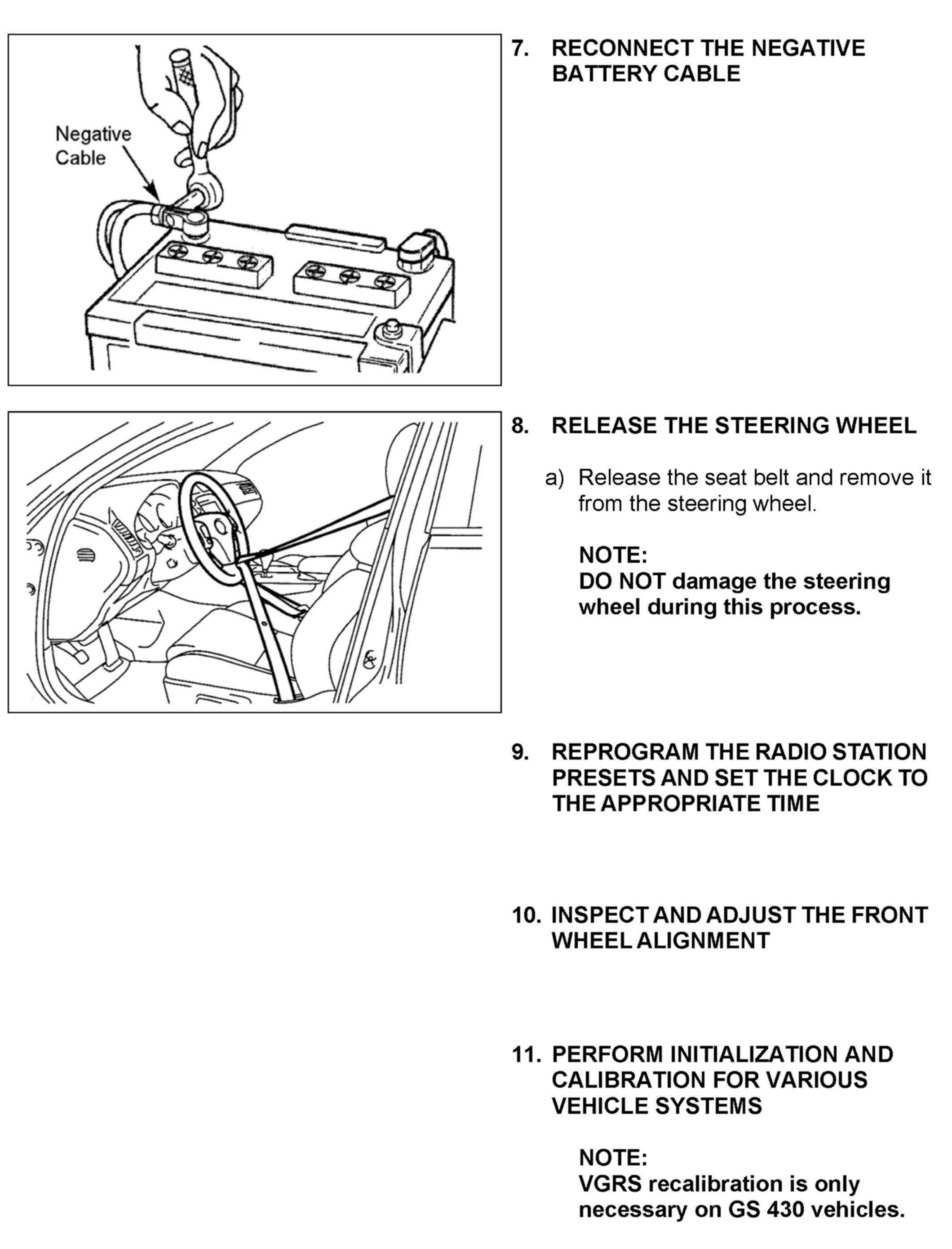

B. INSTALL THE NEW ELECTRIC POWER STEERING (EPS) ASSEMBLY
