Tire Pressure Warning Light Circuit
Tire Pressure Warning Light CircuitDESCRIPTION
When the tire pressure decreases, the ECU sends the communication signal to the combination meter assembly through the BEAN, and it indicates the tire pressure warning light on the combination meter assembly.
The tire pressure warning light also comes on when the signal for the tire pressure warning light is cut off.

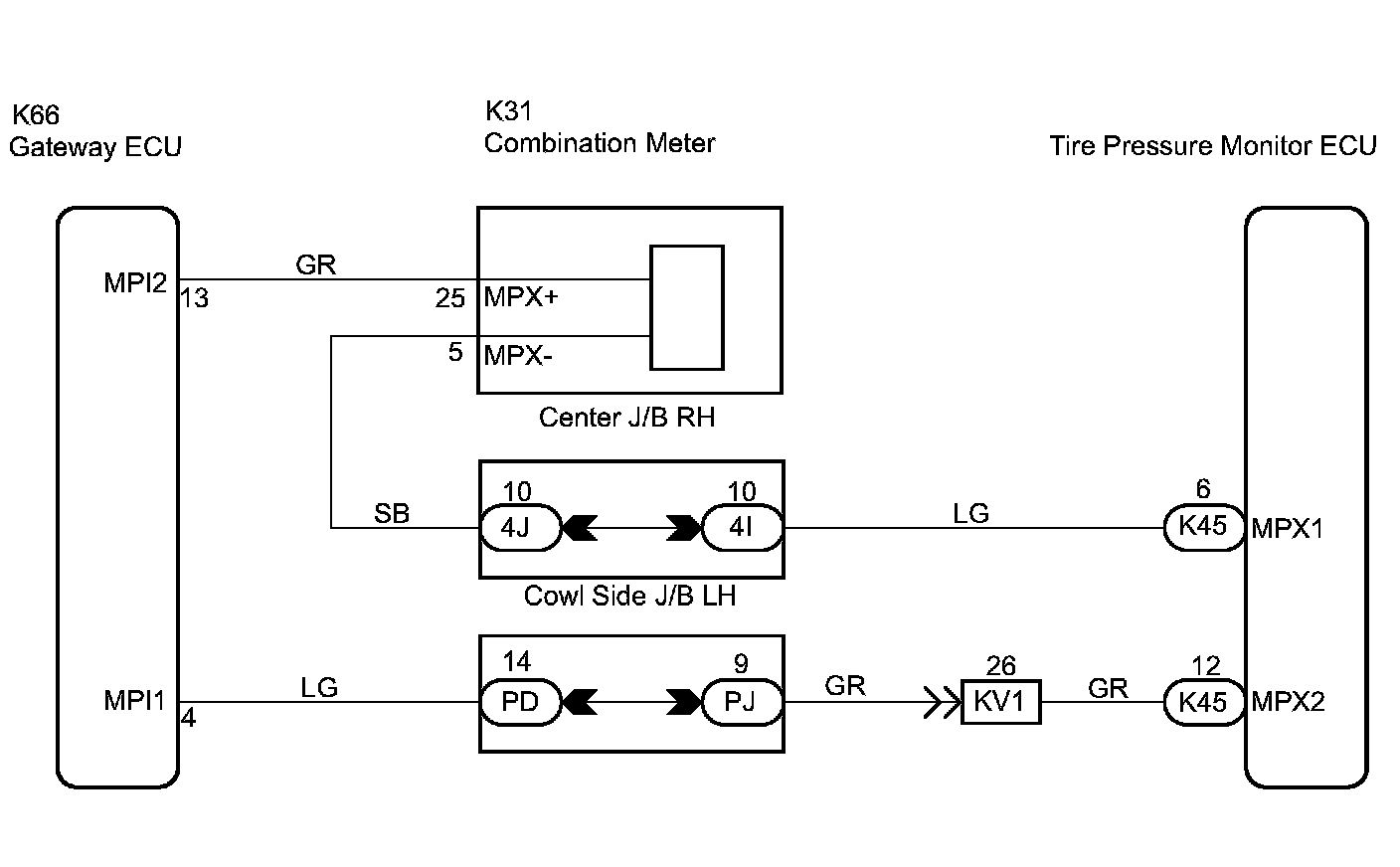

WIRING DIAGRAM:
INSPECTION PROCEDURE

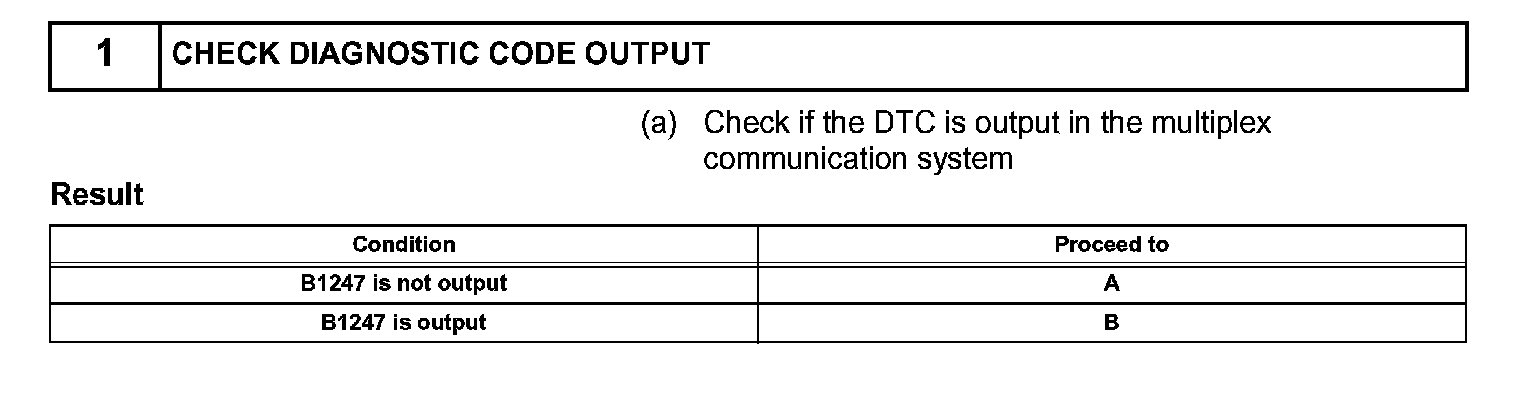

Step 1:

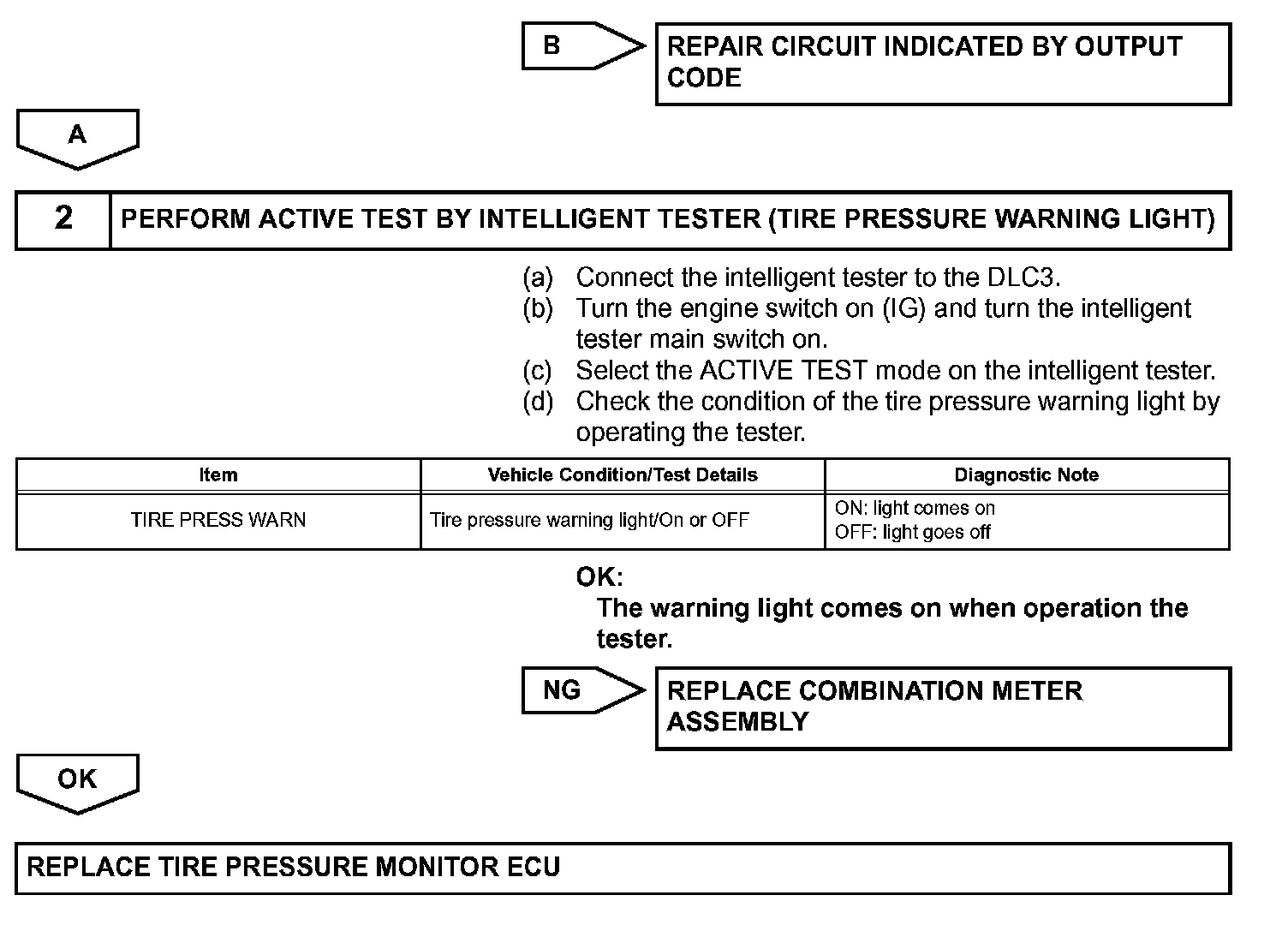

Step 1 (Continued)-2:
