Rear Suspension

REAR SHOCK ABSORBER

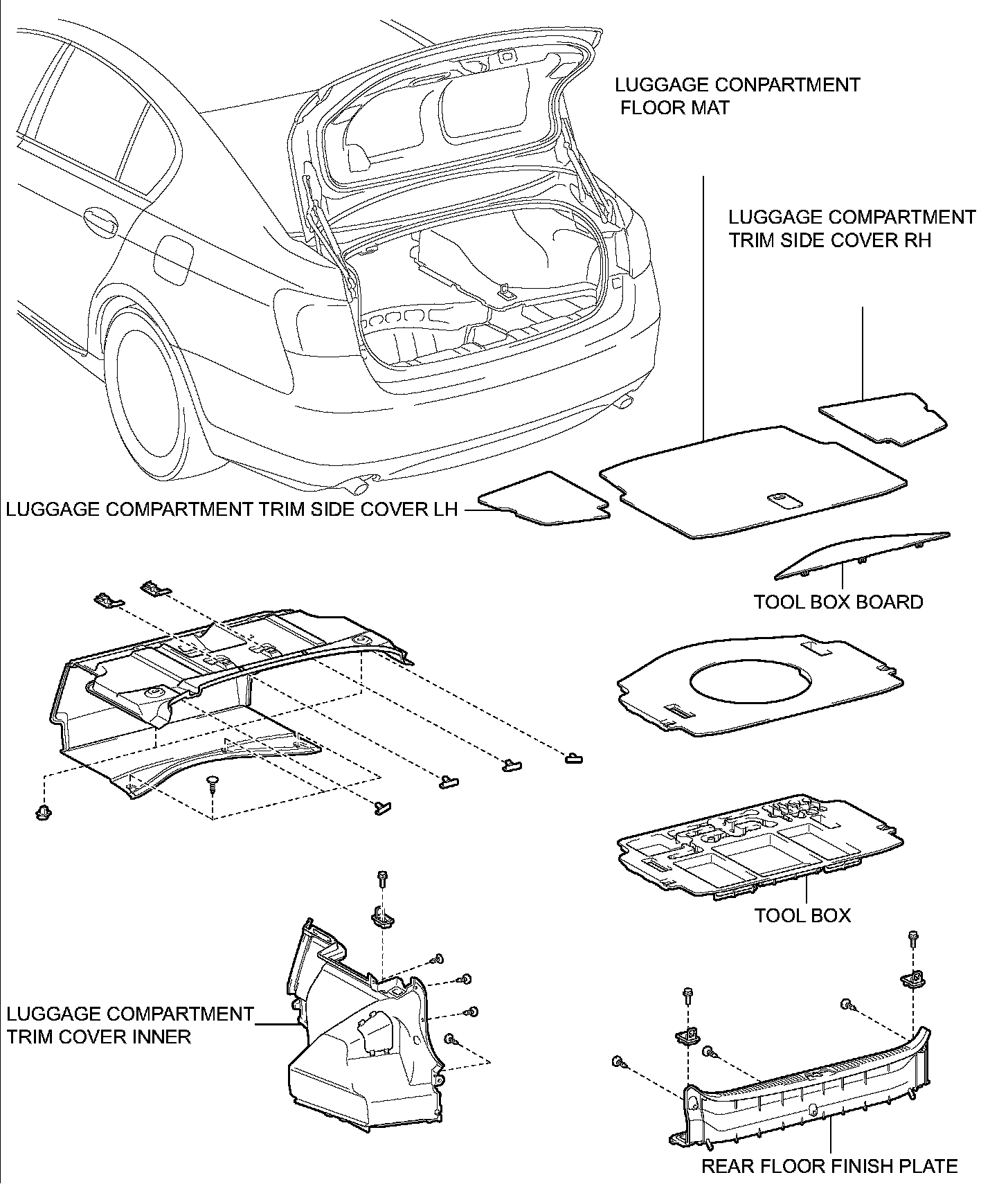

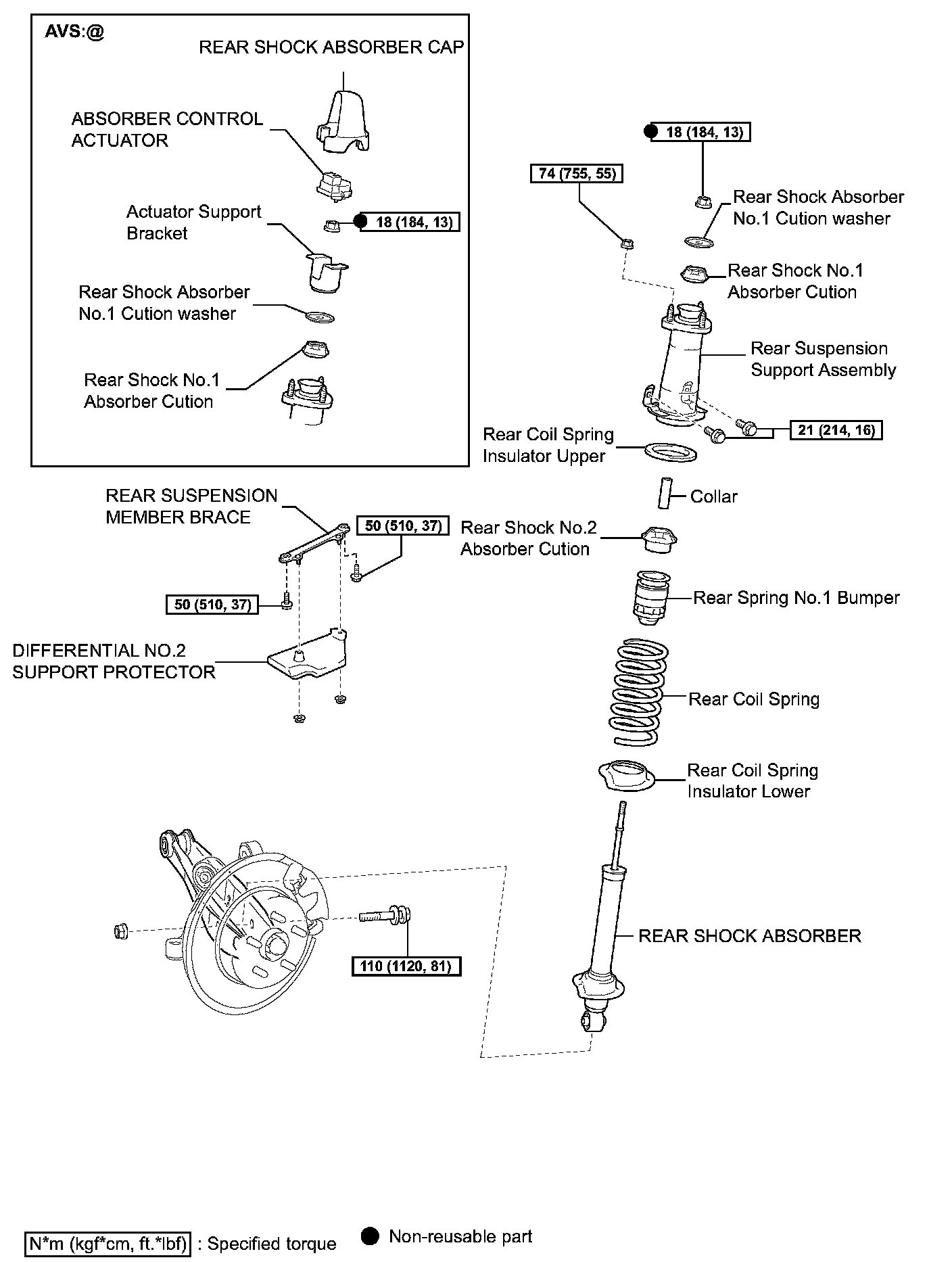

COMPONENTS:




COMPONENTS:





REMOVAL
1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVER LH
3. REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVER RH
4. REMOVE TOOL BOX BOARD
5. REMOVE TOOL BOX
6. REMOVE REAR FLOOR FINISH PLATE
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER
8. REMOVE REAR TIRE





9. REMOVE DIFFERENTIAL NO. 2 SUPPORT PROTECTOR

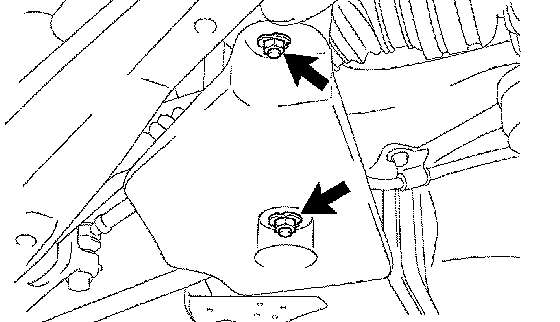

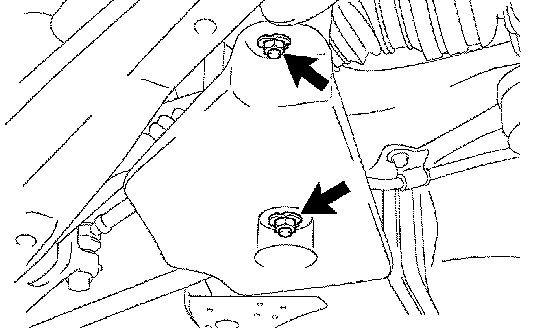

a. Remove the 2 nuts and the differential No. 2 support protector.

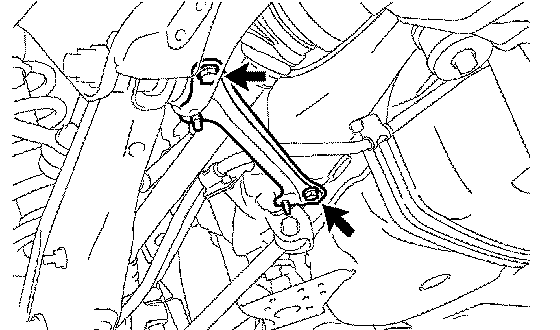

10. REMOVE REAR SUSPENSION MEMBER BRACE

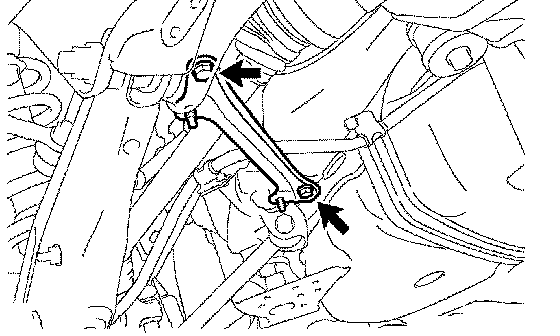

a. Remove the 2 bolts and rear suspension member brace.

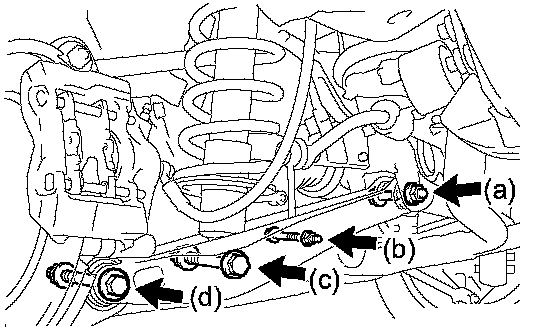

11. REMOVE REAR SUSPENSION NO. 2 ARM

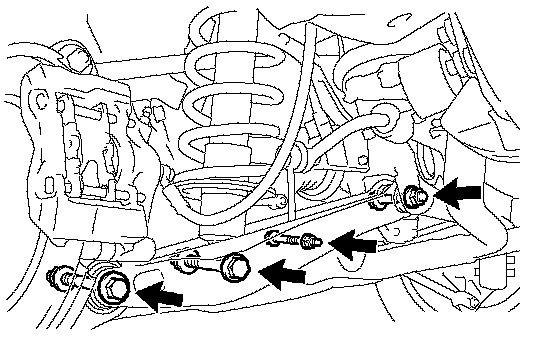

a. Loosen the nut on the rear suspension member side.

NOTICE: Do not remove the nut.

b. Remove the bolt and nut and disconnect the rear stabilizer link assembly and the load sensing valve sensor bracket.
c. Remove the bolt and nut and disconnect the rear shock absorber.

NOTICE: Turn the bolt while holding the nut.

d. Remove the nut and bolt on the rear axle carrier side.

NOTICE: Turn the bolt while holding the nut.





12. REMOVE REAR SHOCK ABSORBER CAP

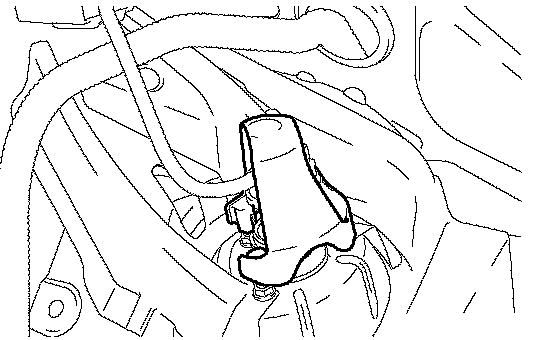

a. Remove rear shock absorber cap and disconnect the connector.





13. REMOVE ABSORBER CONTROL ACTUATOR

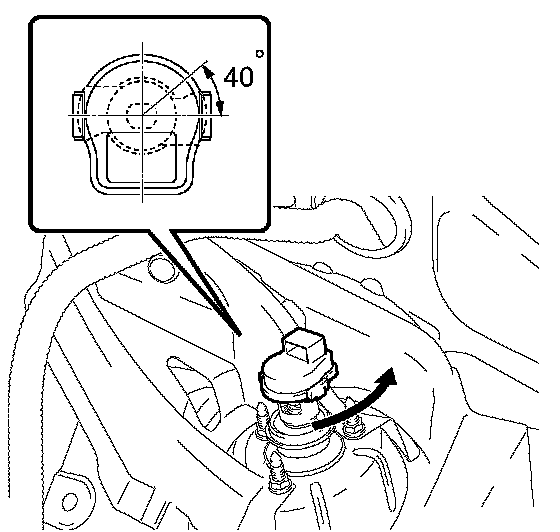

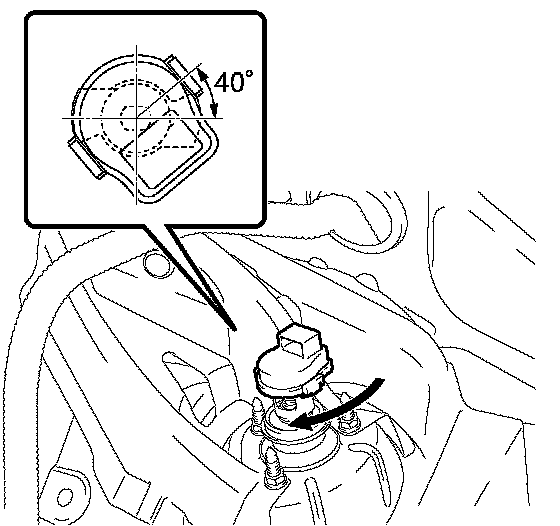

a. Turn the absorber control actuator counterclockwise approximately 40 degrees to remove it.

14. REMOVE REAR SHOCK ABSORBER WITH COIL SPRING

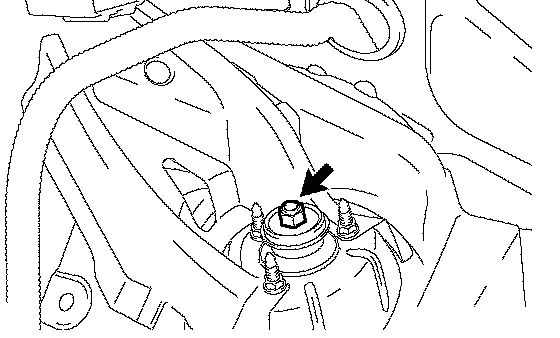

a. Loosen the lock nut of the rear shock absorber.

NOTICE:
^ Do not remove the lock nut.
^ Loosen the lock nut only when disassembling the rear shock absorber with coil spring.

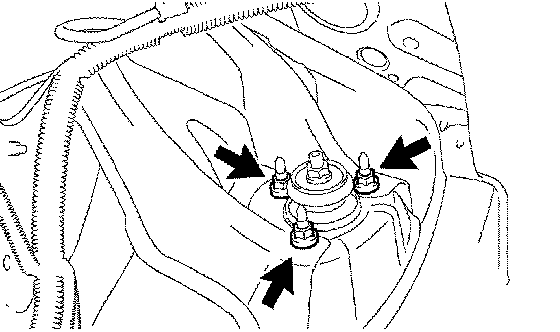

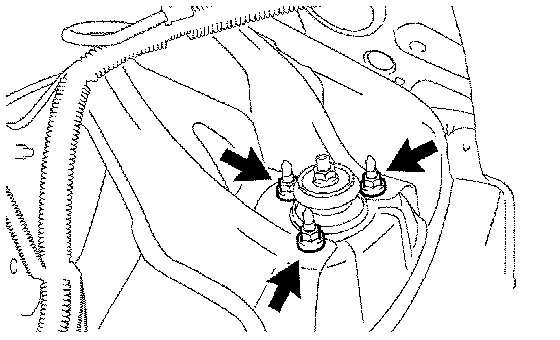

b. Remove the 3 nuts on the upper side of the rear shock absorber with coil spring.

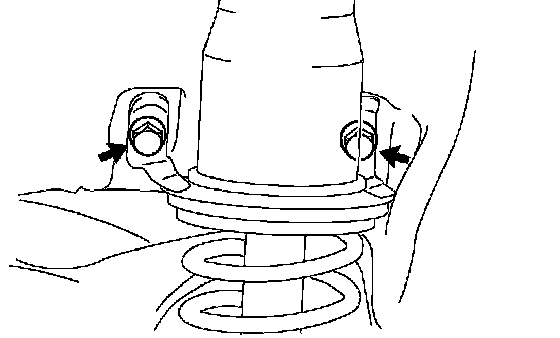

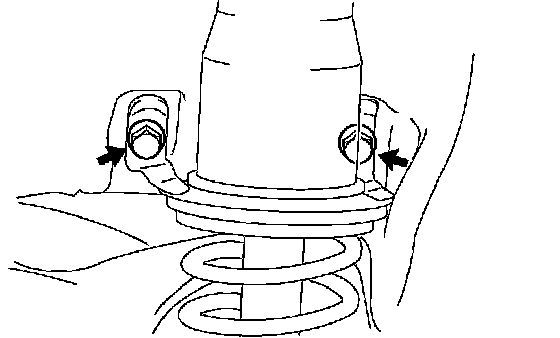

c. Remove the 2 bolts and the rear shock absorber with coil spring from the body.

NOTICE: During this operation, hold the rear shock absorber with coil spring to prevent it from failing.

DISASSEMBLY





1. REMOVE REAR SHOCK ABSORBER

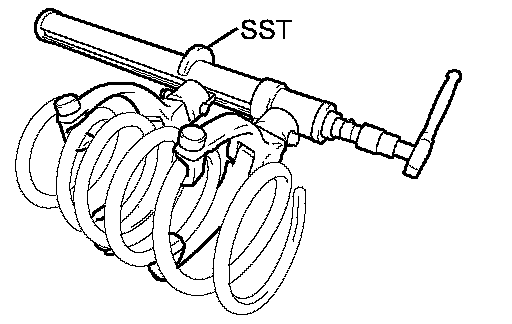

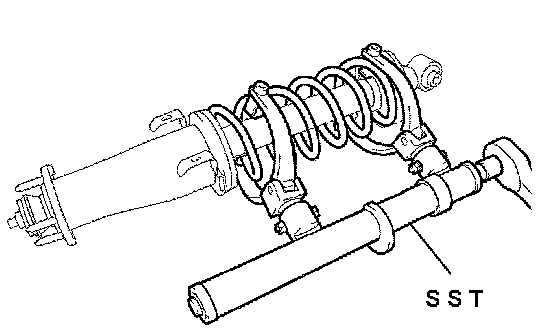

a. Install SST to the rear coil spring so that the distance between the upper and lower hooks is as wide as possible within the installation area.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)
b. Compress the rear coil spring until it can be moved freely

NOTICE: Do not use an impact wrench. It will damage the SST.

HINT: The rear coil spring can also be compressed using a hydraulic spring compressor.

c. Remove the nut.
d. Remove the rear shock absorber cushion washer No. 1, rear shock absorber cushion No. 1, rear suspension support assembly, rear coil spring insulator upper, collar, rear shock absorber cushion No. 2, and rear spring bumper No. 1.
e. Remove the rear coil spring and rear coil spring insulator lower from the rear shock absorber. Release the SST and remove the rear coil spring.

INSPECTION
1. INSPECT REAR SHOCK ABSORBER

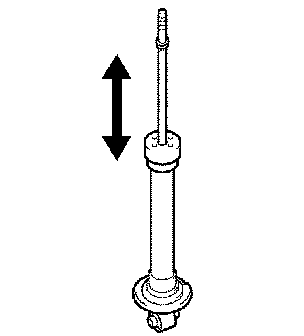

a. Extend and compress the rear shock absorber.
Standard: When extending and compressing the rear shock absorber at a constant speed, it can be moved without any abnormal resistance or noise and load is constant through the entire stroke. It also extends at a constant speed after being compressed.
If there is any abnormality, replace the rear shock absorber with a new one.

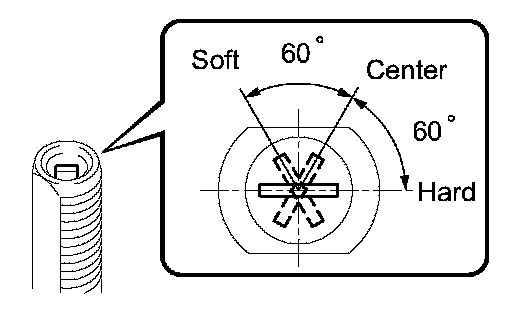

b. Check that there is a difference in the damping force when the rod is positioned as shown. (for AVS)


REASSEMBLY
1. INSTALL REAR SHOCK ABSORBER





a. Using SST, compress the rear coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

HINT: The rear coil spring can also be compressed using a hydraulic spring compressor.





b. Install the rear coil spring insulator lower and fit the rear coil spring end into the recessed part of the rear shock absorber lower seat.
c. Install the rear spring bumper No. 1.

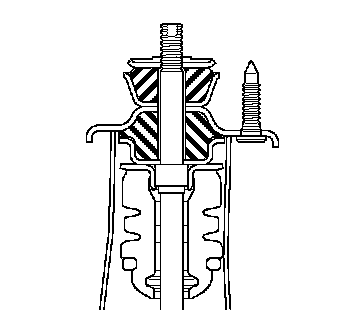

d. Install the rear coil spring insulator upper, rear shock absorber cushions No. 1 and No. 2, and collar to the rear suspension support assembly.

NOTICE: Make sure that the rear shock absorber cushions No. 1 and No. 2 are installed in the correct direction.





e. Install the rear suspension support assembly and rear shock absorber cushion washer No. 1.

NOTICE: Make sure that the rear shock absorber cushion washer No. 1 is installed with the recessed part facing upward.

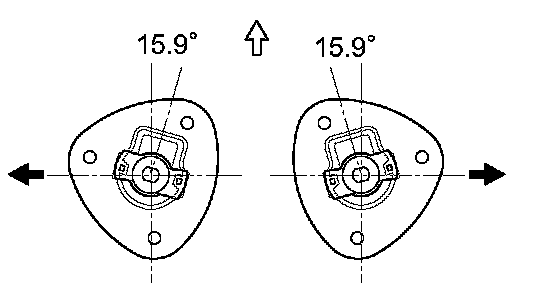

f. Align the width across flat on the piston rod end of the shock absorber and the width across flat on the suspension support bracket. Then align the center of the actuator support bracket and the stud bolt as shown in the illustration to install the rear suspension support to the rear shock absorber. (for AVS)
g. Temporarily tighten a nut.

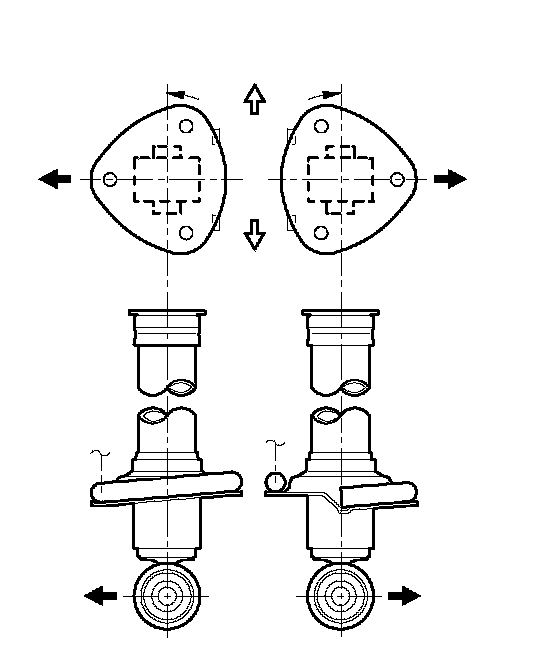

h. Adjust the rear suspension support assembly to the installation position of the lower part of the rear shock absorber so that the studs are positioned as shown in the illustration.

NOTICE: Make sure that the left coil spring end faces toward the front of the vehicle and the right coil spring end faces toward the rear.

i. Release the SST and remove it from the rear coil spring.

NOTICE:
^ Do not an impact wrench. It will damage the SST.
^ Remove the SST after confirming the position of the rear suspension support assembly.

INSTALLATION
1. INSTALL REAR SHOCK ABSORBER WITH COIL SPRING





a. Temporarily install the rear shock absorber with rear coil spring with the 2 bolts.





b. Install the 3 nuts on the upper side of the rear shock absorber with coil spring.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)





c. Tighten the lock nut.
Torque: 18 Nm (184 kgf-cm, 13 ft. lbs.)

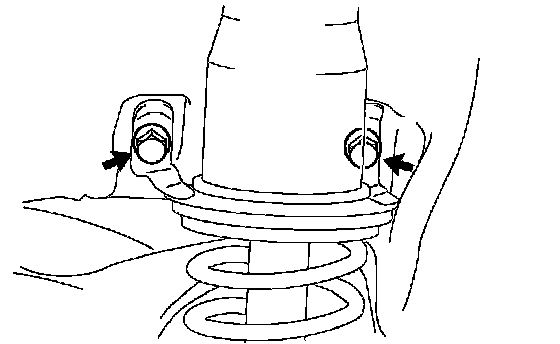

d. Tighten the 2 bolts.
Torque: 21 Nm (214 kgf-cm, 16 ft. lbs.)

2. INSTALL ABSORBER CONTROL ACTUATOR
a. Check that the control rod of the rear shock absorber is in the position shown in the illustration.

NOTICE: If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position and install the absorber control actuator.





b. Install the absorber control actuator to the actuator support bracket. Turn the actuator clockwise approximately 40° until a click is felt.

NOTICE: Do not excessively turn the actuator.





3. INSTALL REAR SHOCK ABSORBER CAP
a. Connect the connector and install the shock absorber cap.





4. TEMPORARILY TIGHTEN REAR SUSPENSION NO. 2 ARM
a. Temporarily install the rear suspension No. 2 arm with the bolt and nut.
b. Temporarily install the rear shock absorber with rear coil spring with the bolt and nut.
c. Temporarily install the rear stabilizer link assembly and the load sensing valve sensor bracket to the rear suspension No. 2 arm with the bolt and nut.

5. STABILIZE SUSPENSION
6. FULLY TIGHTEN REAR SUSPENSION NO. 2 ARM





7. INSTALL REAR SUSPENSION MEMBER BRACE
a. Install the rear suspension member brace with the 2 bolts.
Torque: 50 Nm (510 kgf-cm, 37 ft. lbs.)





8. INSTALL DIFFERENTIAL NO. 2 SUPPORT PROTECTOR
a. Install the differential No. 2 support protector with the 2 nuts.
9. INSTALL REAR TIRE
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)

10. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER
11. INSTALL REAR FLOOR FINISH PLATE
12. INSTALL TOOL BOX
13. INSTALL TOOL BOX BOARD
14. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER LH
15. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER RH
16. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
17. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
18. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT
19. PREPARATION FOR HEADLIGHT AIMING
20. HEADLIGHT AIMING INSPECTION
21. HEADLIGHT AIMING ADJUSTMENT

DISPOSAL





1. DISPOSE OF REAR SHOCK ABSORBER
a. Fully extend the rear shock absorber rod.

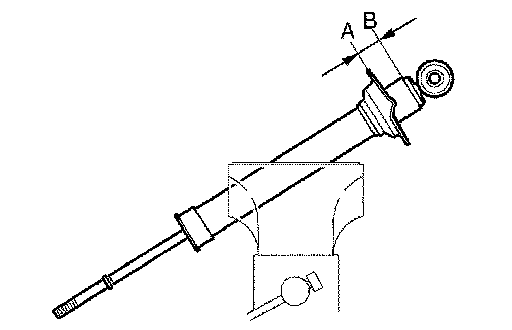

b. Using a drill, make a hole in the cylinder somewhere between A and B, as shown in the illustration, to discharge the gas inside.

CAUTION:
^ Be careful when drilling because shards of metal may fly about. Always use proper safety equipment.
^ The gas is colorless, odorless and nonpoisonous.
