Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEHINT:
^ If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
^ Inspect the fuse before inspecting the circuits shown in the chart.
^ Inspect each malfunction circuit in numerical order for the corresponding symptom.
^ If any malfunction still exists even after checking and confirming that all the circuits are normal, replace the absorber control ECU.

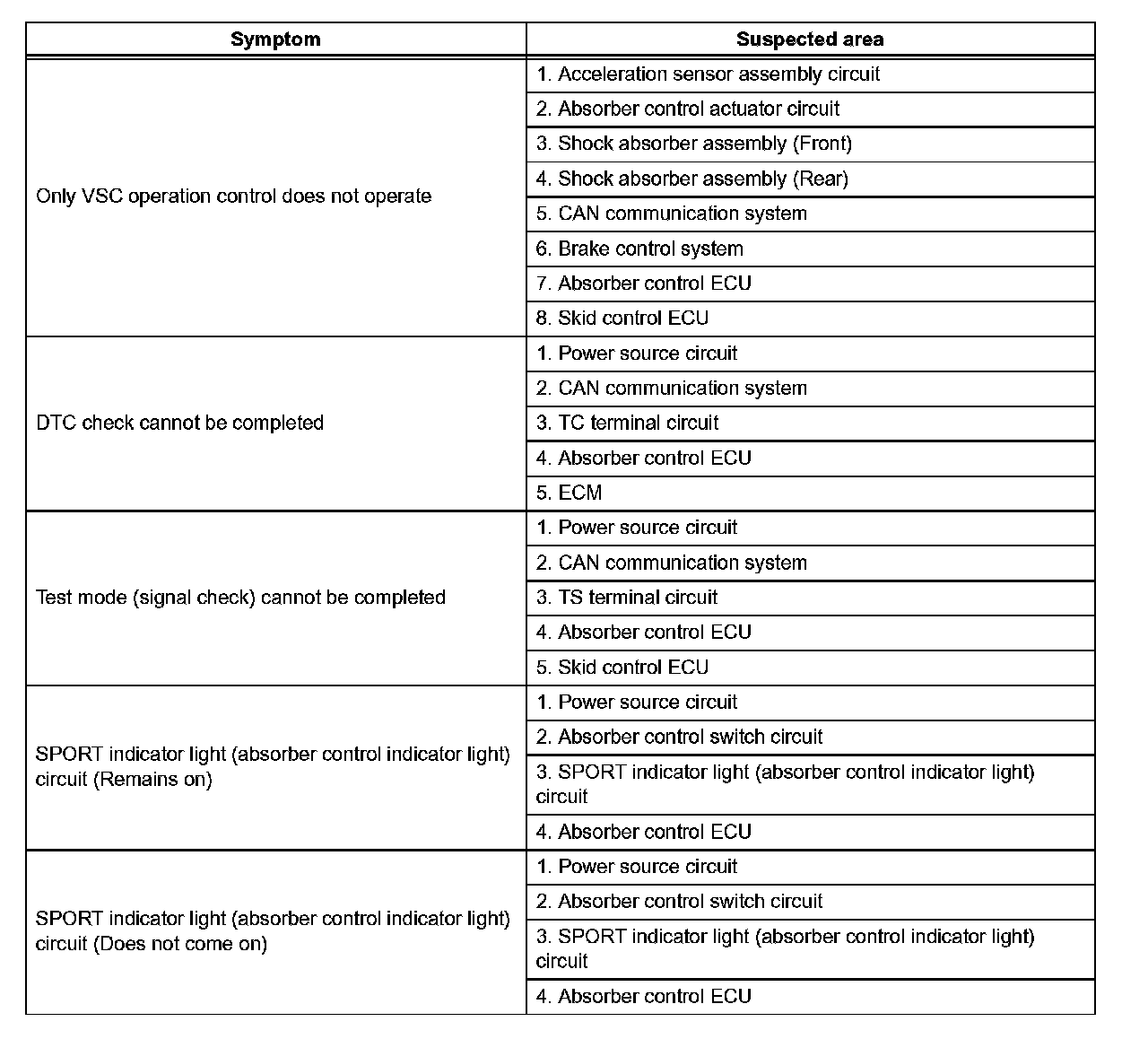

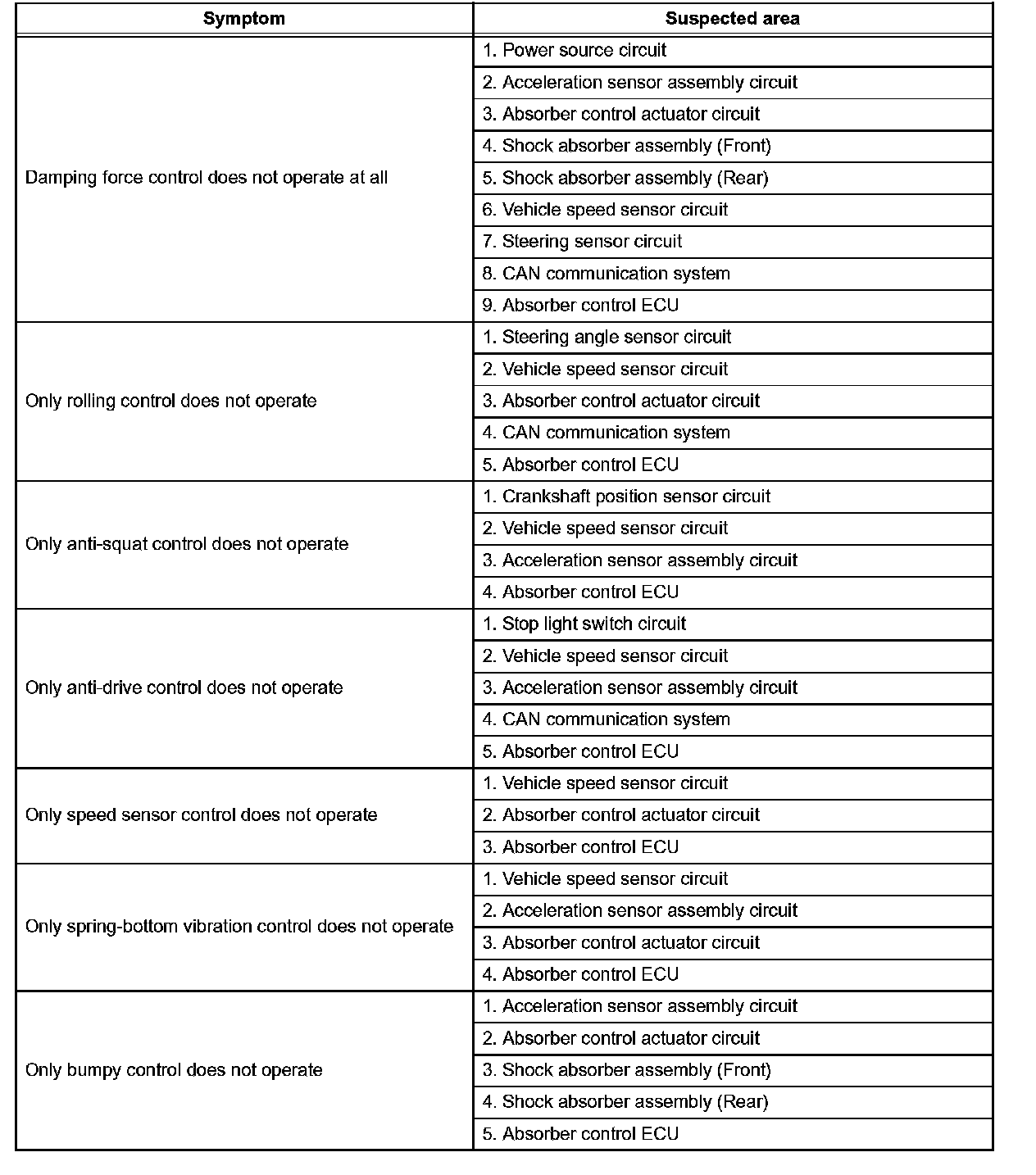

PROBLEM SYMPTOMS TABLE:
PROBLEM SYMPTOMS TABLE:
