Pinout Values and Diagnostic Parameters

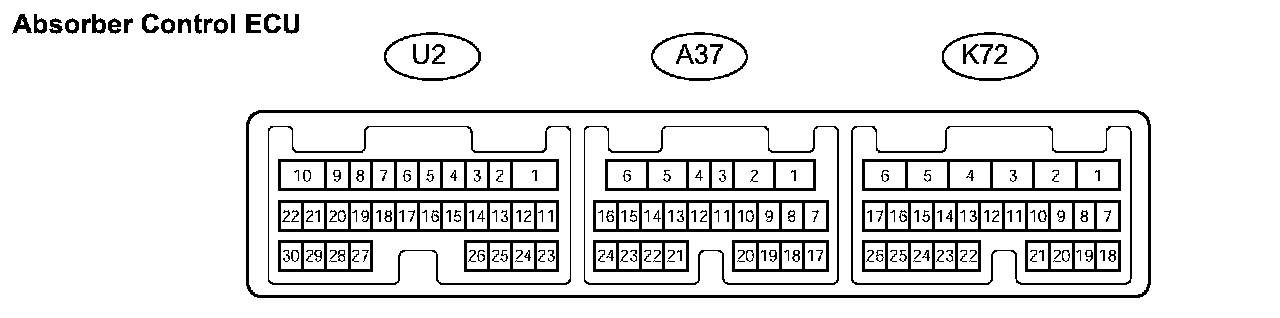

TERMINALS OF ECU:

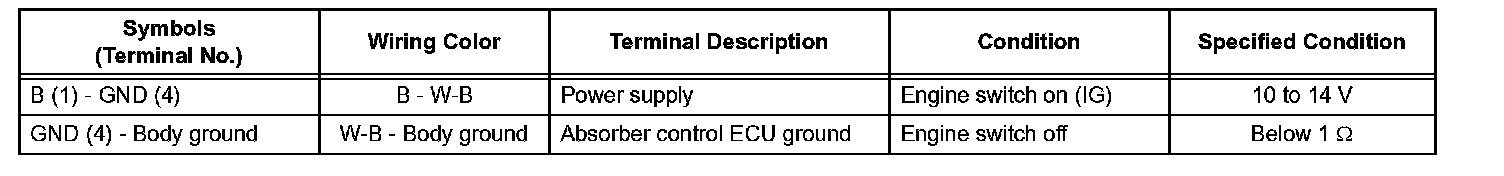

Connector U2:

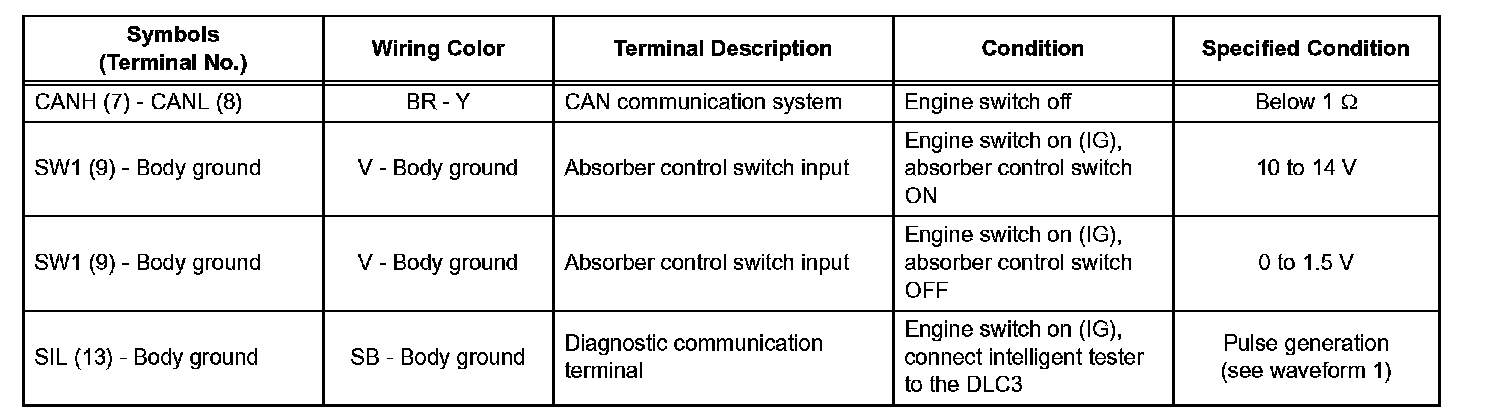

Connector A37:

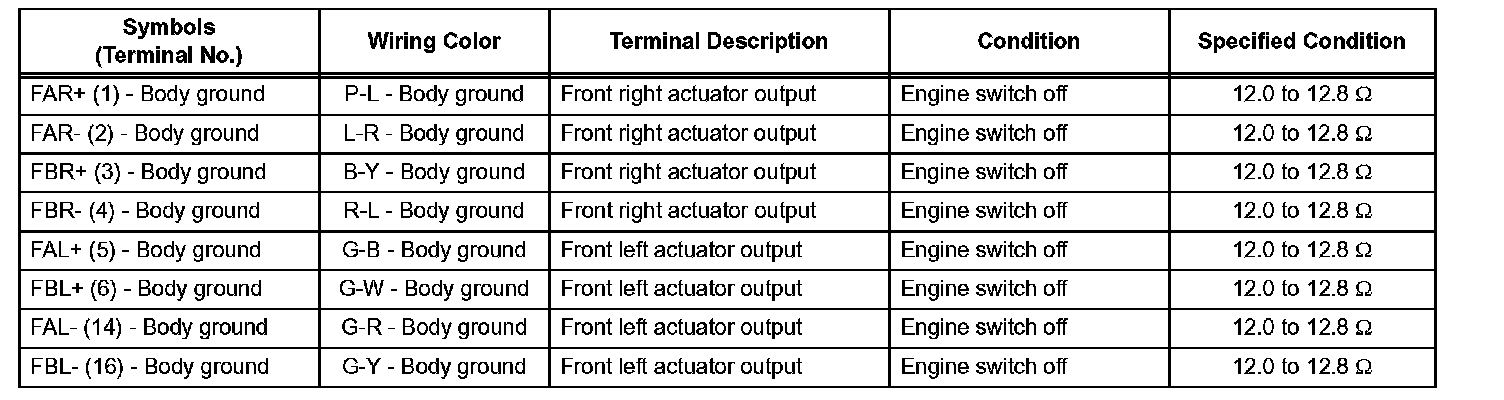

Connector K72:

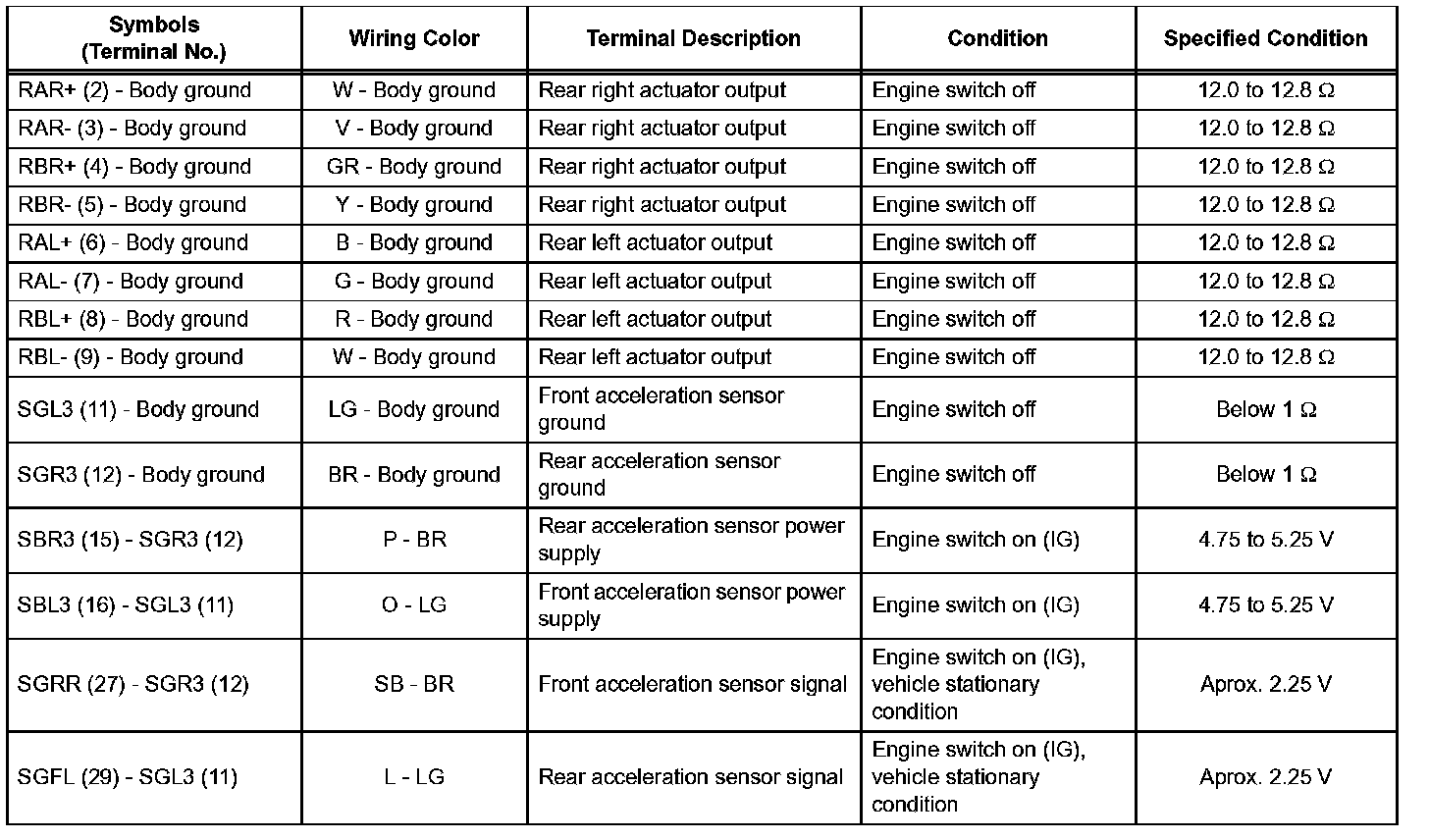

Connector K72:

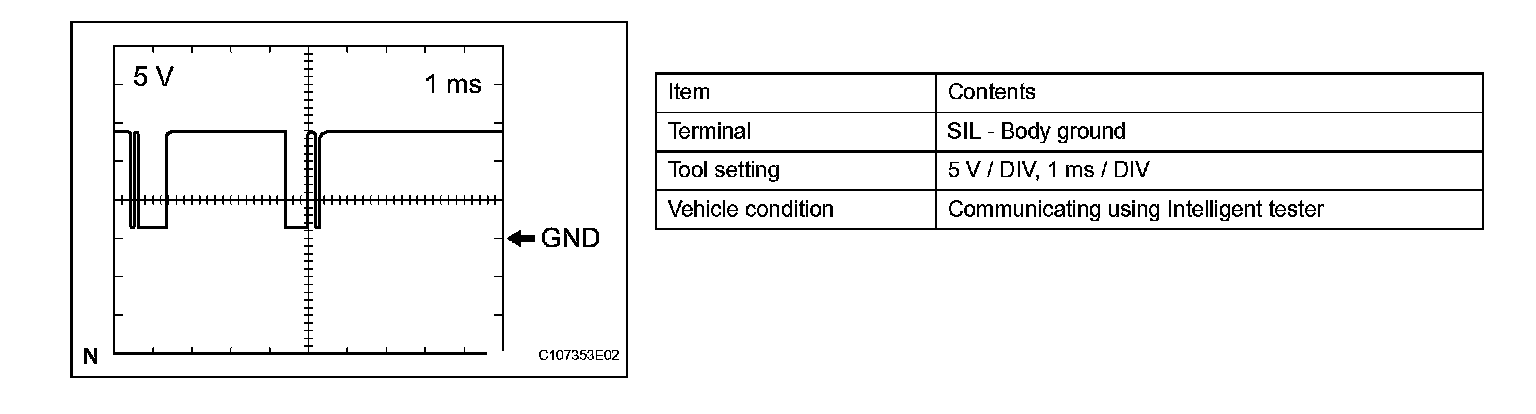

Waveform 1 (Reference):
