TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION
The DTC output mode is set by connecting terminals TC and CG of DLC3. The DTCs are displayed by a blinking of the absorber control indicator light.

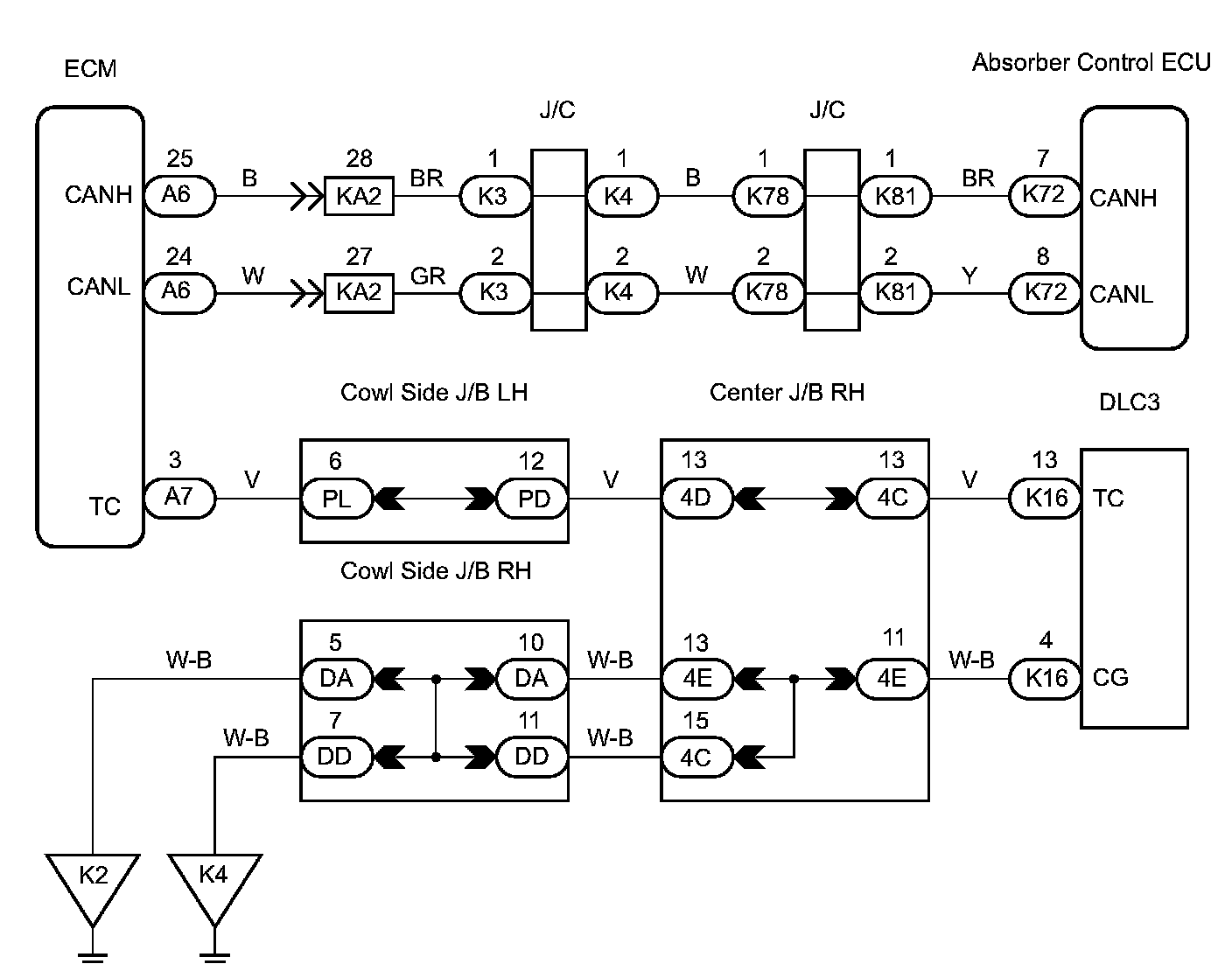

WIRING DIAGRAM:

NOTICE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT: Check the condition of each related circuit connector before troubleshooting.

INSPECTION PROCEDURE

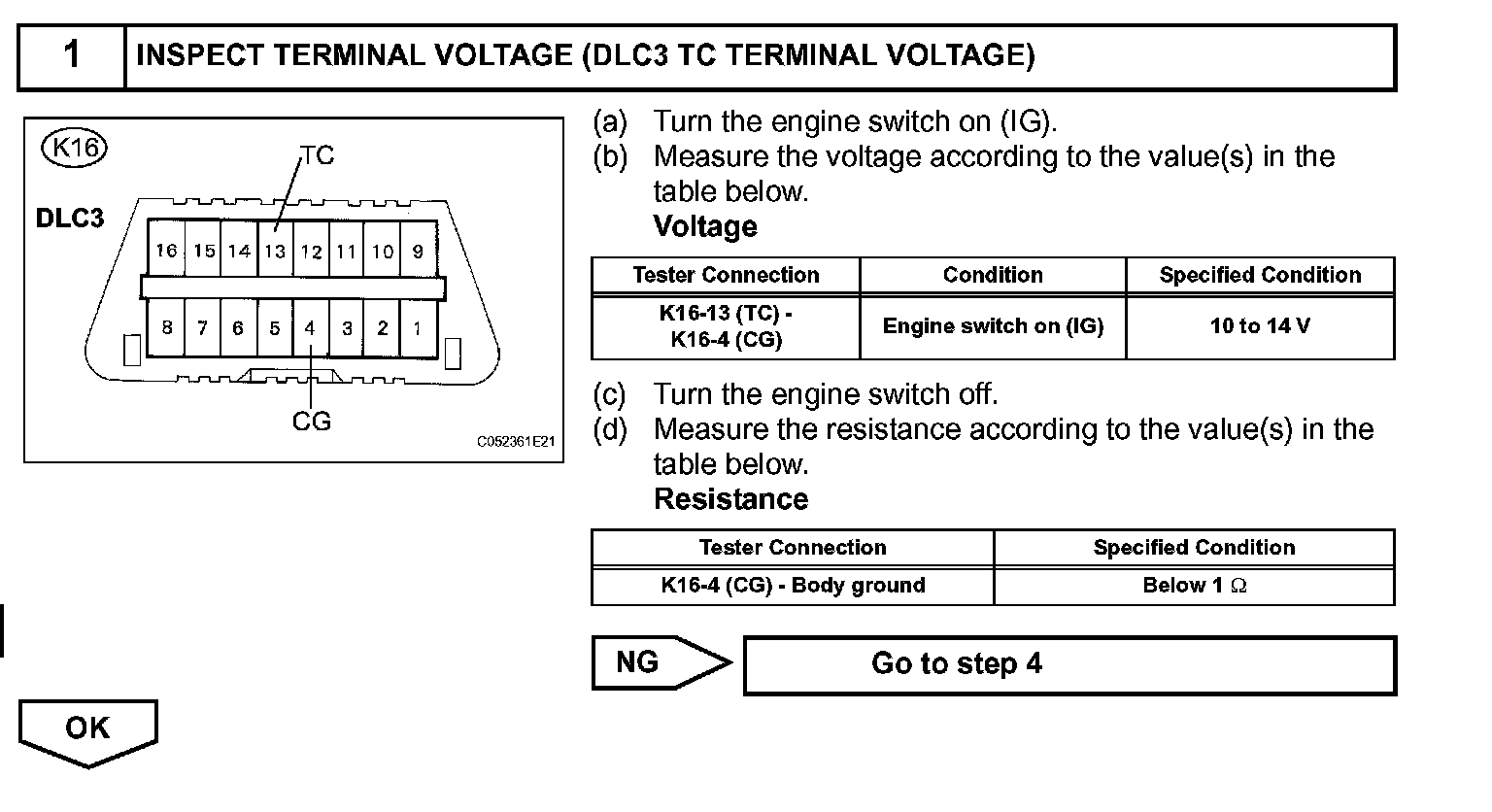

Step 1:

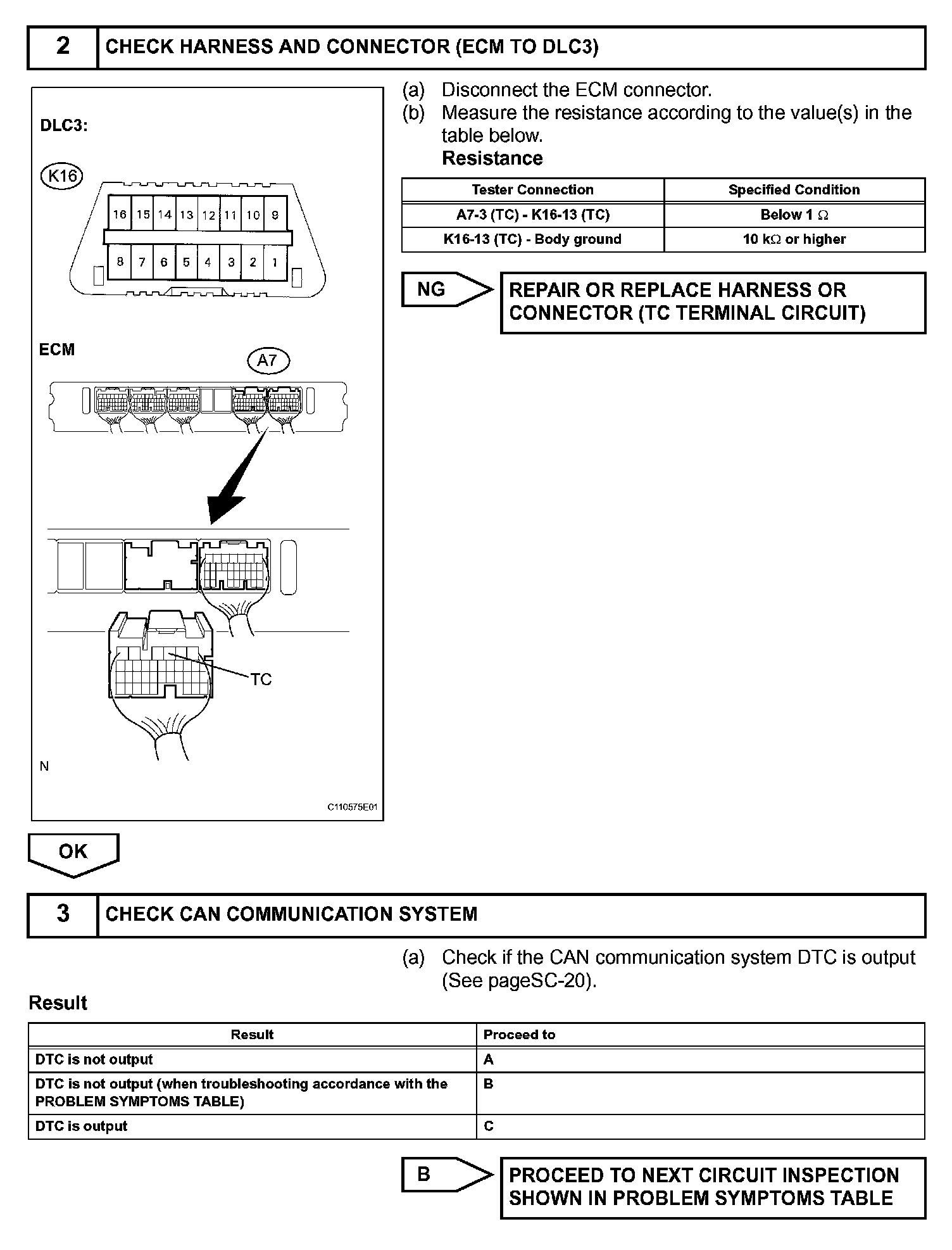

Steps 2-3:

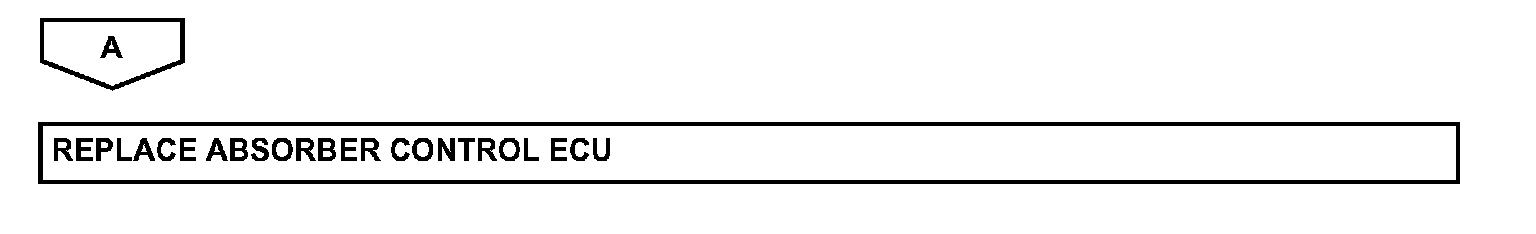

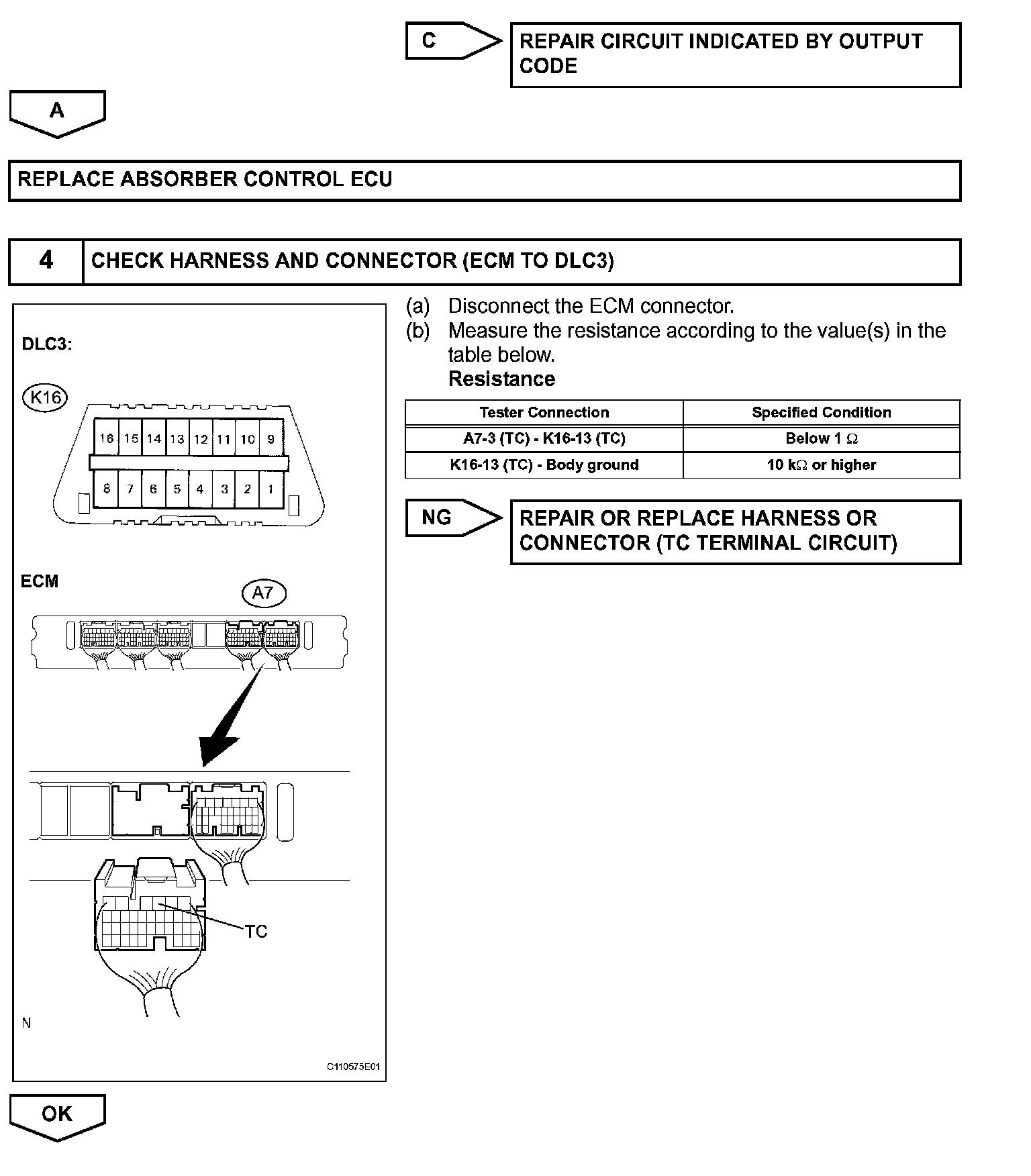

Step 3 (Continued)-4:

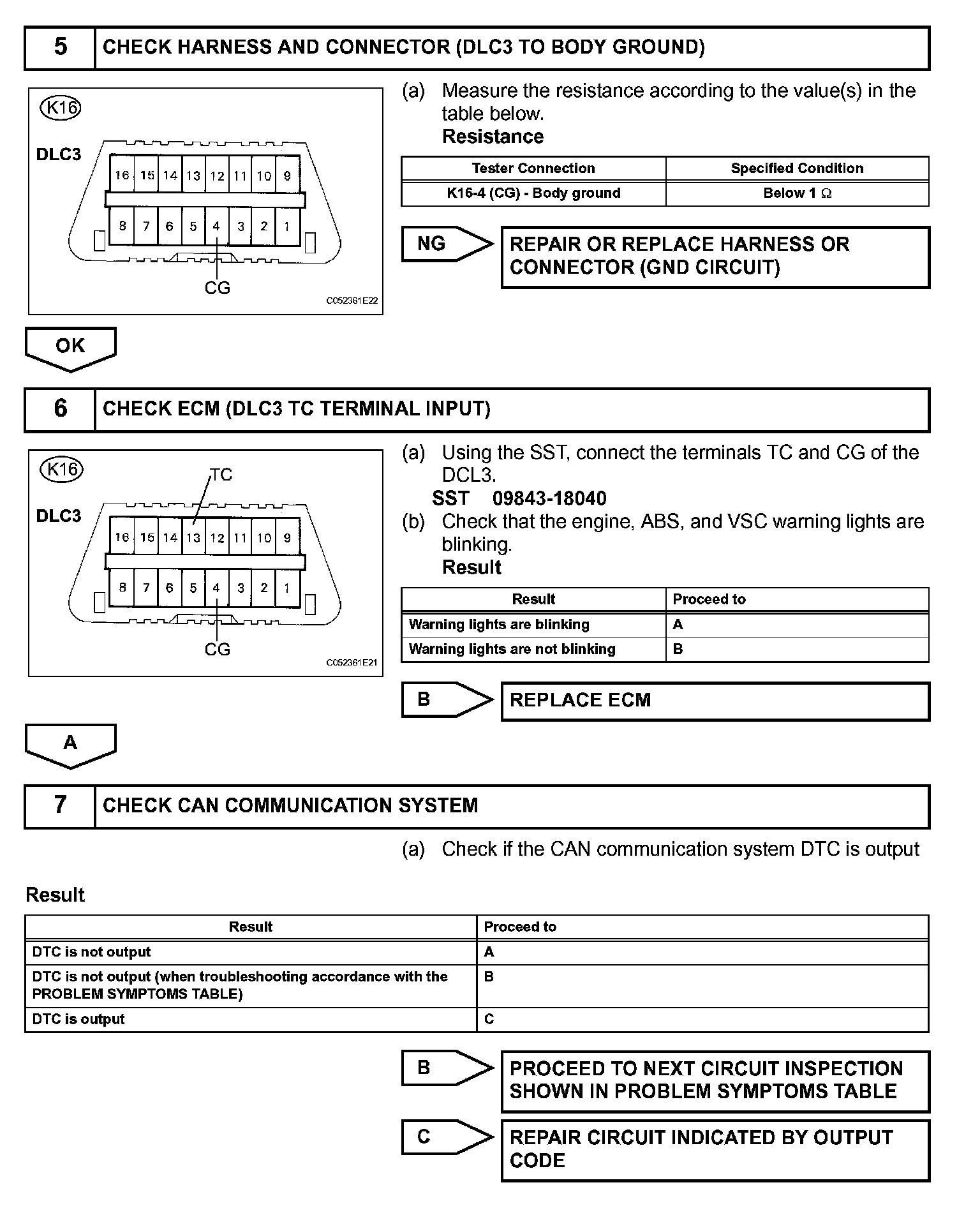

Steps 5-7:

Step 7 (Continued):
