Absorber Control Indicator Light Remains On
Absorber Control Indicator Light Remains OnDESCRIPTION
^ Check the DTC and make sure that the normal system code is output.
^ If the absorber control ECU stores a DTC, the absorber control indicator light on the combination meter will come on.
^ The absorber control ECU is connected to the combination meter assembly via the CAN communication system and multiplex communication system.

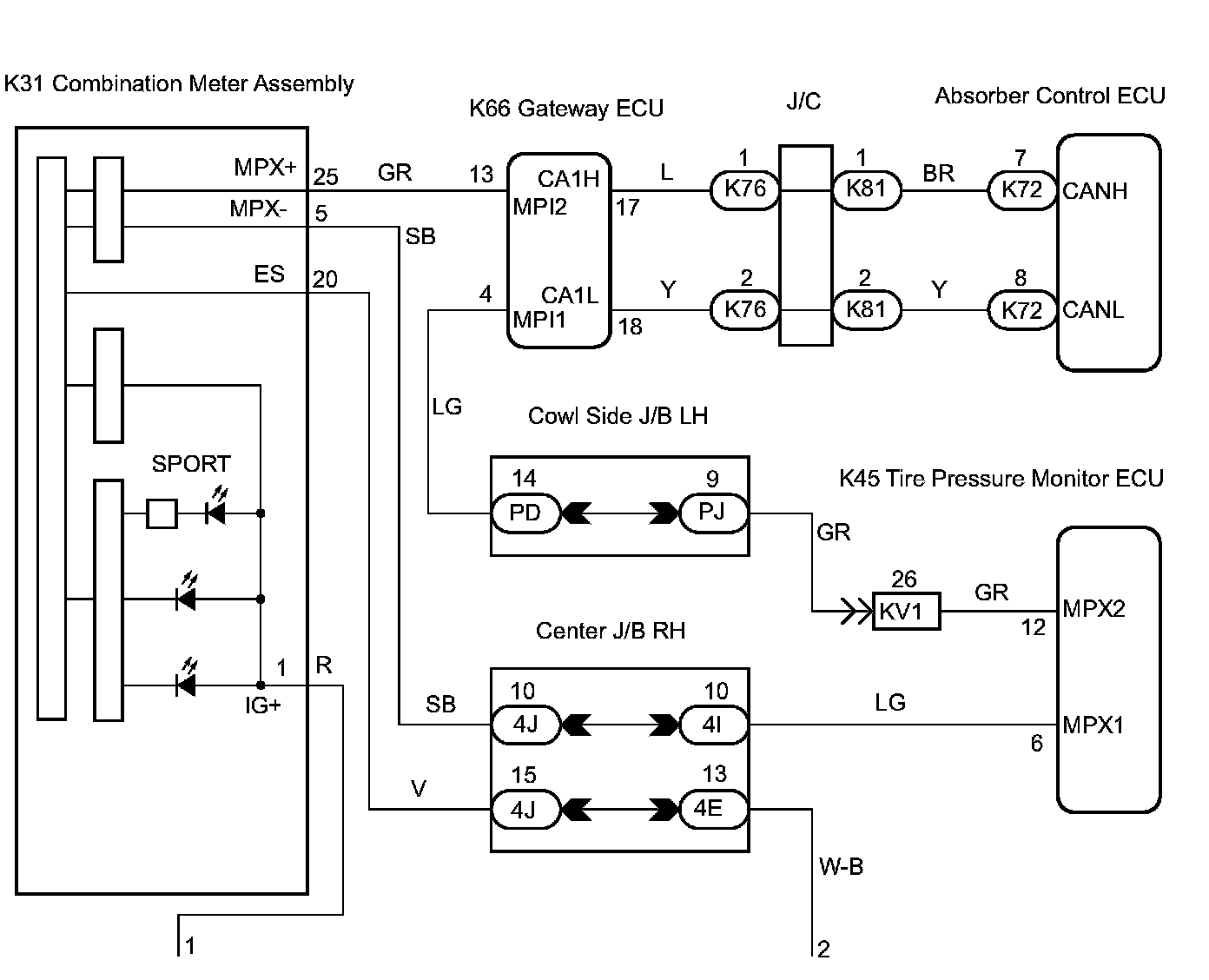

WIRING DIAGRAM (PART 1):

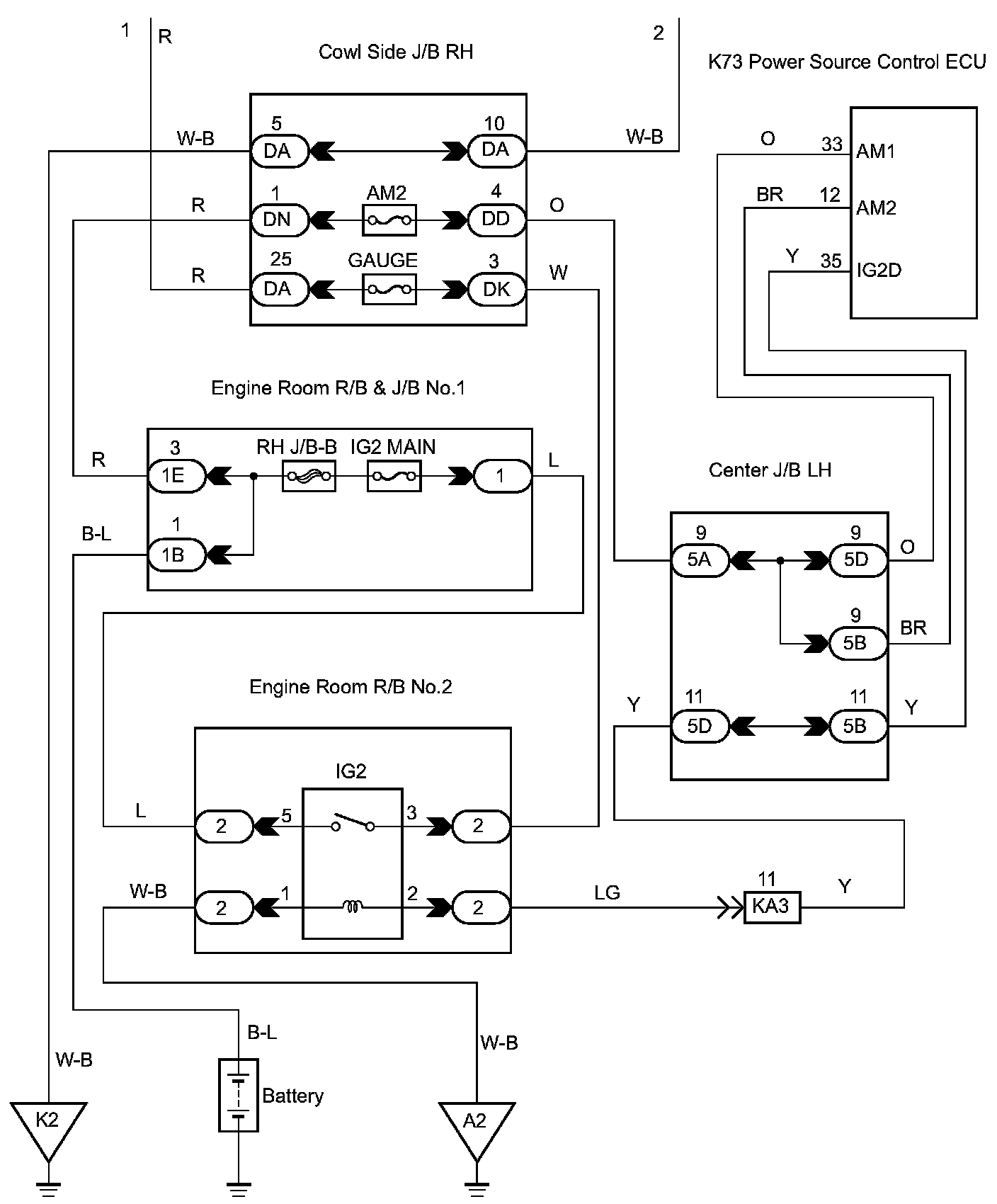

WIRING DIAGRAM (PART 2):
NOTICE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.
HINT:
^ Start the inspection from step 3 when troubleshooting accordance with the PROBLEM SYMPTOMS TABLE.
^ Check the condition of each related circuit connector before troubleshooting.
INSPECTION PROCEDURE

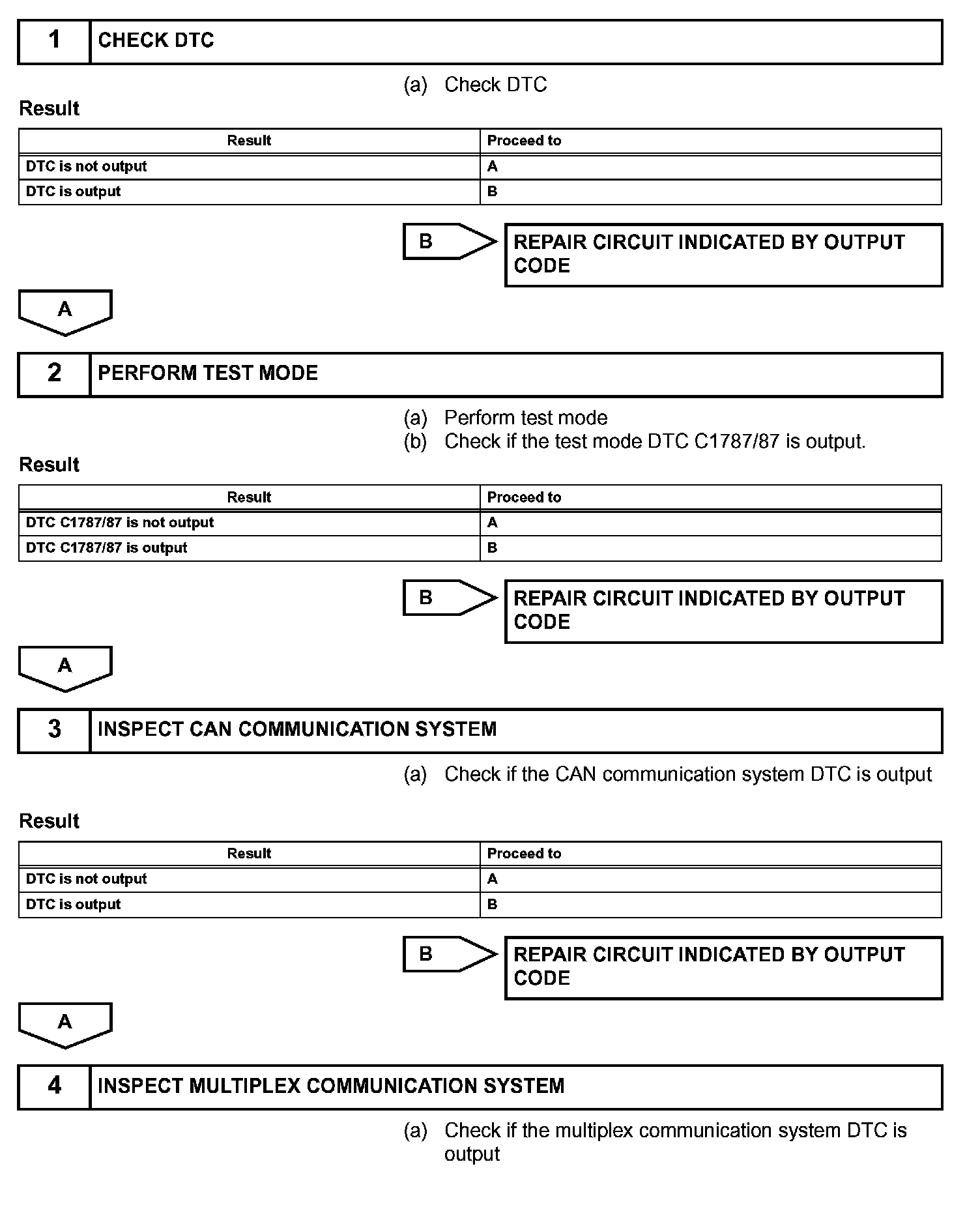

Steps 1-4:

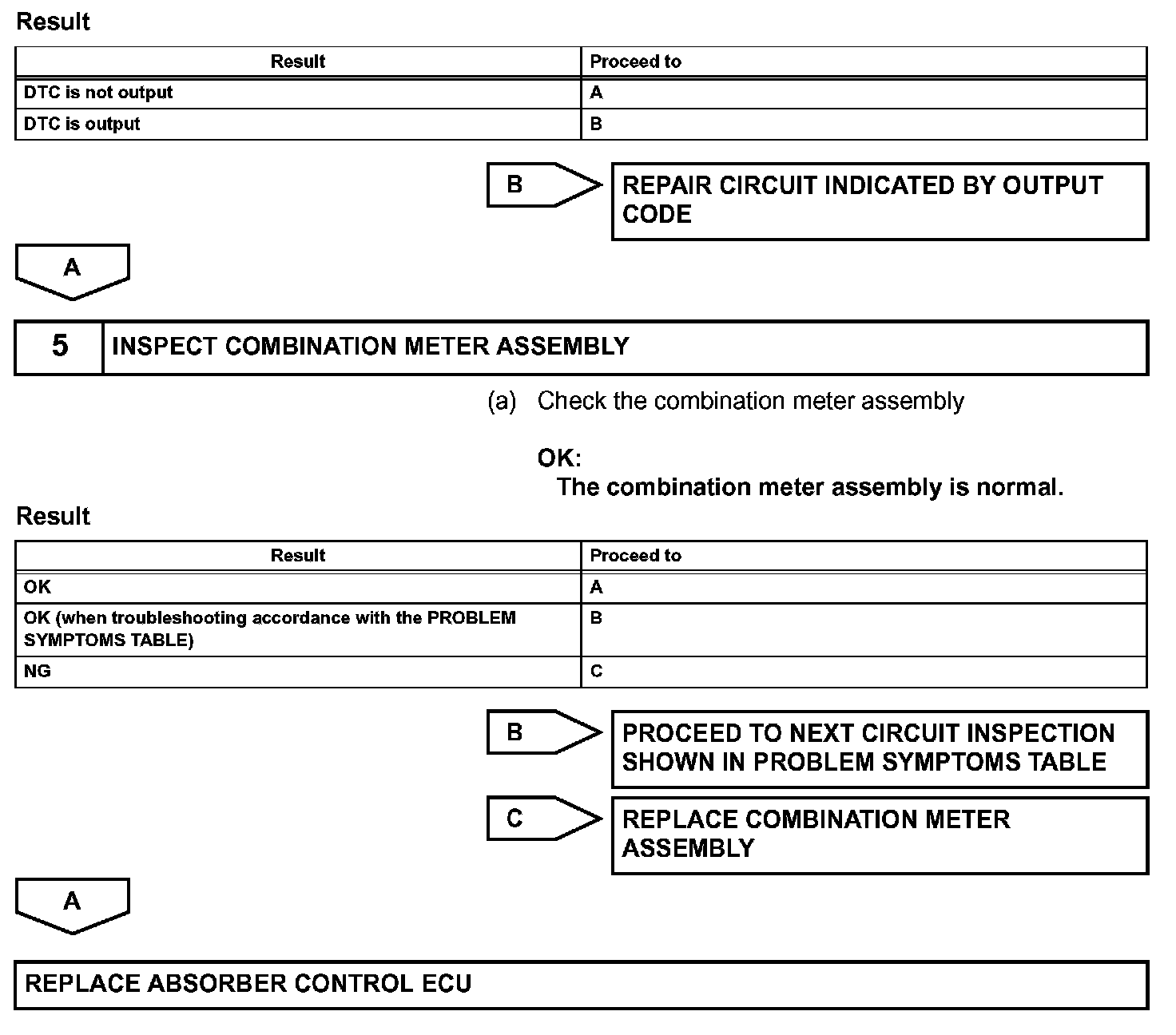

Step 4 (Continued)-5:
