Absorber Control Indicator Light Does Not Come On

Absorber Control Indicator Light Does Not Come On

NOTICE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT:
^ Start the inspection from step 2 when troubleshooting accordance with the PROBLEM SYMPTOMS TABLE.
^ Check the condition of each related circuit connector before troubleshooting.

INSPECTION PROCEDURE

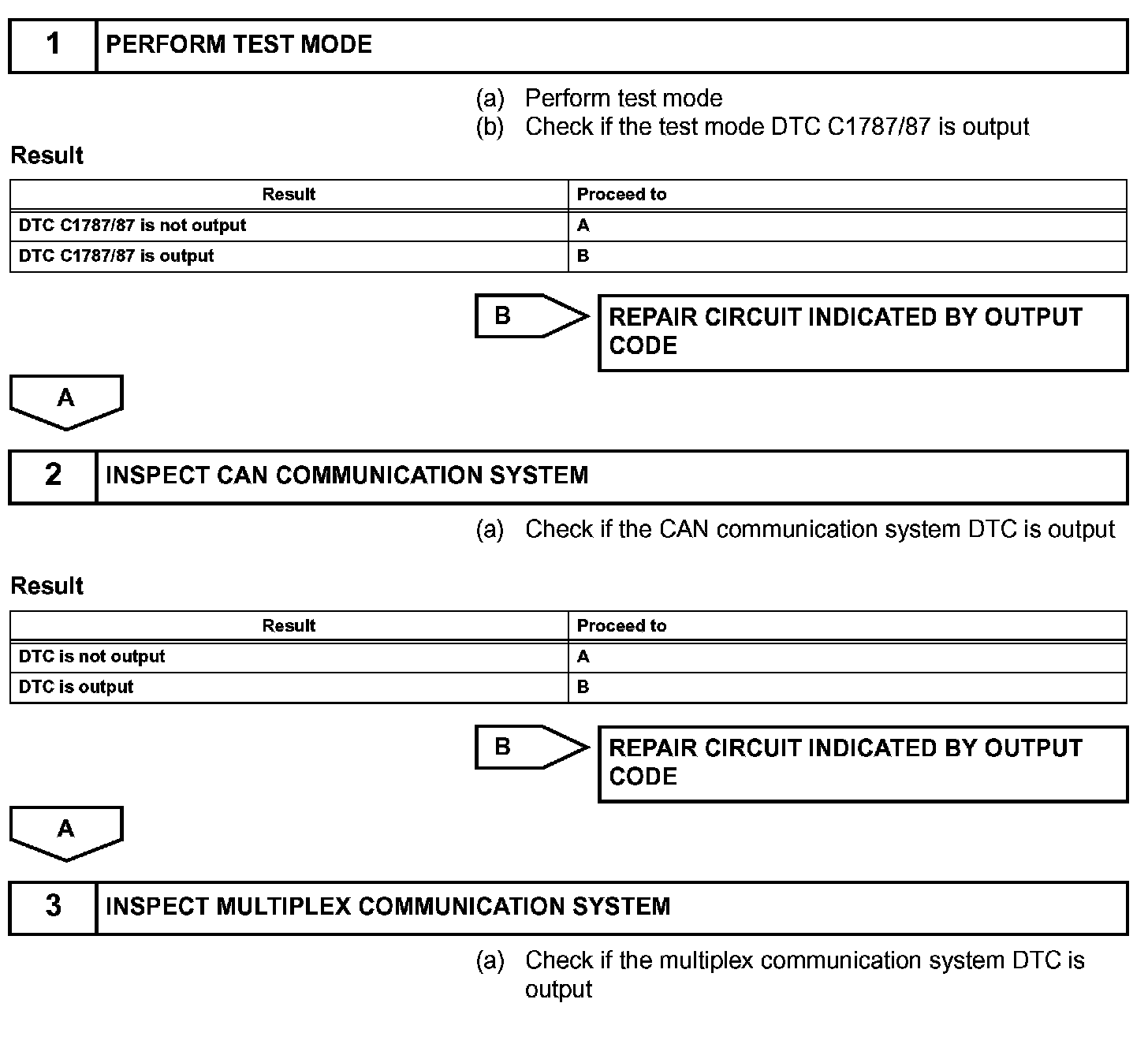

Steps 1-3:

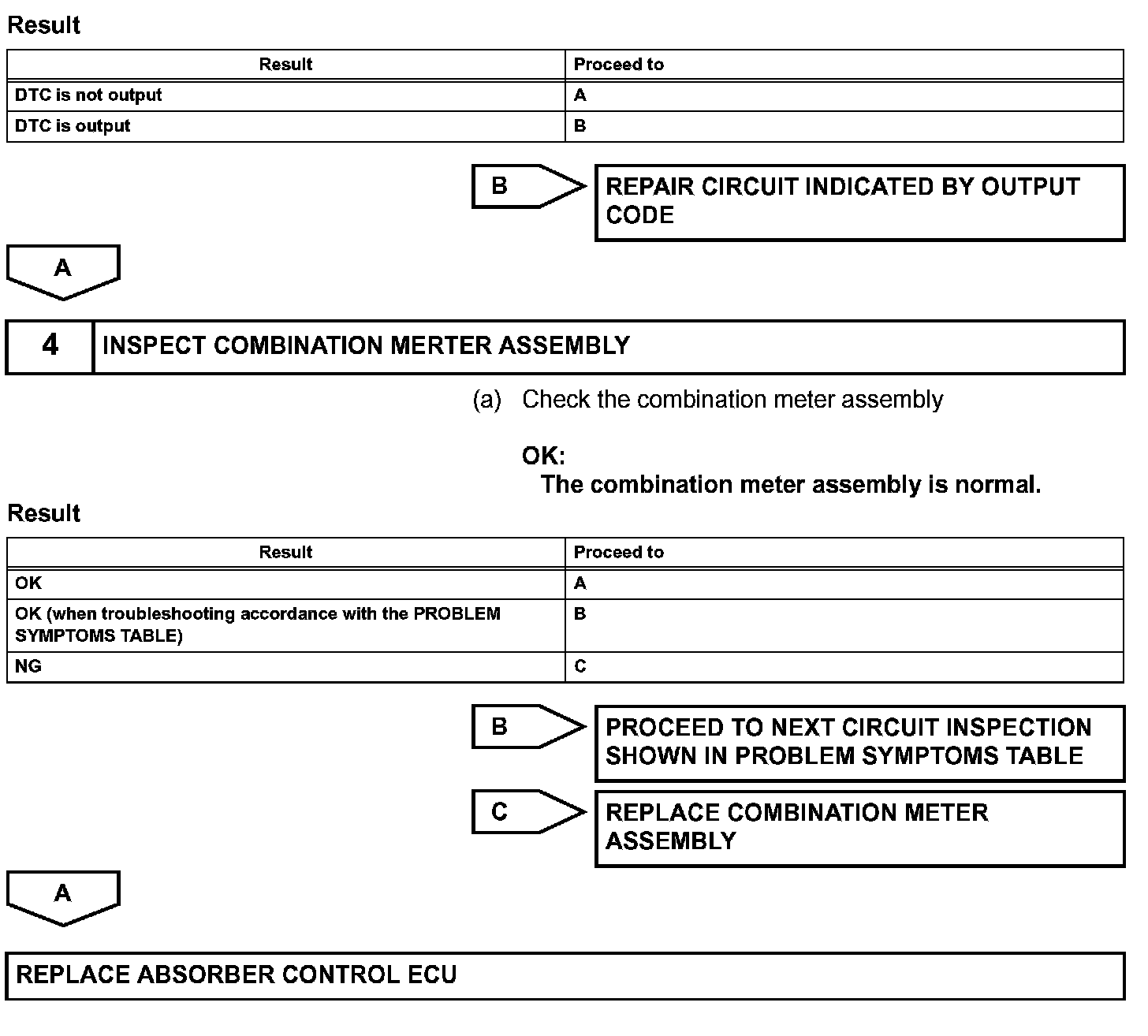

Step 3 (Continued)-4:
