Rear Stabilizer Bar

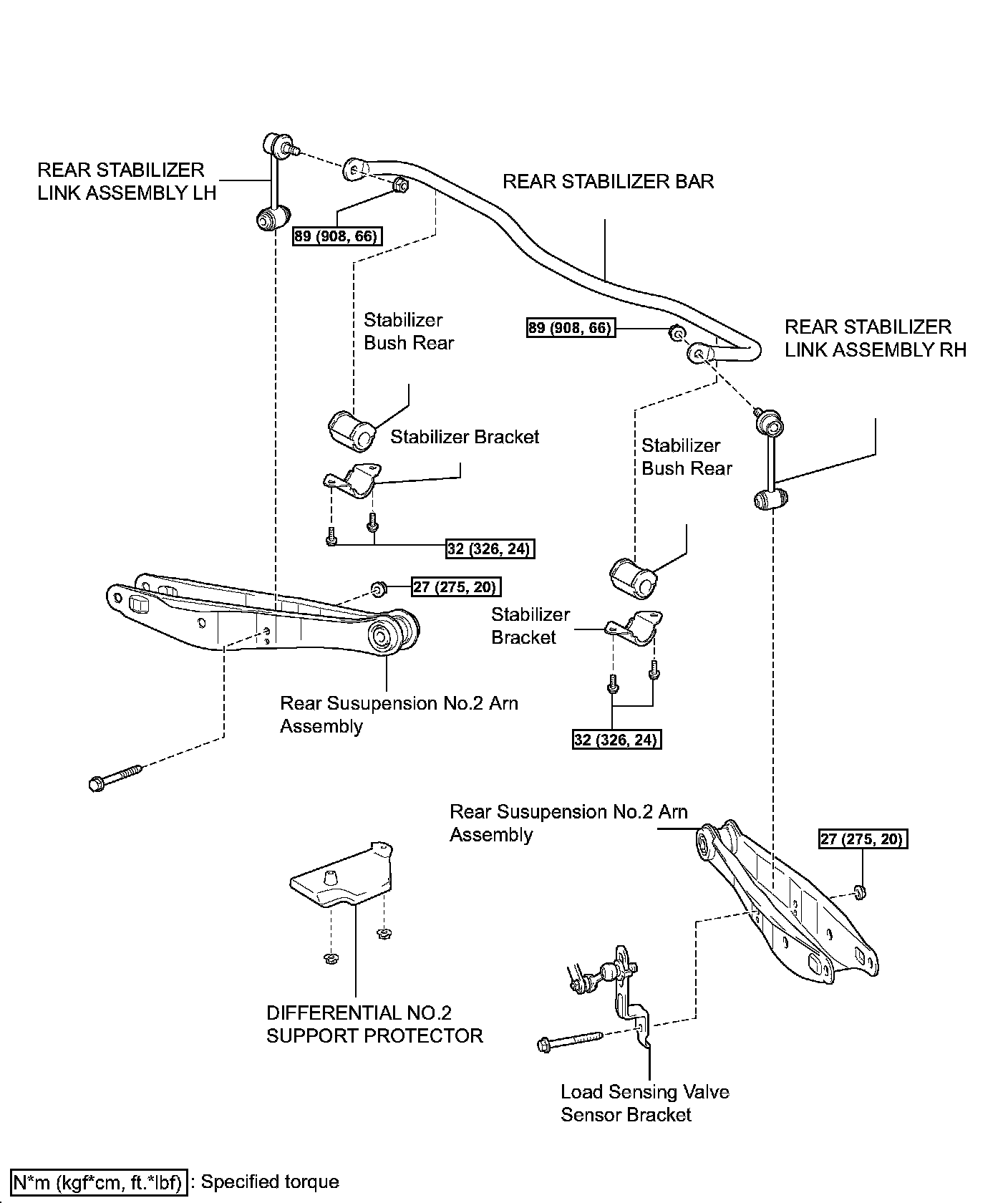

REAR STABILIZER BARCOMPONENTS:
REMOVAL
1. REMOVE REAR TIRE
2. REMOVE DIFFERENTIAL NO. 2 SUPPORT PROTECTOR
3. REMOVE REAR STABILIZER LINK ASSEMBLY LH

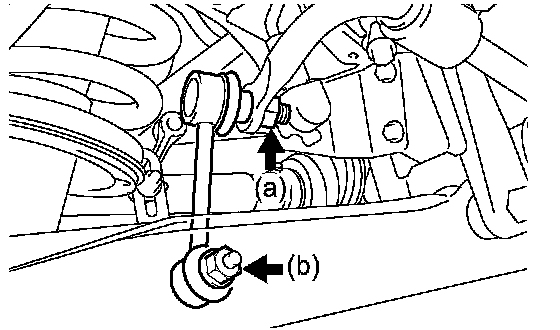

a. Remove the nut, and separate the rear stabilizer link assembly LH from the rear stabilizer bar.
NOTICE: Be sure to hold the stud bolt using a hexagon wrench 6 in order to prevent it from turning.
b. Remove the bolt, nut and the stabilizer link assembly LH.
4. REMOVE REAR STABILIZER LINK ASSEMBLY RH
HINT: Use the same procedures for the RH side and LH side.
5. REMOVE REAR STABILIZER BAR

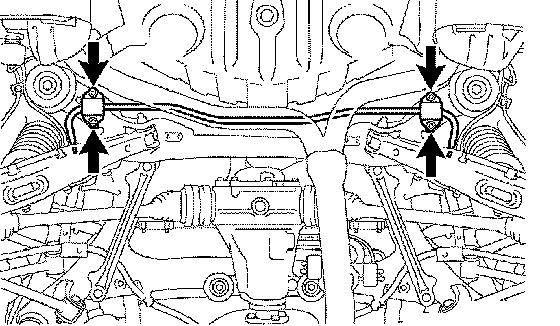

a. Remove the 4 bolts, 2 stabilizer brackets, 2 stabilizer bush rears and rear stabilizer bar.
INSPECTION
1. INSPECT REAR STABILIZER LINK ASSEMBLY

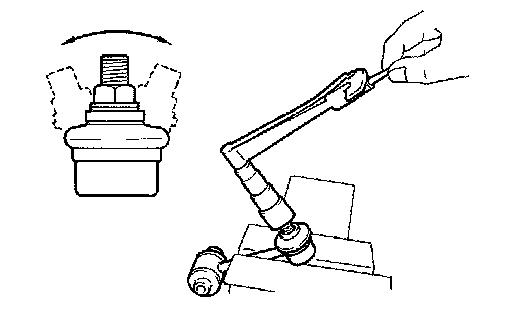

a. Inspect the ball joint (Rear stabilizer bar side).
1. Temporarily install the nut, and flip the ball joint stud back and forth 5 times as shown in the illustration.
2. Use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per turn. Take the torque reading on the 5th turn.
Turning torque: 2.0 Nm (20 kgf-cm, 1.5 ft. lbs.) or less

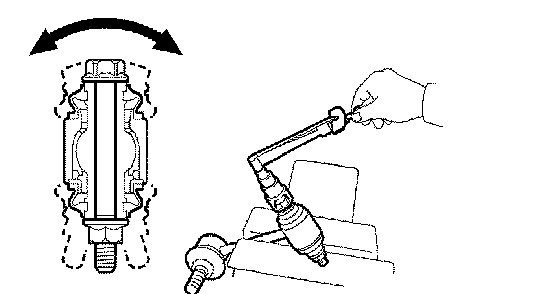

b. Inspect the ball joint (Rear suspension arm assembly No. 2 side).
1. Temporarily install the nut and bolt, and flip the ball joint stud back and forth 5 times as shown in the illustration.
2. Use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per turn. Take the torque reading on the 5th turn.
Turning torque:
2.5 Nm (25 kgf-cm, 1.8 ft. lbs.) or less
If the value is not within the specified range, replace the rear stabilizer link assembly LH with a new one.
c. Check the dust boots for cracks or grease leakage.
INSTALLATION
1. INSTALL REAR STABILIZER BAR

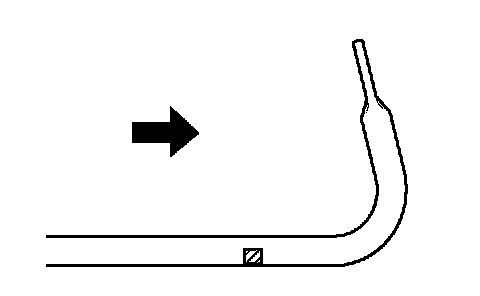

a. Insert the rear stabilizer bar between the rear suspension member and exhaust tail pipe assembly so that the indication mark on the rear stabilizer bar is on the right of the vehicle.
b. Install the 2 stabilizer bush rears and stabilizer brackets.

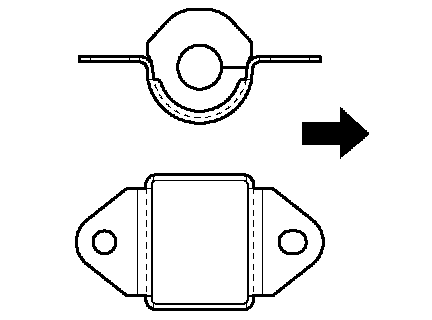

NOTICE: Be sure to install the rear stabilizer bush so that the cutout faces the rear of the vehicle.

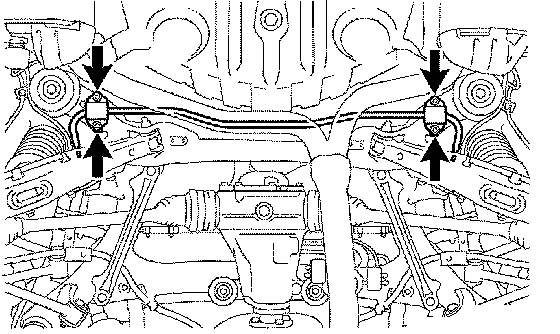

c. Install the rear stabilizer bar with the 4 bolts.
Torque: 32 Nm (326 kgf-cm, 24 ft. lbs.)
2. INSTALL REAR STABILIZER LINK ASSEMBLY LH

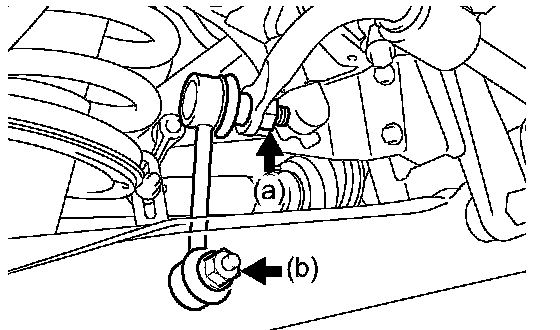

a. Install the stabilizer link assembly LH to the rear suspension No. 2 arm and load sensing valve sensor bracket with the bolt and nut.
Torque: 27 Nm (275 kgf-cm, 20 ft. lbs.)
b. Install the rear stabilizer link assembly LH with the nut.
Torque: 89 Nm (908 kgf-cm, 66 ft. lbs.)
NOTICE: Be sure to hold the stud bolt using a hexagon wrench 6 in order to prevent it from turning.
3. INSTALL REAR STABILIZER LINK ASSEMBLY RH
HINT: Use the same procedures for the RH side and LH side.
4. INSTALL DIFFERENTIAL NO. 2 SUPPORT PROTECTOR
5. INSTALL REAR TIRE
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
