Diagnosis By Symptom

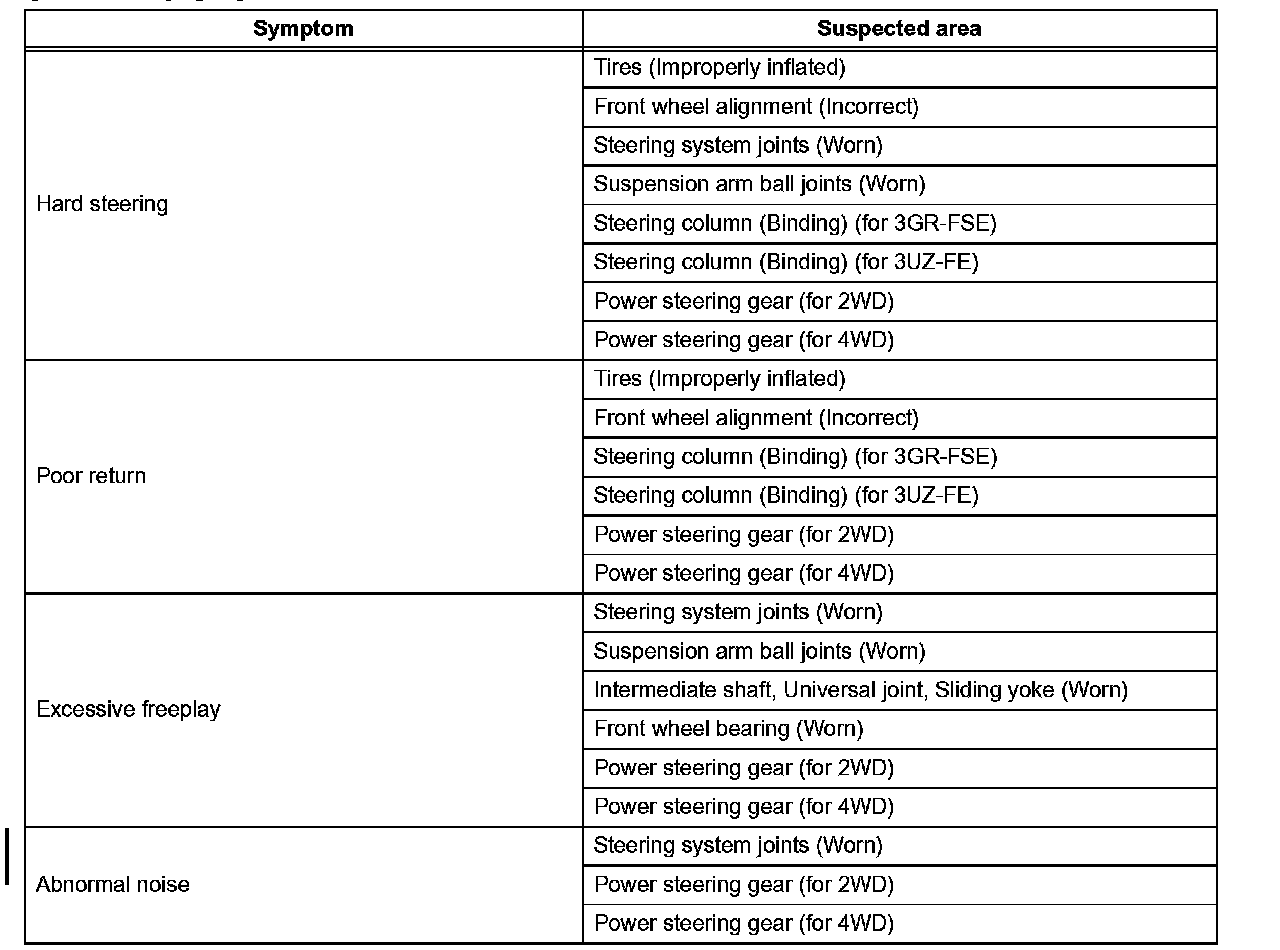

PROBLEM SYMPTOMS TABLE

HINT:
Use the table to help determine the cause of the problem. If necessary, repair or replace the faulty parts.

STEERING SYSTEM:

HINT:
When the problem occurs in the variable gear ratio steering system, refer to the "VARIABLE GEAR RATIO STEERING SYSTEM".
