Lexus
>>
2006
>>
GS 300 RWD V6-3.0L (3GR-FSE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Column
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Variable Gear Ratio Steering System
Variable Gear Ratio Steering System
TERMINALS OF ECU
HINT:
Inspect the connectors from the back side while they are connected.
TERMINALS OF ECU:

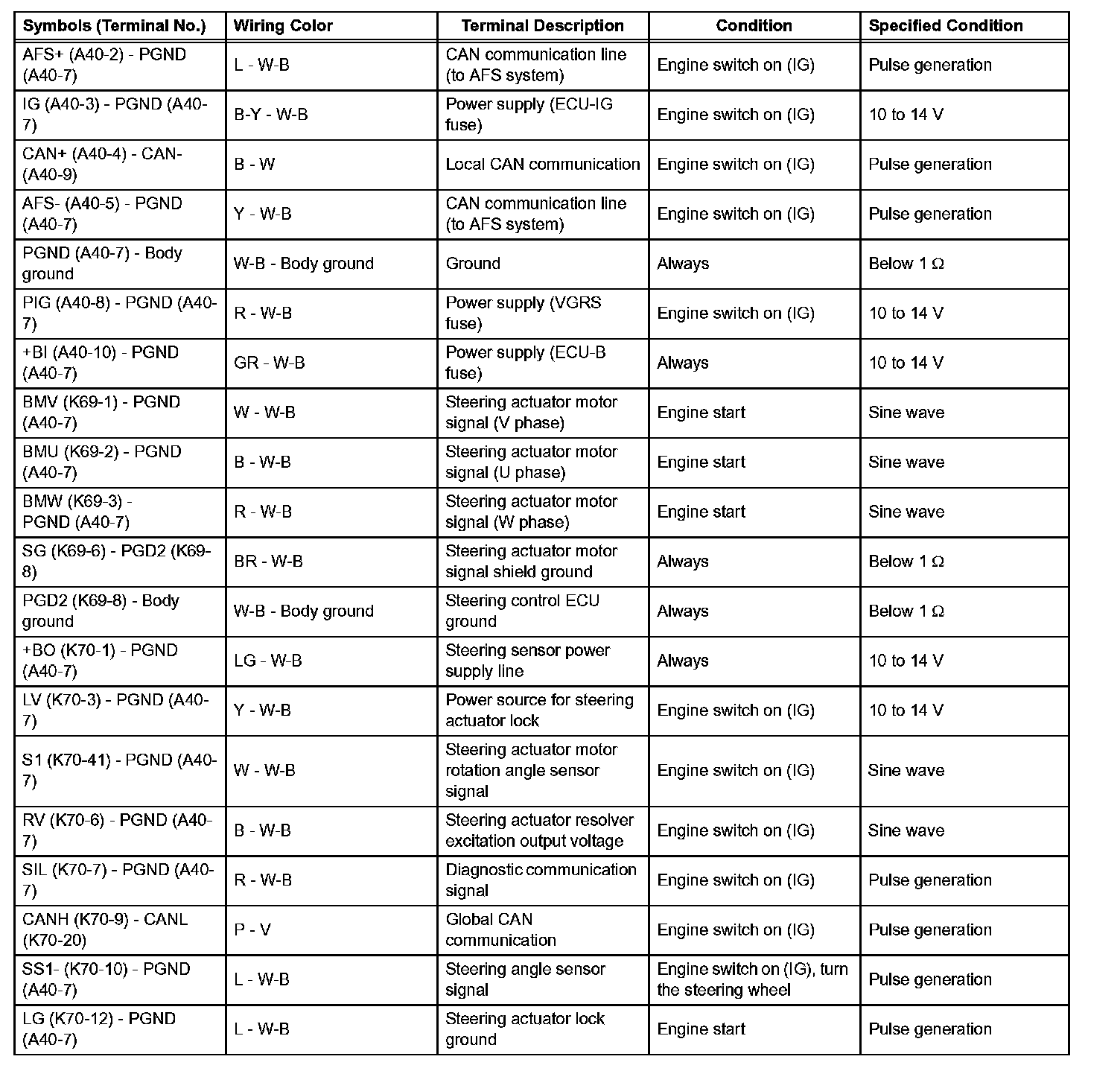

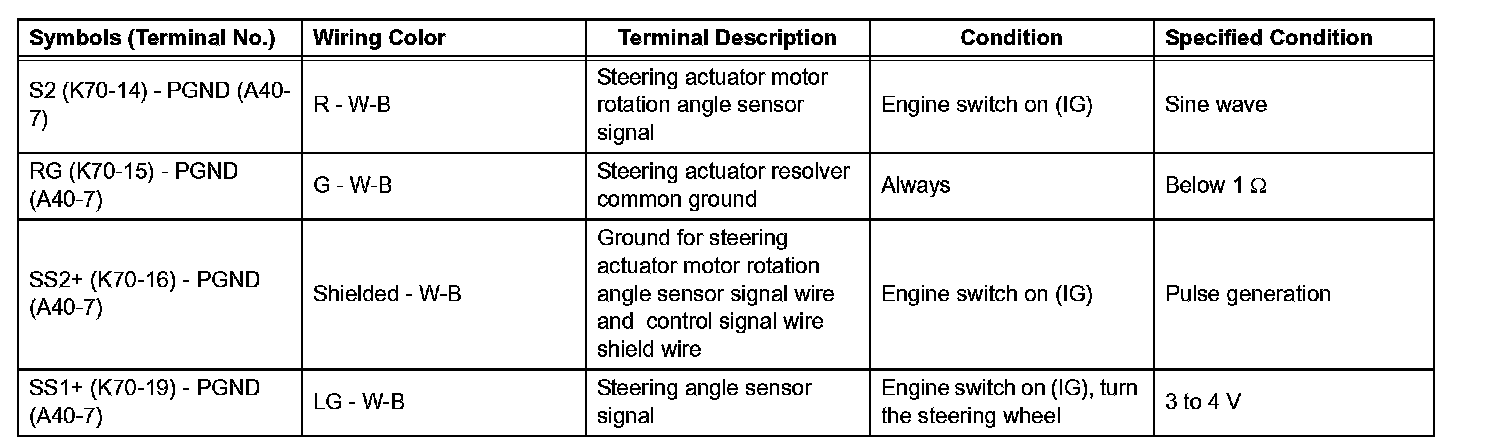

TERMINALS OF ECU:
