Power Tilt and Power Telescopic Steering Column System
Power Tilt and Power Telescopic Steering Column System

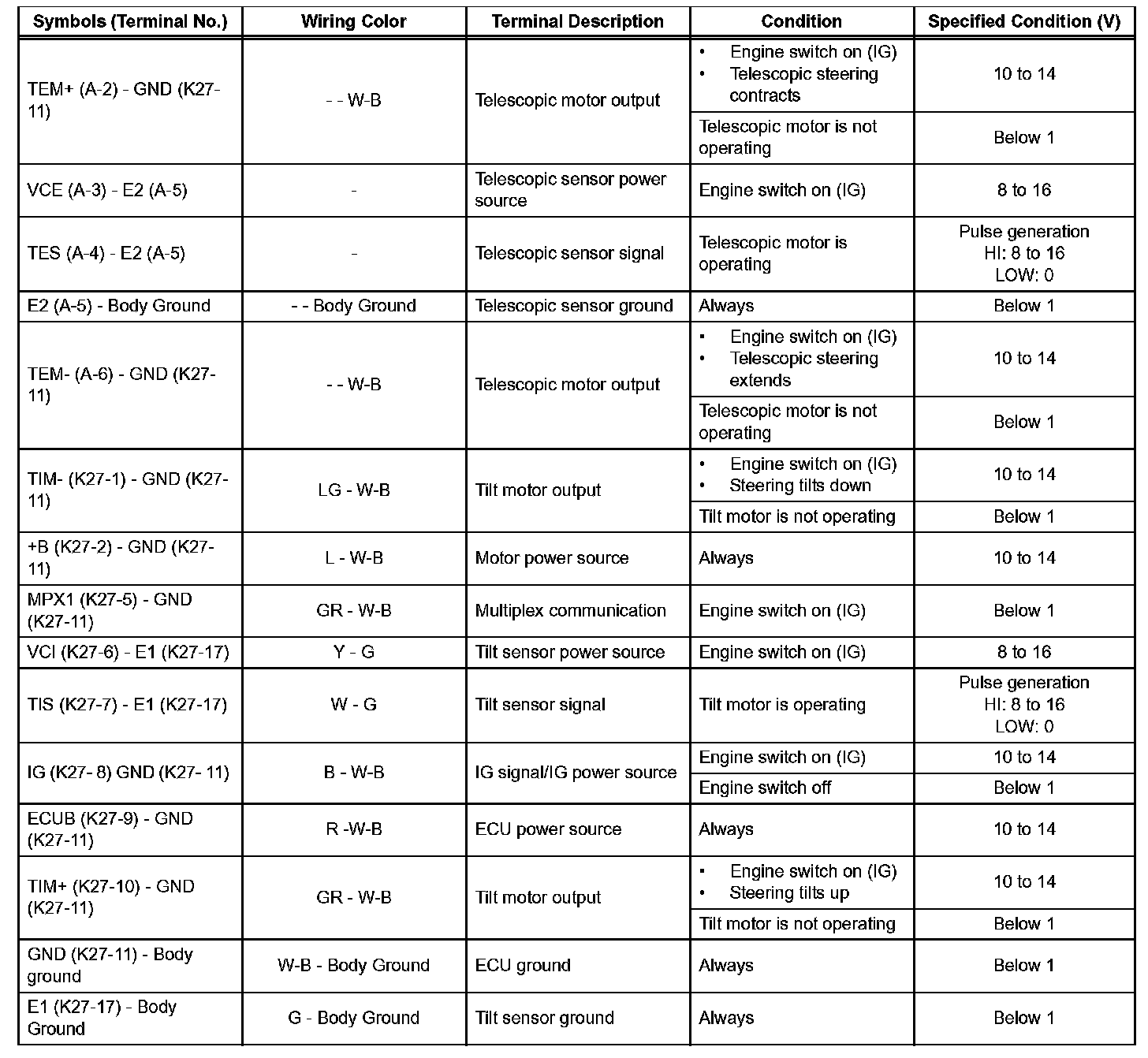

TERMINALS OF ECU

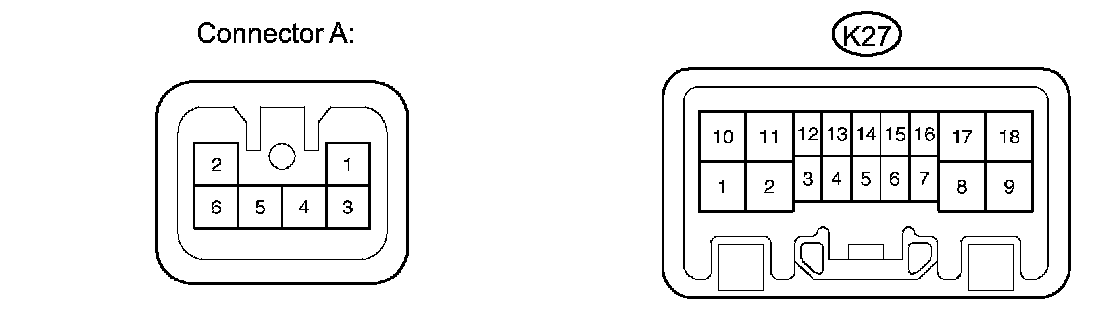

MULTIPLEX TILT & TELESCOPIC ECU:
MULTIPLEX TILT & TELESCOPIC ECU:
