Initial Inspection and Diagnostic Overview
>>
Variable Gear Ratio Steering System
>>
Diagnostic Strategies
Diagnostic Strategies
HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
The intelligent tester can be used in steps 3, 4, 5, 7 and 11.

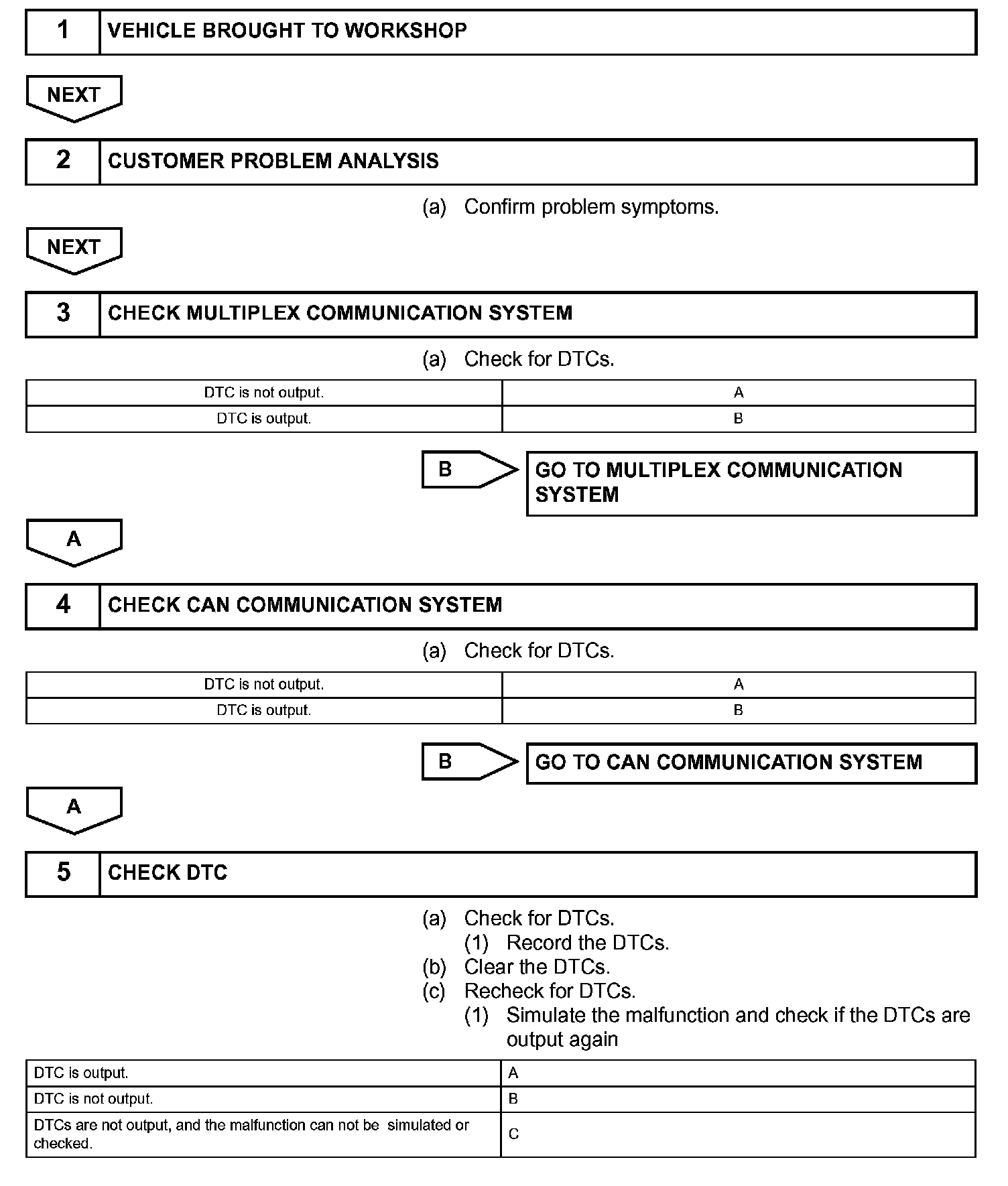

Steps 1 - 5:

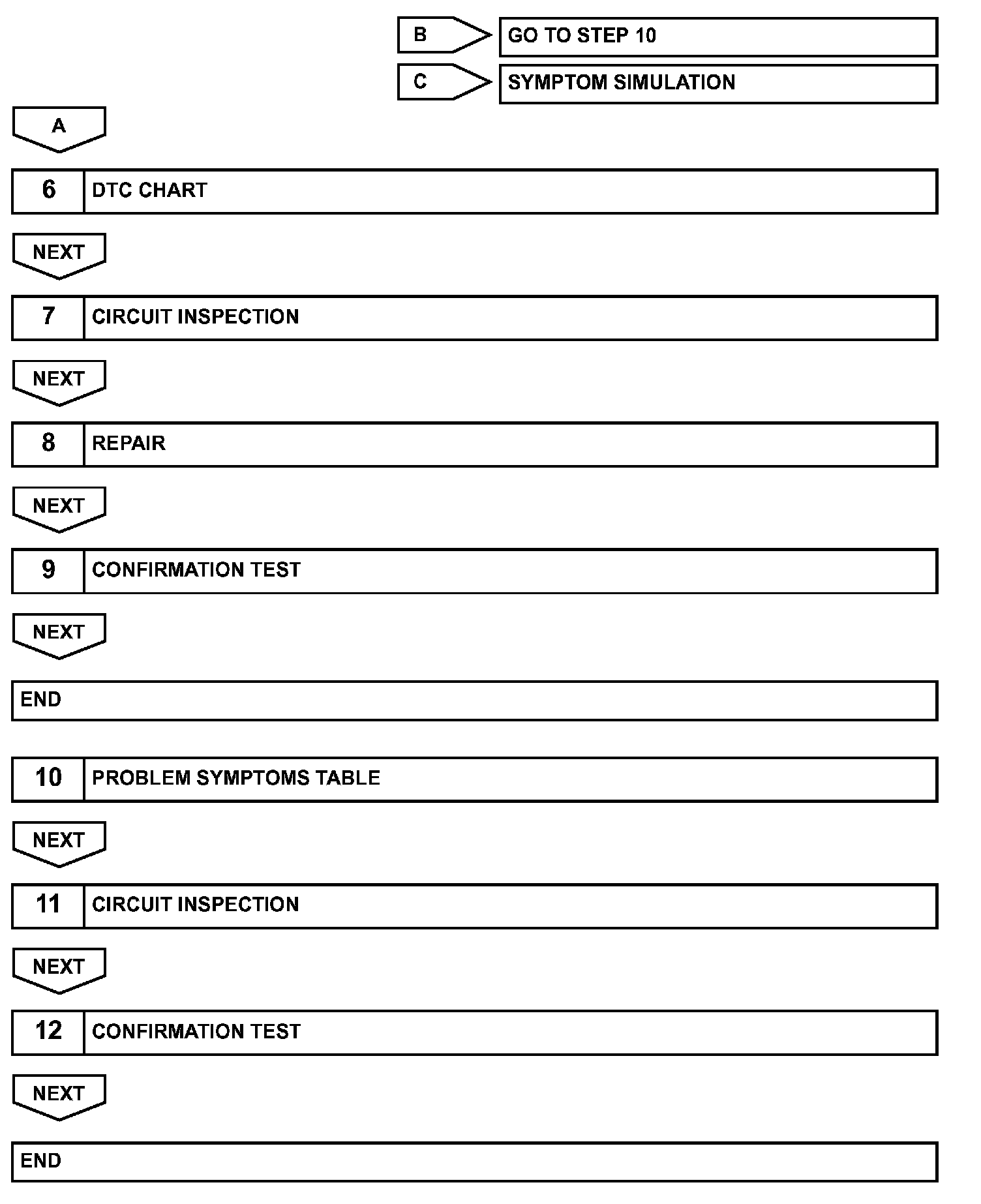

Step 5 (Continued) - 12:
