Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Component Tests and General Diagnostics >> Variable Gear Ratio Steering System >> Steering Wheel Vibrates or Abnormal Noise Is Heard From Steering Wheel

Steering Wheel Vibrates or Abnormal Noise Is Heard From Steering Wheel

Steering Wheel Vibrates or Abnormal Noise Is Heard From Steering Wheel

HINT: Check that no DTC is output for the VGRS system, ECB system, and ABS system.

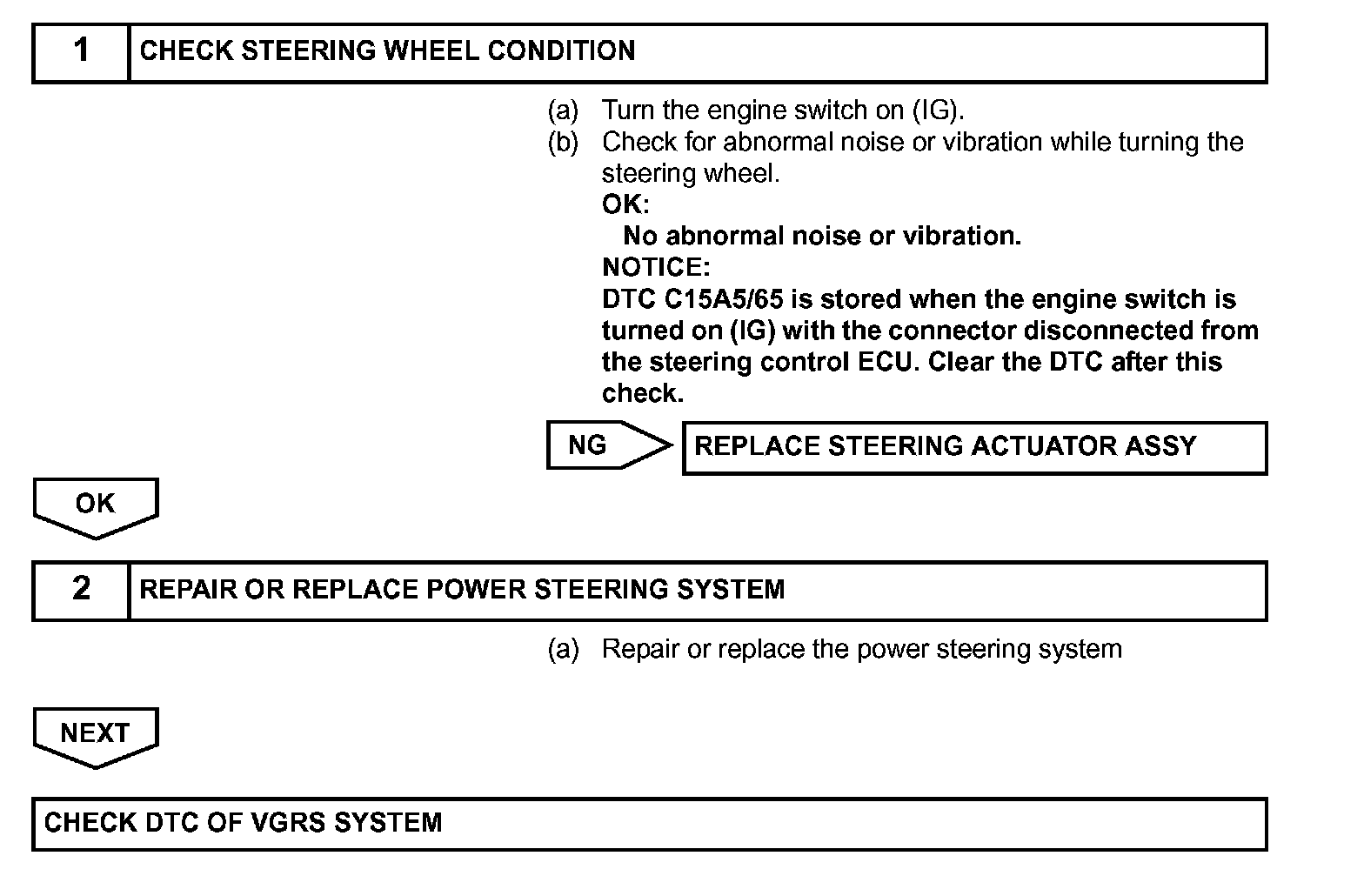

INSPECTION PROCEDURE

Steps 1-2:
