Steering Angle Differs Between Left and Right

Steering Angle Differs Between Left and Right

HINT:
^ Check that the steering wheel is centered.
^ After checking that no DTC is output for the VGRS system, perform the following procedure.

INSPECTION PROCEDURE

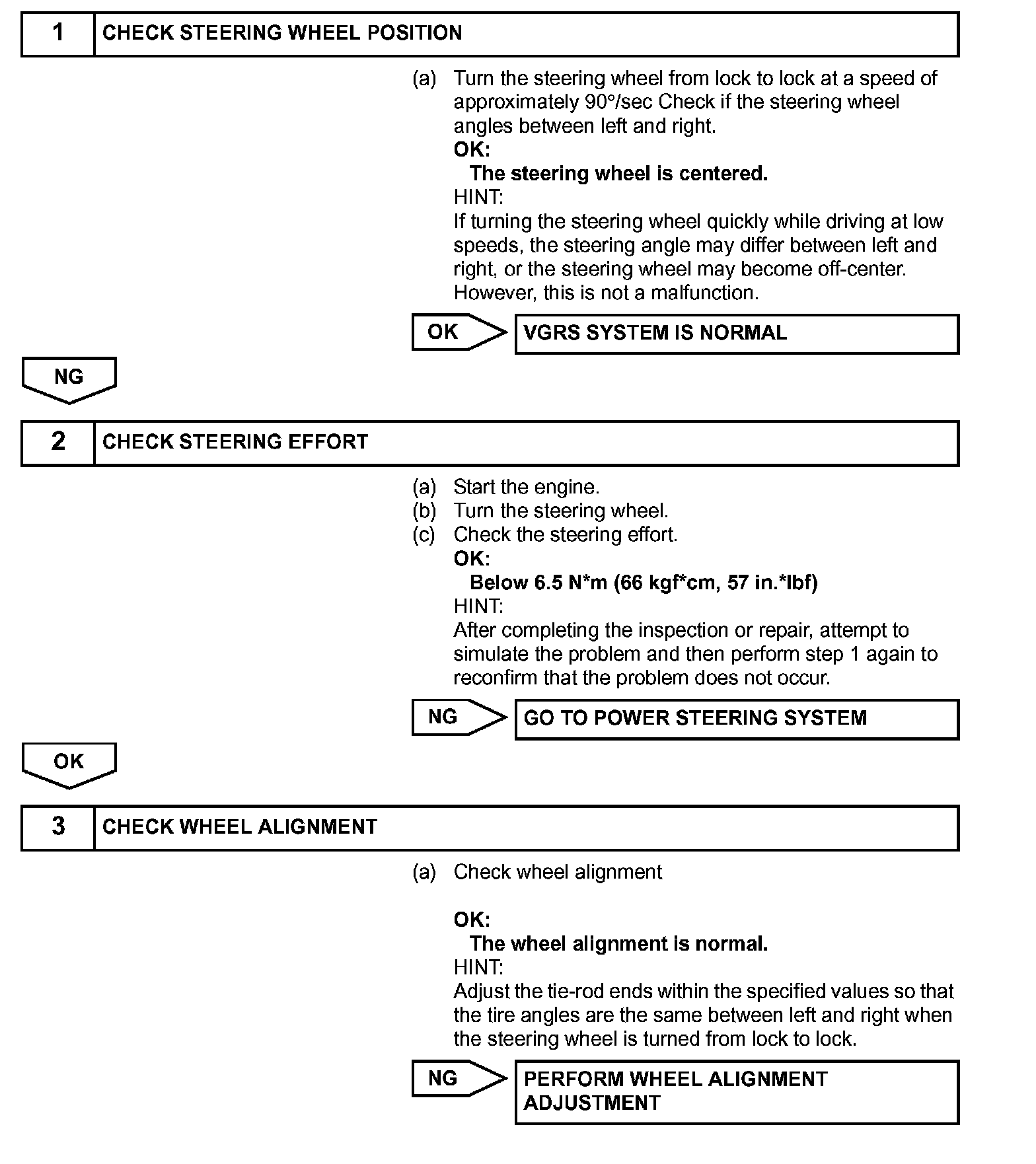

Steps 1-3:

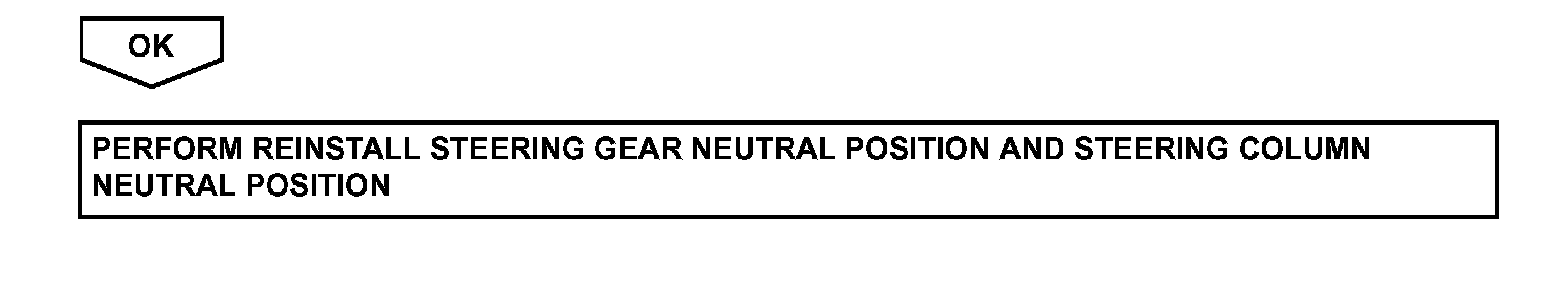

Step 3 (Continued):
