How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING
The intelligent tester can be used during steps 2, 6, 9 and 12.

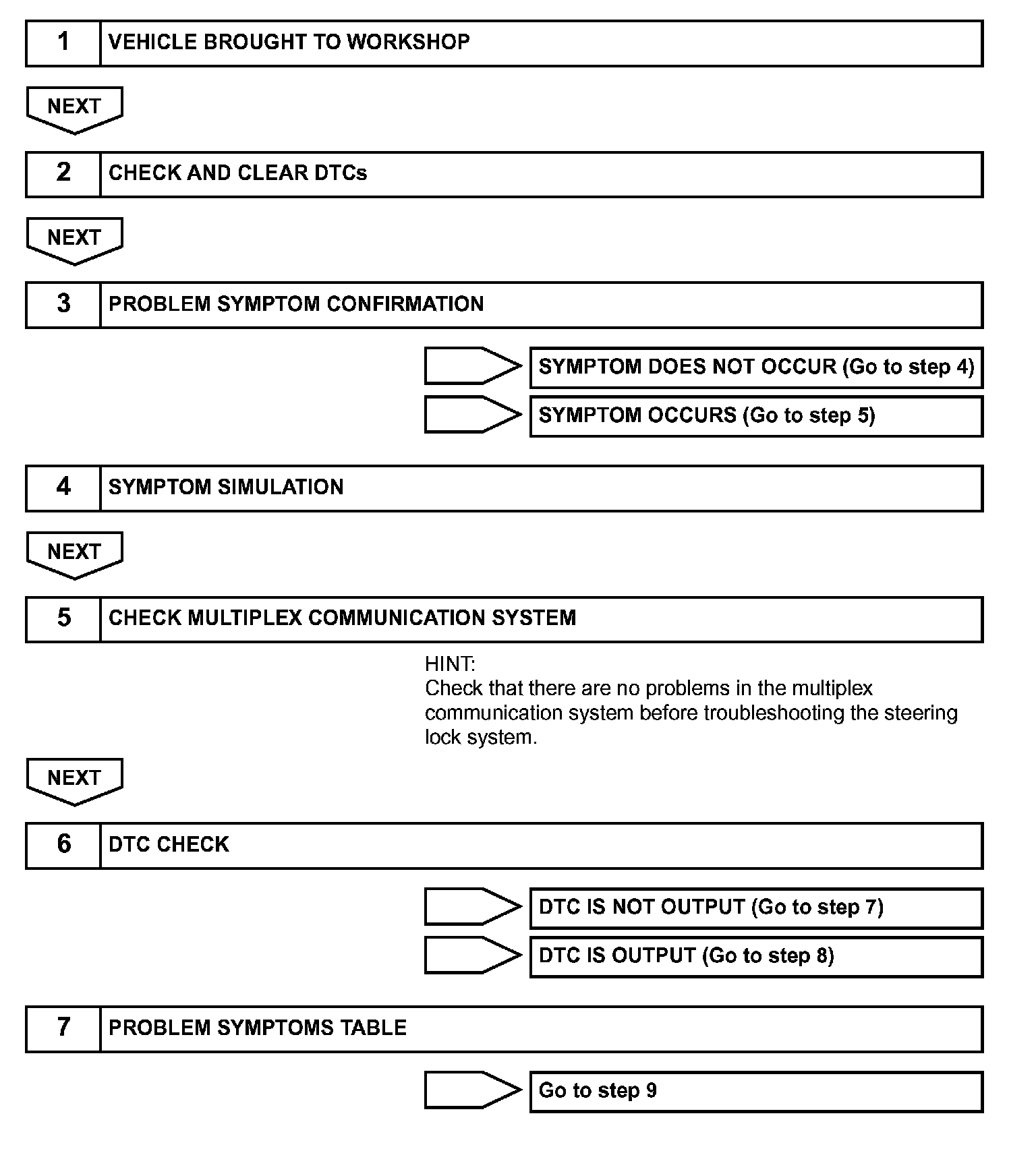

Steps 1 - 7:

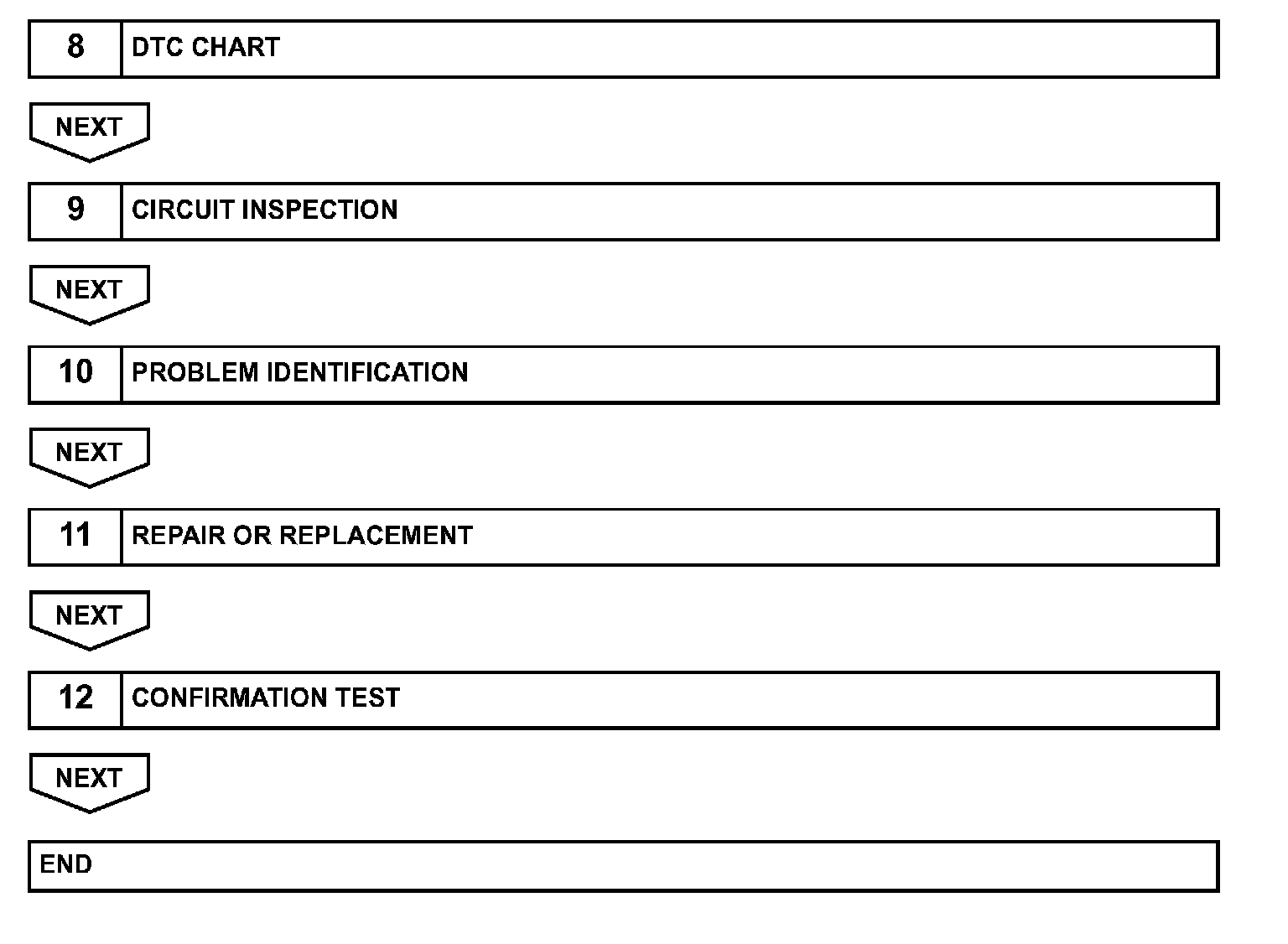

Steps 8 - 12:
