Steering Lock Motor Drive Power Circuit

Steering Lock Motor Drive Power Circuit

DESCRIPTION
The steering lock ECU is connected to the power source control ECU assembly and certification ECU. The steering lock ECU cannot activate the motor unless it obtains permission from both the ECUs. (The power source control ECU assembly permits the steering lock ECU to supply power to activate the motor.)

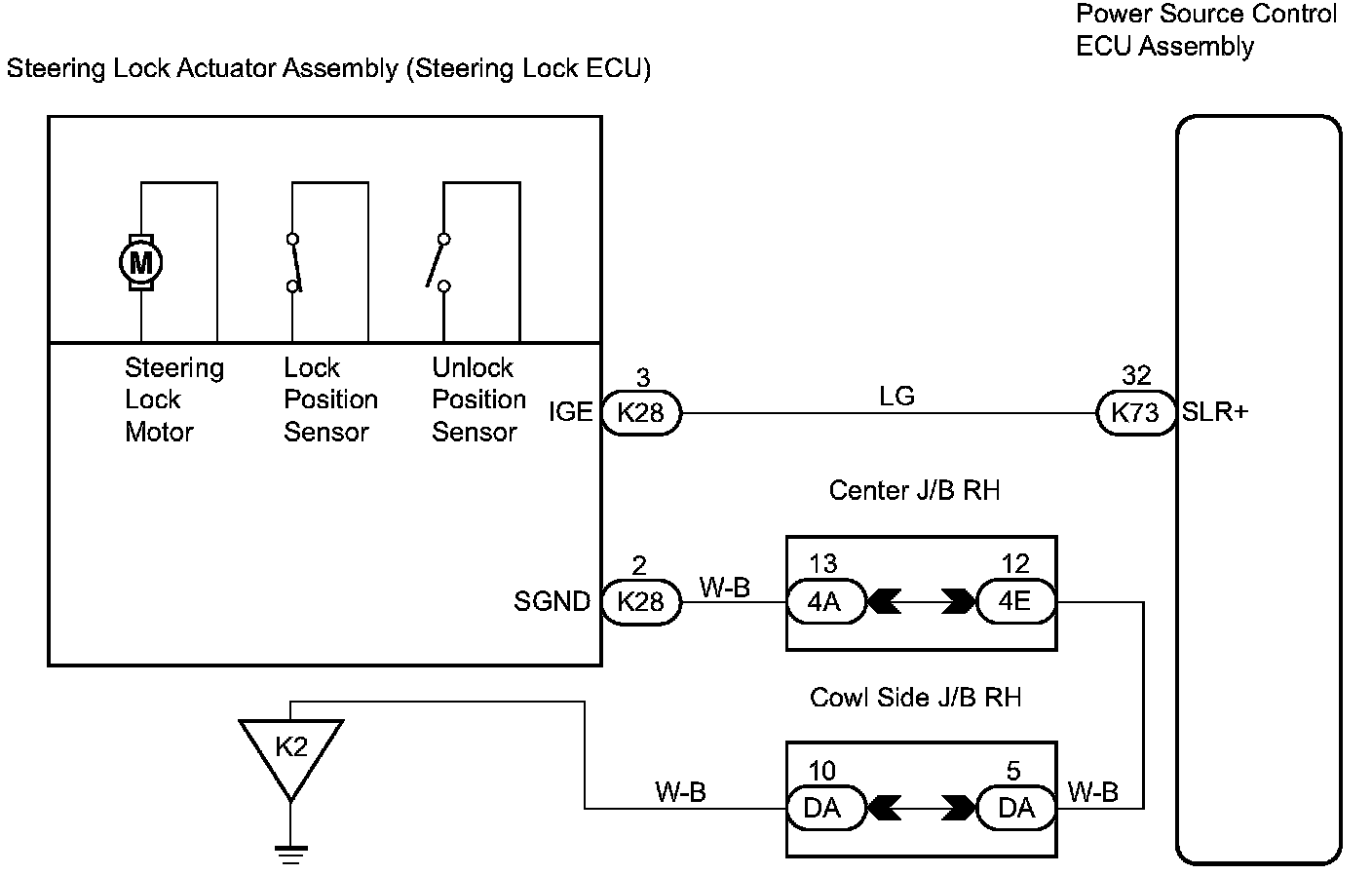

WIRING DIAGRAM:

INSPECTION PROCEDURE

Step 1:

Steps 2-3:

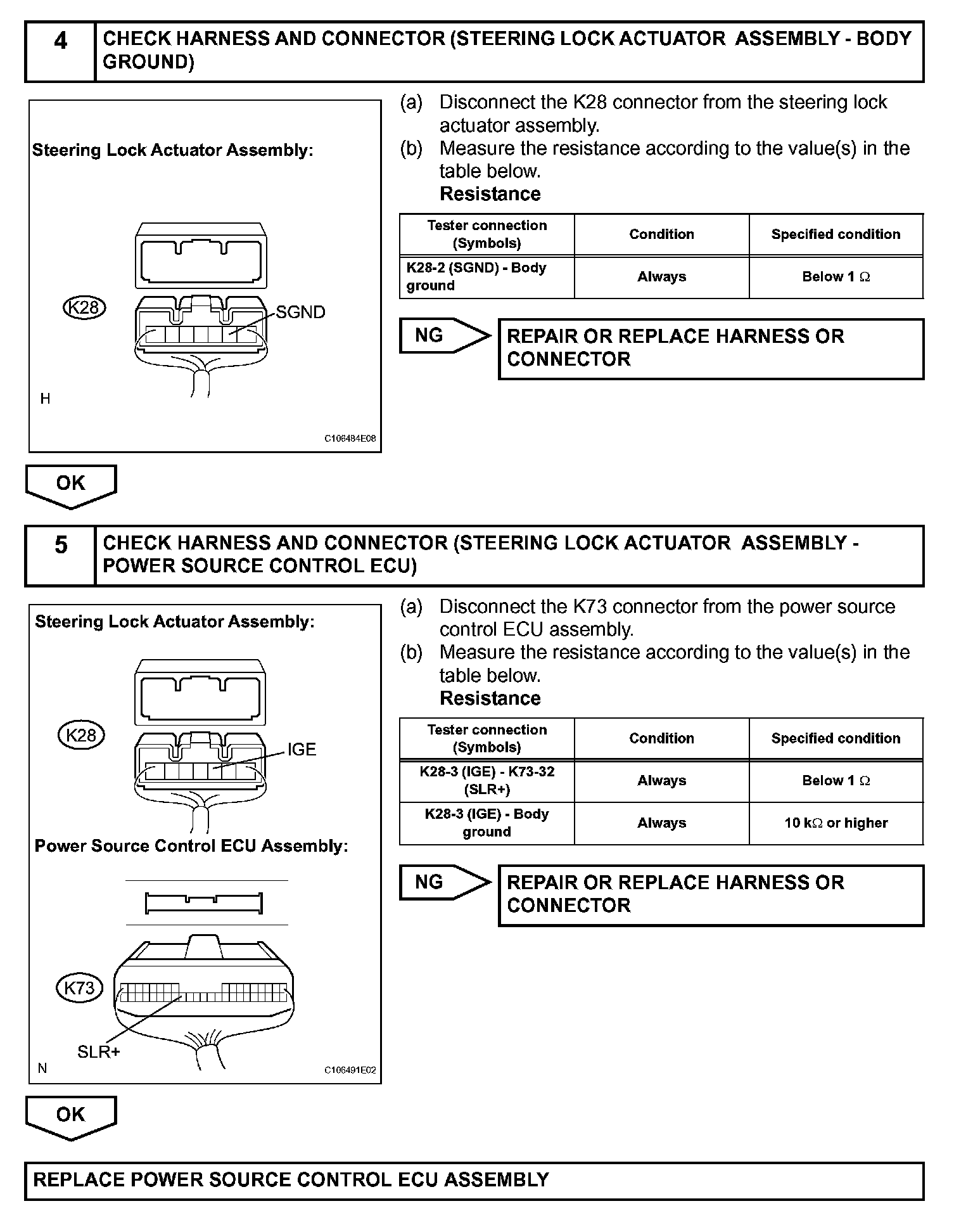

Steps 4-5:

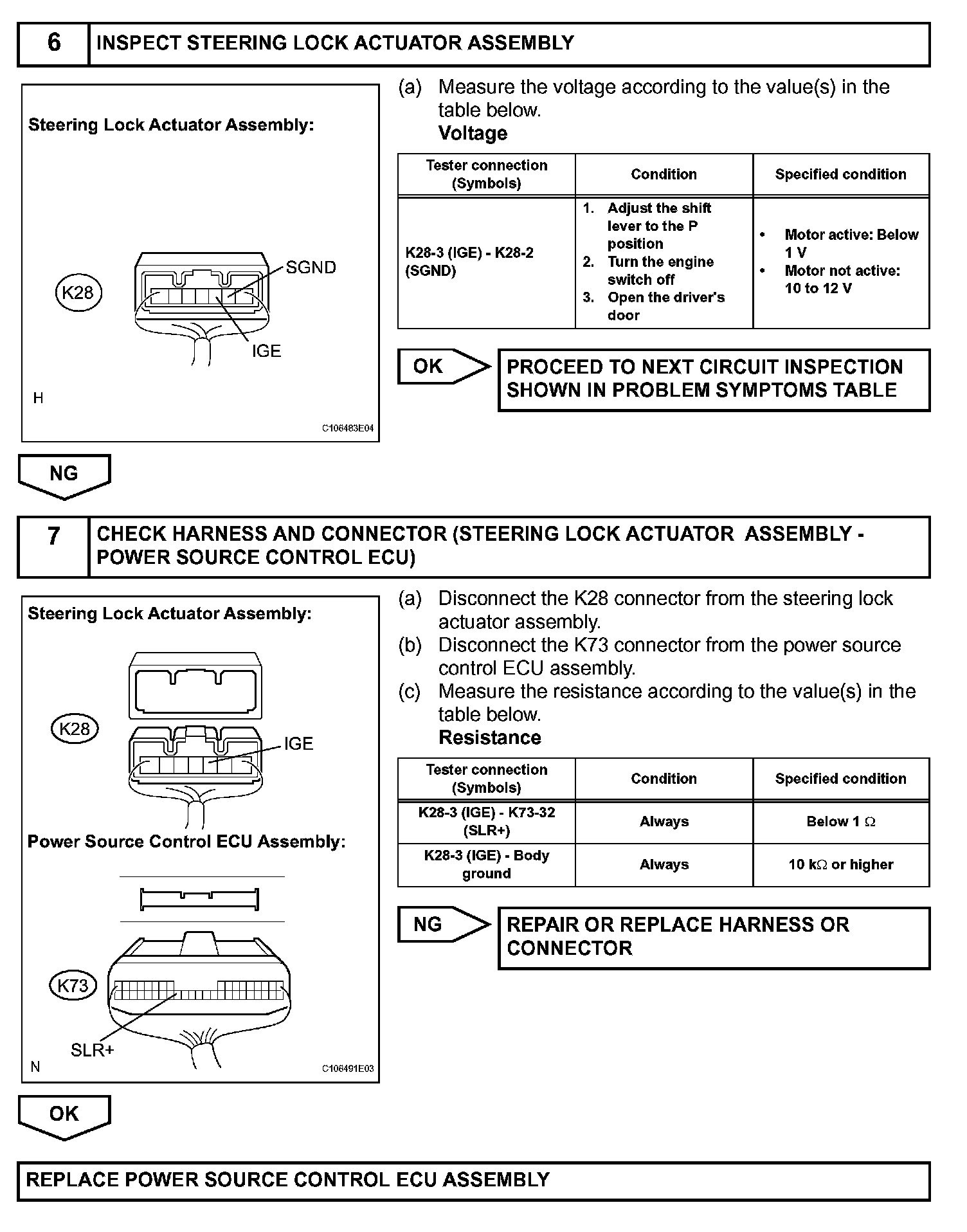

Steps 6-7:
