Power Source Circuit

Power Source Circuit

DESCRIPTION
This circuit supplies power source voltage from the battery to terminal B of the steering lock ECU. This is used as power source for the CPU, motor, communication, and peripheral circuits.

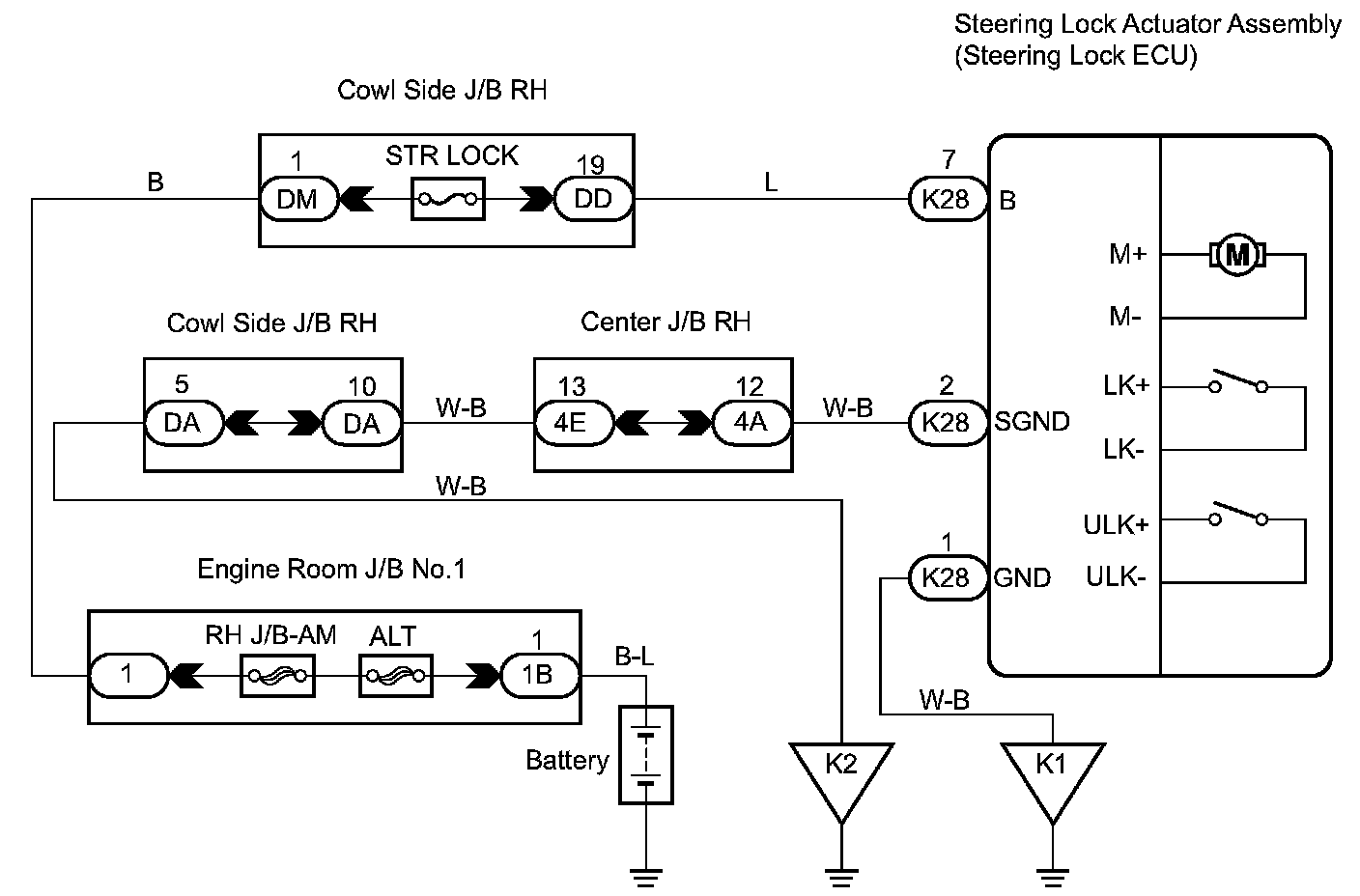

WIRING DIAGRAM:





INSPECTION PROCEDURE

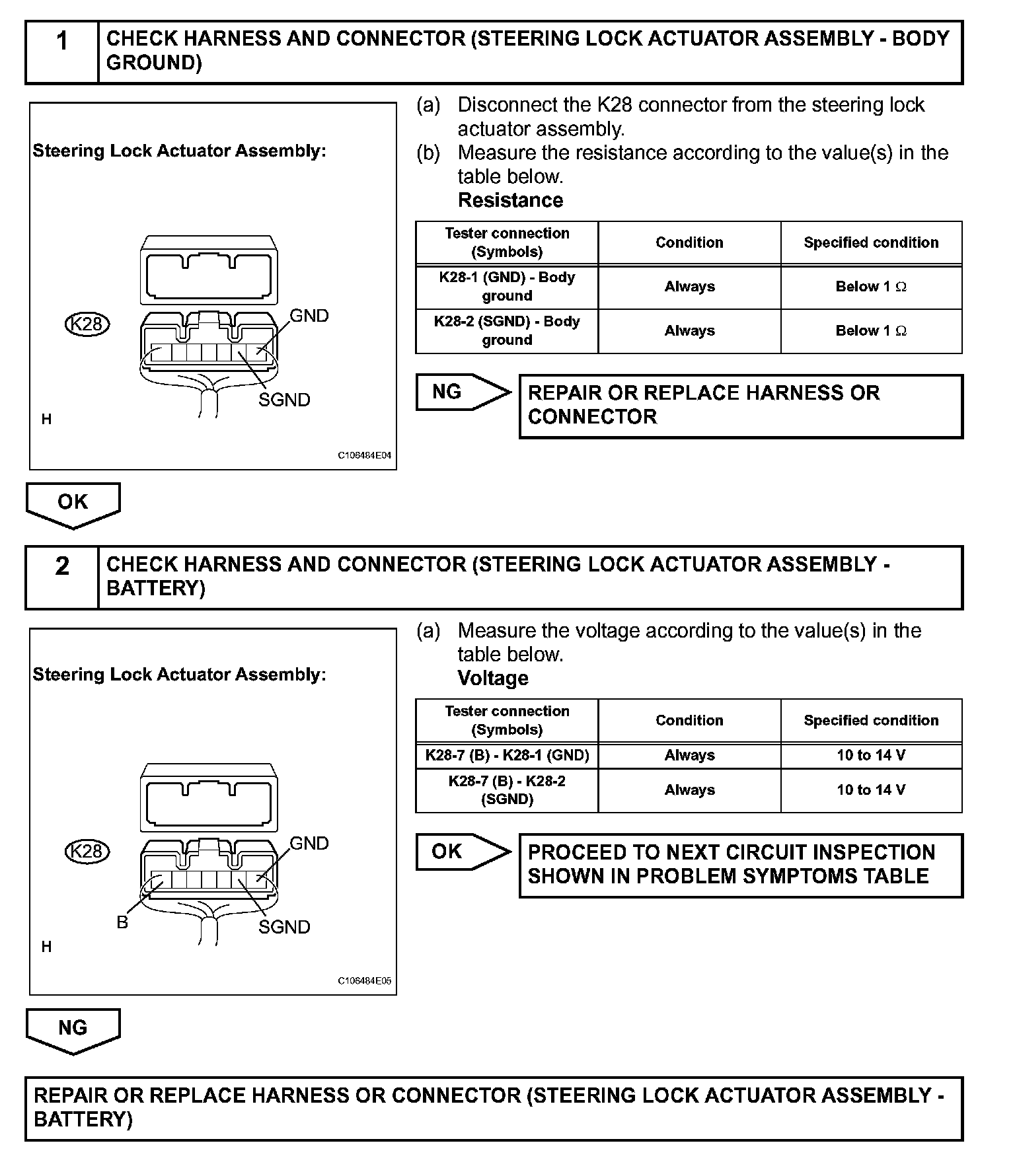

Steps 1-2:
