Steering Column Lock: Description and Operation
SYSTEM DESCRIPTION1. DESCRIPTION
a. The steering lock system locks/unlocks the steering lock by activating the steering lock bar with a motor. The steering lock ECU activates the motor based on signals from the certification ECU and power source control ECU assembly.

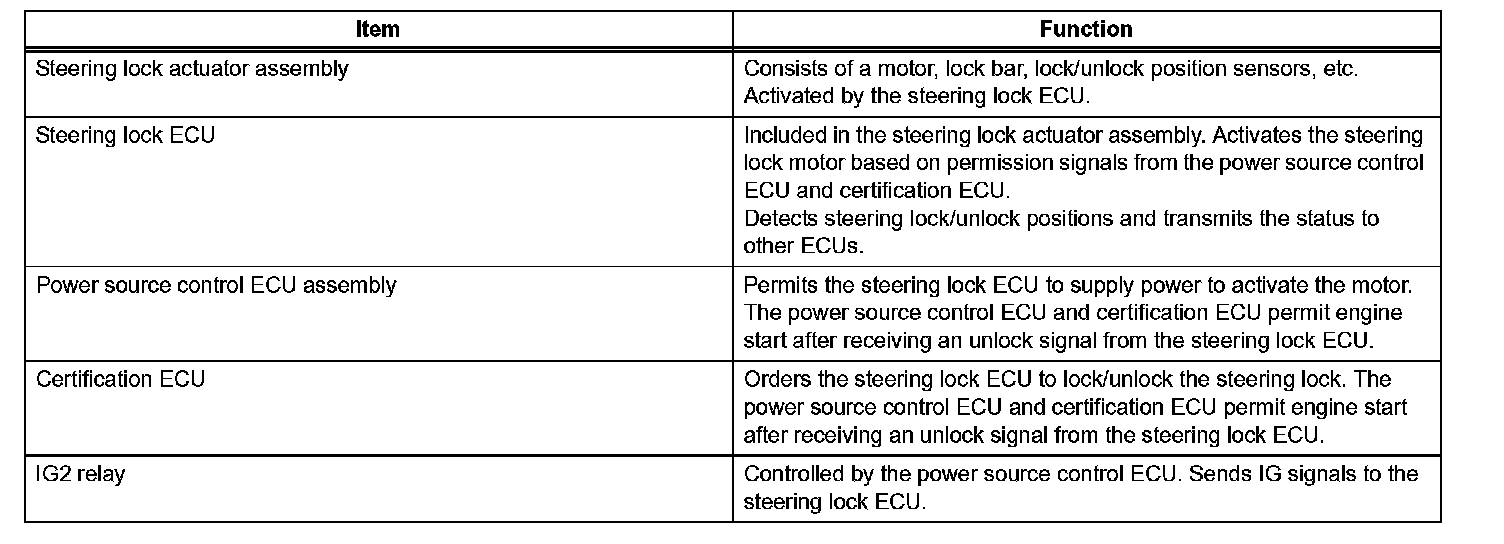

2. FUNCTIONS OF COMPONENTS
a. The steering lock ECU controls the system based on information from these components.
