Variable Gear Ratio Steering System

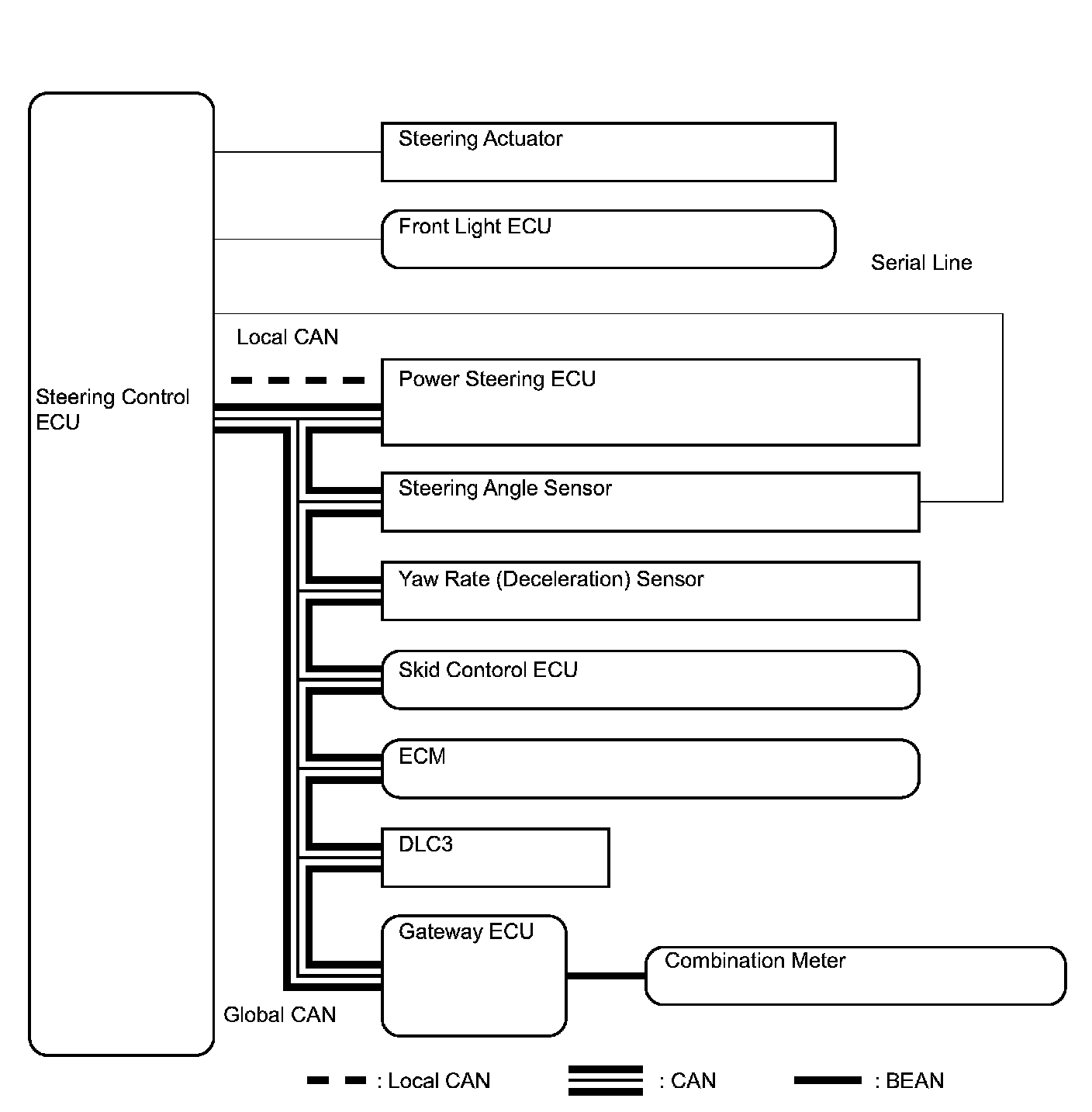

SYSTEM DIAGRAM:

HINT:

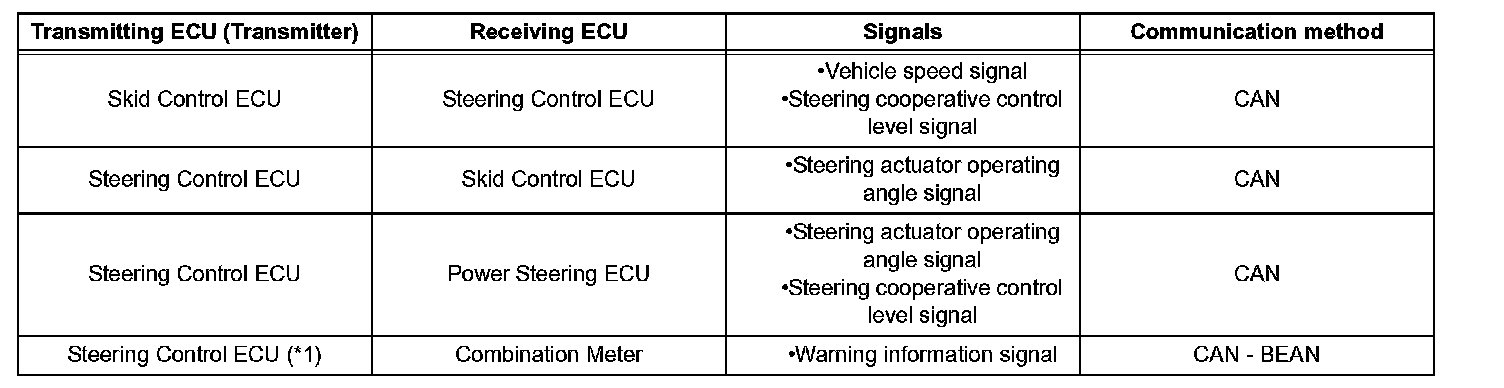

*1: Warning information signals are transmitted via the following route:
Steering control ECU -> (CAN) -> Power steering ECU -> (CAN) -> Gateway ECU -> (BEAN) -> Combination meter
