Fusible Link: Locations

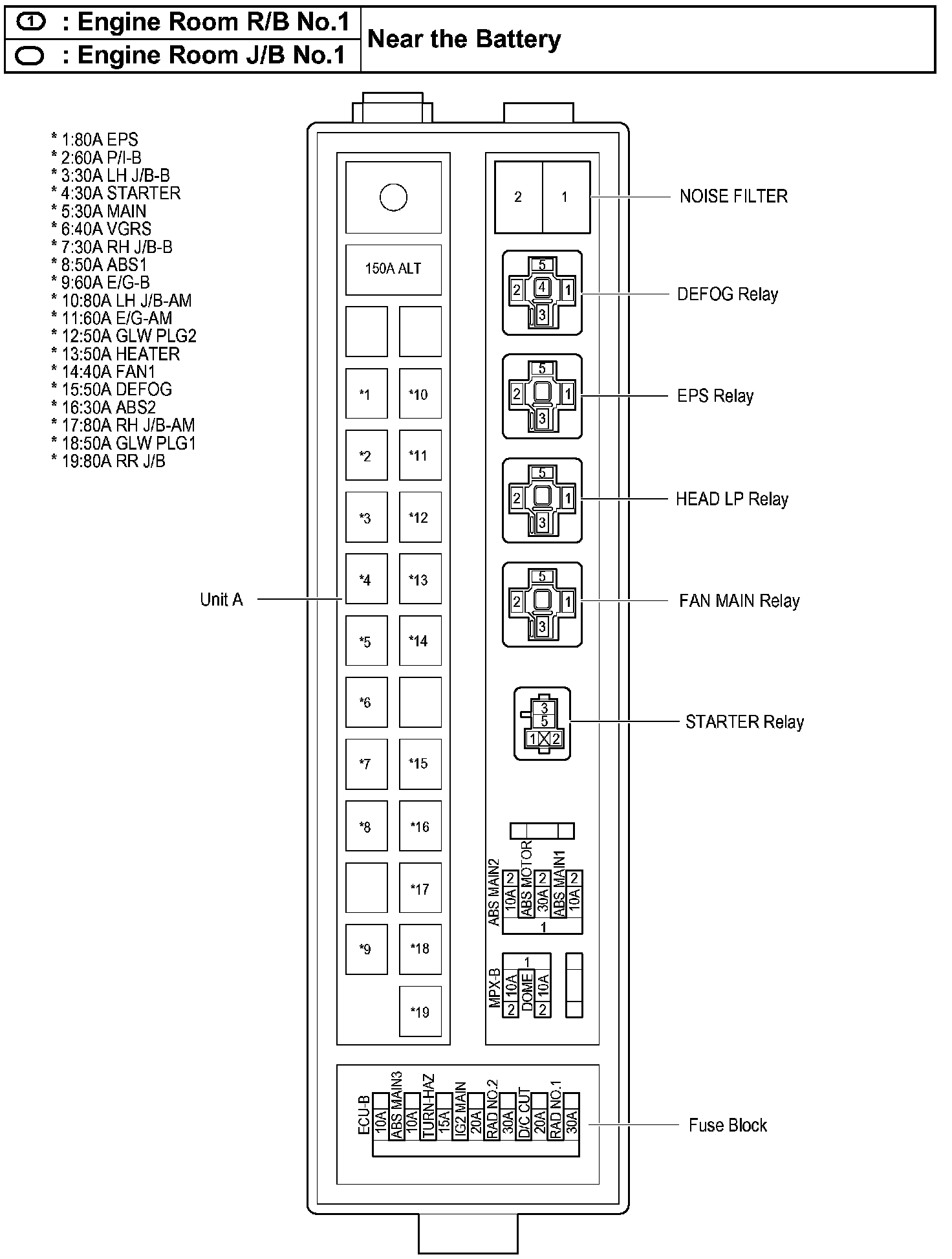

Engine Room R/B, J/B No.1-Near The Battery:

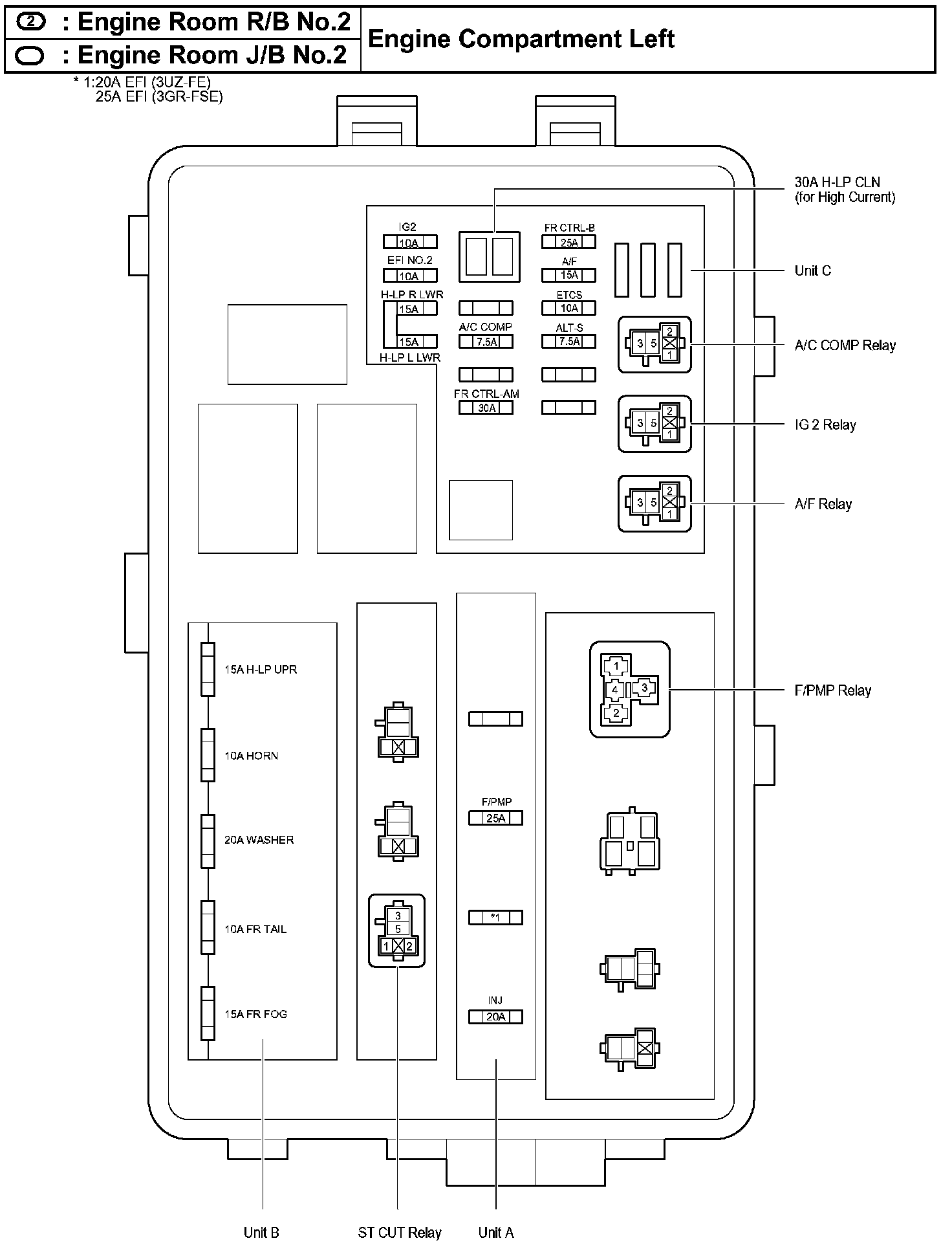

Engine Room R/B, J/B No.2-Engine Compartment:

Cowl Side J/B LH-Cowl Side Left:

Cowl Side J/B RH-Cowl Side Right:

Engine Room R/B 1:

Engine Room R/B 2:

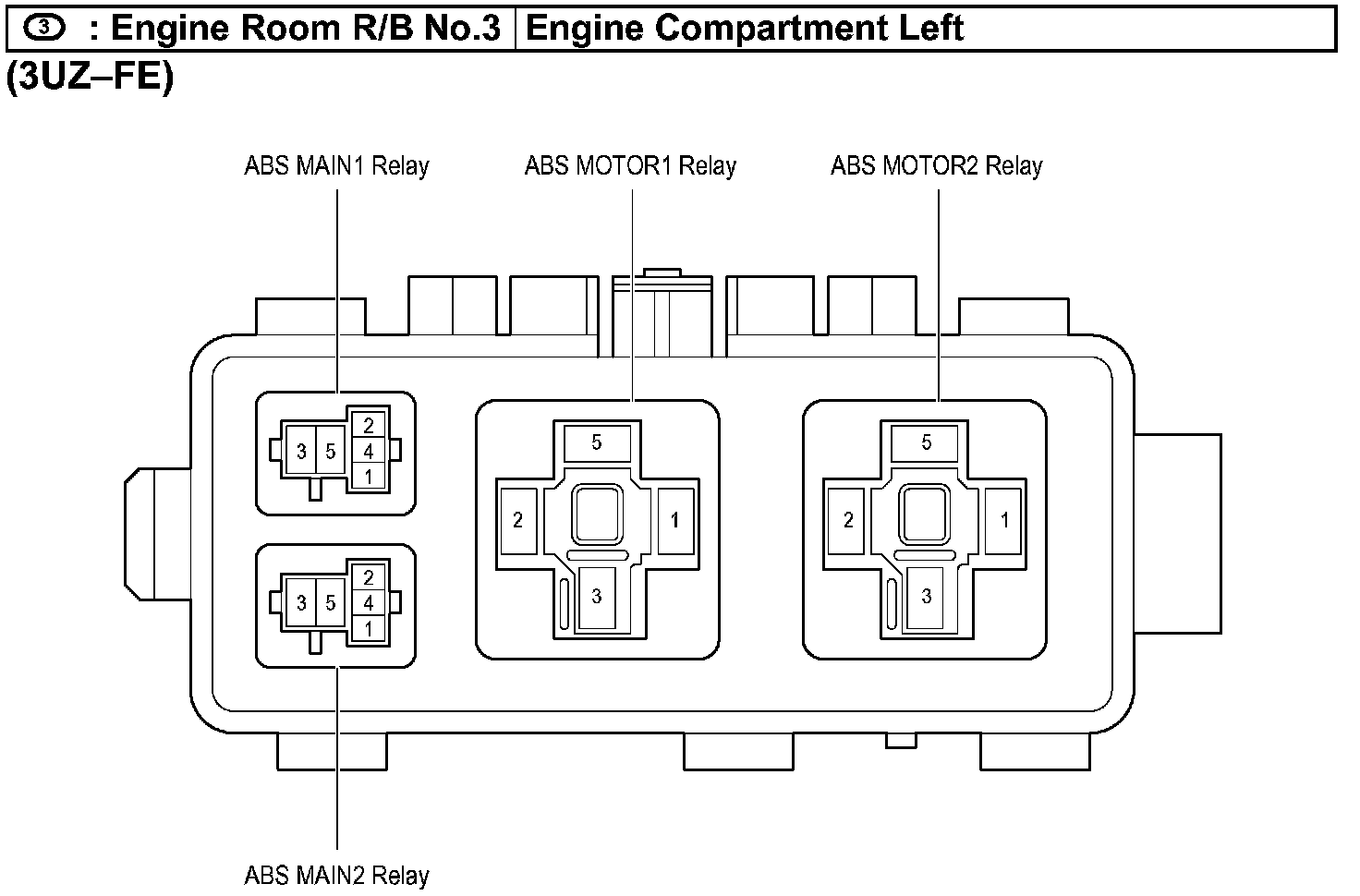

Engine Room R/B 3 - 3UZ-FE Engine:

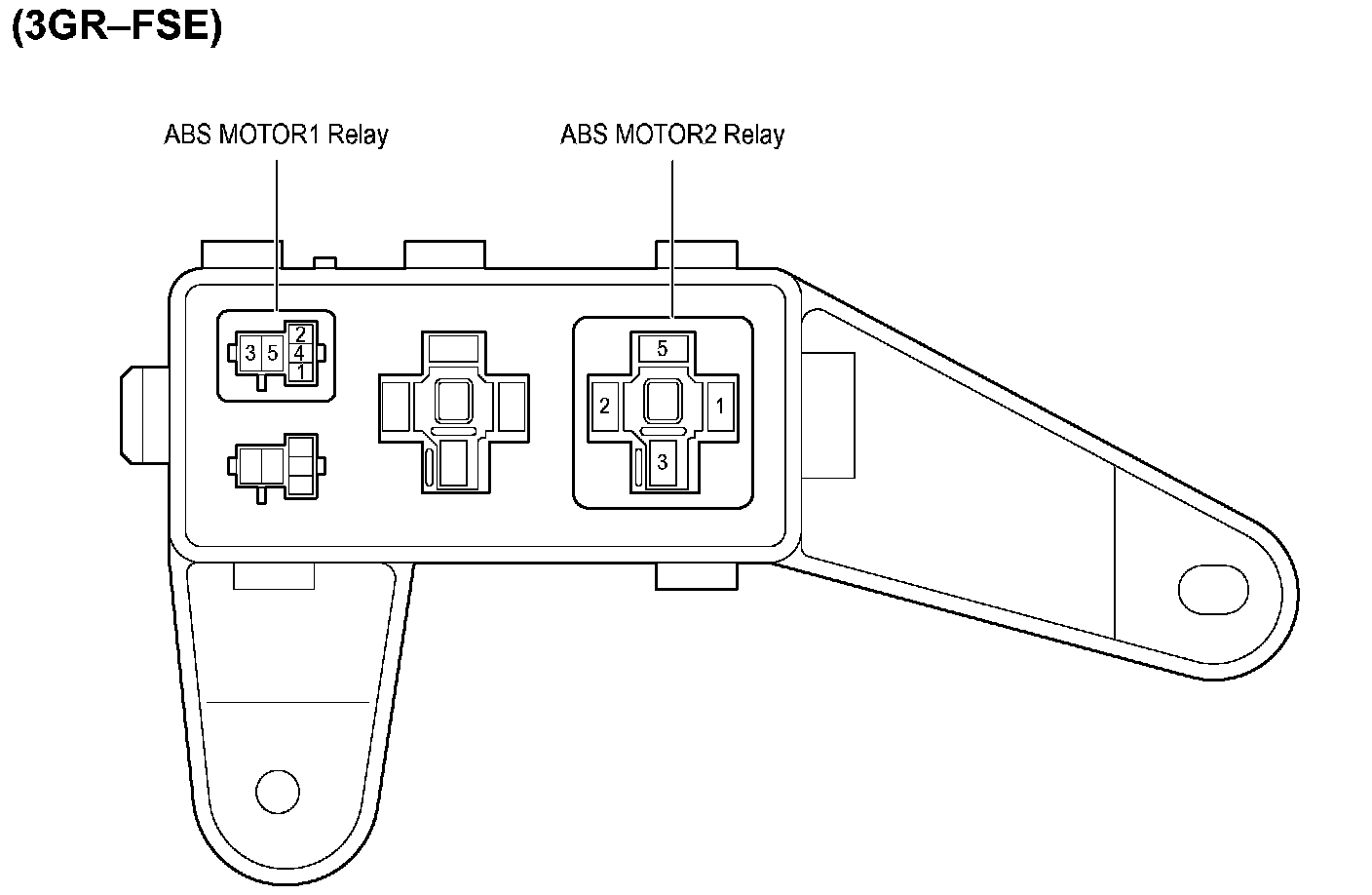

Engine Room R/B 3 Left - 3GR-FSE Engine:

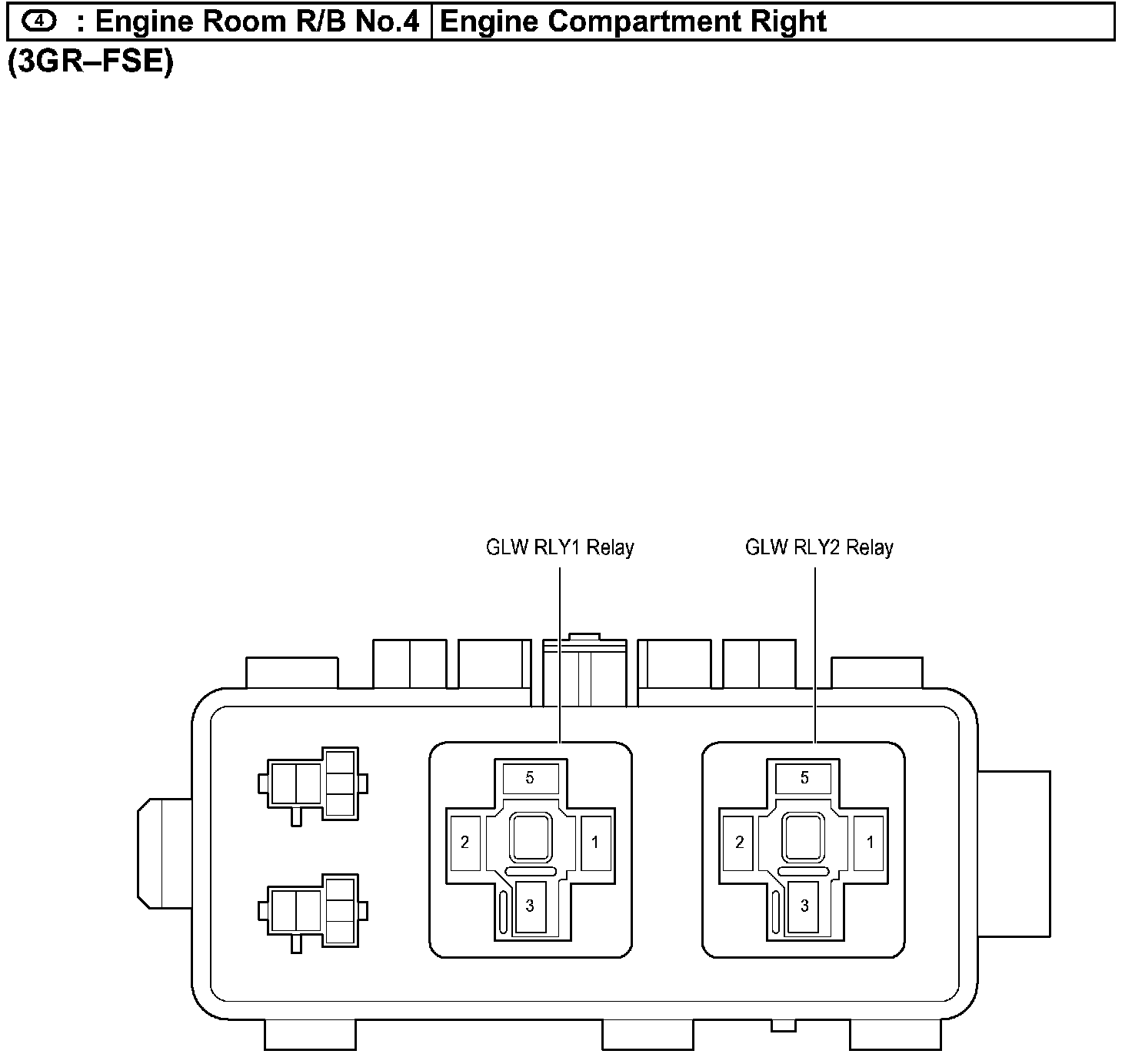

Engine Room R/B 4 Right - 3GR-FSE Engine:

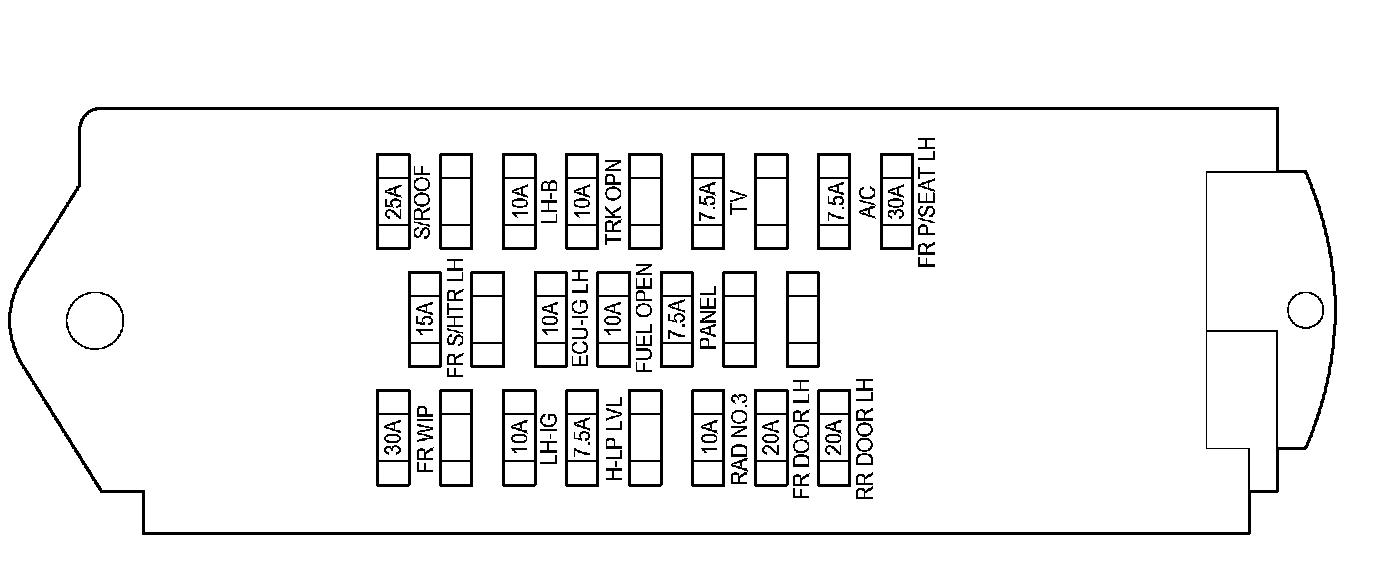

Cowl Side J/B Left:

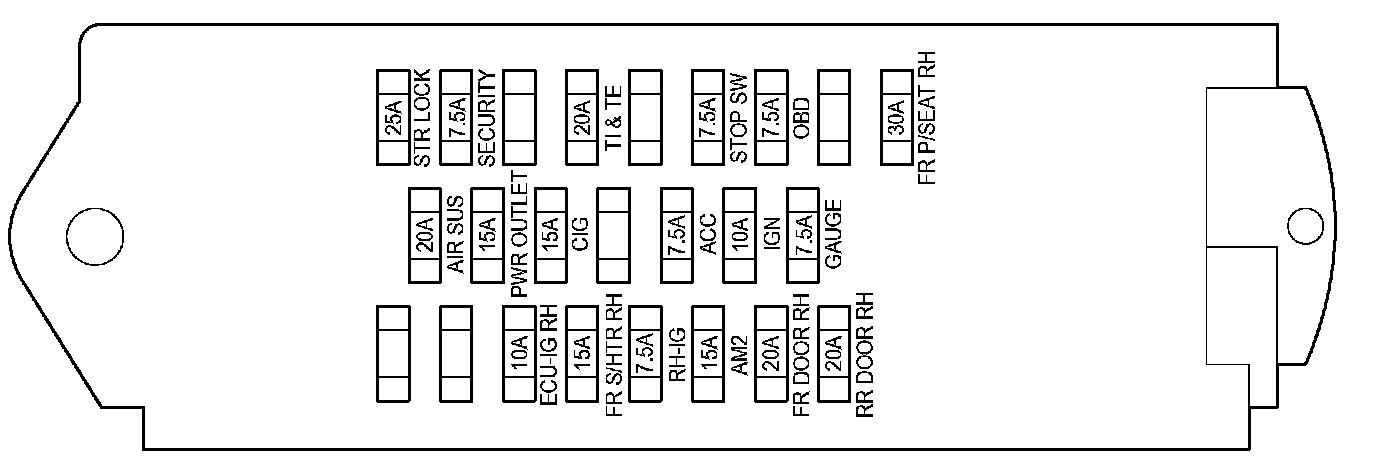

Cowl Side J/B Right:

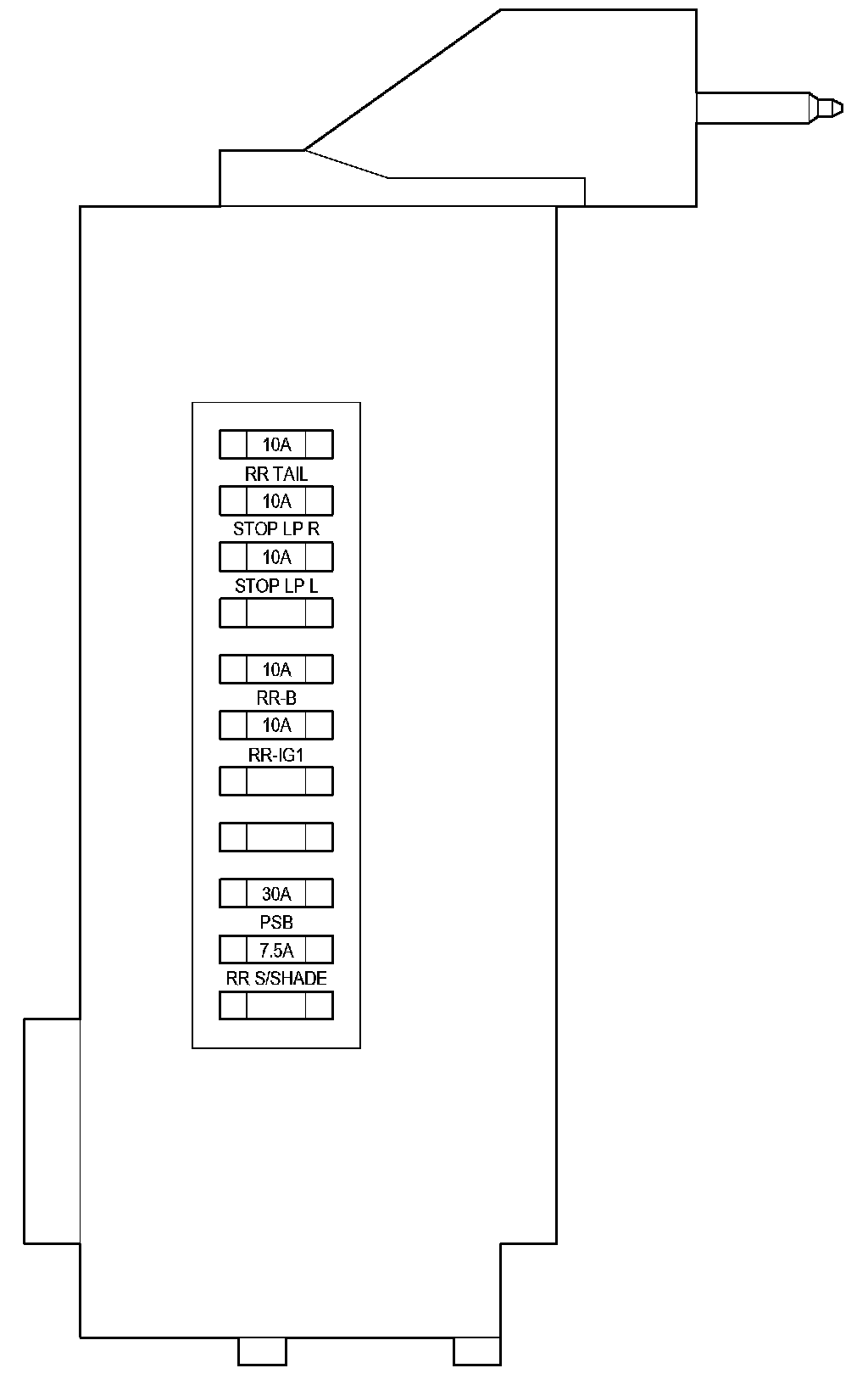

Luggage Room J/B Left:

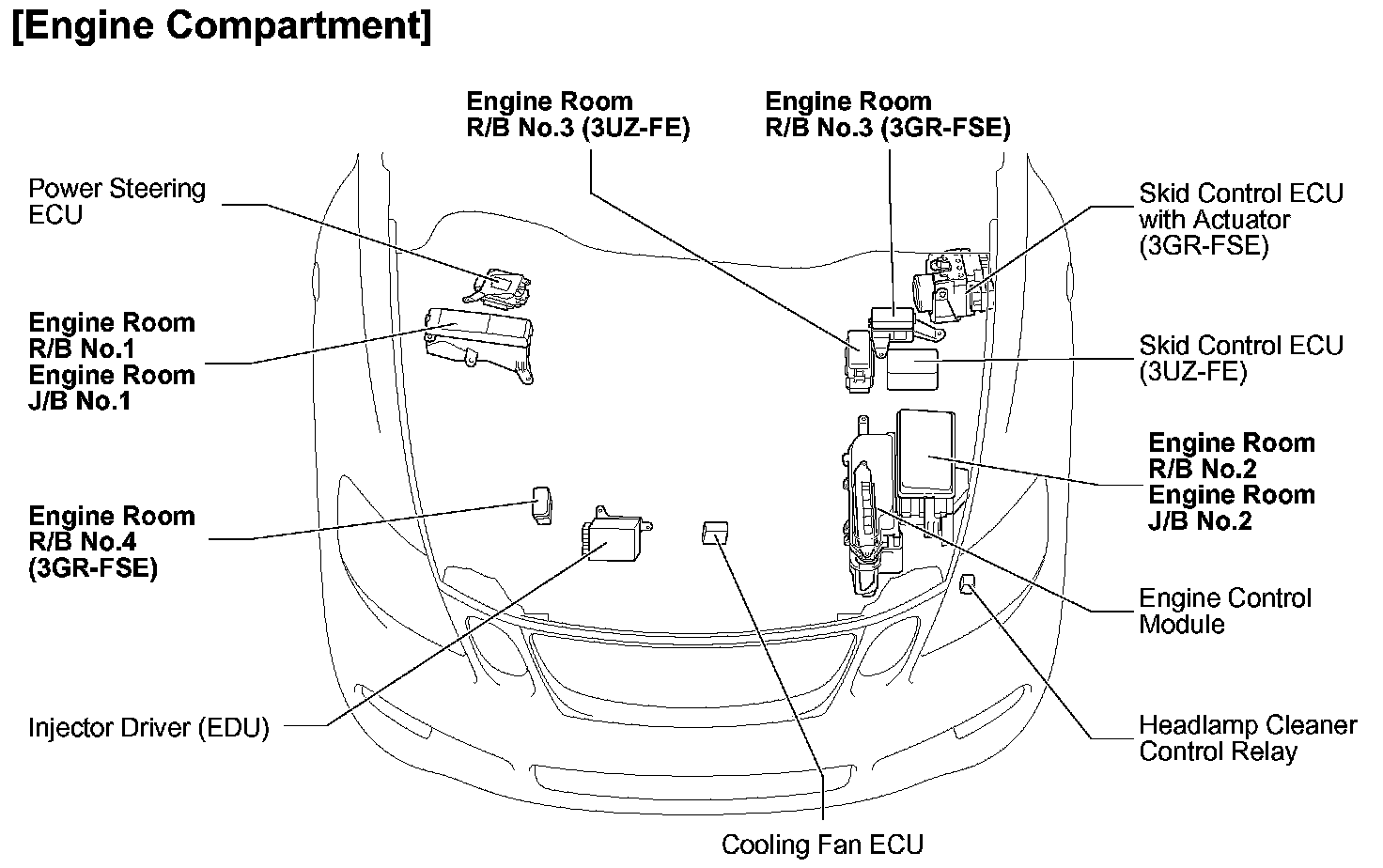

Engine Compartment:

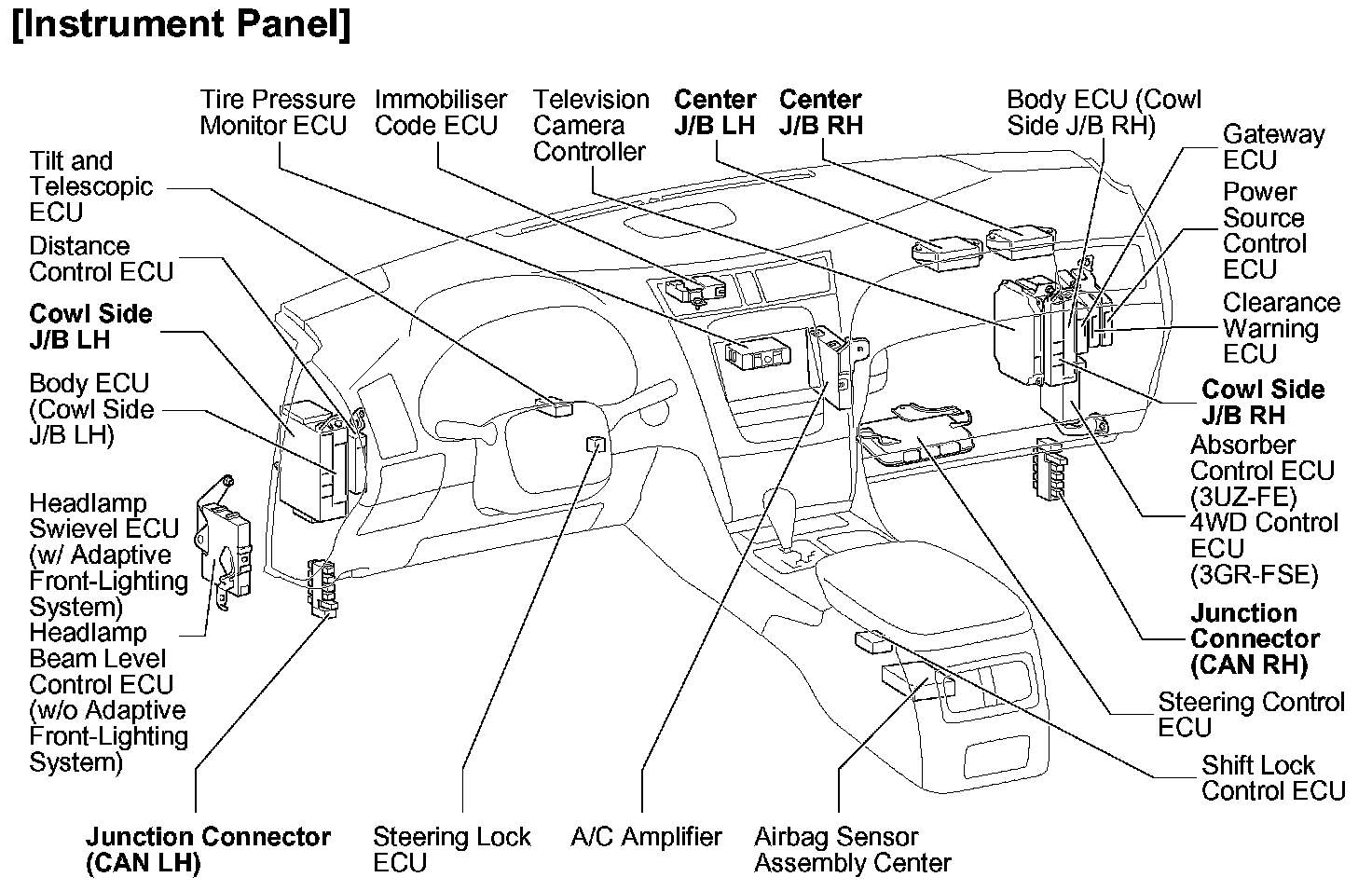

Instrument Panel:

Engine Compartment:

Instrument Panel:

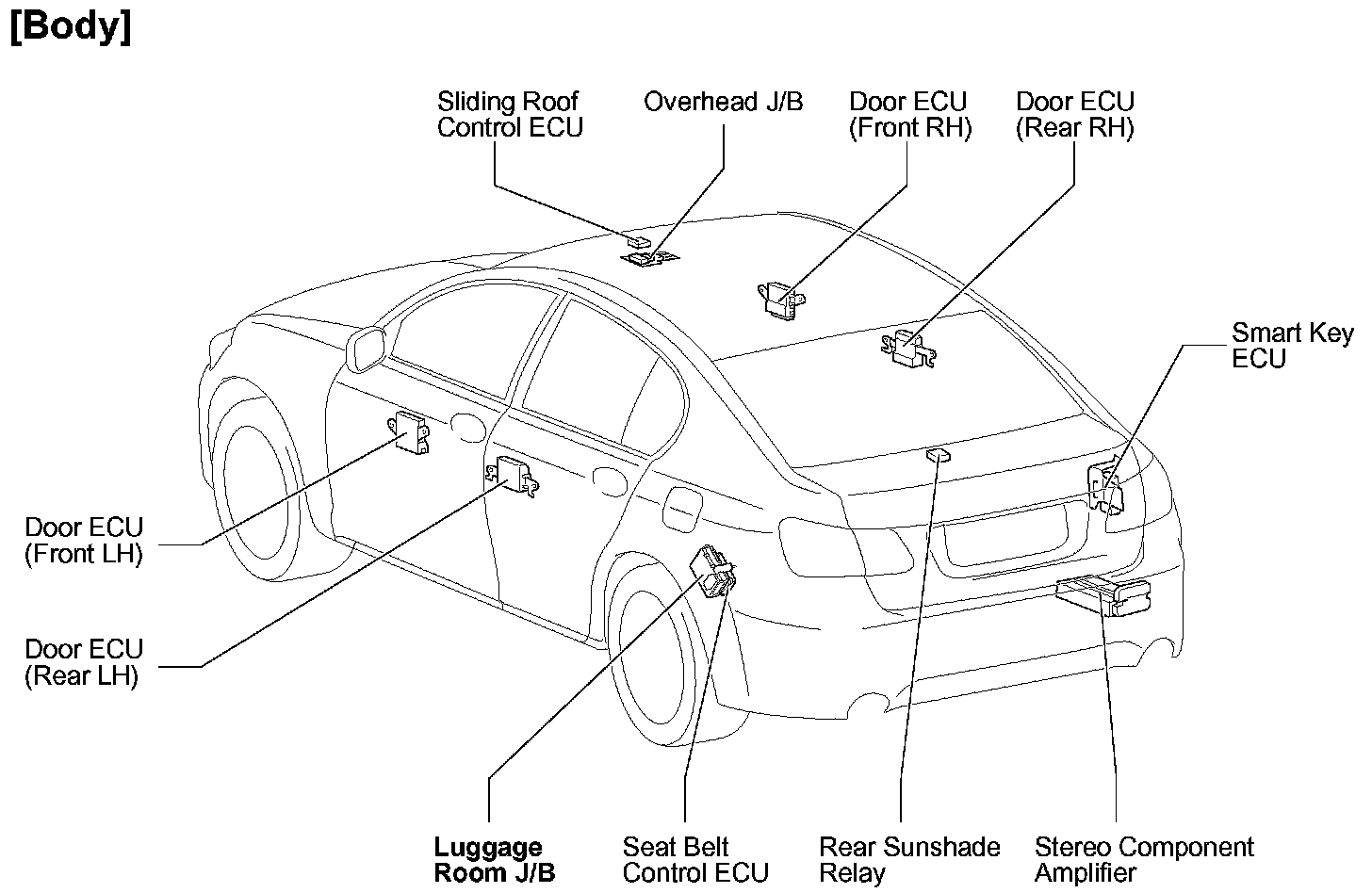

Body:
