Engine Room R/B No.2 and Engine Room J/B No.2

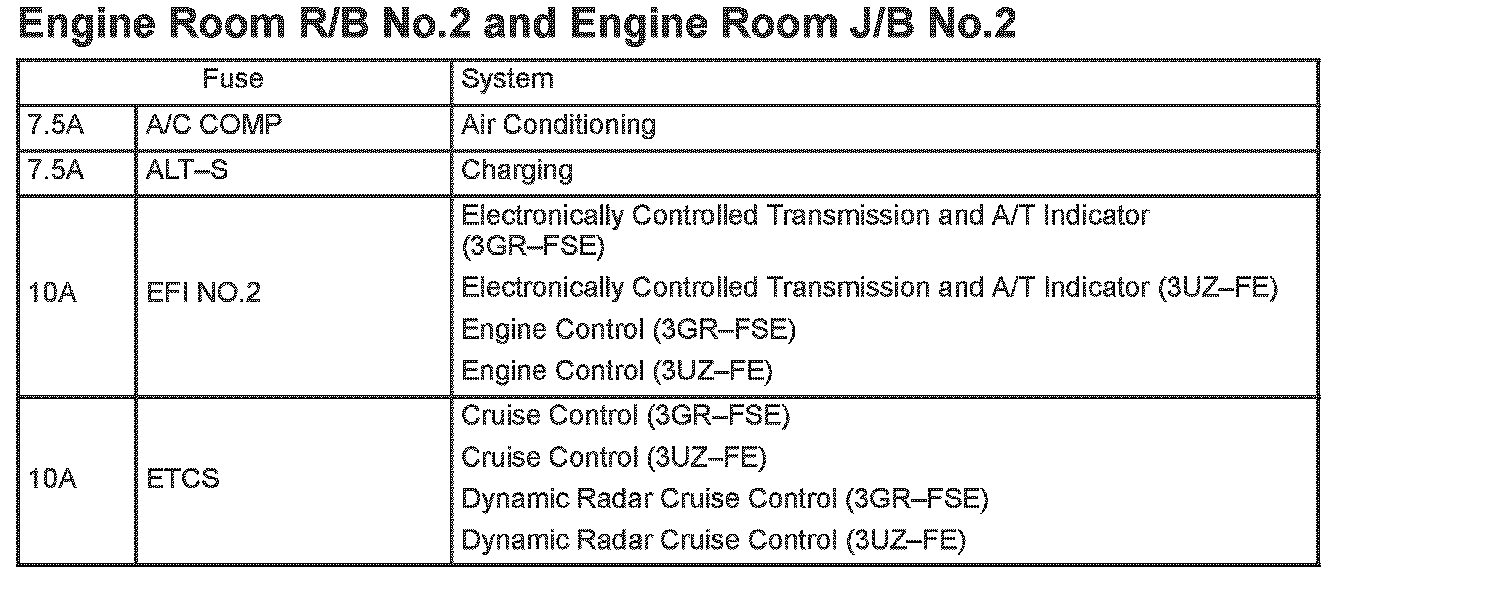

Engine Room R/B No.2 And Engine Room J/B No.2 (Part 1):

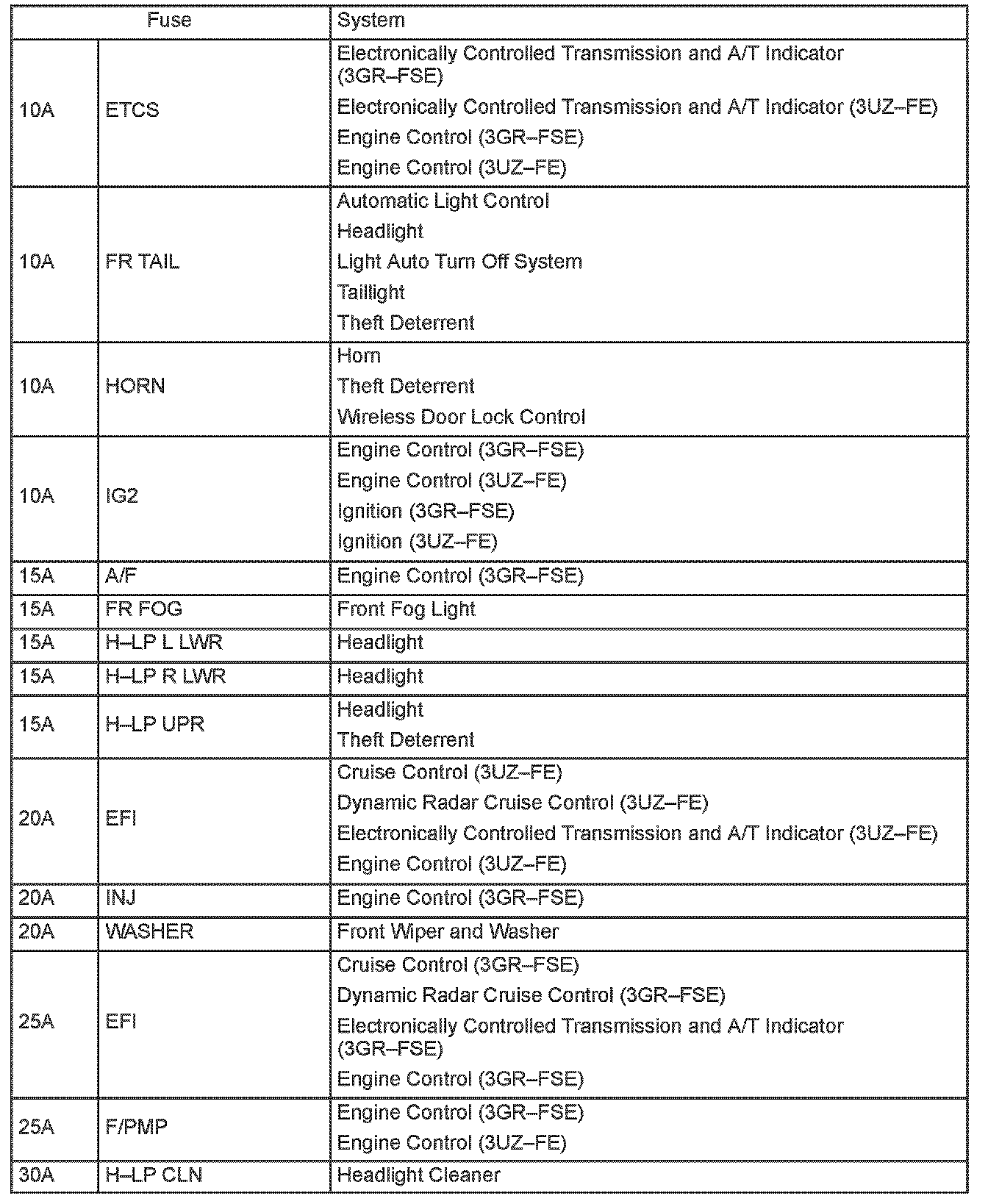

Engine Room R/B No.2 And Engine Room J/B No.2 (Part 2):
