GS 300 RWD V6-3.0L (3GR-FSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Cowl Side J/B RH
Cowl Side J/B RH

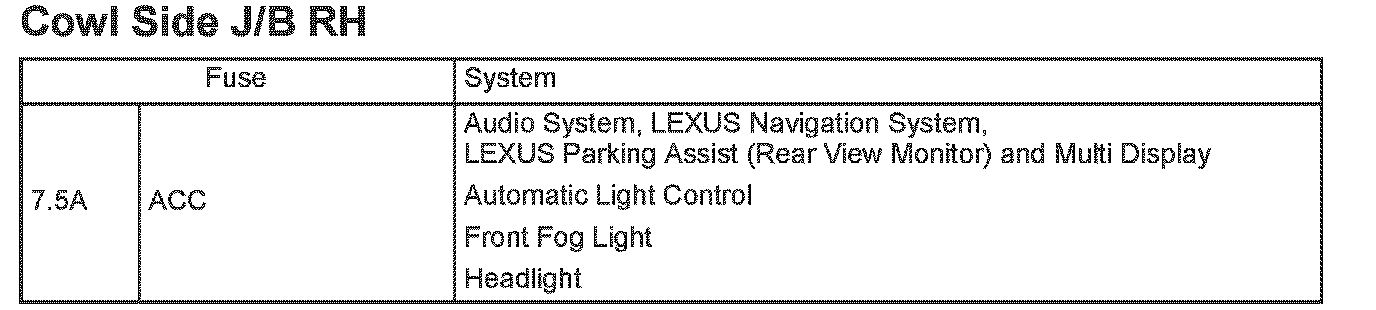

Cowl Side J/B RH (Part 1):

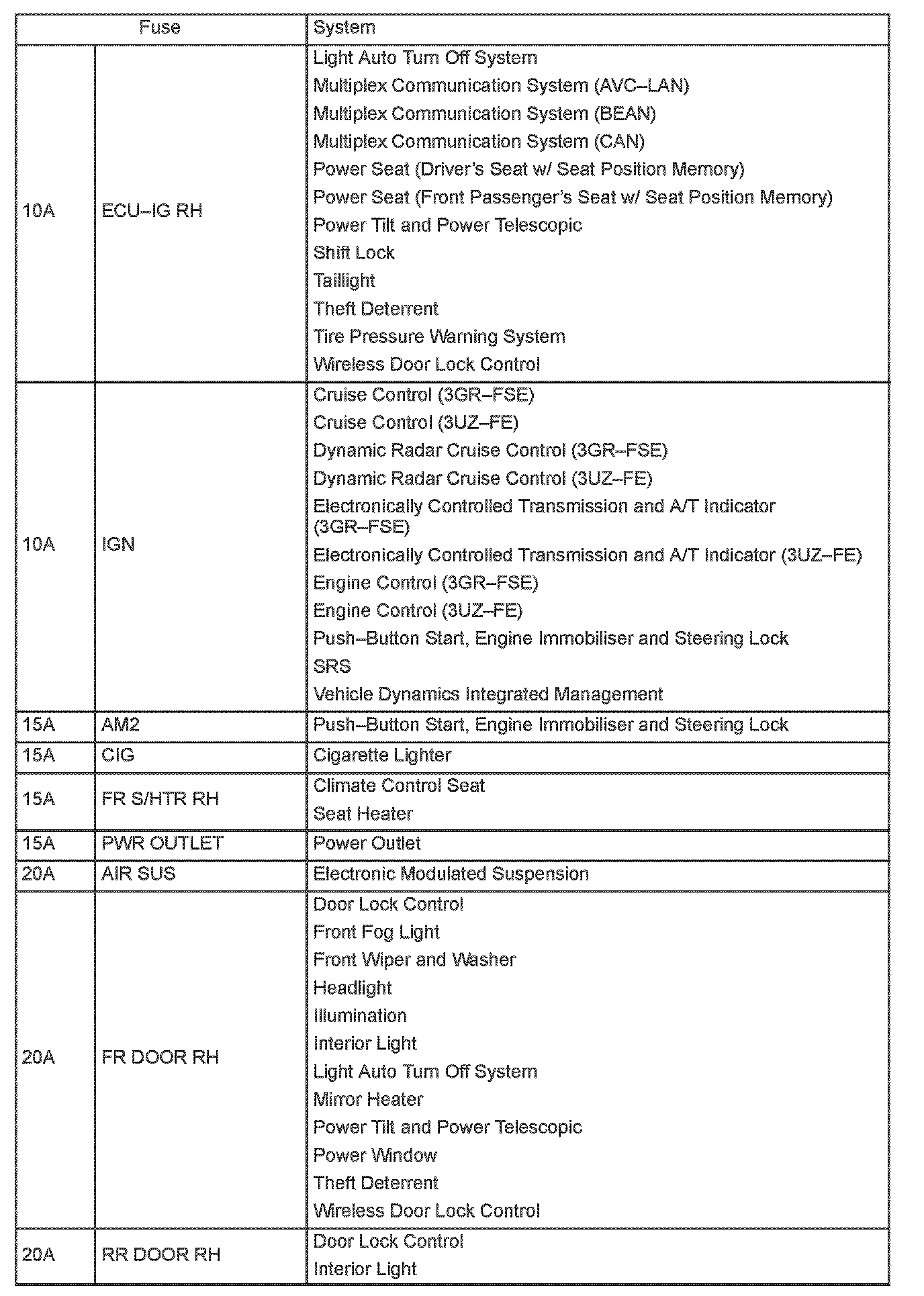

Cowl Side J/B RH (Part 2):

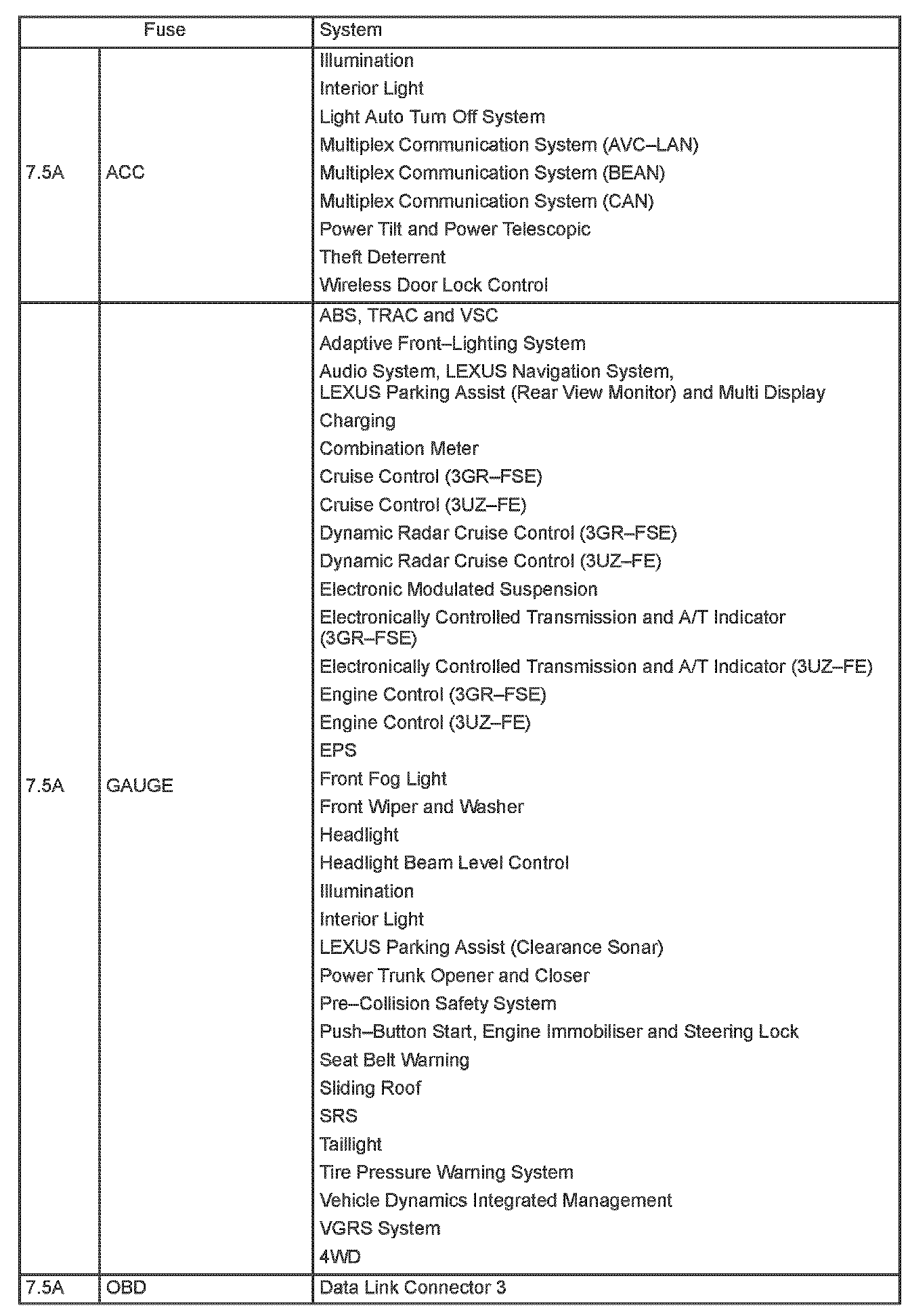

Cowl Side J/B RH (Part 3):

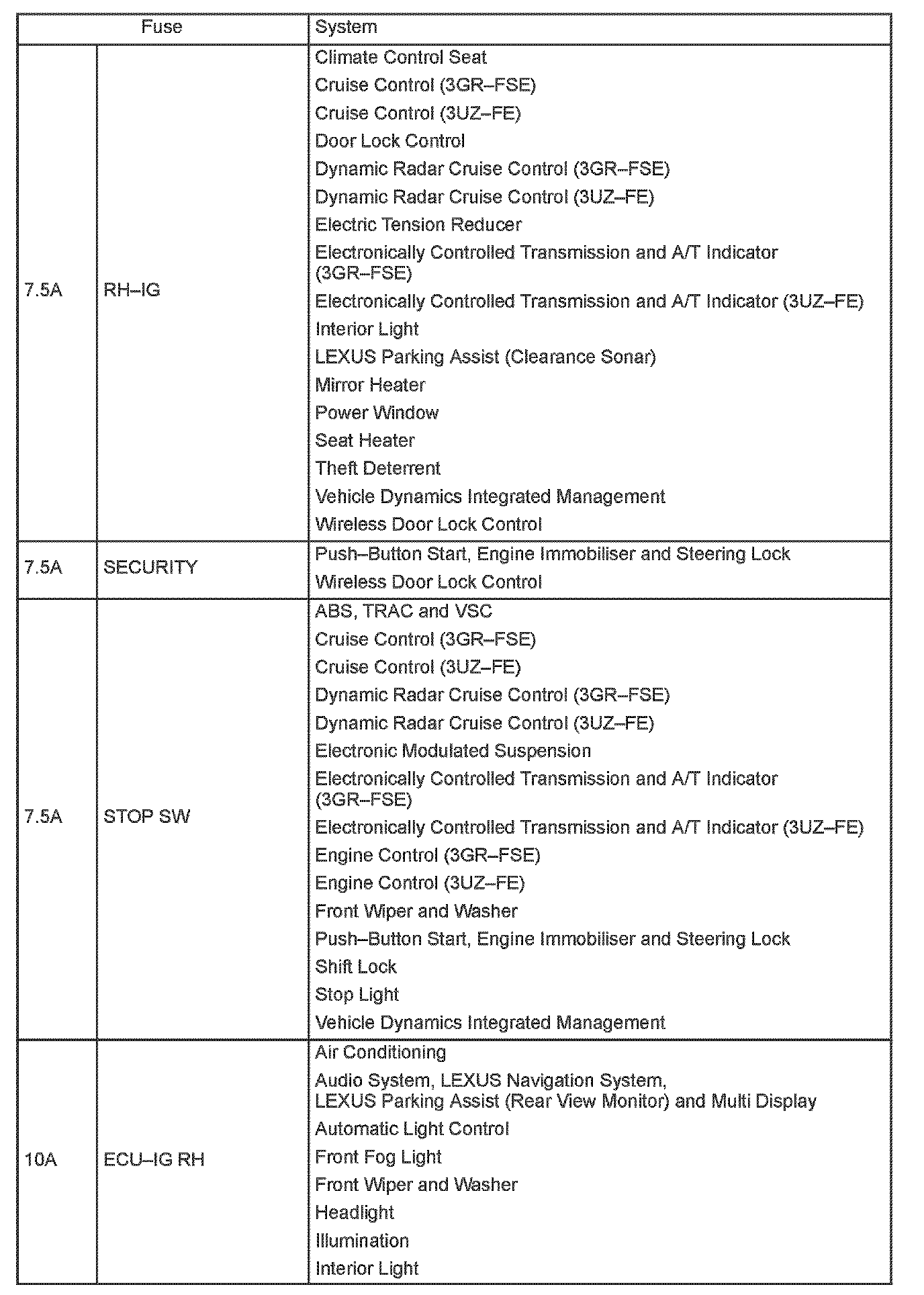

Cowl Side J/B RH (Part 4):

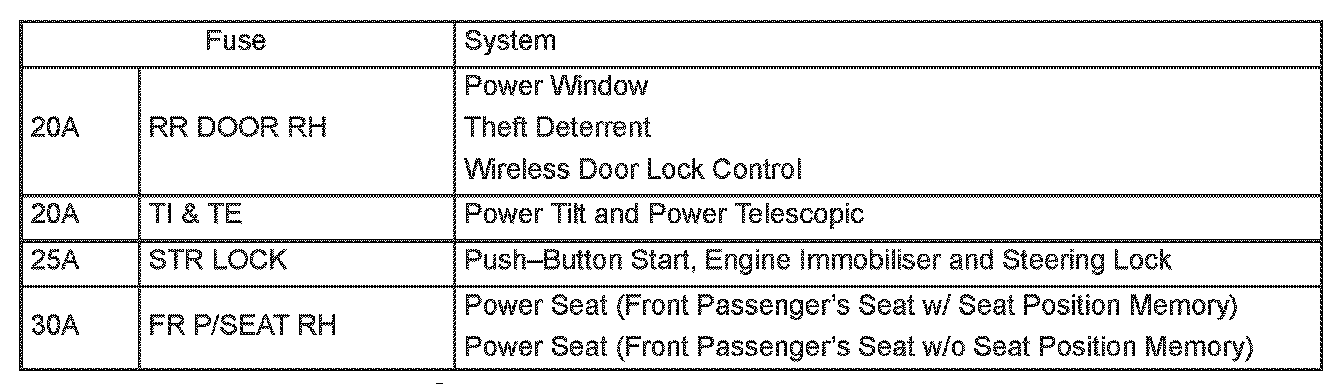

Cowl Side J/B RH (Part 5):
