Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Service Data

Service Data

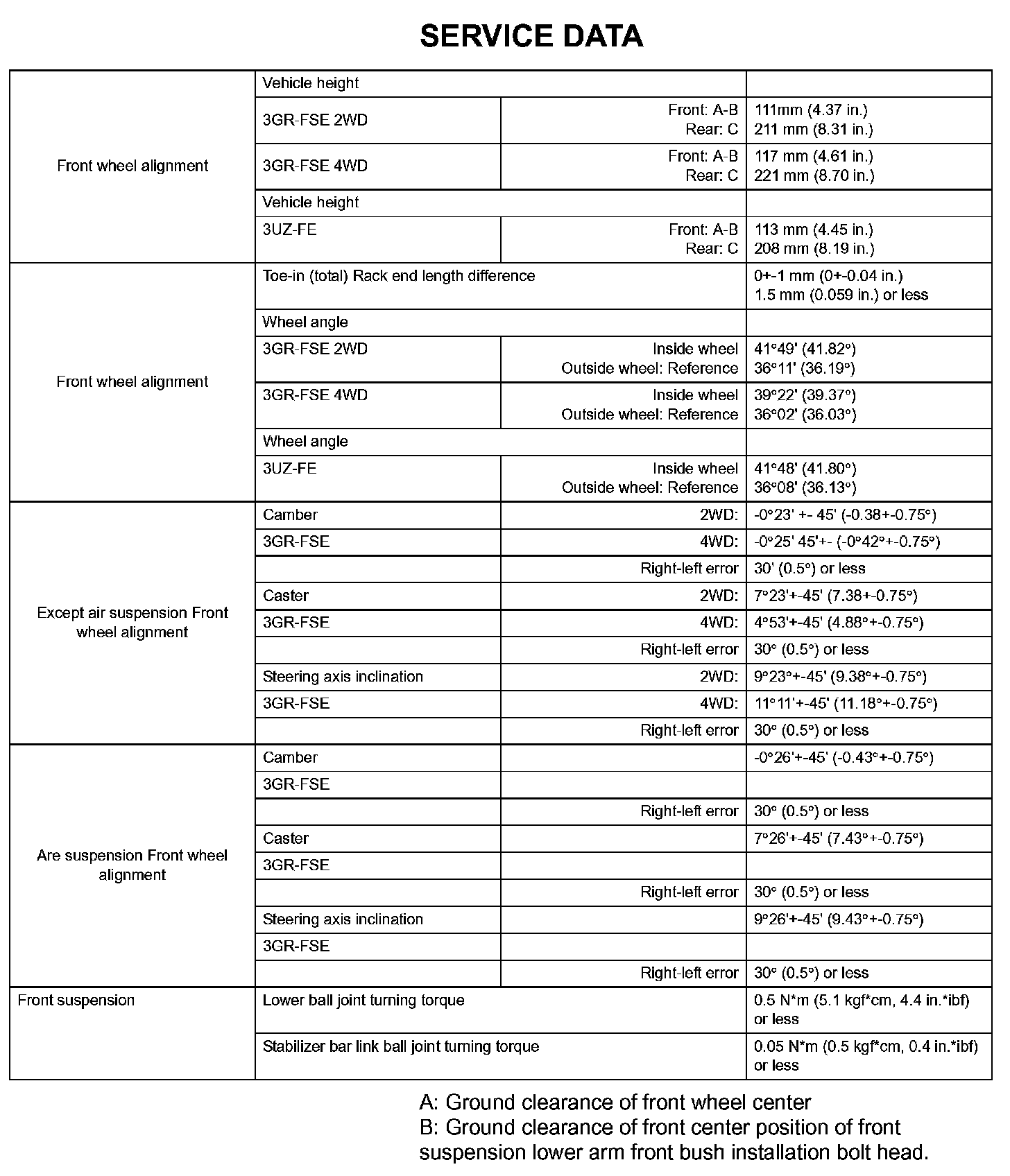

Suspension-Service Data (Part 1):

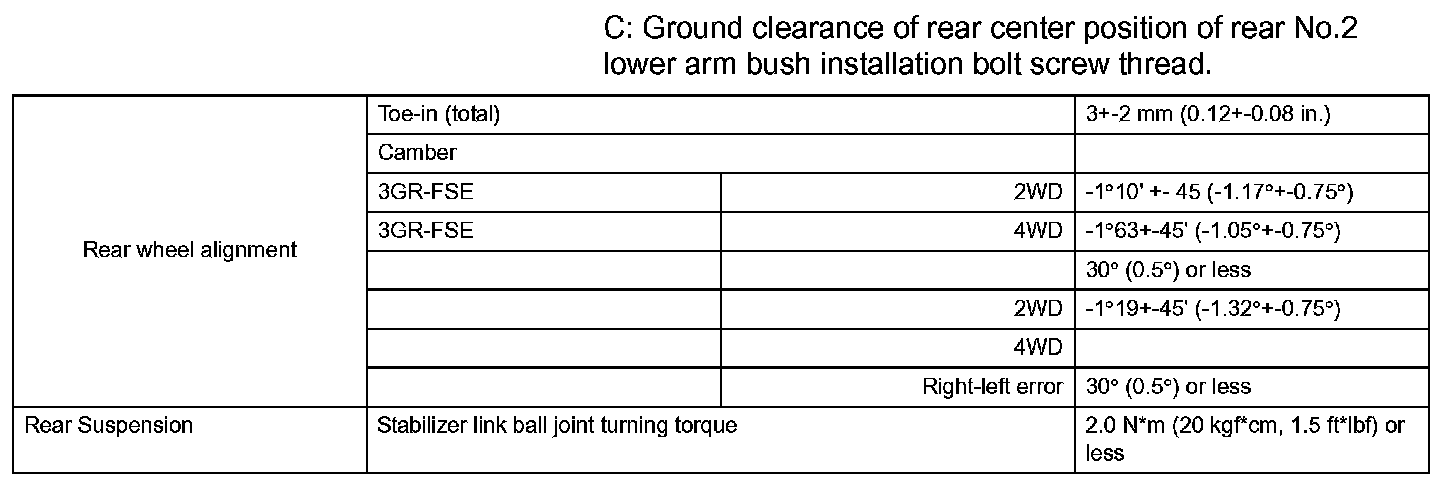

Suspension-Service Data (Part 2):
