Transmission Speed Sensor: Service and Repair

SPEED SENSOR

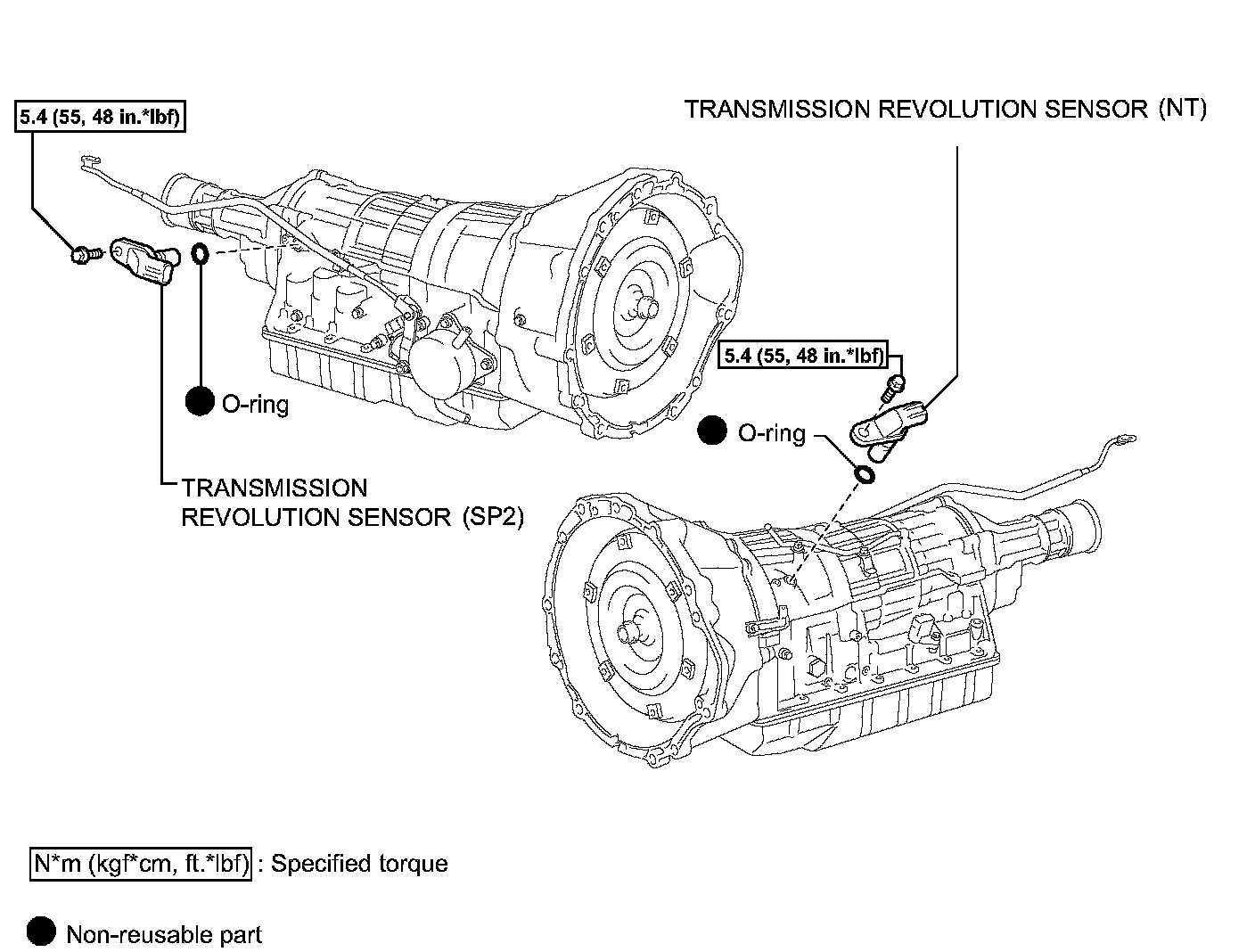

COMPONENTS:

REMOVAL

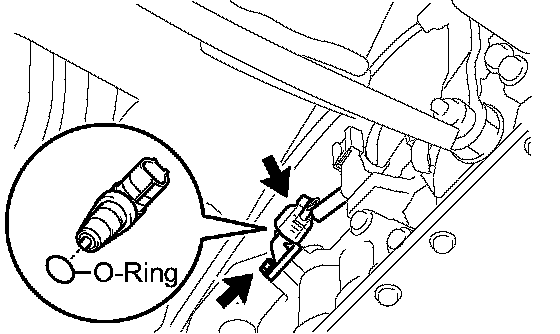

1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
a. Remove the transmission revolution sensor (NT sensor).
1. Disconnect the transmission revolution sensor connector.
2. Remove the bolt and transmission revolution sensor.
3. Remove the O-ring from the transmission revolution sensor.

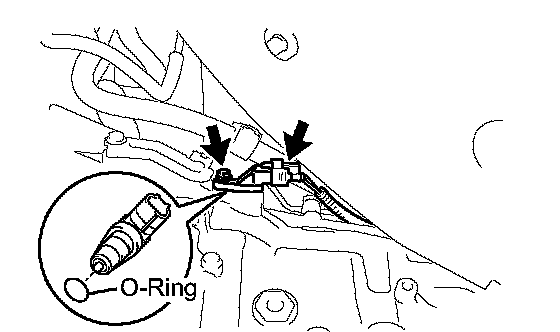

2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
a. Remove the transmission revolution sensor (SP2 sensor).
1. Disconnect the transmission revolution sensor connector.
2. Remove the bolt and transmission revolution sensor.
3. Remove the O-ring from the transmission revolution sensor.

INSPECTION
1. CHECK RESISTANCE
a. Using an ohmmeter, measure the resistance between the terminals.
Standard resistance: 560 to 680 Ohms (20°C)

INSTALLATION





1. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
a. Install the transmission revolution sensor (SP2 sensor).
1. Coat a new O-ring with ATF and install it to the transmission revolution.
2. Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 ft. lbs.)
3. Connect the transmission revolution sensor connector.





2. INSTALL TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
a. Install the transmission revolution sensor (NT sensor).
1. Coat a new O-ring with ATF and install it to the transmission revolution.
2. Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (44 kgf-cm, 48 ft. lbs.)
3. Connect the transmission revolution sensor connector.
