Headlamp Dimmer Switch: Testing and Inspection
INSPECTIONINSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY
a. Disconnect the switch.
b. Measure the resistance of the switch.

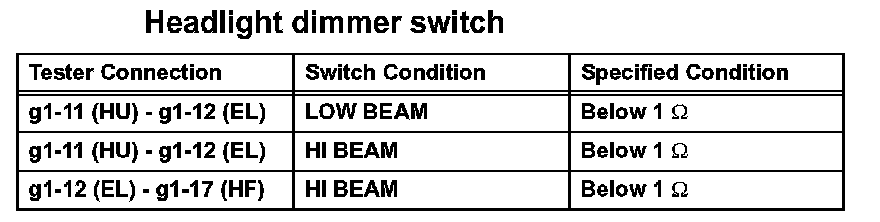

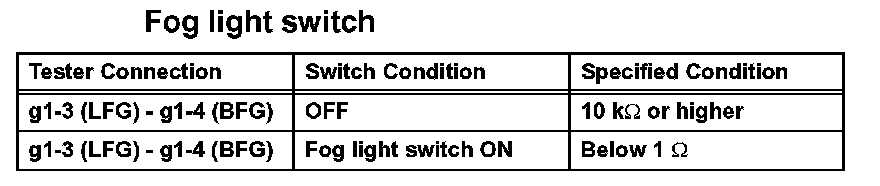

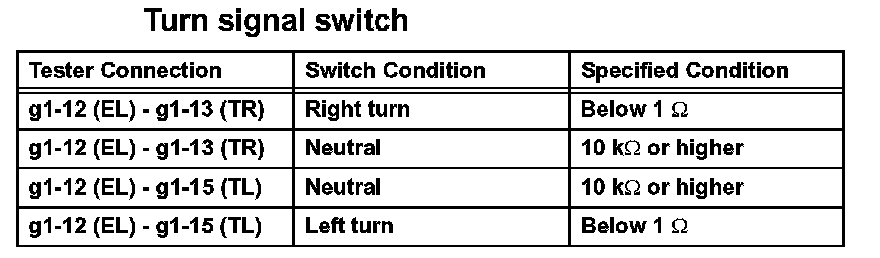

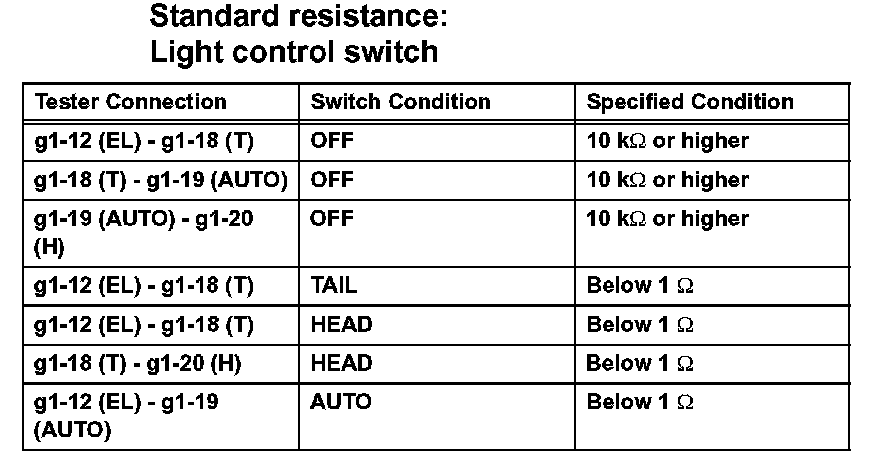

Standard resistance:
If the result is not as specified, replace the switch assembly.
