Sunroof / Moonroof Switch: Testing and Inspection

ON-VEHICLE INSPECTION

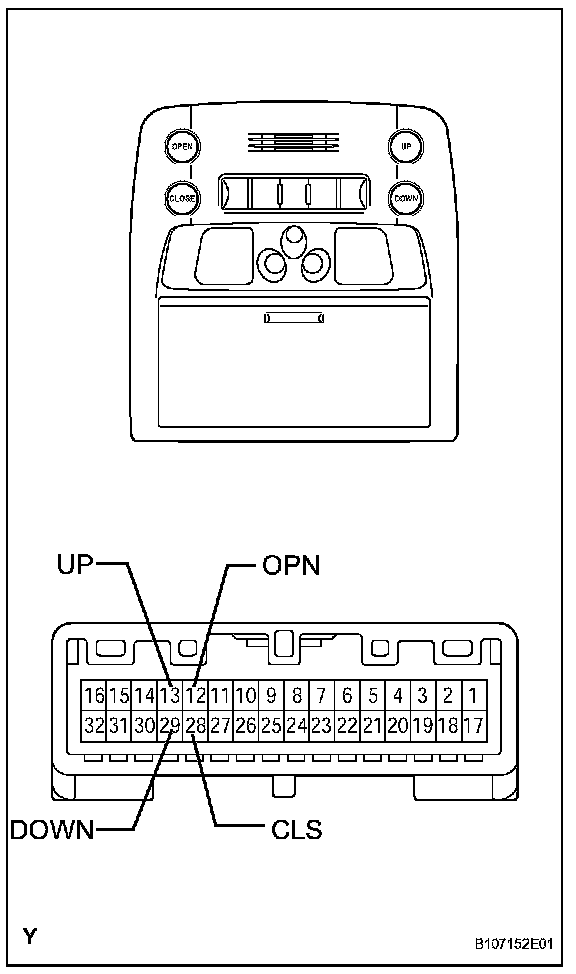

1. INSPECT SLIDING ROOF SWITCH ASSEMBLY
a. Remove the personal light.

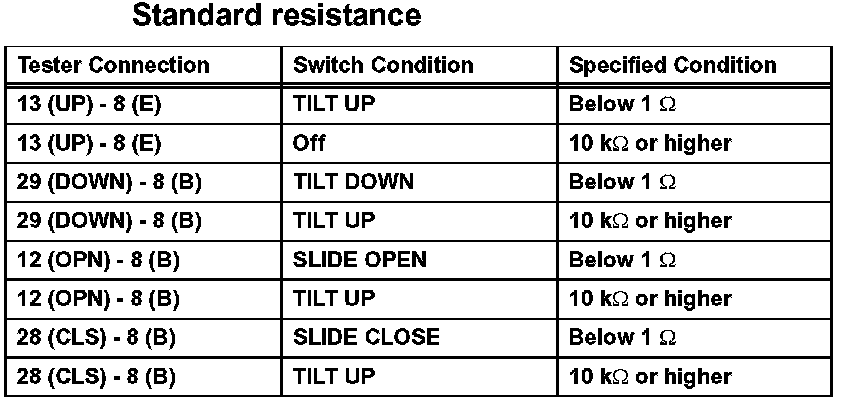

b. Measure the resistance of the personal light.
If the result is not as specified, replace the personal light assembly.
