Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Testing and Inspection >> Steering Pad Switch Cable

Steering Pad Switch Cable

INSPECTION

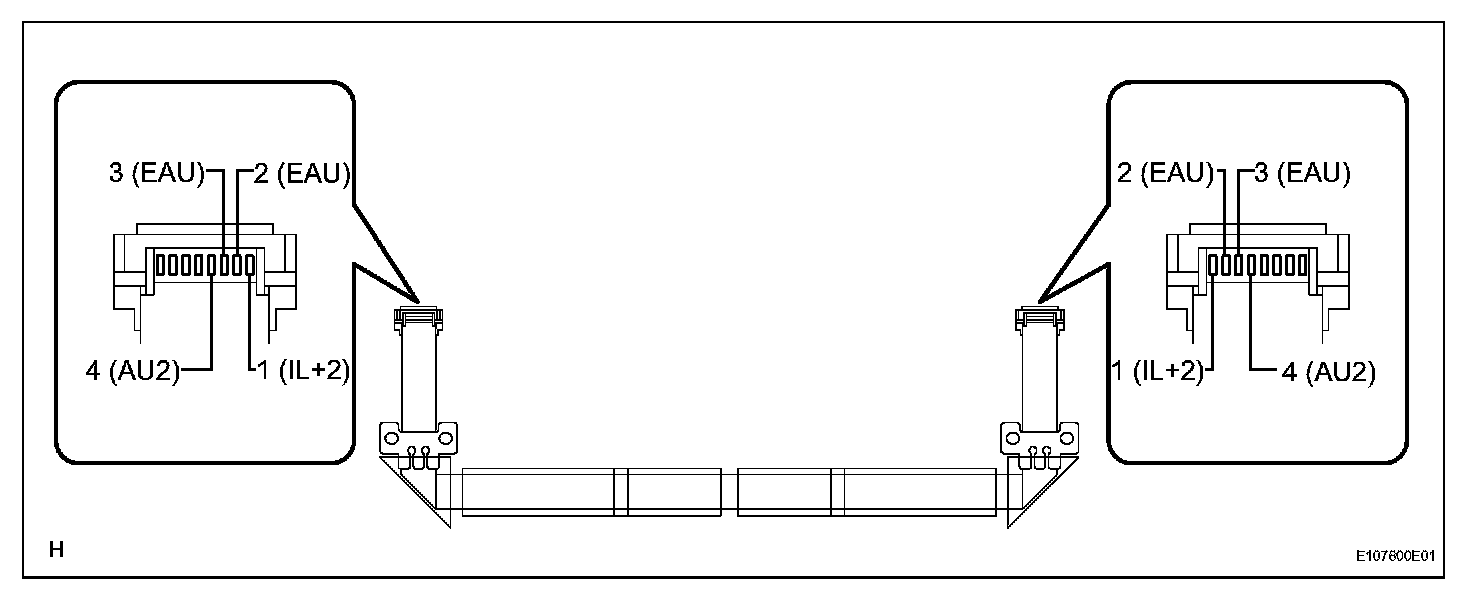

INSPECT STEERING PAD SWITCH CABLE SUB-ASSEMBLY

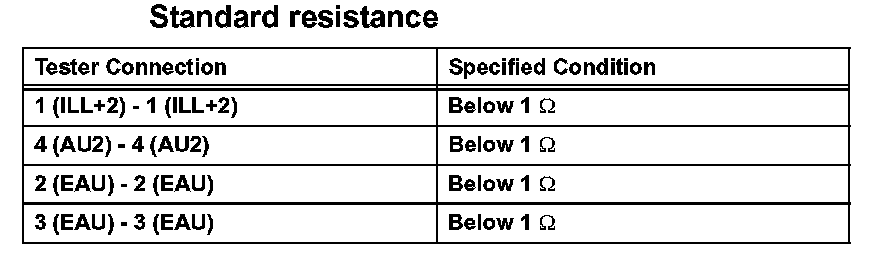

Measure the resistance of the cable.

If the result is not as specified, replace the cable.
