Parking Assist Distance Sensor: Testing and Inspection

INSPECTION

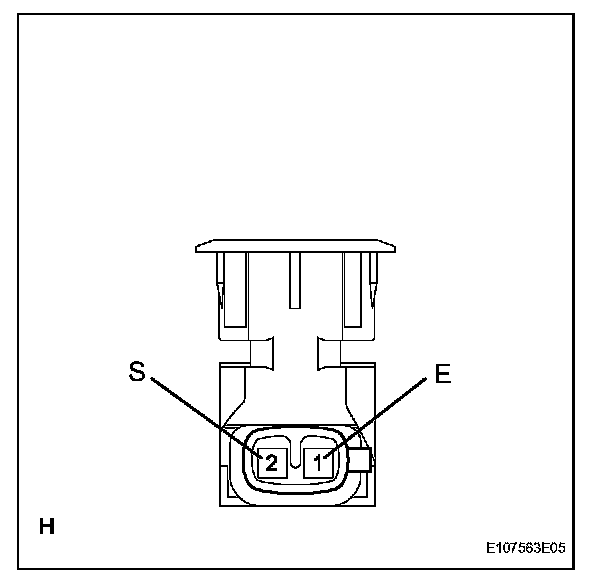

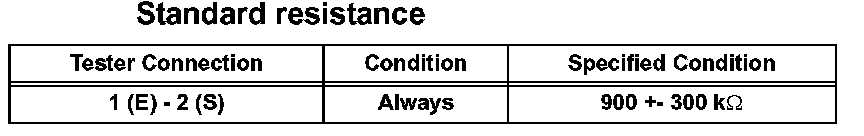

1. INSPECT NO. 1 ULTRASONIC SENSOR
a. Measure the resistance of the sensor.

NOTE: Set the tester to the 100 k range before performing the measurement.

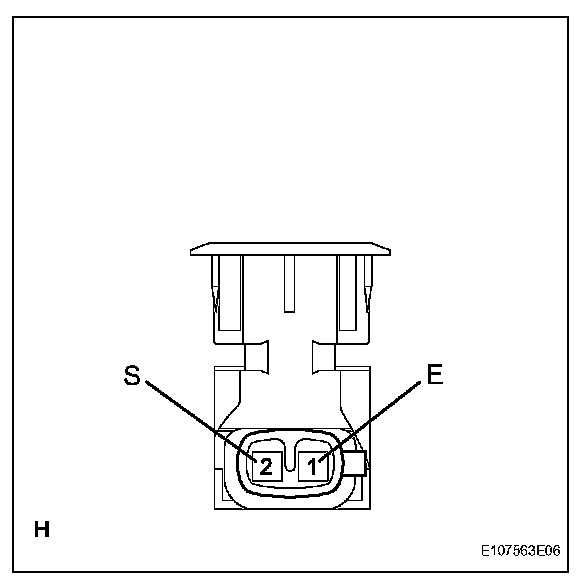

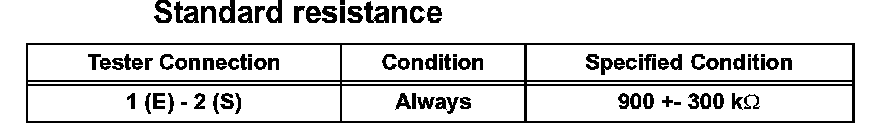

2. INSPECT NO. 2 ULTRASONIC SENSOR
a. Measure the resistance of the sensor.

NOTE: Set the tester to the 100 k range before performing the measurement.

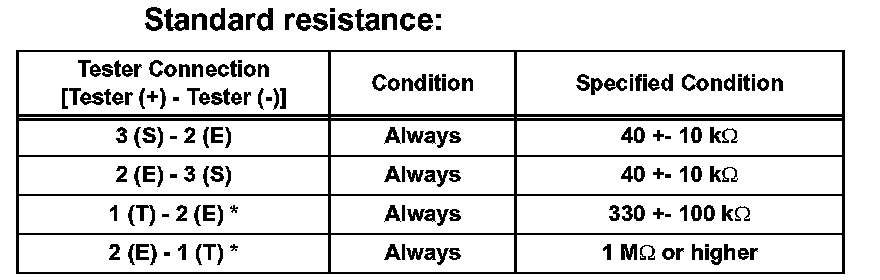

3. INSPECT NO. 3 ULTRASONIC SENSOR
a. Measure the resistance of the sensor.

NOTE:
- Set the tester to the 100 k range before performing the measurement.
- *: Measurement values may vary depending on the tester used.
If results seem inaccurate, reverse the polarity (+-) and measure again.
