IS 250 & 350 Seat Belt Replacement

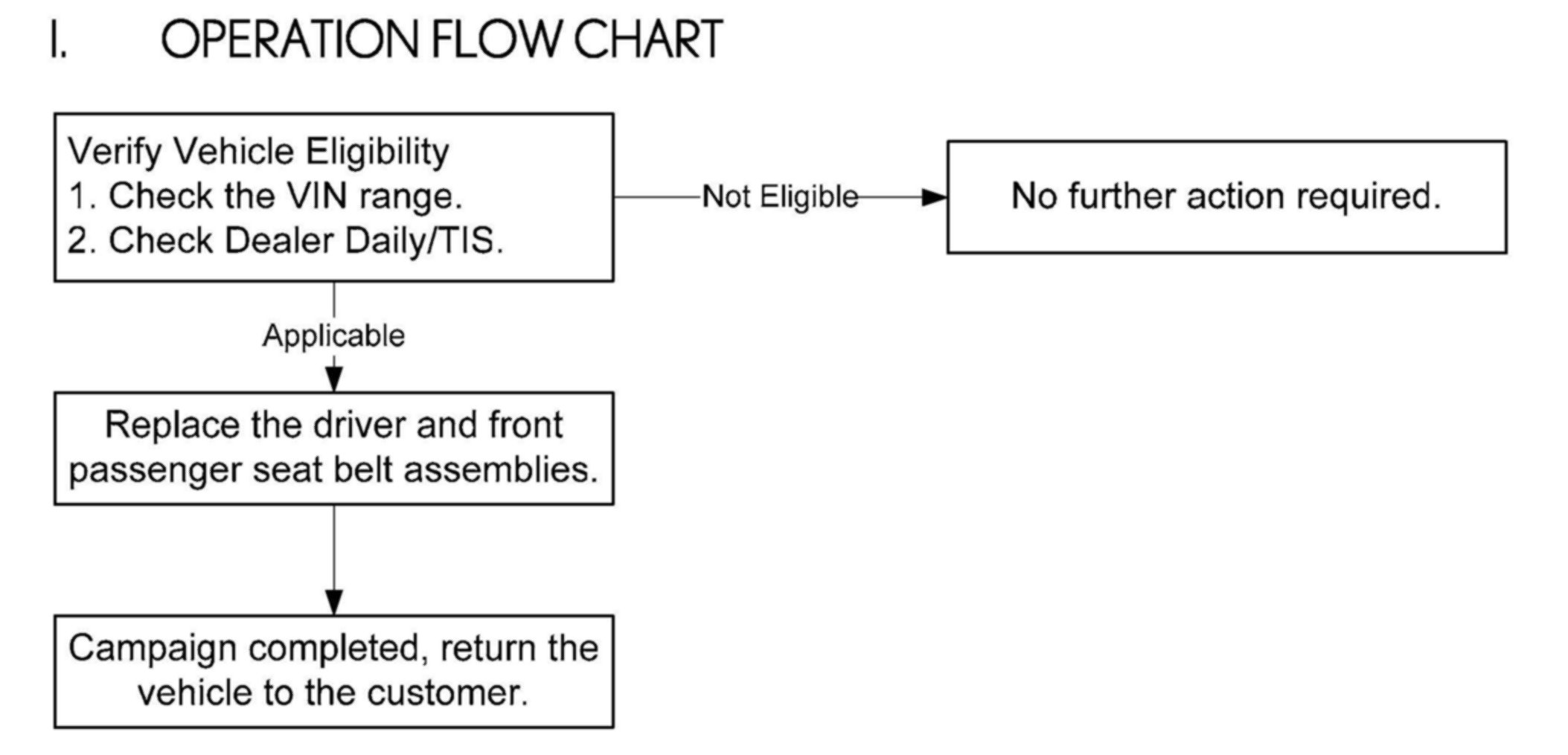

I. OPERATION FLOW CHART

II. BACKGROUND

In certain early 2006 Model Year Lexus IS and GS vehicles, if the front seat belt retractors (both driver and front passenger) become locked, they may not release due to a component of the emergency locking system. If the seat belt is locked in this condition, the occupant may not be able to properly fasten the seat belt.

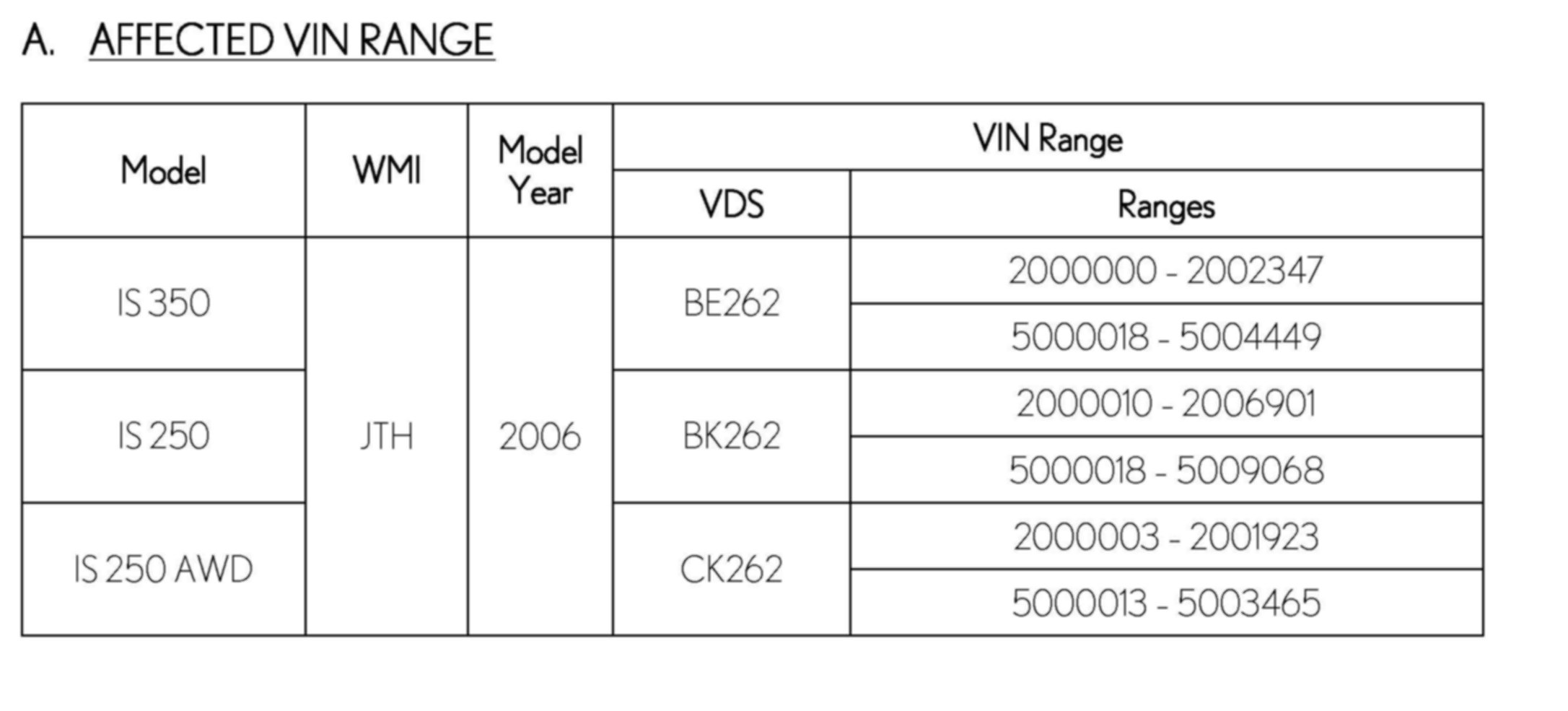

III. IDENTIFICATION OF AFFECTED VEHICLES





IV. PREPARATION

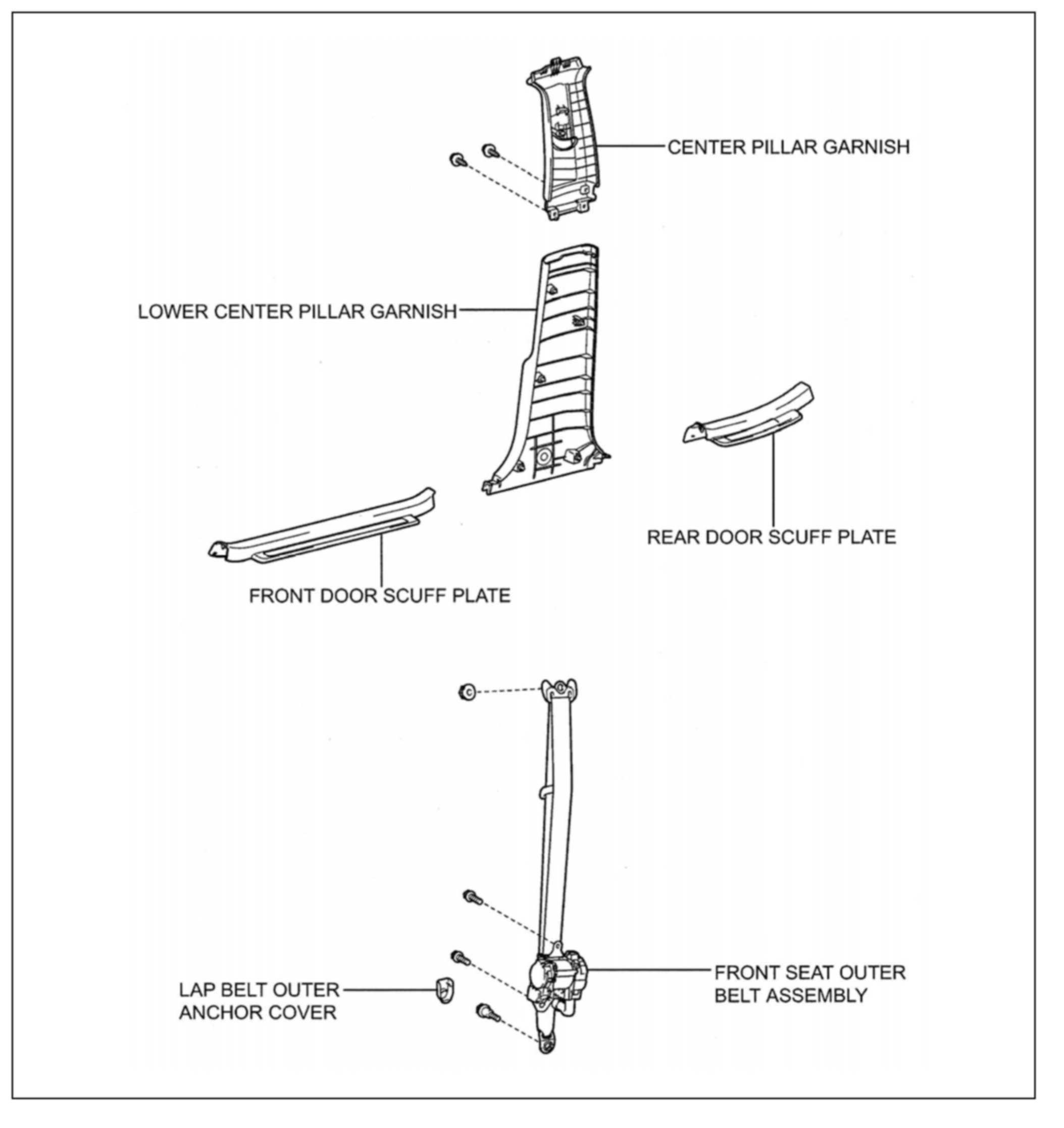

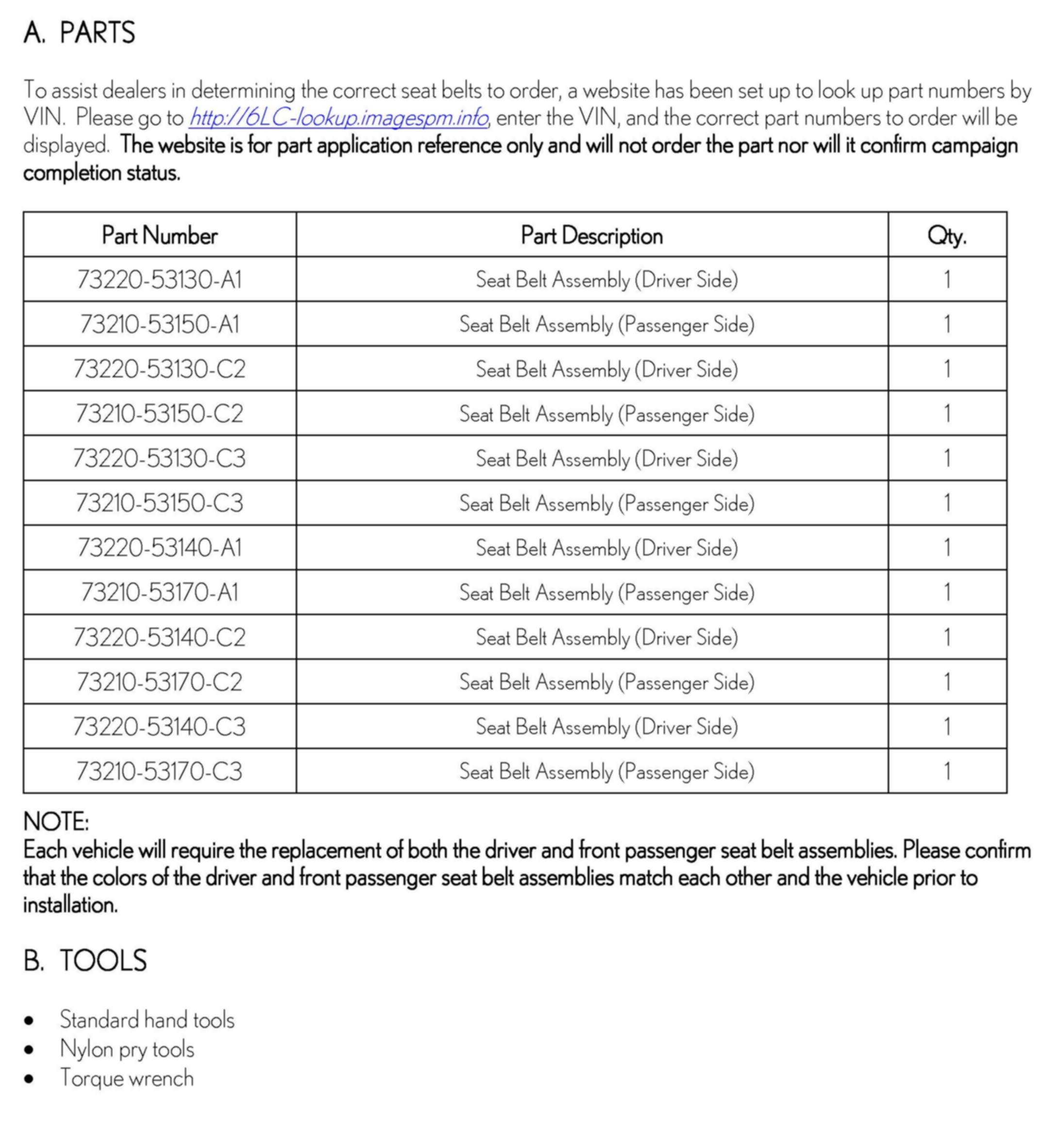

V. COMPONENTS

VI. WORK PROCEDURE

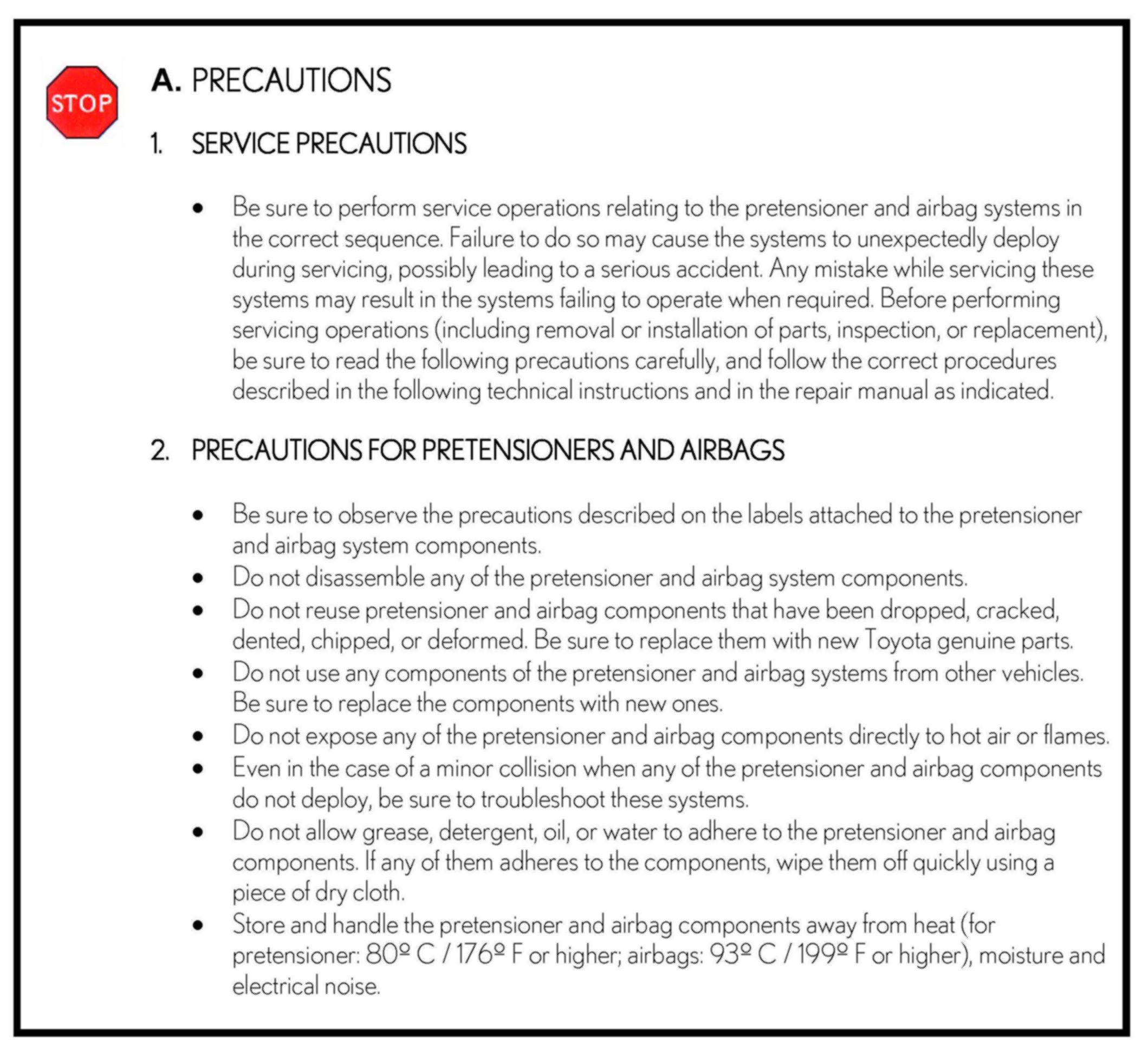

A. PRECAUTIONS

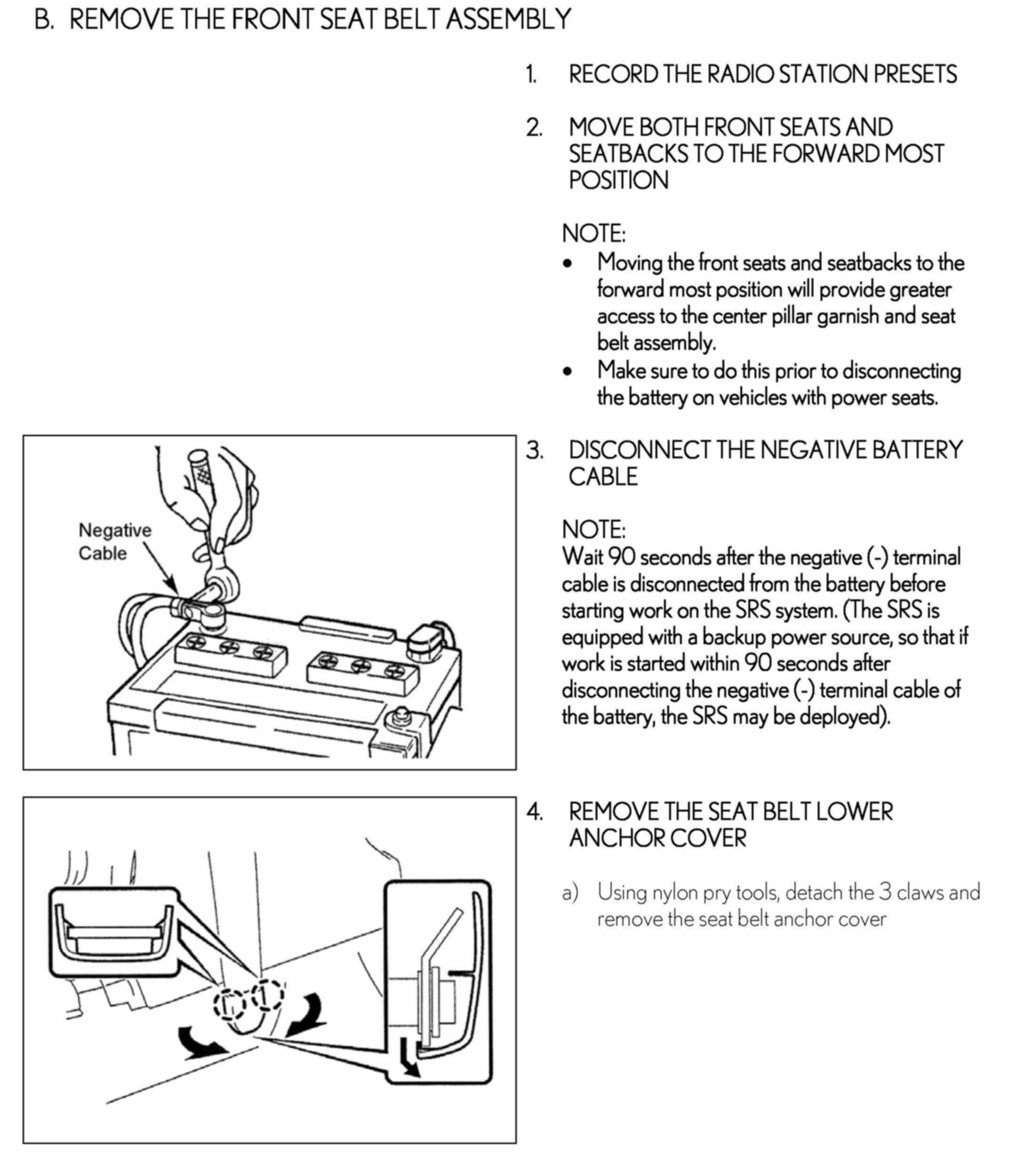

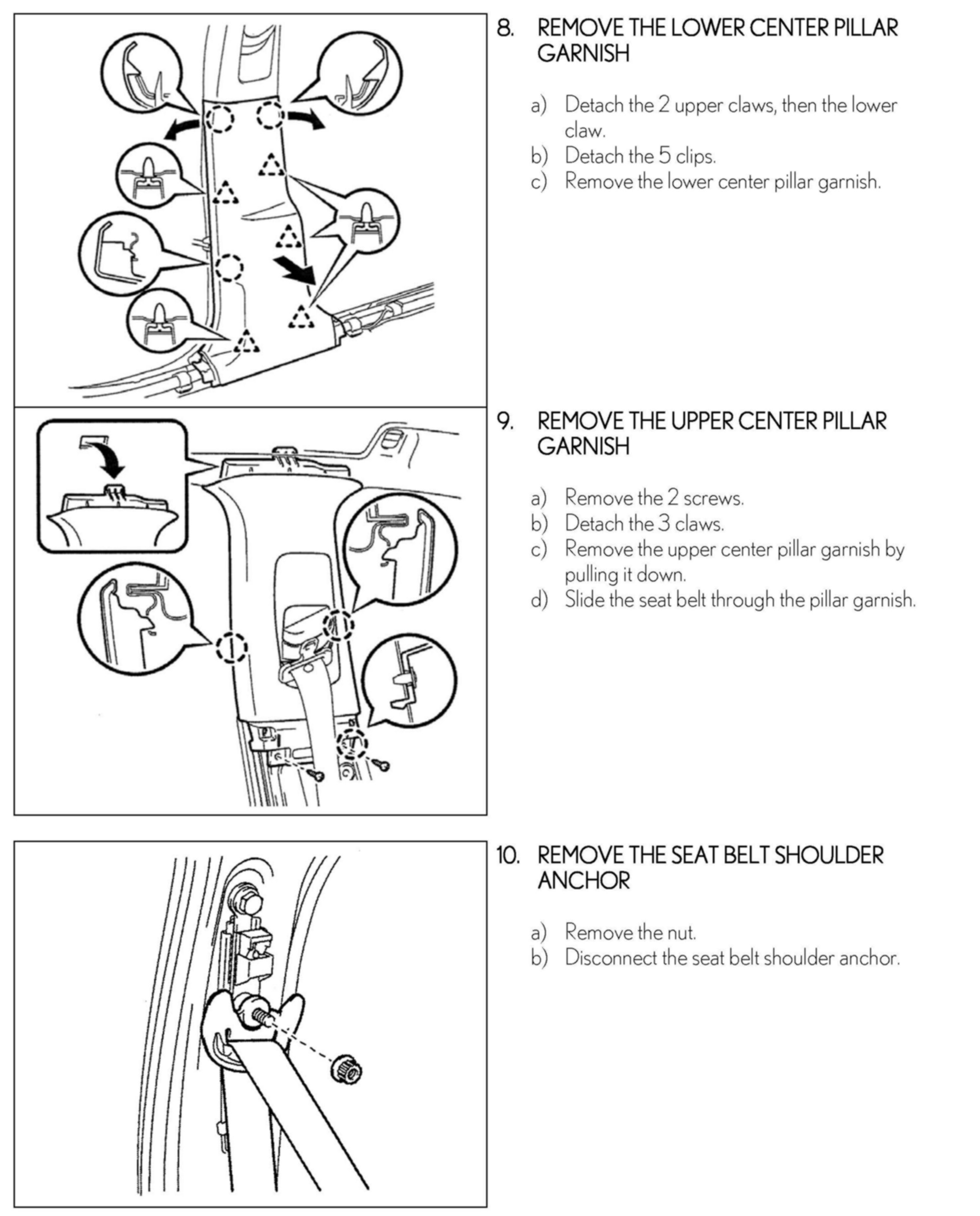

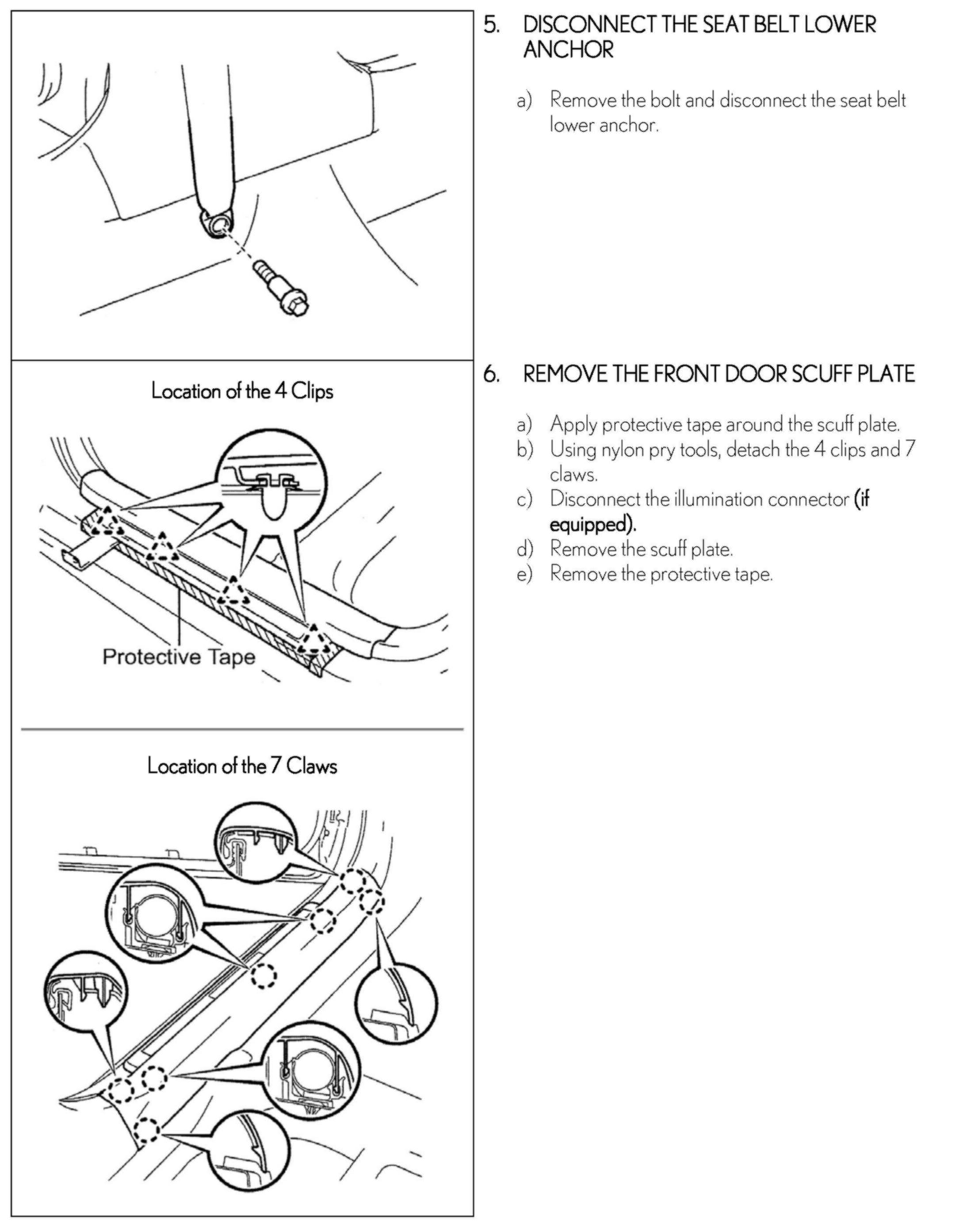

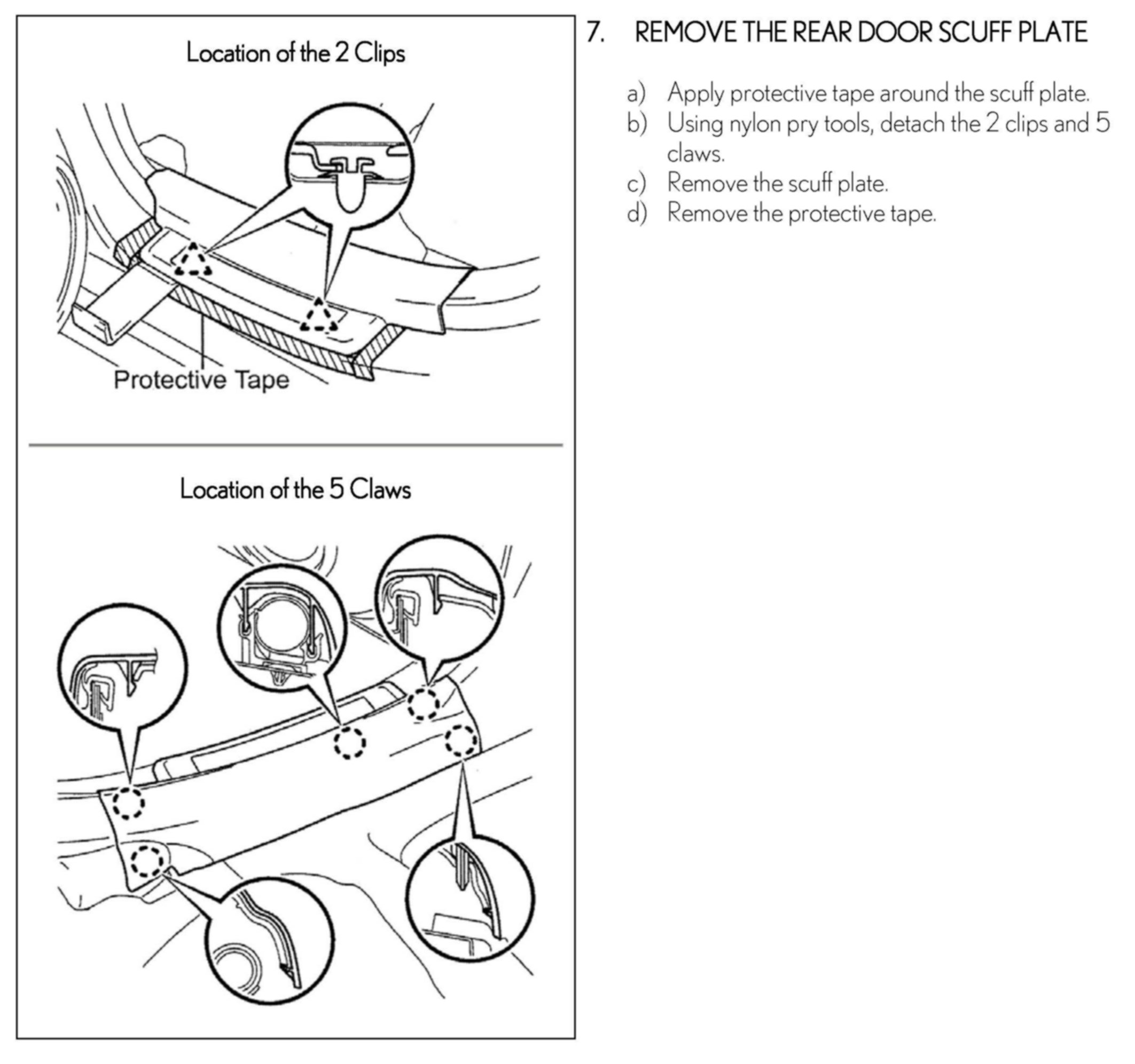

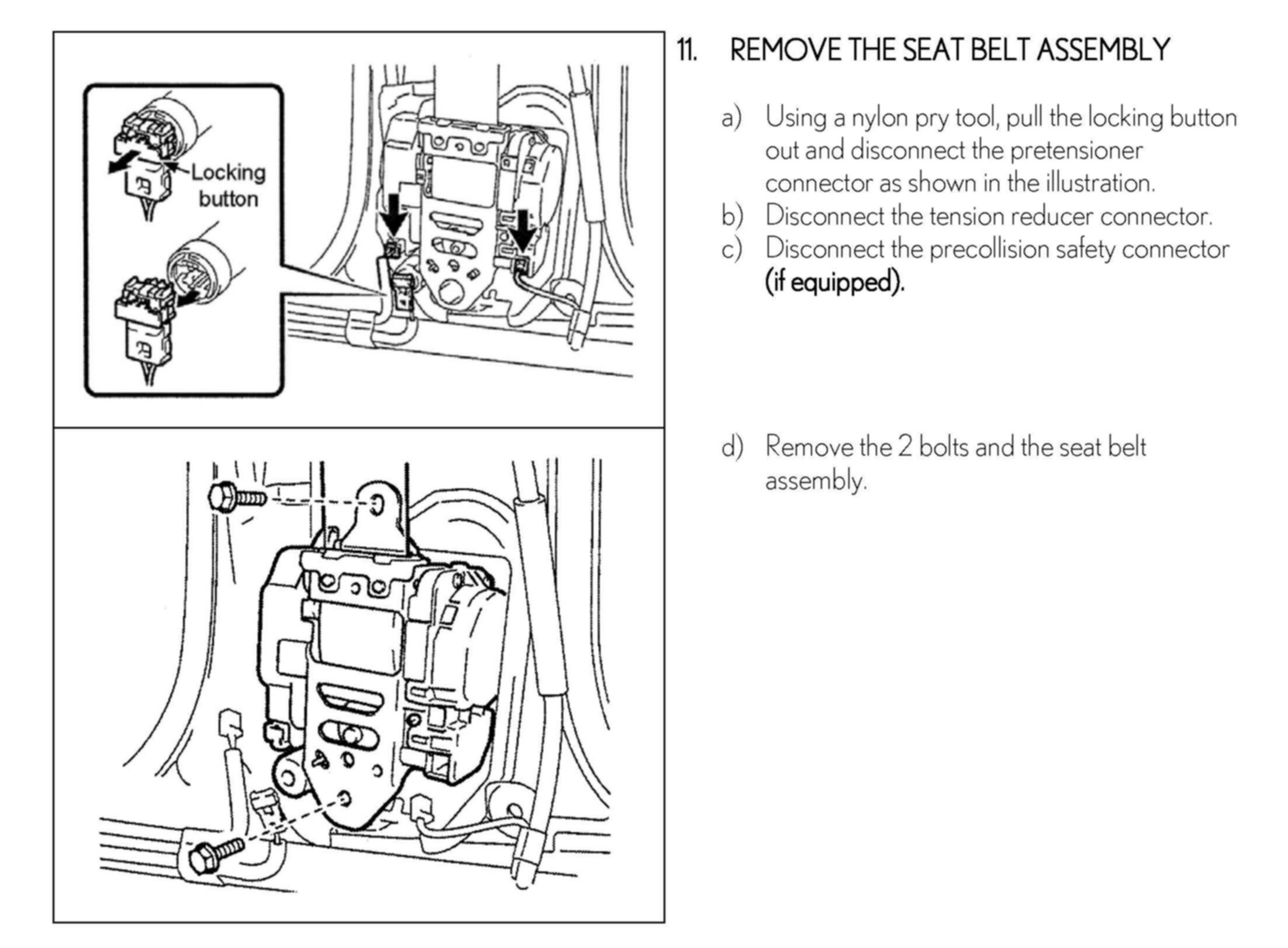

B. REMOVE THE FRONT SEAT BELT ASSEMBLY

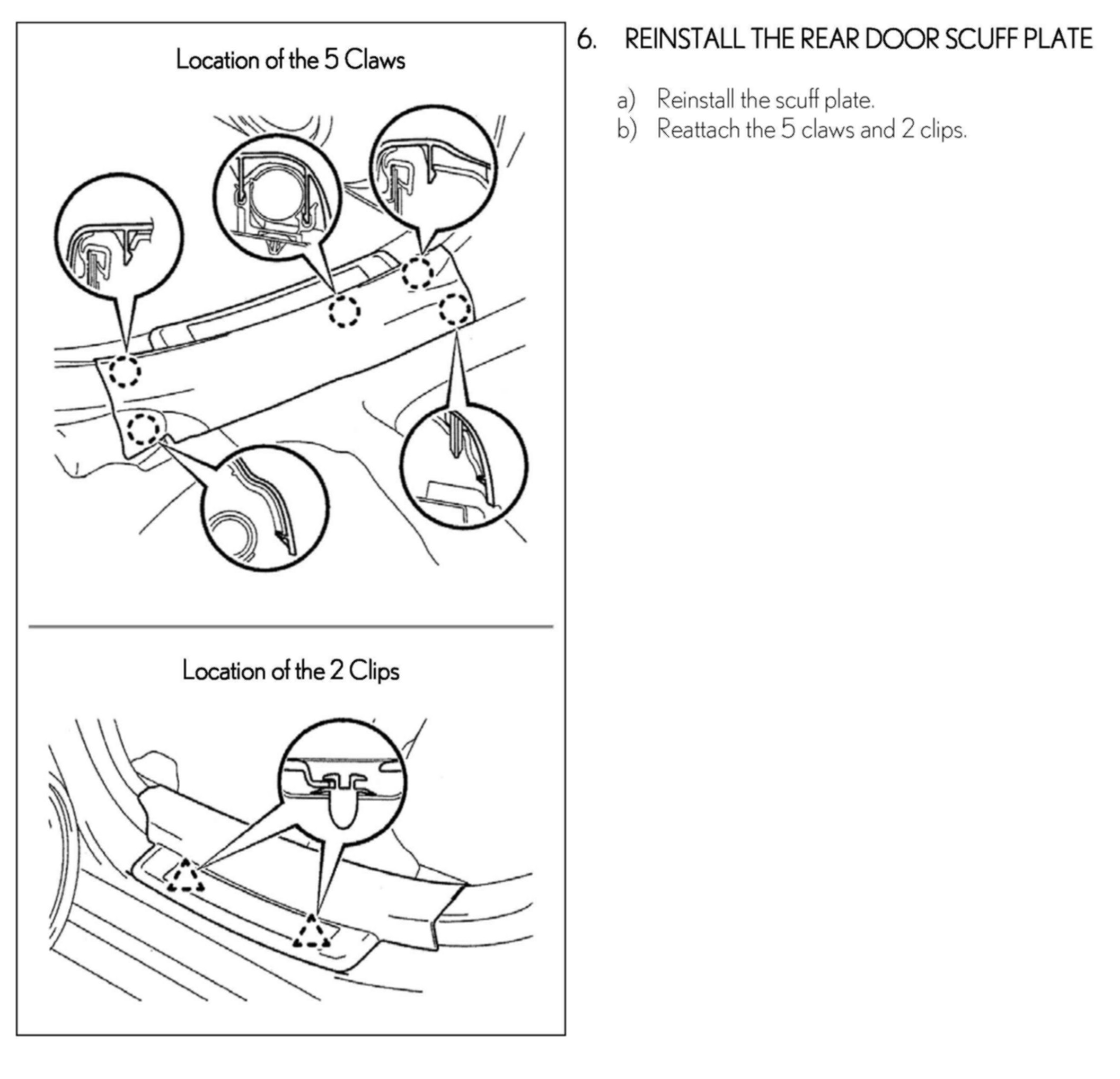

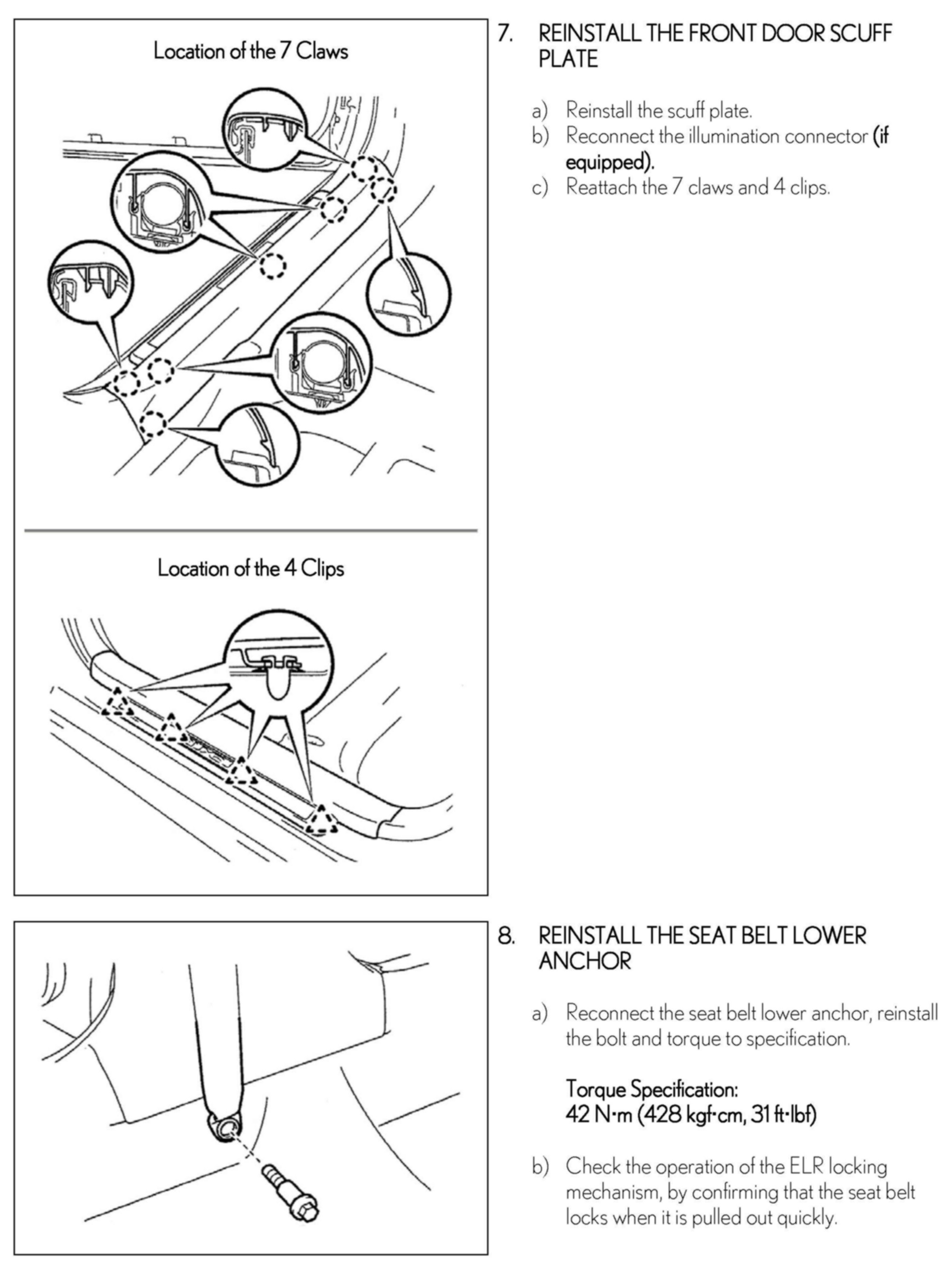

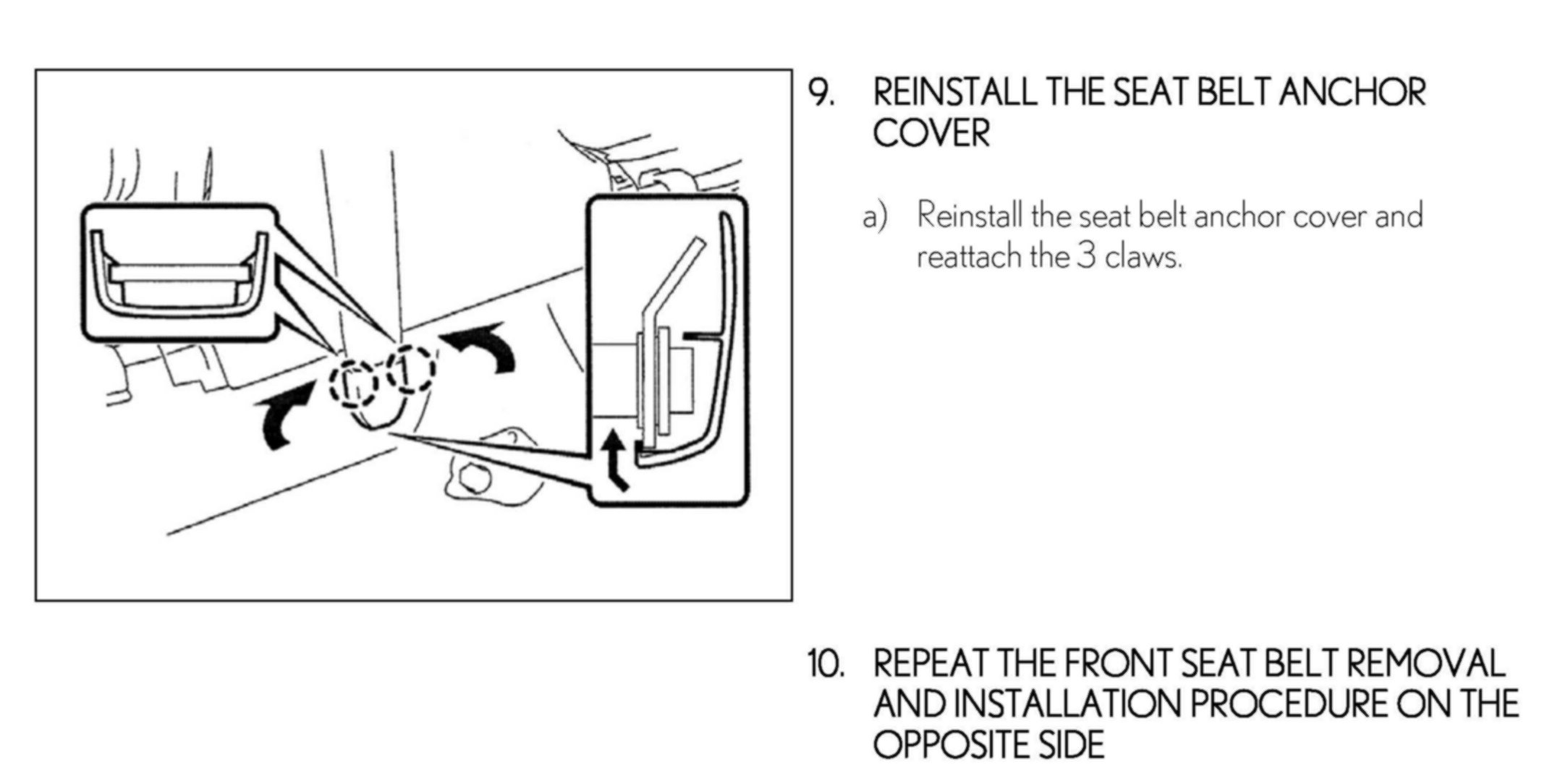

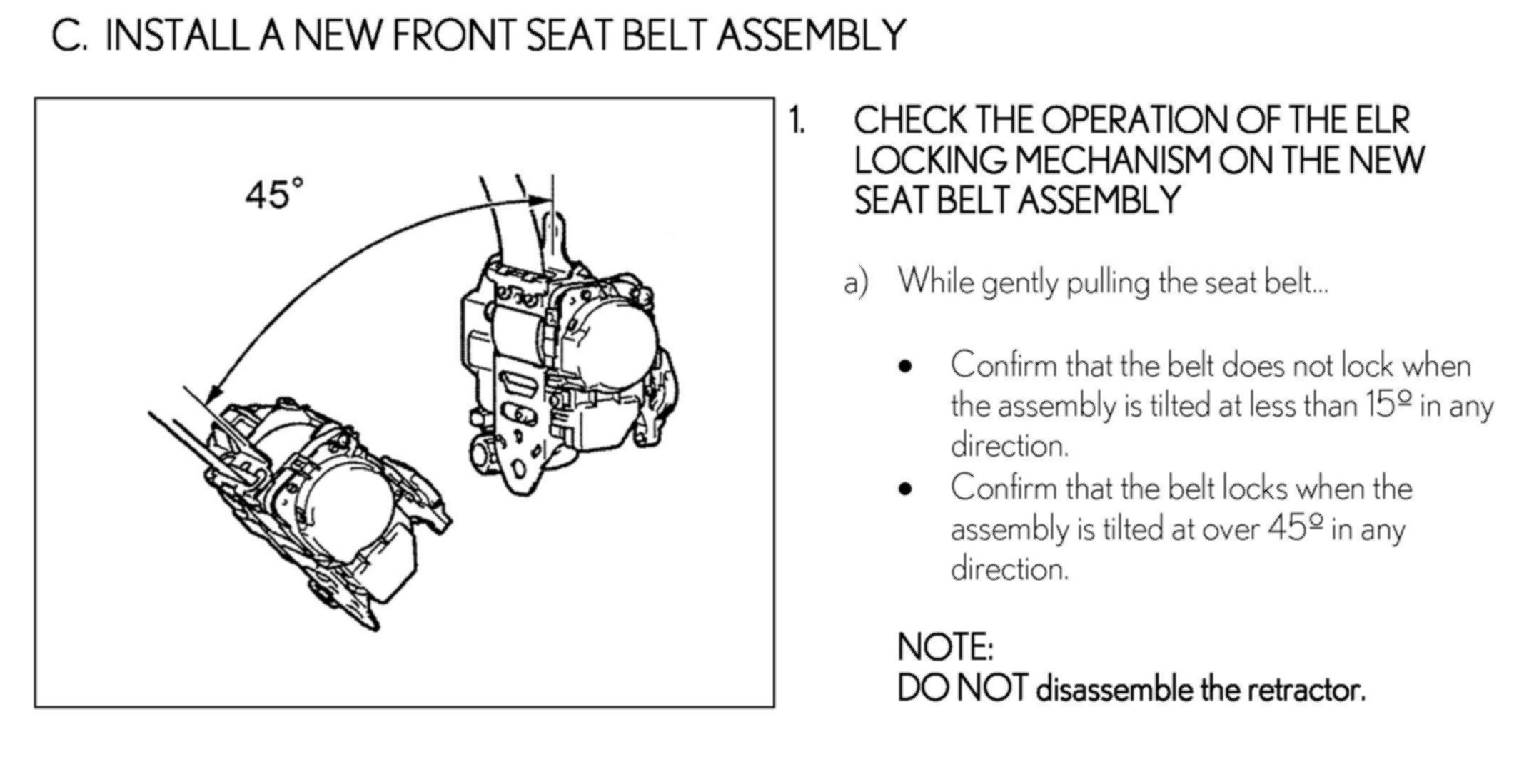

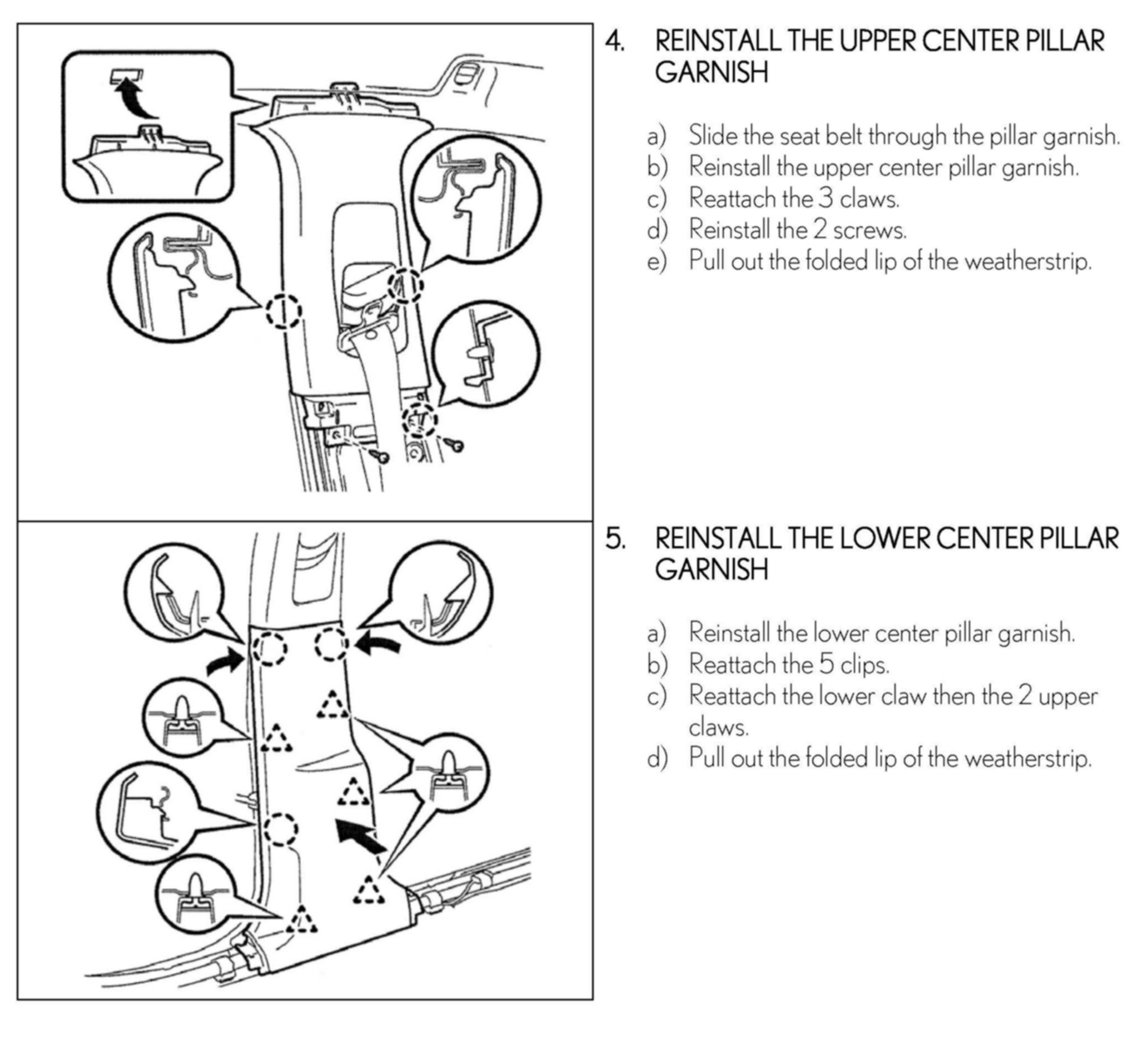

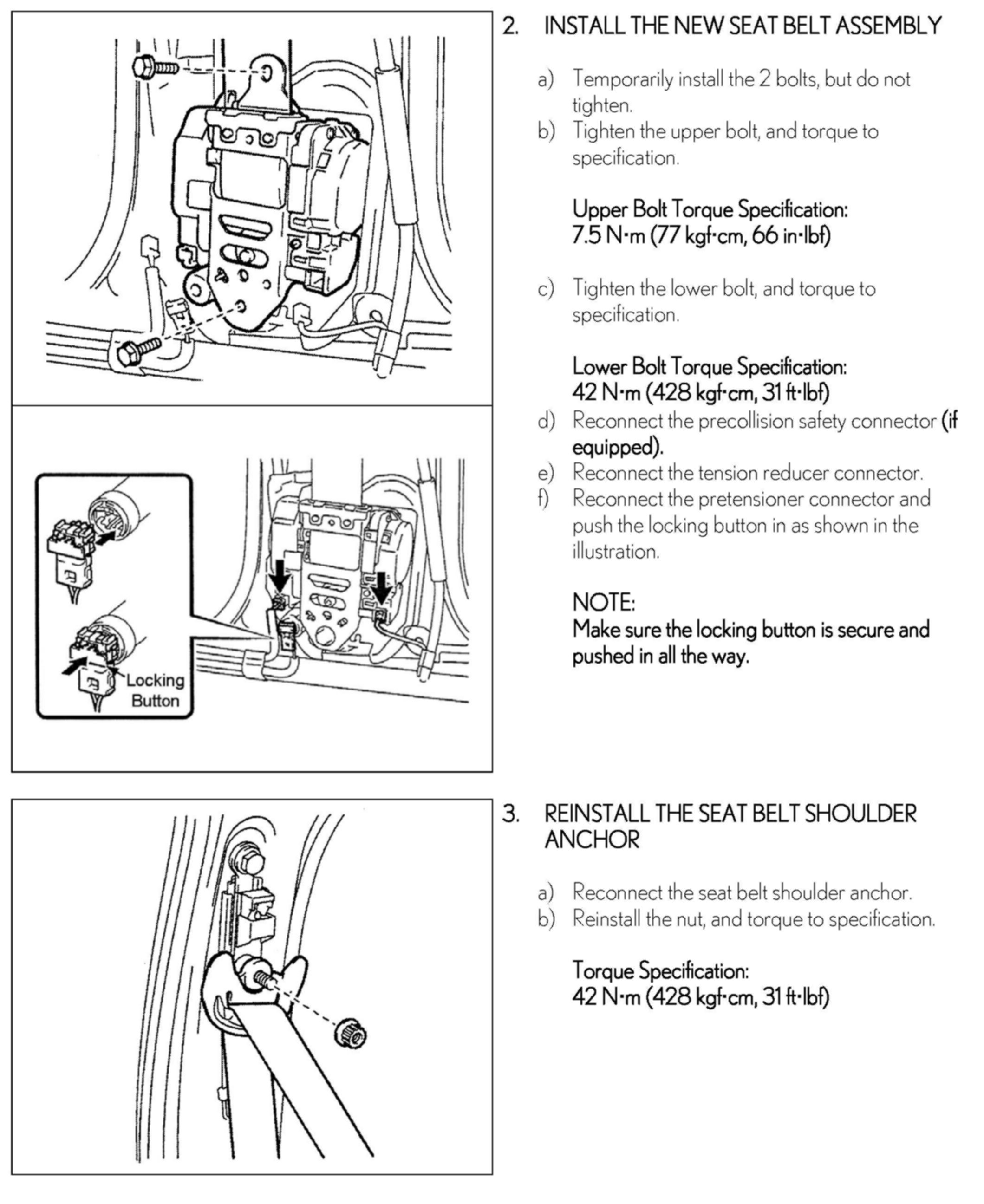

C. INSTALL A NEW FRONT SEAT BELT ASSEMBLY

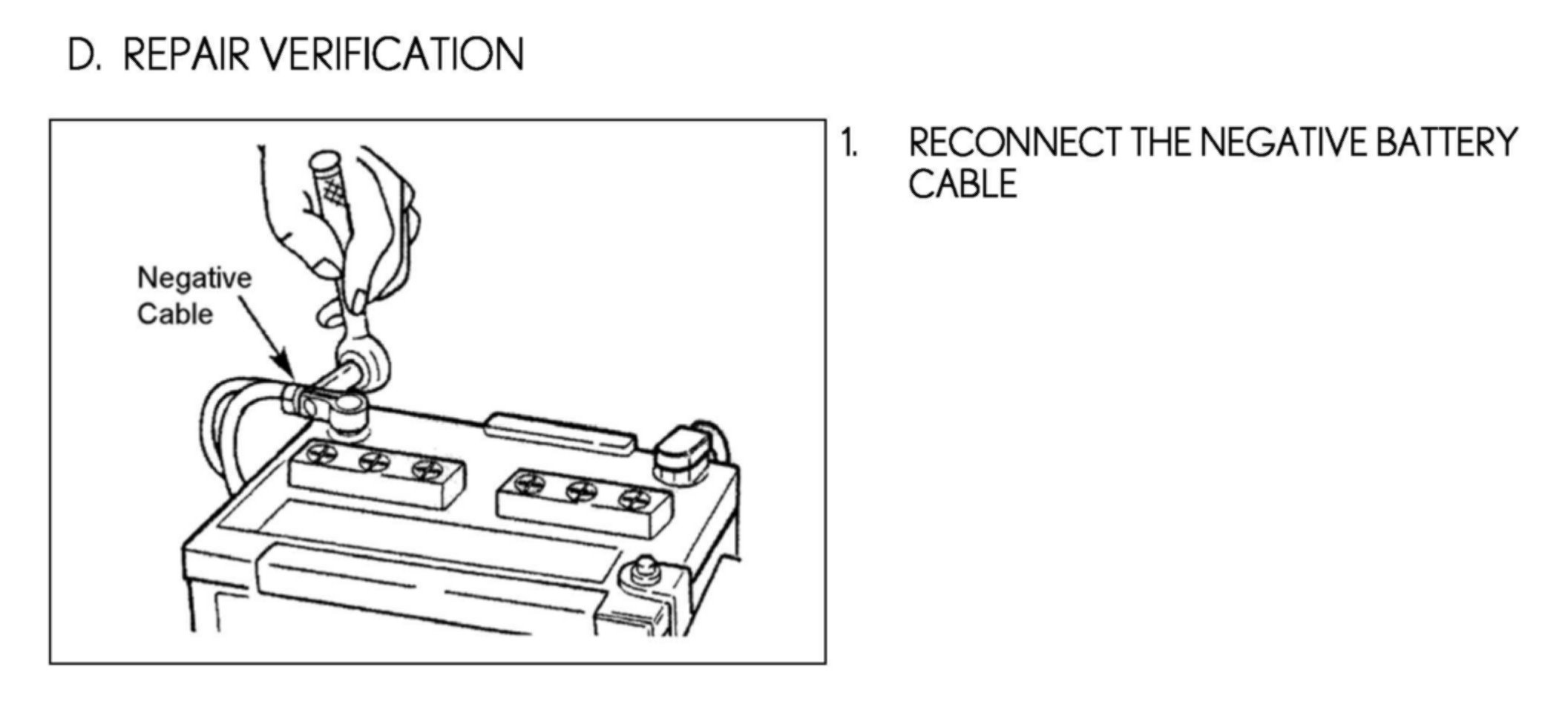

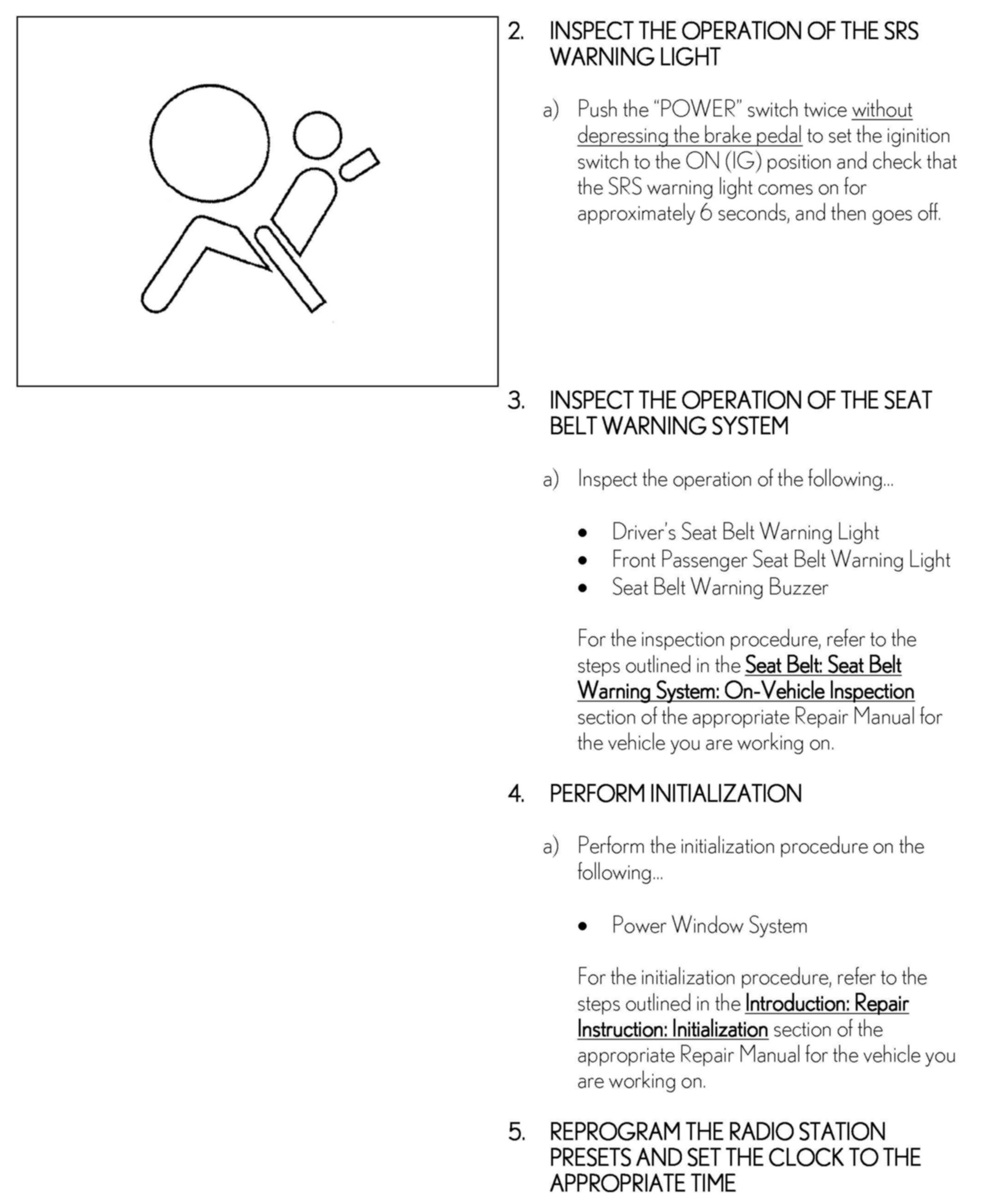

D. REPAIR VERIFICATION
