Seat Belt Warning Light For Passenger Seat Does Not Operate
Seat Belt Warning Light for Passenger Seat does not OperateDESCRIPTION
When the engine switch is on (IG) and the passenger seat is occupied, the center airbag sensor assembly communicates the status of the front seat inner belt RH (passenger side) to the combination meter using the BEAN line. When the seat belt is unfastened, the combination meter flashes the passenger side seat belt warning light on the multi-display. When the seat belt is fastened, the combination meter stops flashing the passenger side seat belt warning light

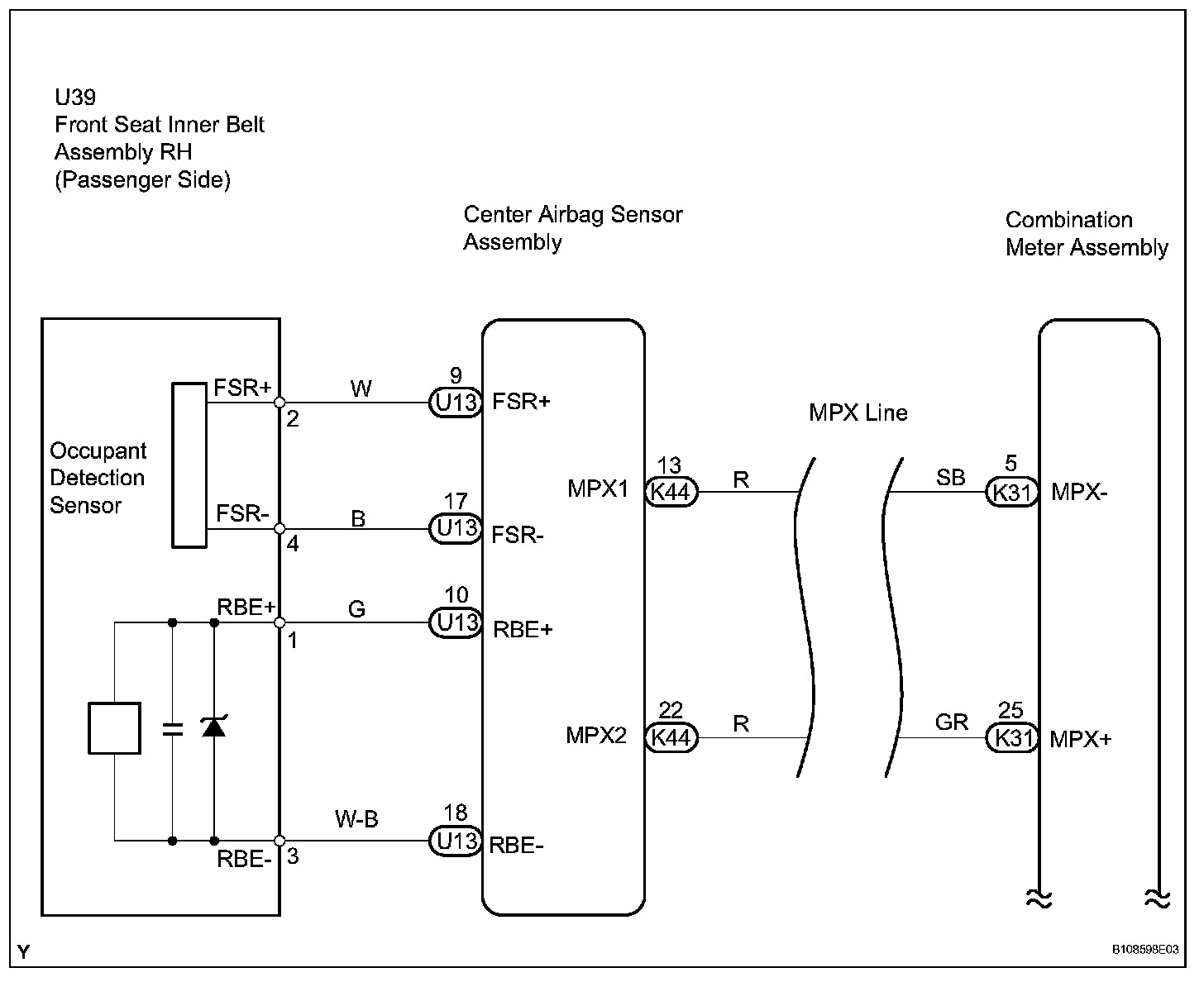

Wiring Diagram (Part 1):
Wiring Diagram (Part 2):

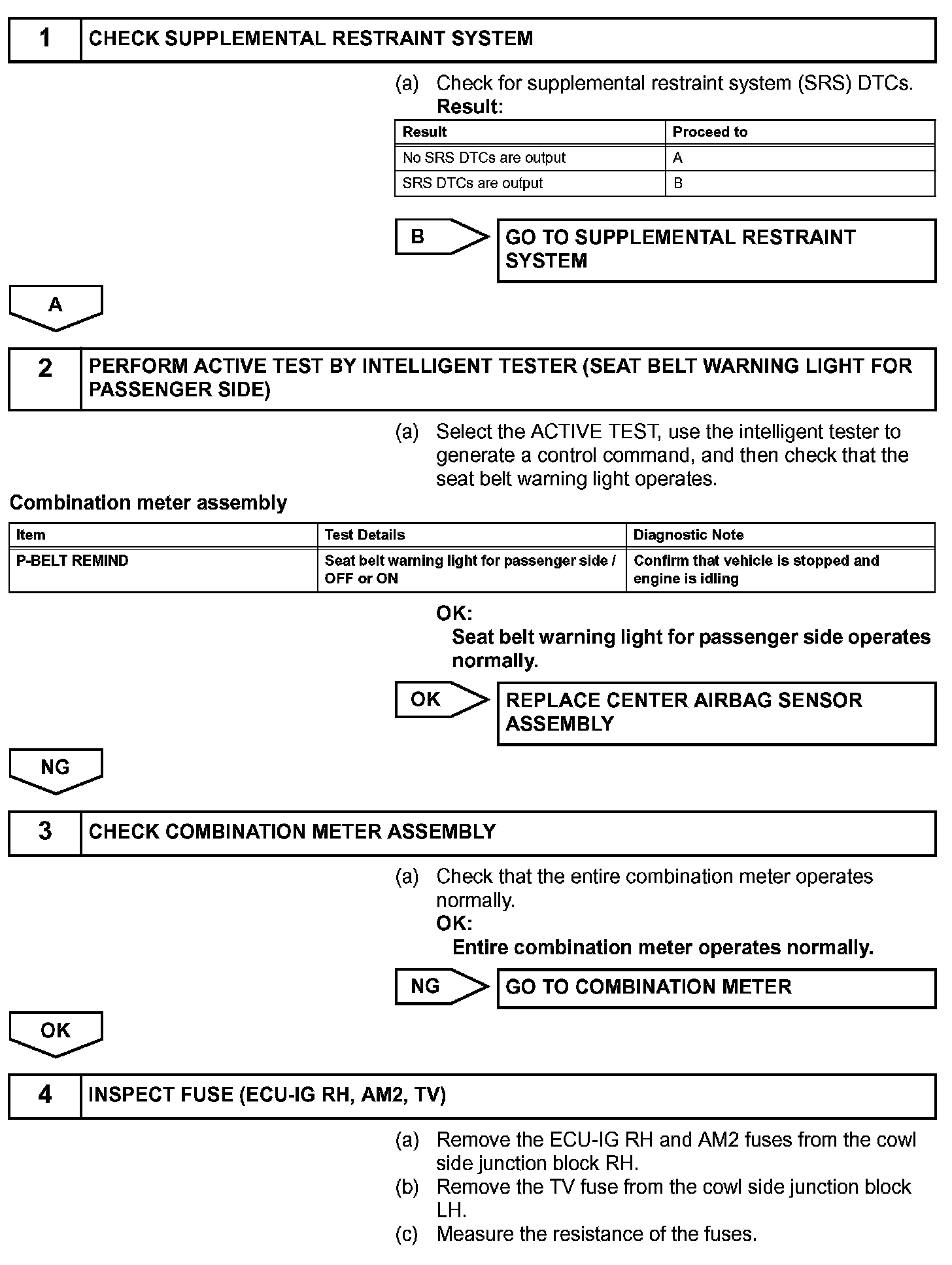

Step 1-4:

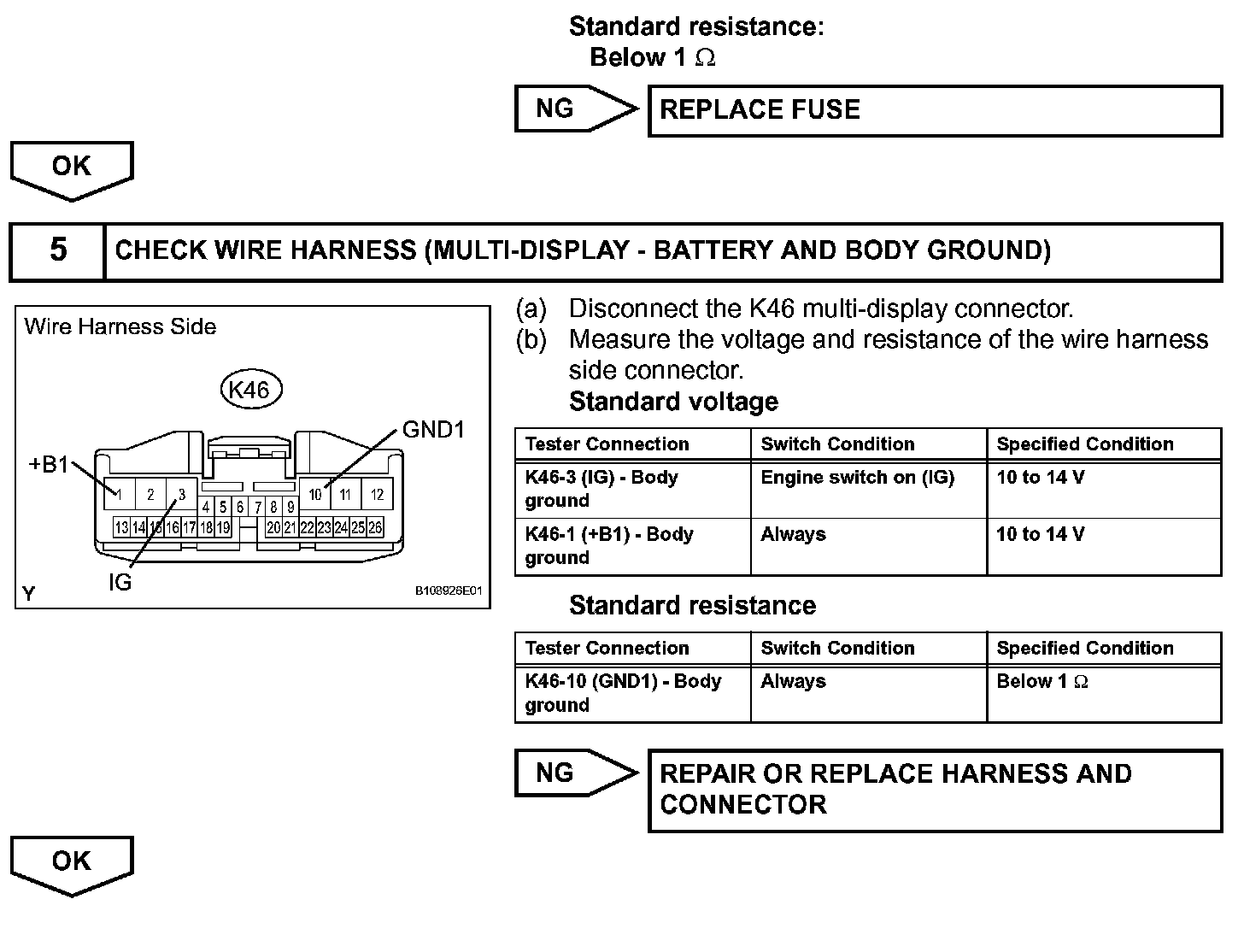

Step 4(Continued)-5:

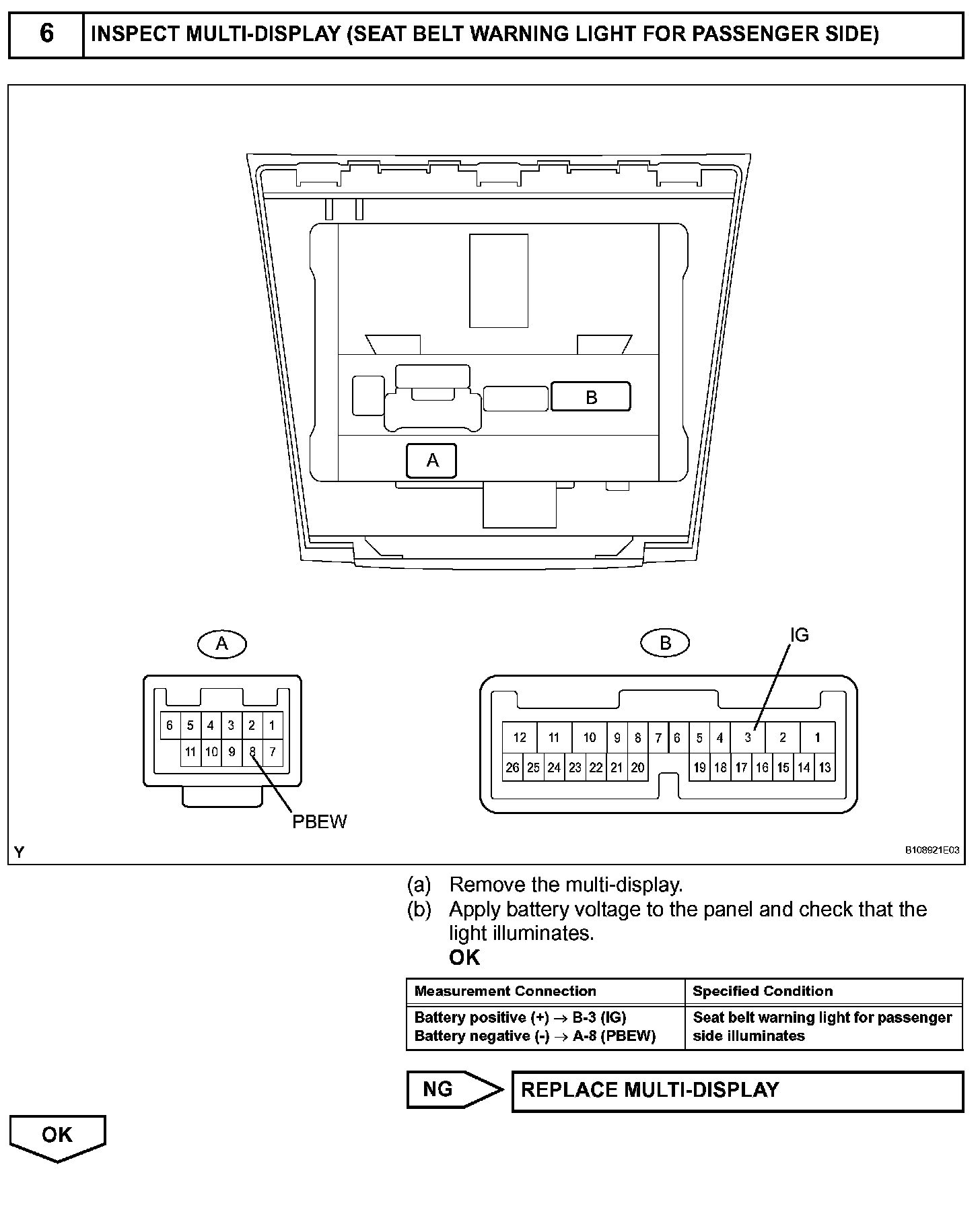

Step 6:

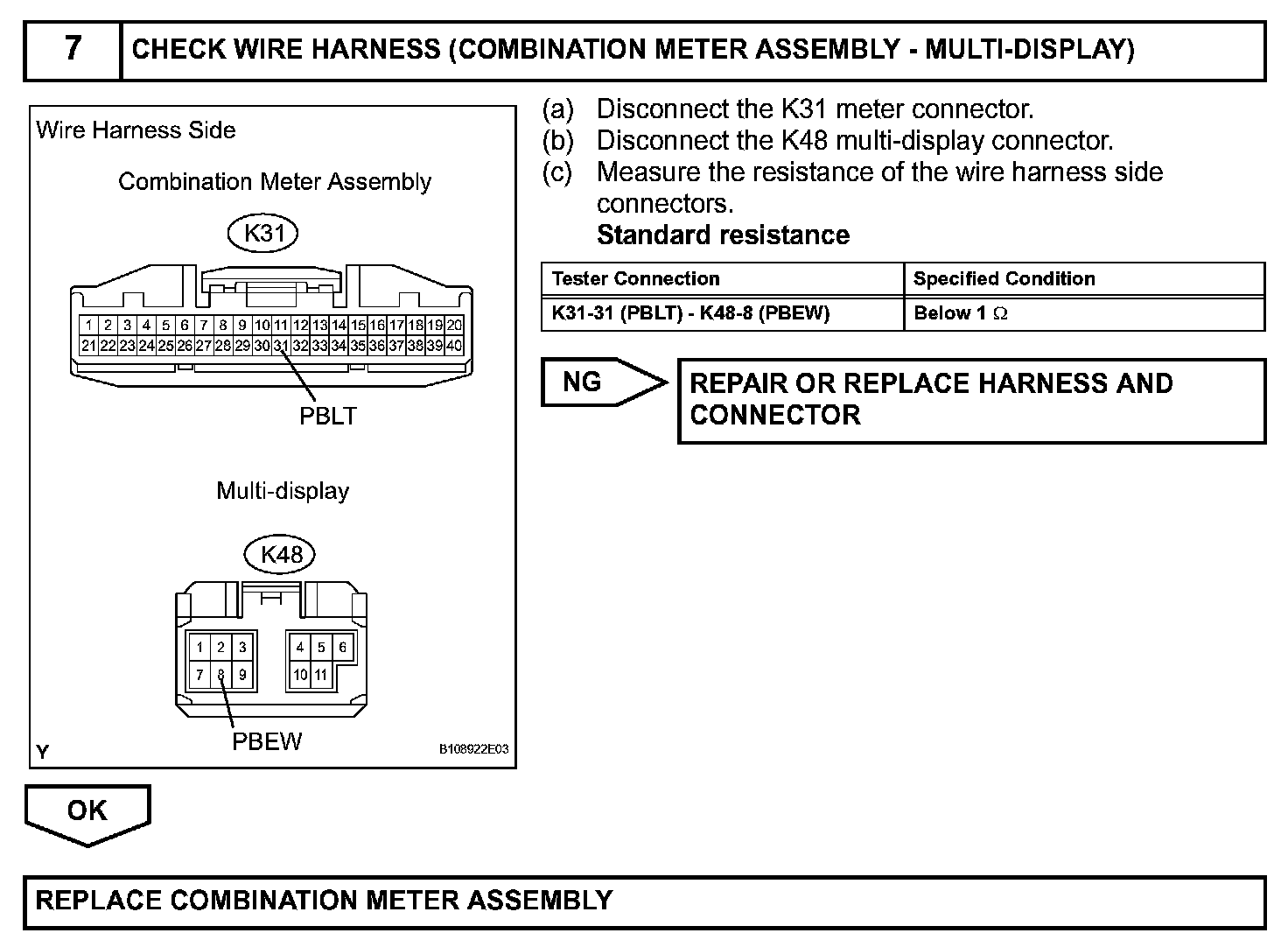

Step 7:
INSPECTION PROCEDURE
