Seat Belt Warning Light For Driver Seat Does Not Operate

Seat Belt Warning Light for Driver Seat does not Operate

DESCRIPTION
When the engine switch is on (IG), the center airbag sensor assembly communicates the status of the front seat inner belt LH (driver side) to the combination meter using the BEAN line. When the seat belt is unfastened, the combination meter flashes the driver side seat belt warning light on the combination meter. When the seat belt is fastened, the combination meter stops flashing the warning light

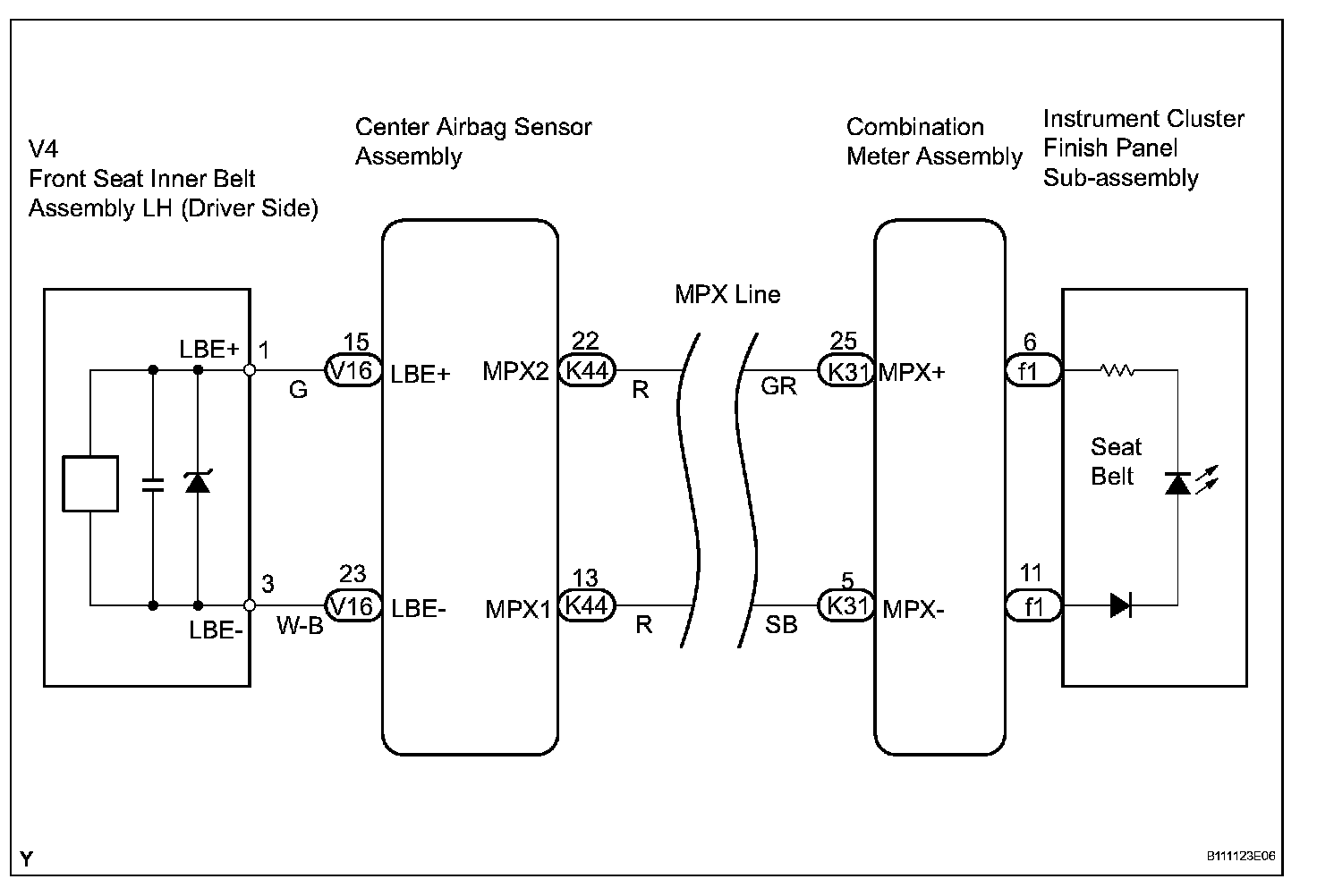

Wiring Diagram:

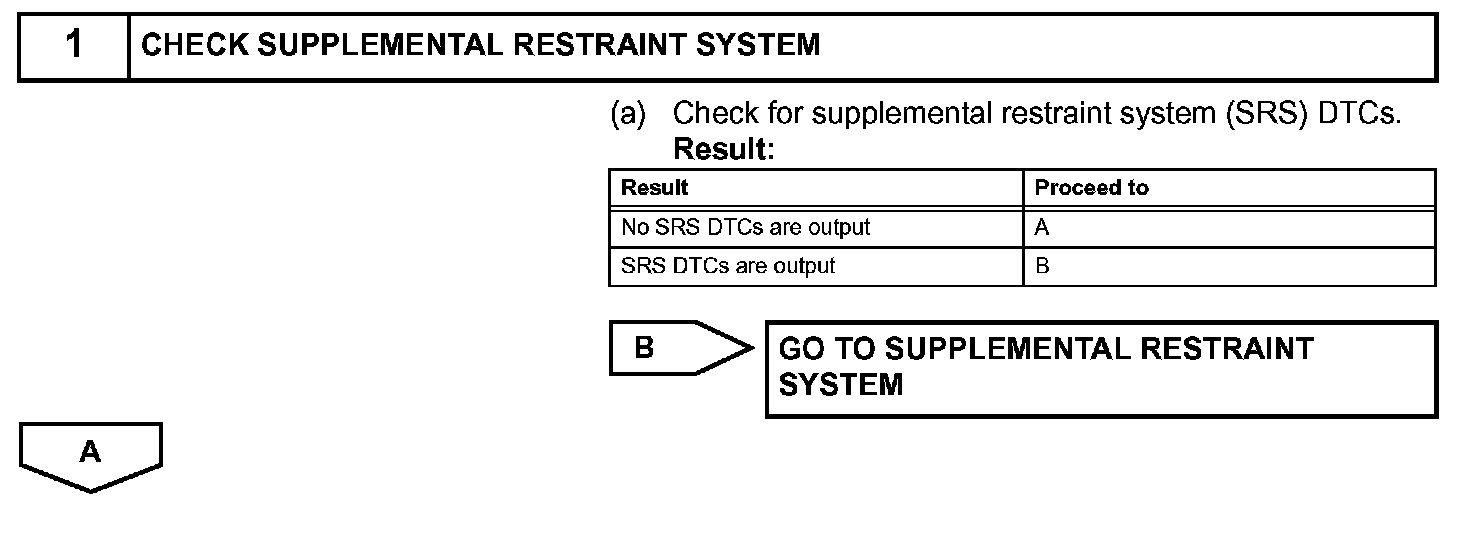

Step 1:

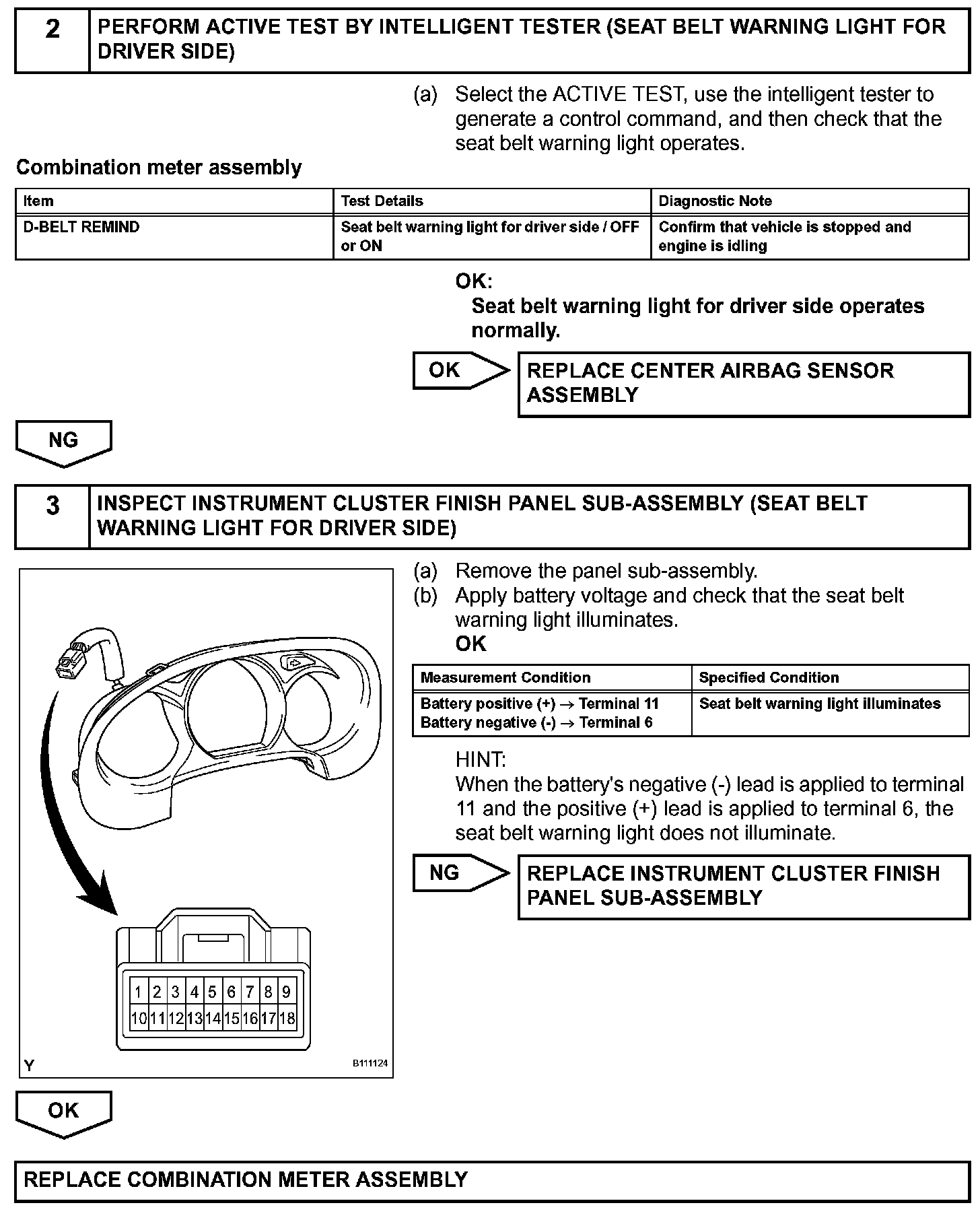

Step 2-3:

INSPECTION PROCEDURE
