SRS Warning Light Check

SRS WARNING LIGHT CHECK

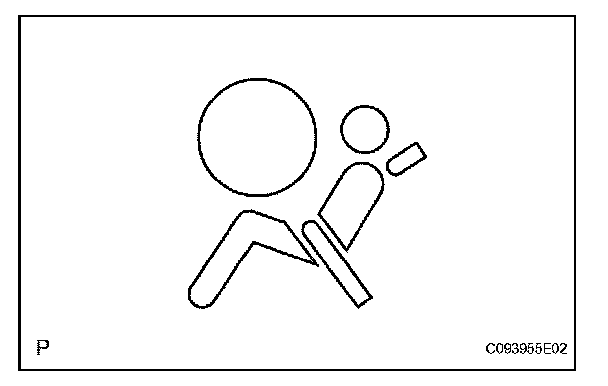

a. Turn the engine switch on (IG), and check that the SRS warning light comes on for approximately 6 seconds (primary check).
b. Check that the SRS warning light goes off approximately 6 seconds after the engine switch is turned on (IG) (constant check).

HINT: When any of the given symptoms occur, refer to the "Problem Symptoms Table". Symptom Index

- The SRS warning light comes on occasionally, after the primary check period has elapsed.
- The SRS warning light comes on, but a DTC is not output.
- The engine switch is turned from off to on (IG), but the SRS warning light does not come on.
