Release Method of Activation Prevention Mechanism

RELEASE METHOD OF ACTIVATION PREVENTION MECHANISM

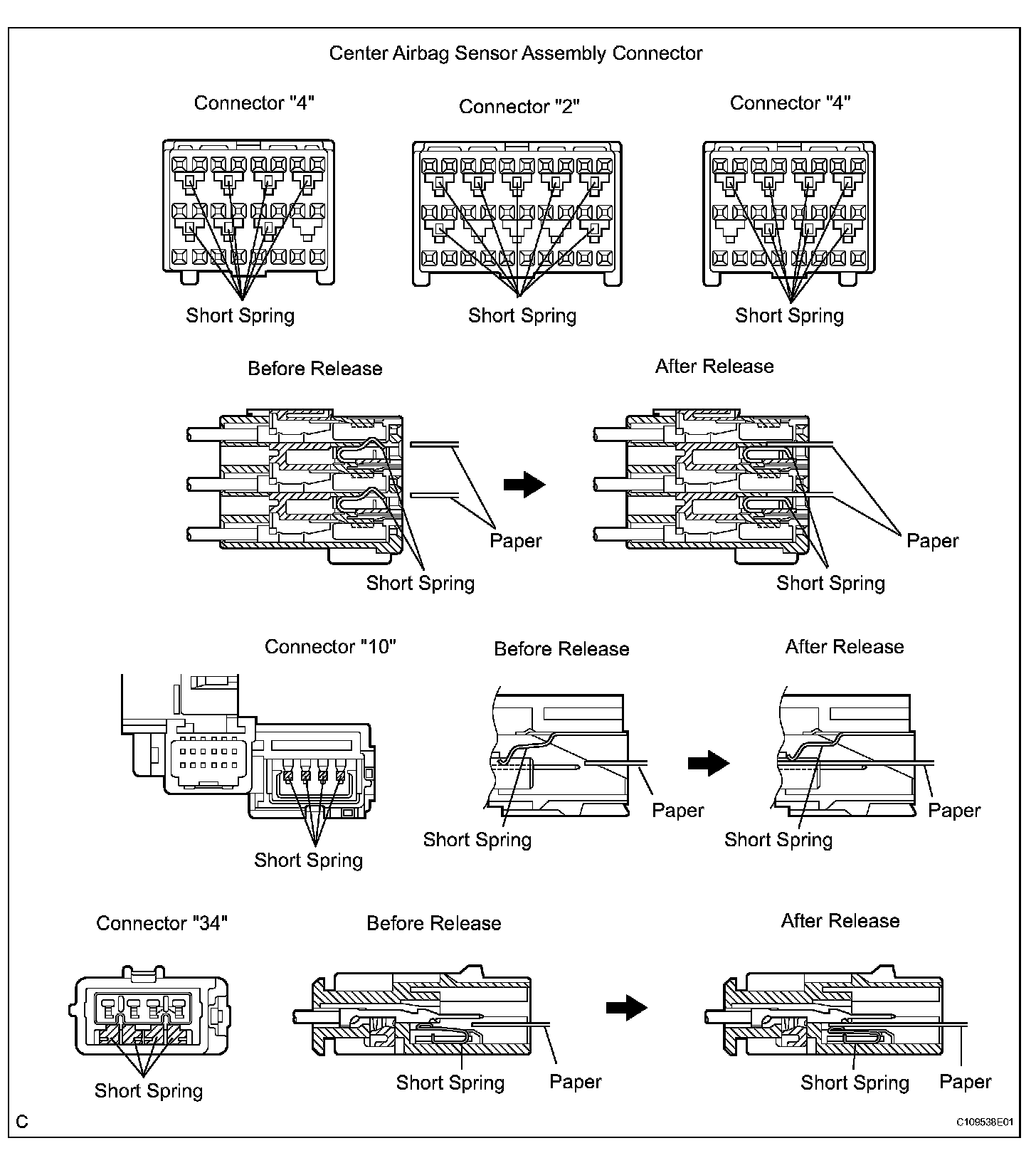

1. To release the activation prevention mechanism, insert a piece of paper with the same thickness as the male terminal (approximately 0.5 mm (0.020 in.) between the terminals and the short spring to break the connection.

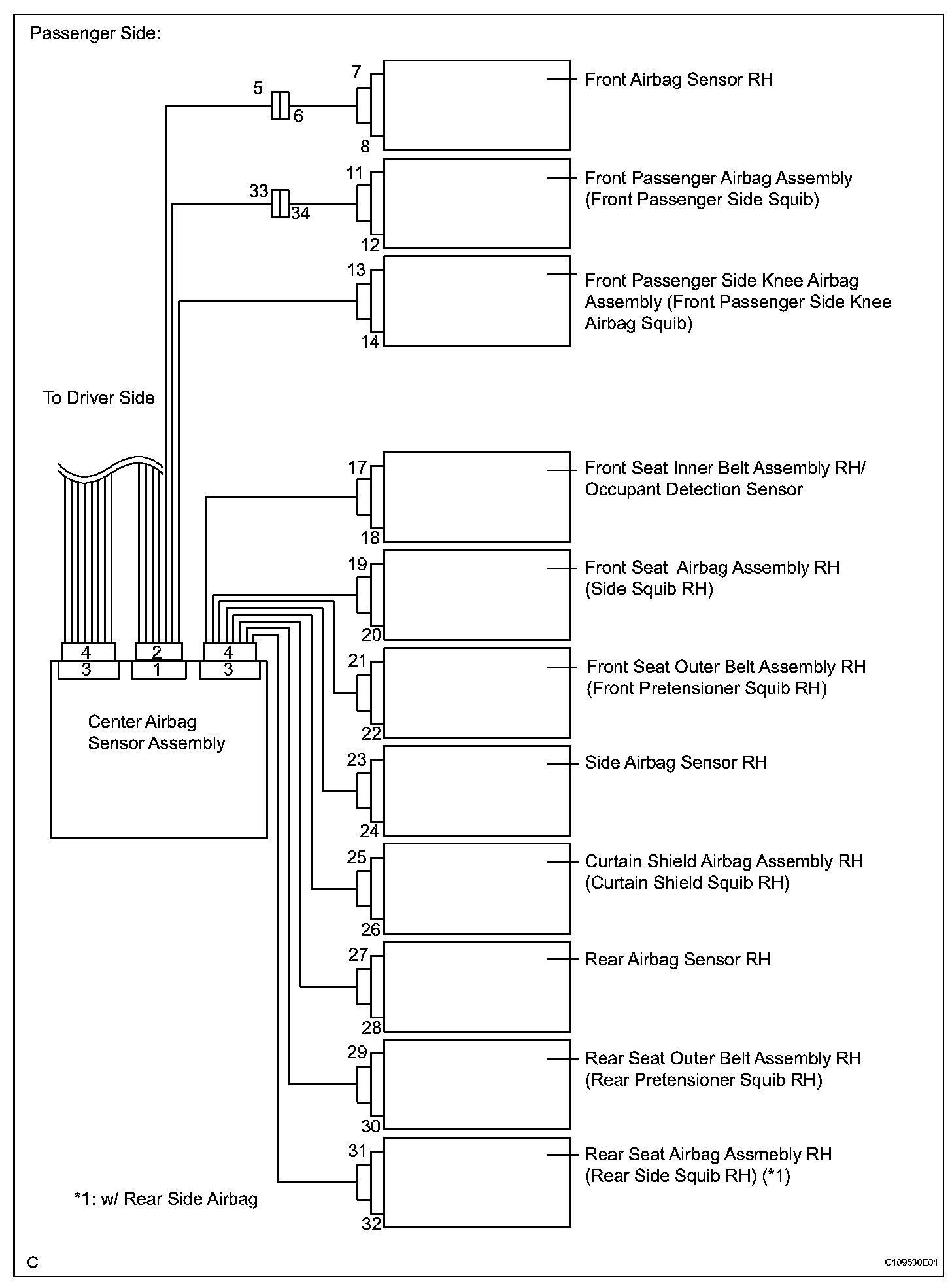

2. Refer to the illustrations on the next concerning connectors utilizing the activation prevention mechanism and its release method.

CAUTION: Never release the activation prevention mechanism on the squib connector even when inspecting with the squib disconnected

NOTE:
- Do not release the activation prevention mechanism unless specially directed by the troubleshooting procedure.
- To prevent the terminal and the short spring from being damaged, always use a piece of paper of the same thickness as the male terminal.
