Removal and Installation
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2. REMOVE ROOF HEADLINING ASSEMBLY
HINT: Refer to the procedures up to "REMOVE ROOF HEADLINING ASSEMBLY".
3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY
a. Disconnect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
b. Remove the 2 clips.

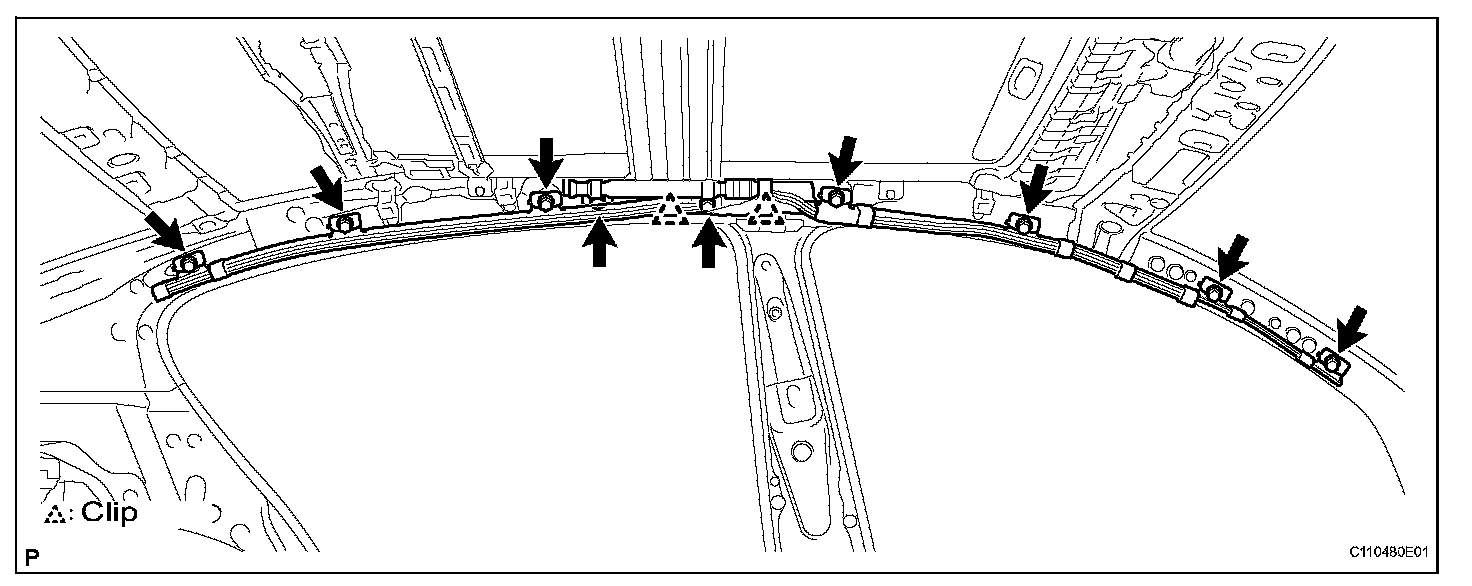

c. Remove the 9 bolts and curtain shield airbag assembly.
INSTALLATION
1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY
a. Install the curtain shield airbag assembly with the 2 clips and 9 new bolts.
Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)
NOTE: Do not twist the curtain shield airbag assembly when installing it.
b. Connect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
2. INSTALL ROOF HEADLINING ASSEMBLY
HINT: Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY".
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
5. INSPECT SRS WARNING LIGHT
