Radiator Cooling Fan Motor Relay: Testing and Inspection

COOLING FAN RELAY

ON-VEHICLE INSPECTION

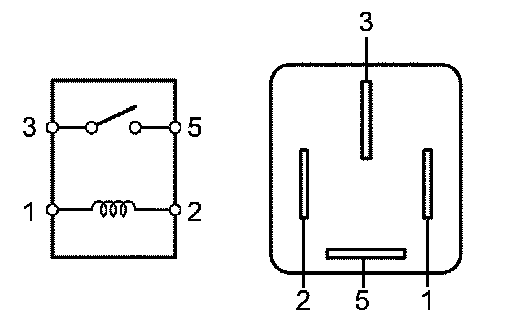

1. CHECK COOLING FAN RELAY (Marking: MAIN FAN)
a. Remove the relay from engine room No.1 relay block.
b. Measure the resistance of the relay.

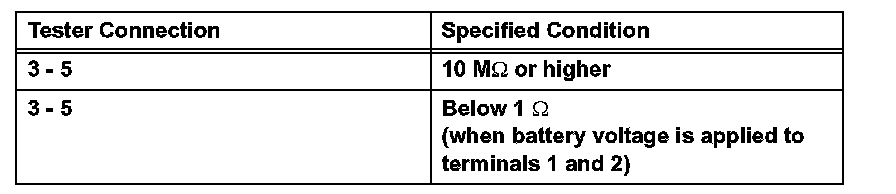

Standard Resistance:

If the result is not as specified, replace the cooling fan relay
c. Install the relay to the engine room No.1 relay block.
