ABS Motor Relay (W/ ECB)
ABS MOTOR RELAY (w/ECB)ON-VEHICLE INSPECTION

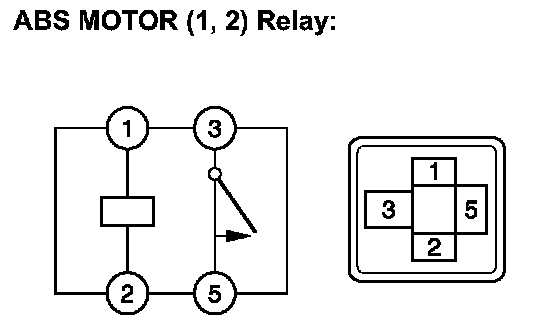

ABS MOTOR (1, 2) Relay:
1. INSPECT ABS MOTOR RELAY
a. Remove the ABS MOTOR 1 relay and ABS MOTOR 2 relay

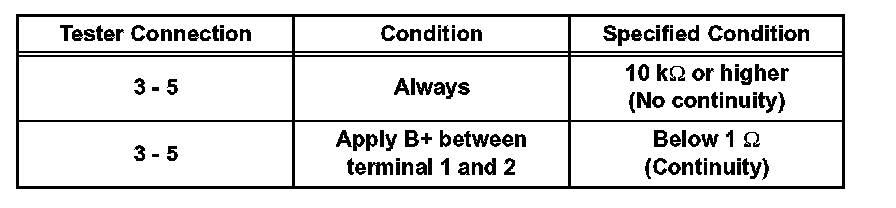

b. Measure the resistance according to the value(s) in the table below.
Resistance:
