Connector Views

OXYGEN SENSOR CONNECTOR VIEWS

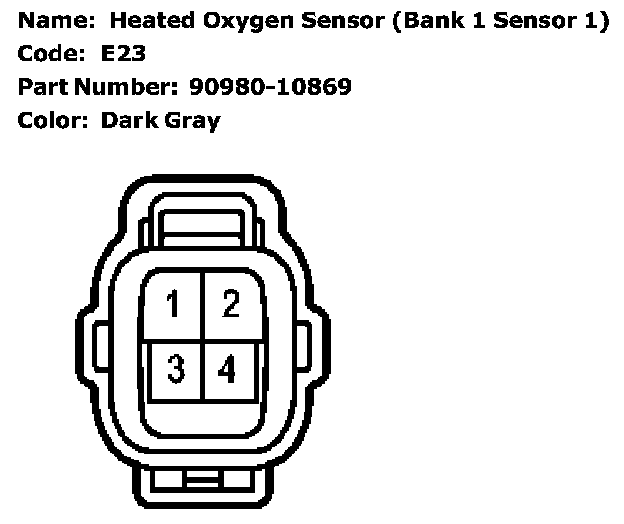

Heated Oxygen Sensor (Bank 1 Sensor 1):

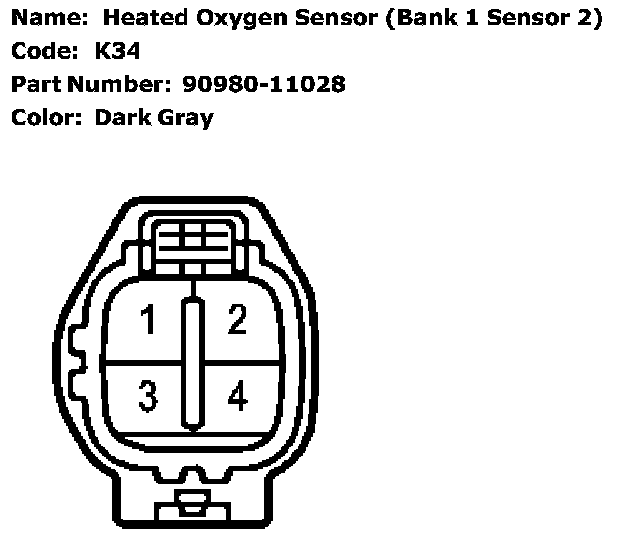

Heated Oxygen Sensor (Bank 1 Sensor 2):

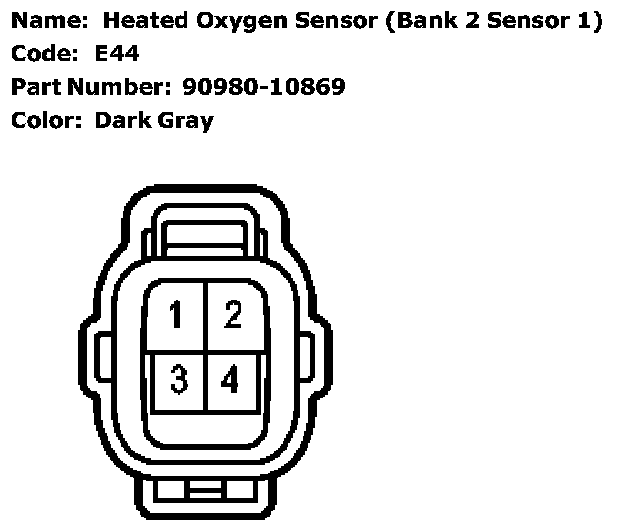

Heated Oxygen Sensor (Bank 2 Sensor 1):

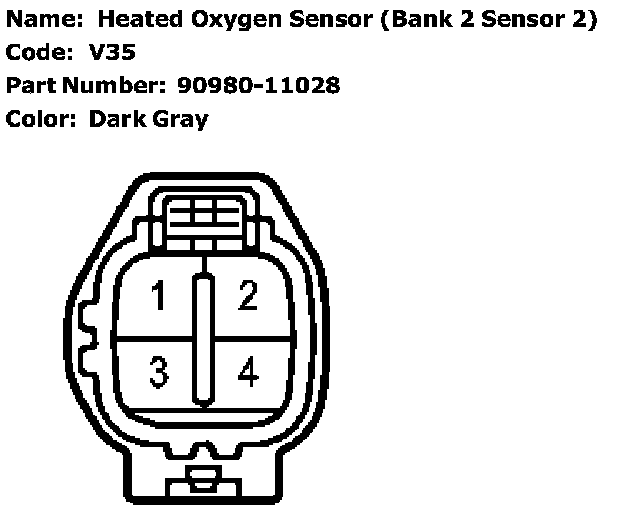

Heated Oxygen Sensor (Bank 2 Sensor 2):

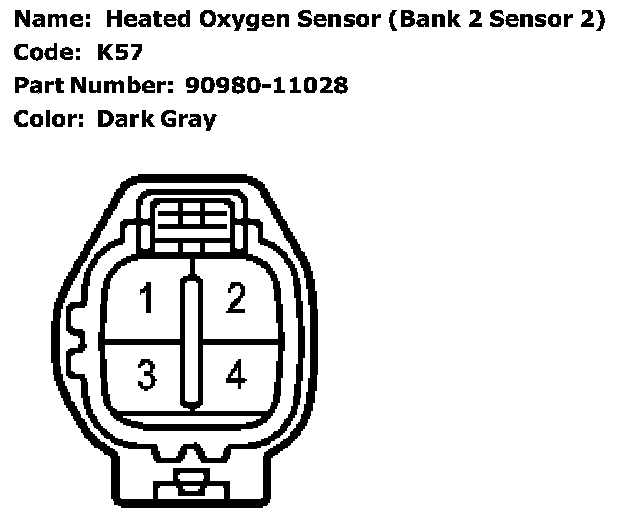

Heated Oxygen Sensor (Bank 2 Sensor 2):
