Variable Induction System: Description and Operation

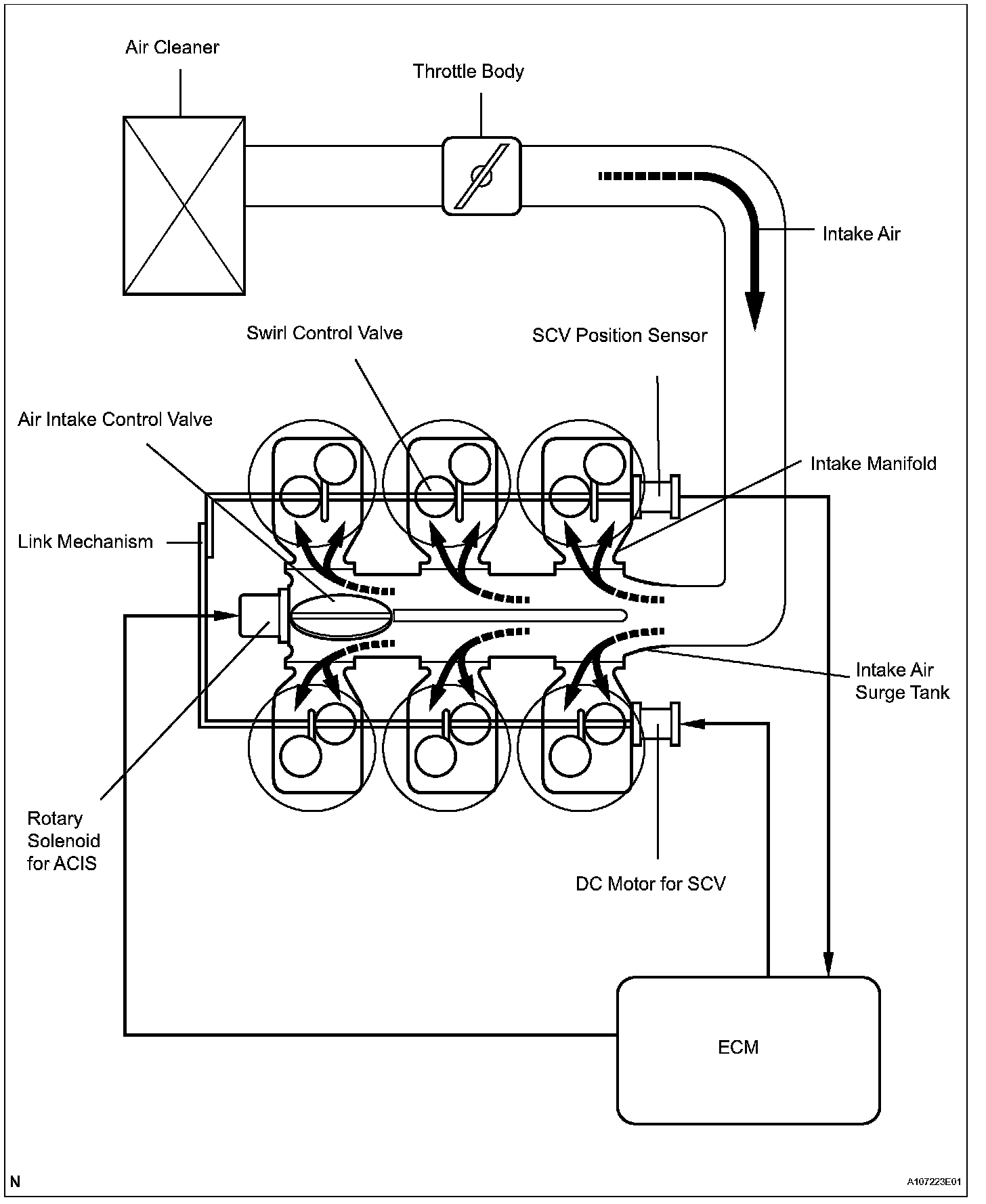

System Diagram-Intake Control System Valve Diagram (Part 1):

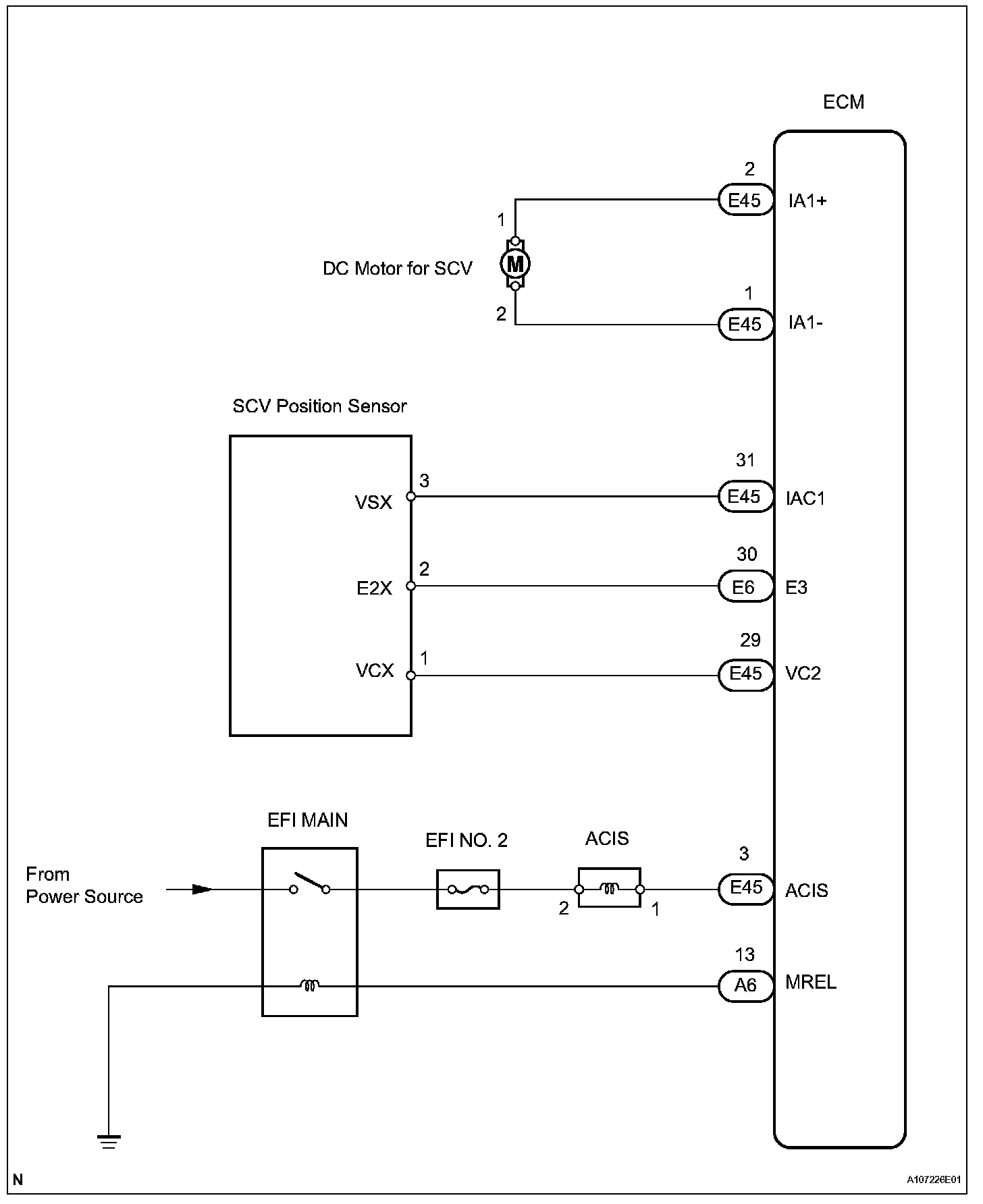

System Diagram-Intake Control System Valve Diagram (Part 2):
