Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Technical Service Bulletins >> Recalls >> Recall - Fuel Rail Replacement >> Technical Instructions For 2007-2008 LS460/LS460L >> VII. Fuel Delivery Pipe Replacement For 2007-2008 LS460/LS460L >> C. Replace Fuel Delivery Pipe

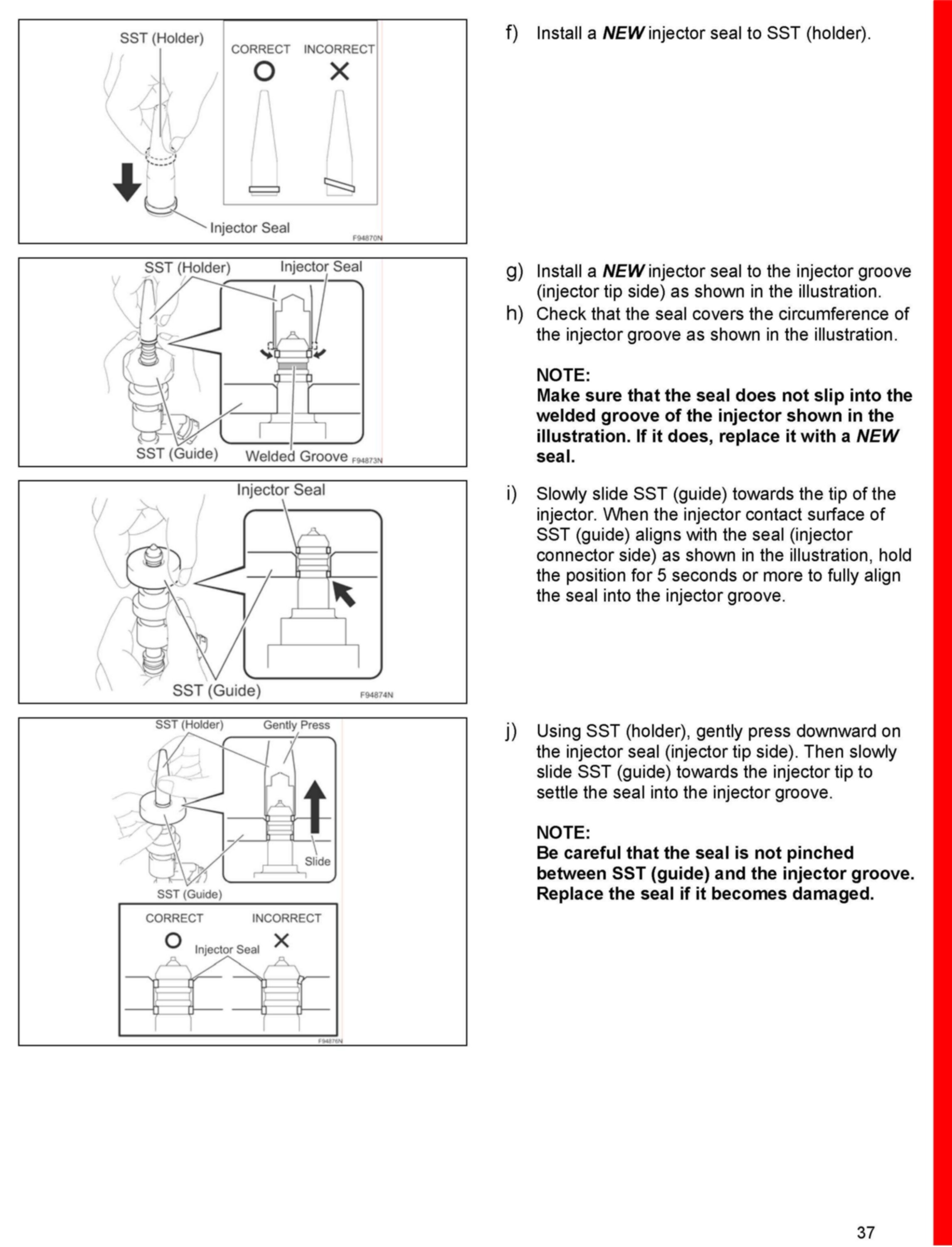

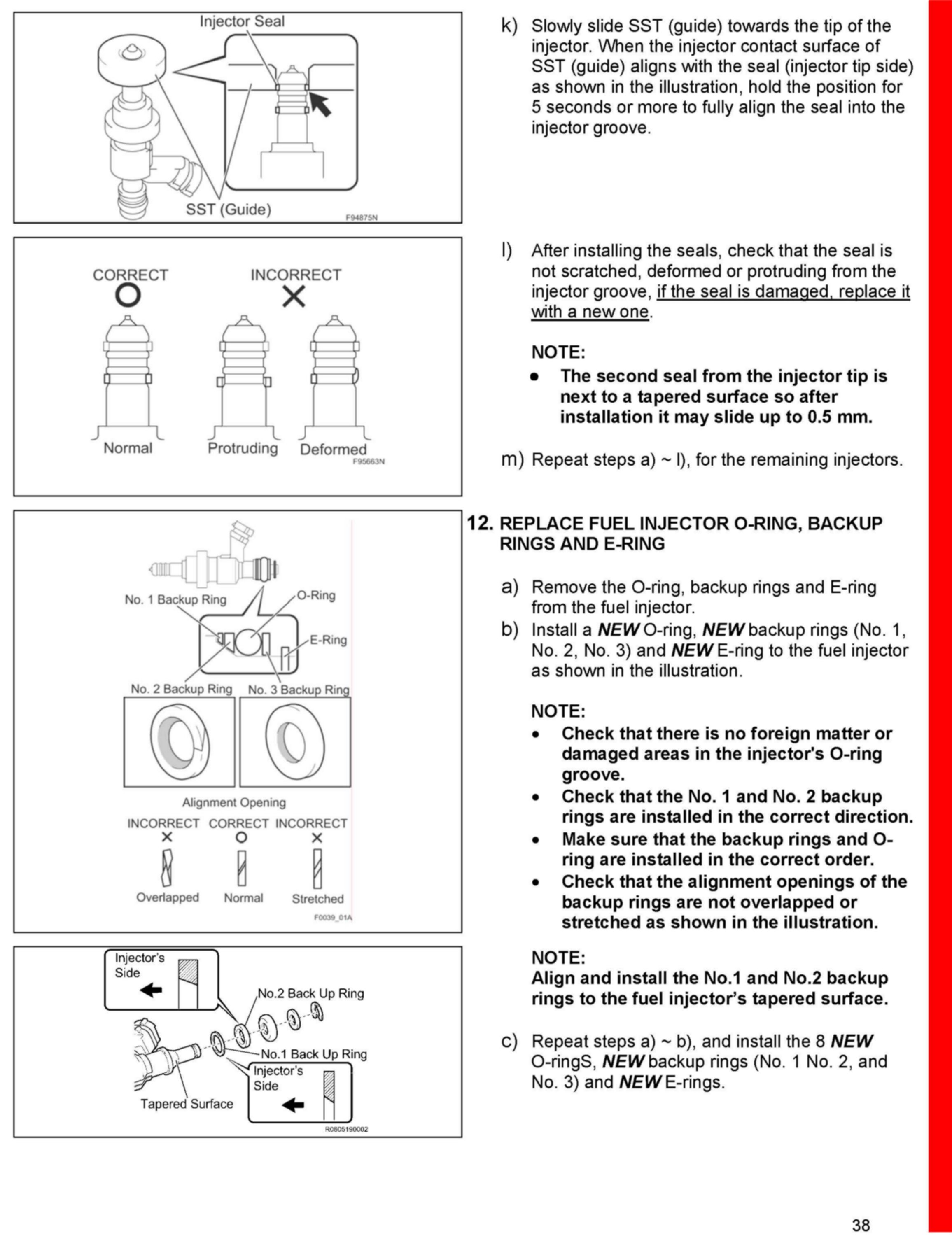

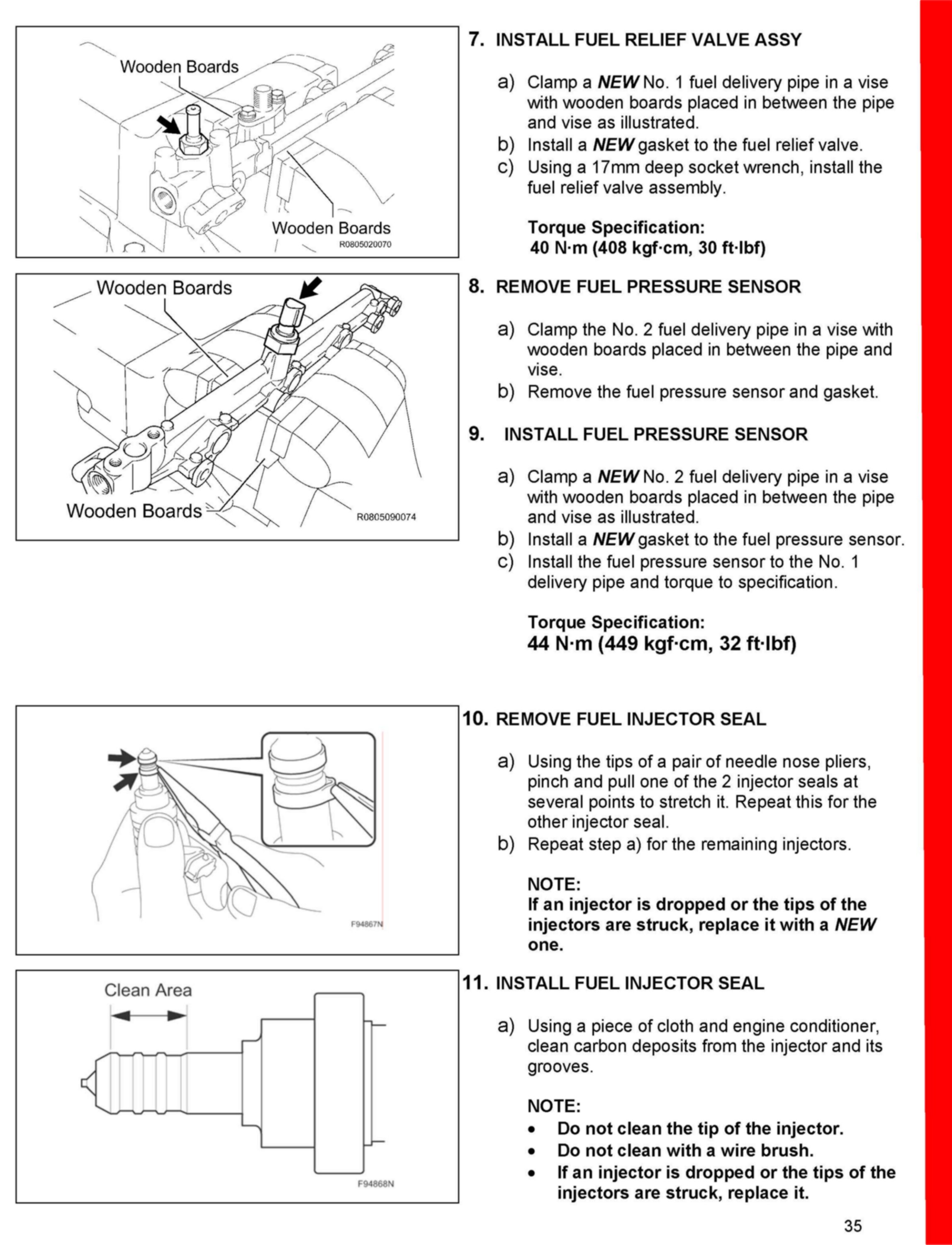

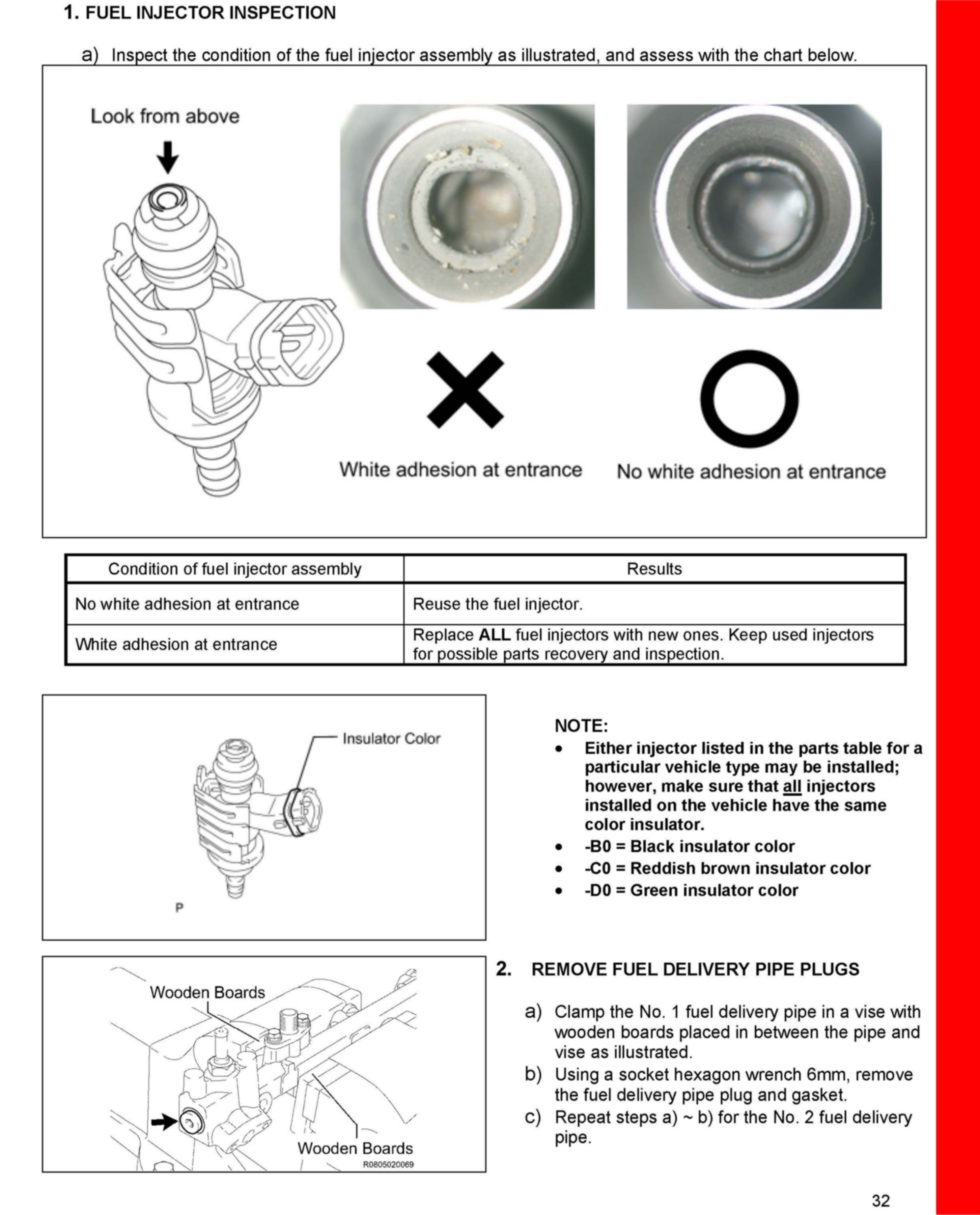

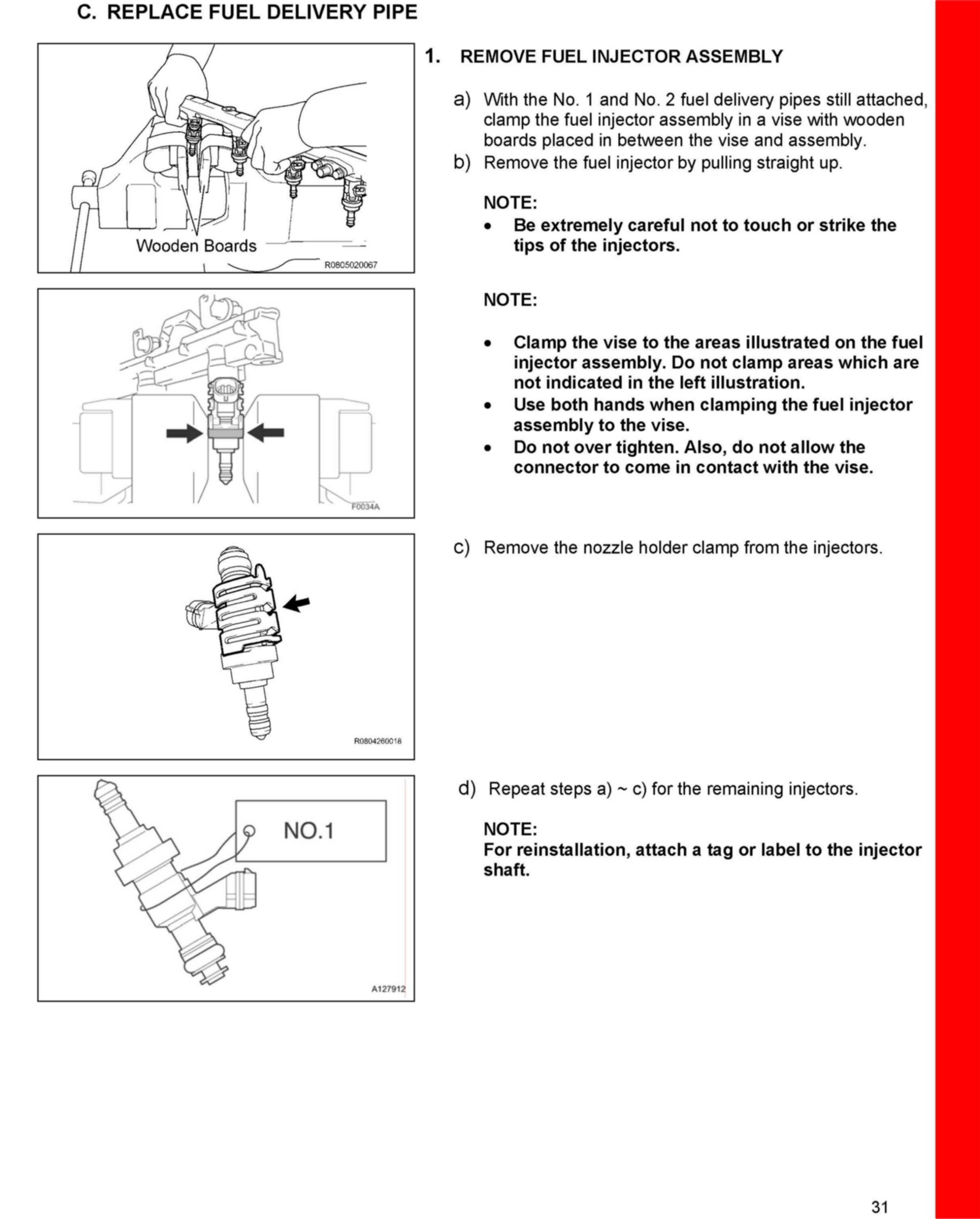

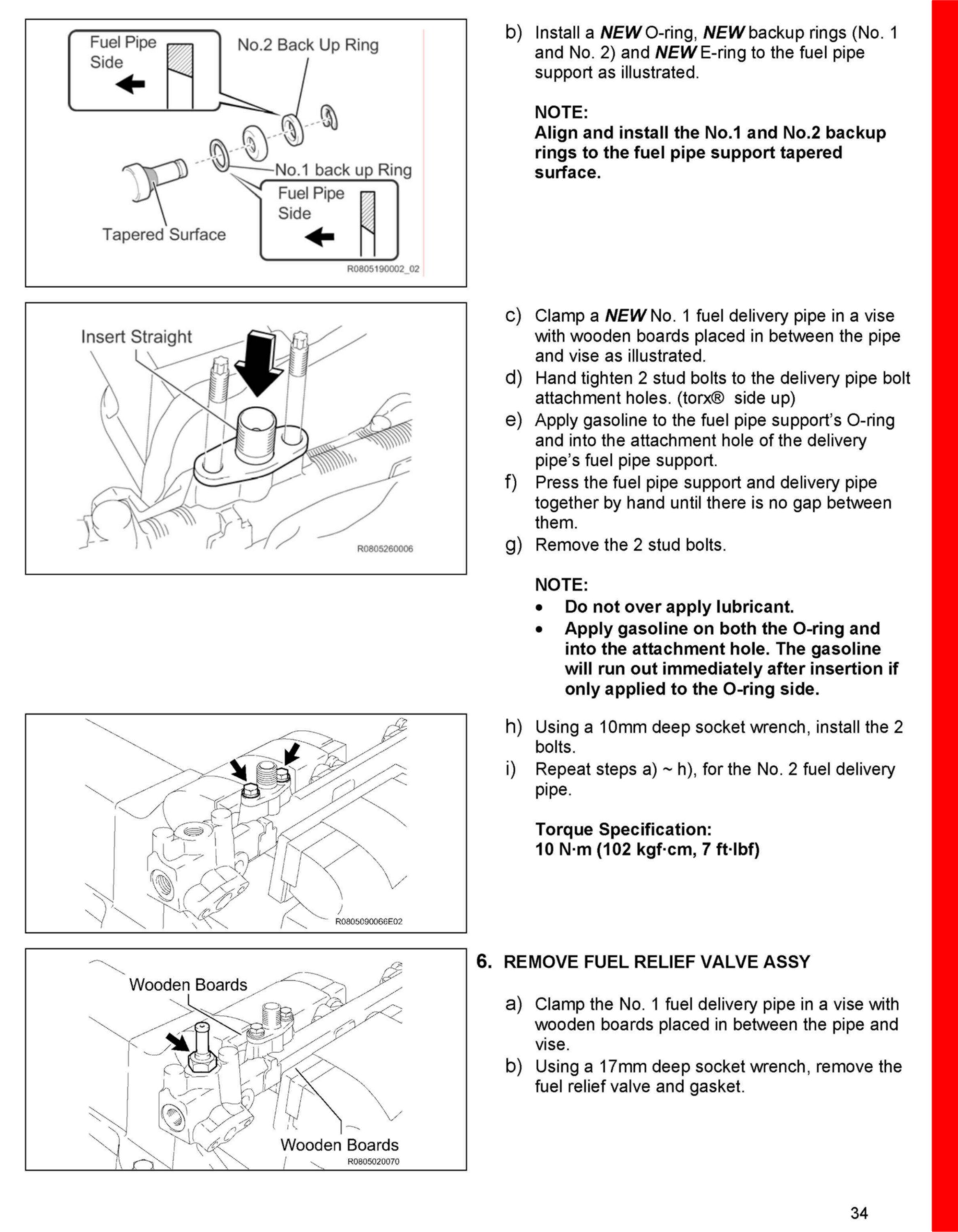

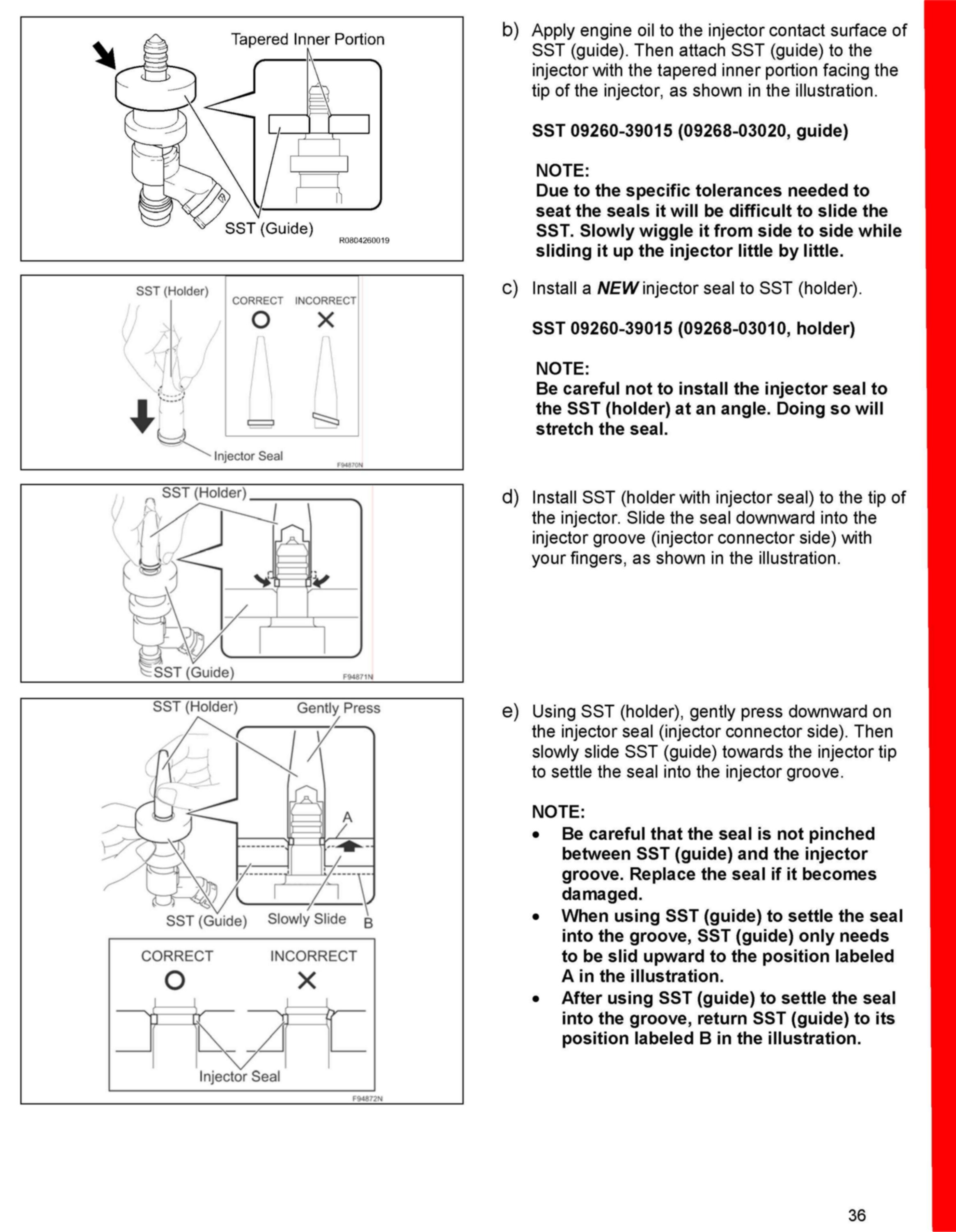

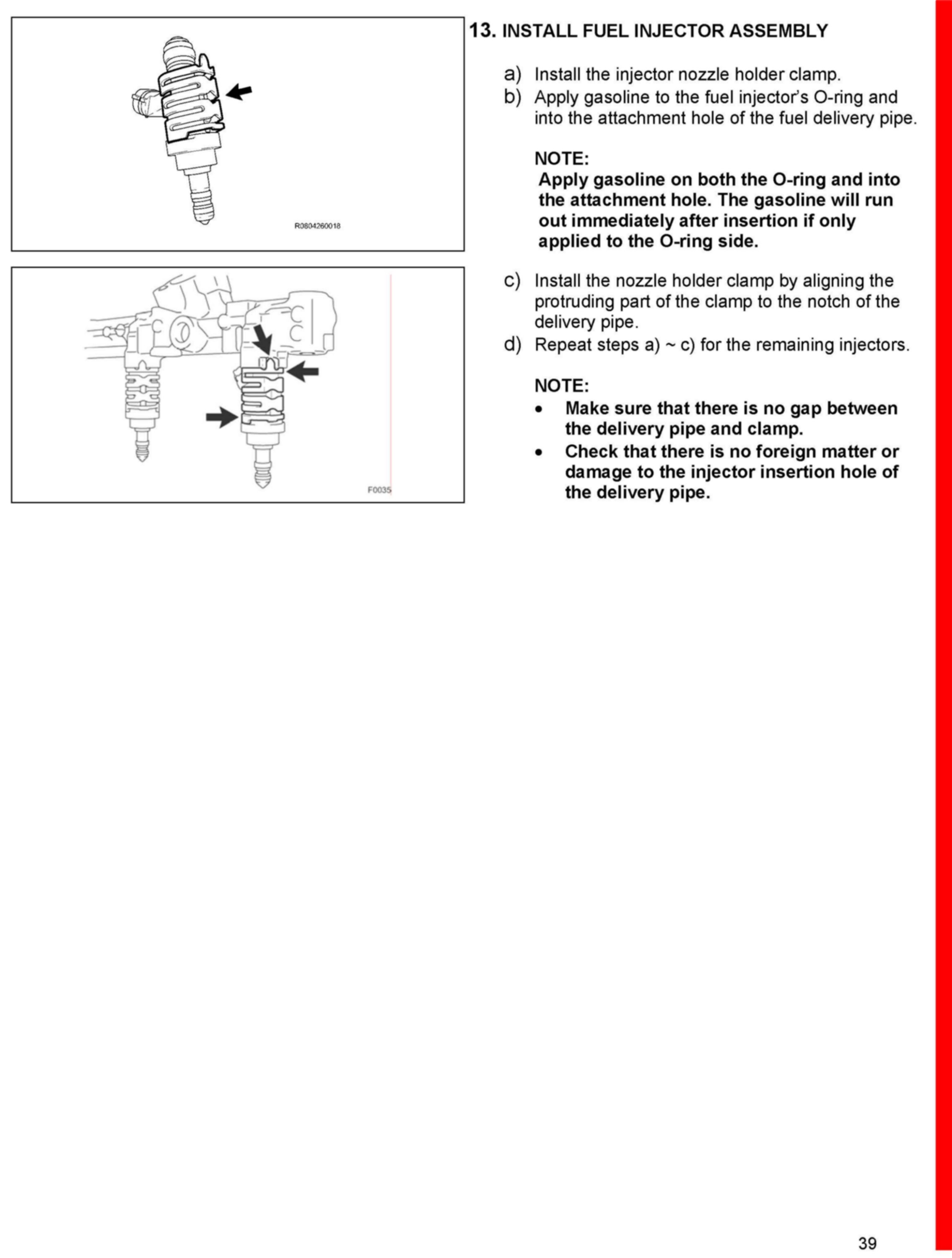

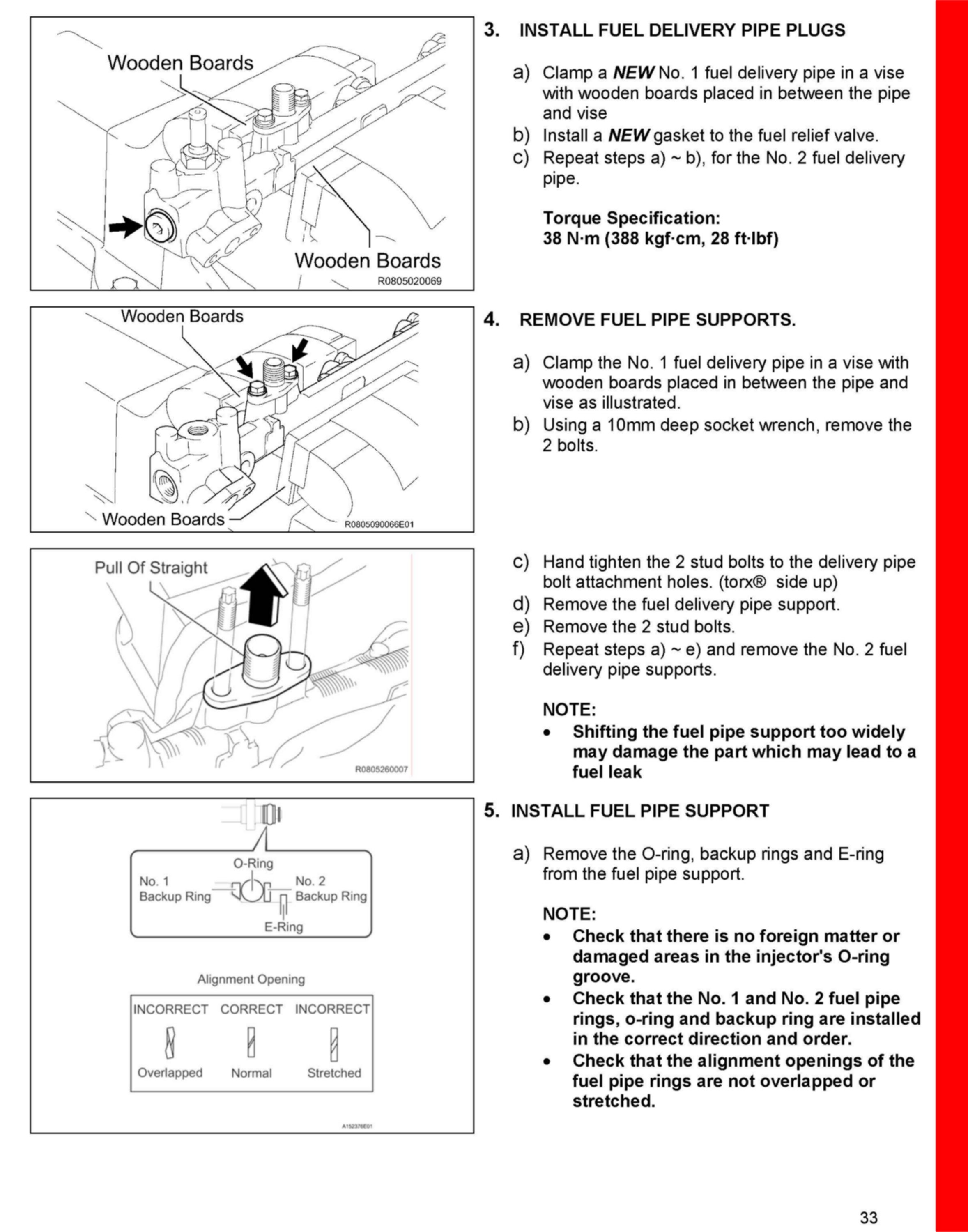

C. Replace Fuel Delivery Pipe
