Fuel Pump Ballast Resistor: Testing and Inspection
INSPECTIONINSPECT FUEL PUMP RESISTOR

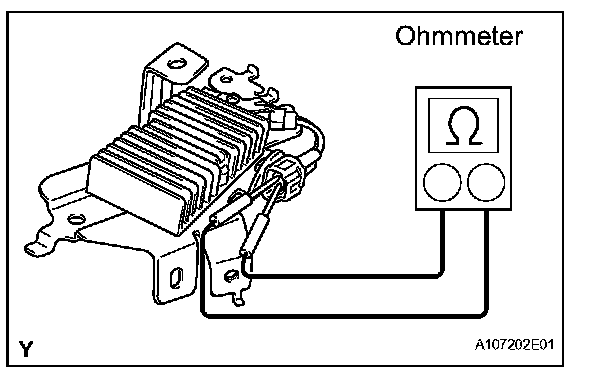

a. Measure the resistance between terminals.
Standard resistance: 0.70 to 0.76 Ohms at 20 degrees C (68 degrees F)
If the result is not as specified, replace the fuel pump resistor.
