Fuel Pump Ballast Resistor: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM RH SIDE COVER

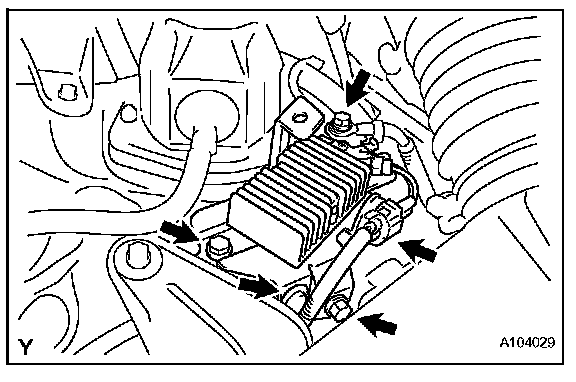

4. REMOVE FUEL PUMP RESISTOR




a. Disconnect the connector and clamp from the fuel pump resistor.
b. Remove the 3 bolts and fuel pump resistor, and disconnect the ground wire.

INSTALLATION

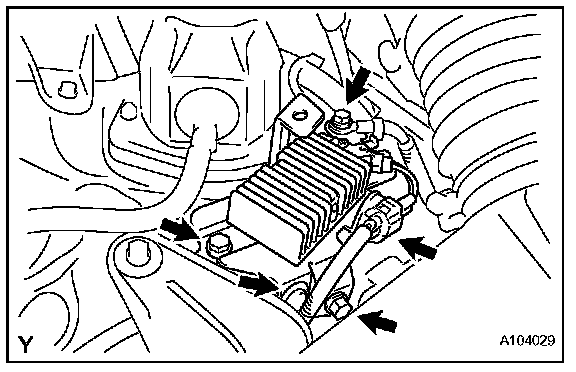

1. INSTALL FUEL PUMP RESISTOR




a. Install the fuel pump resistor and ground wire with the 3 bolts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Connect the connector with the clamp.

2. INSTALL ENGINE ROOM RH SIDE COVER
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
