Short to GND in CAN Bus Line
Short to GND in CAN Bus LineDESCRIPTION

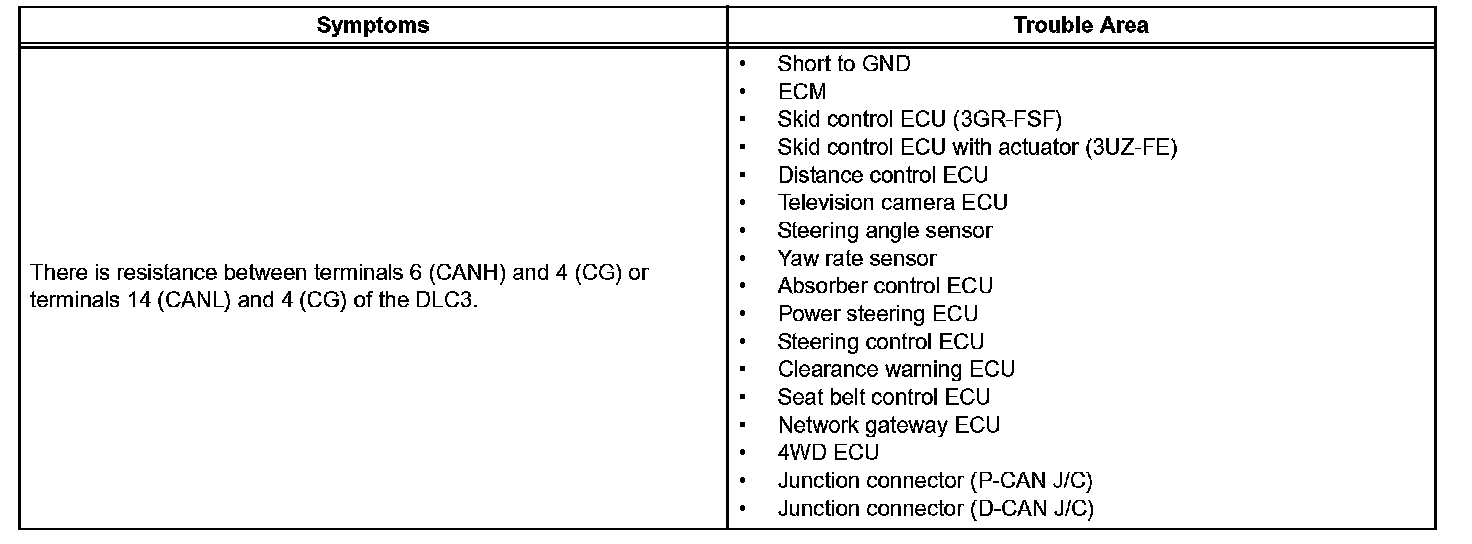

There may be a short circuit between the CAN bus line and GND when there is resistance between terminals 6 (CANH) and 4 (CG) or terminals 14 (CANL) and 4 (CG) of the DLC3.

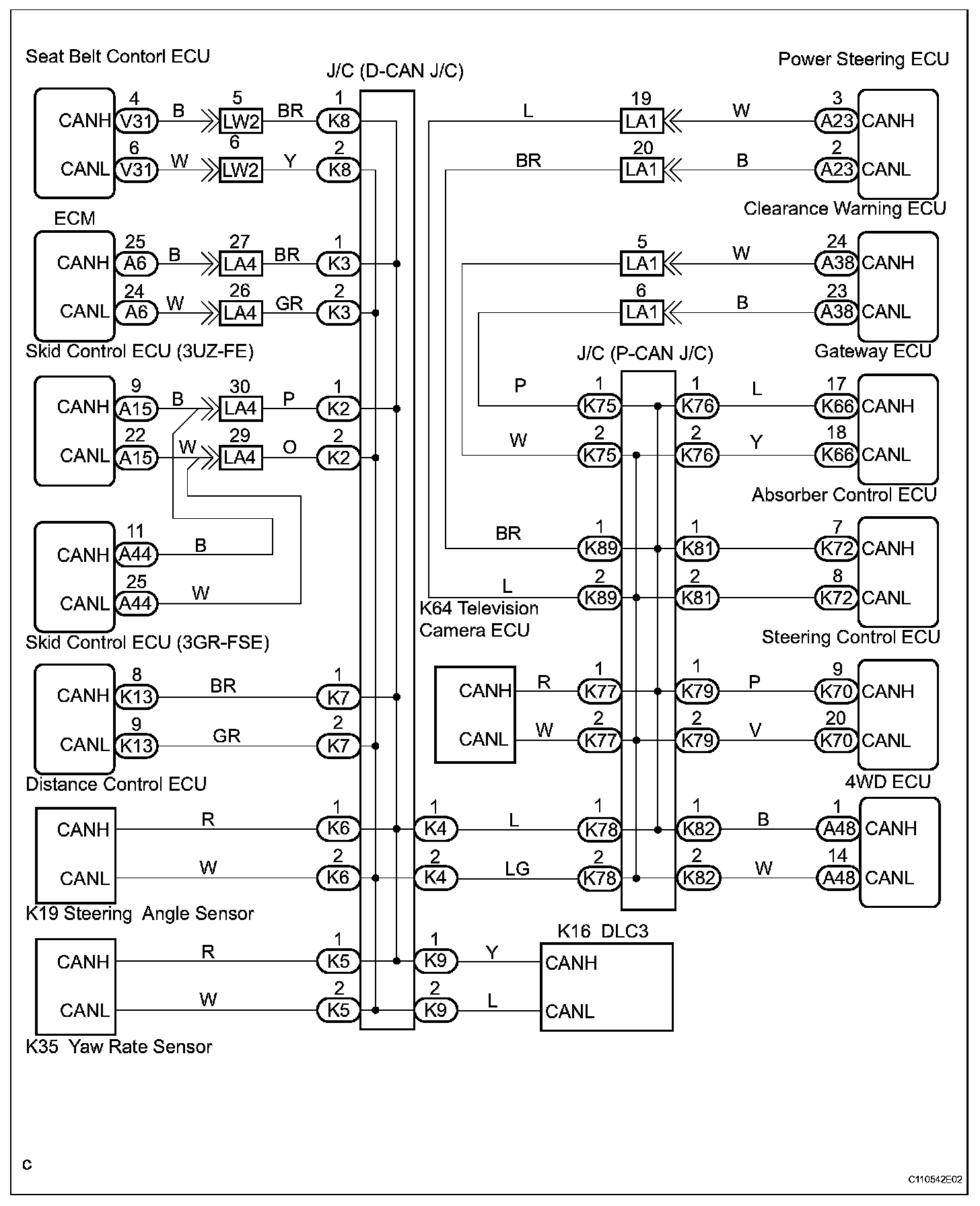

Wiring Diagram:

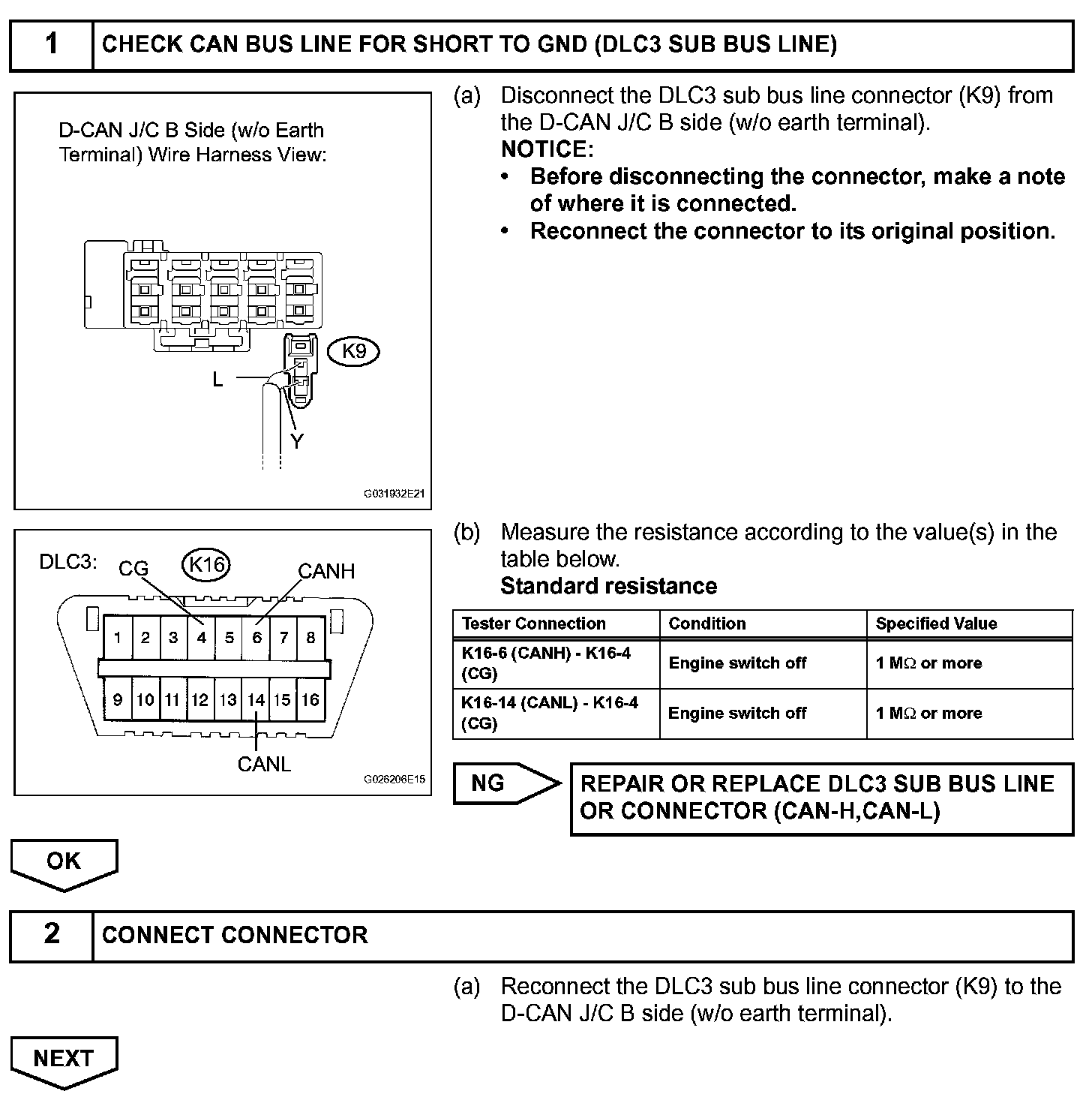

Step 1-2:

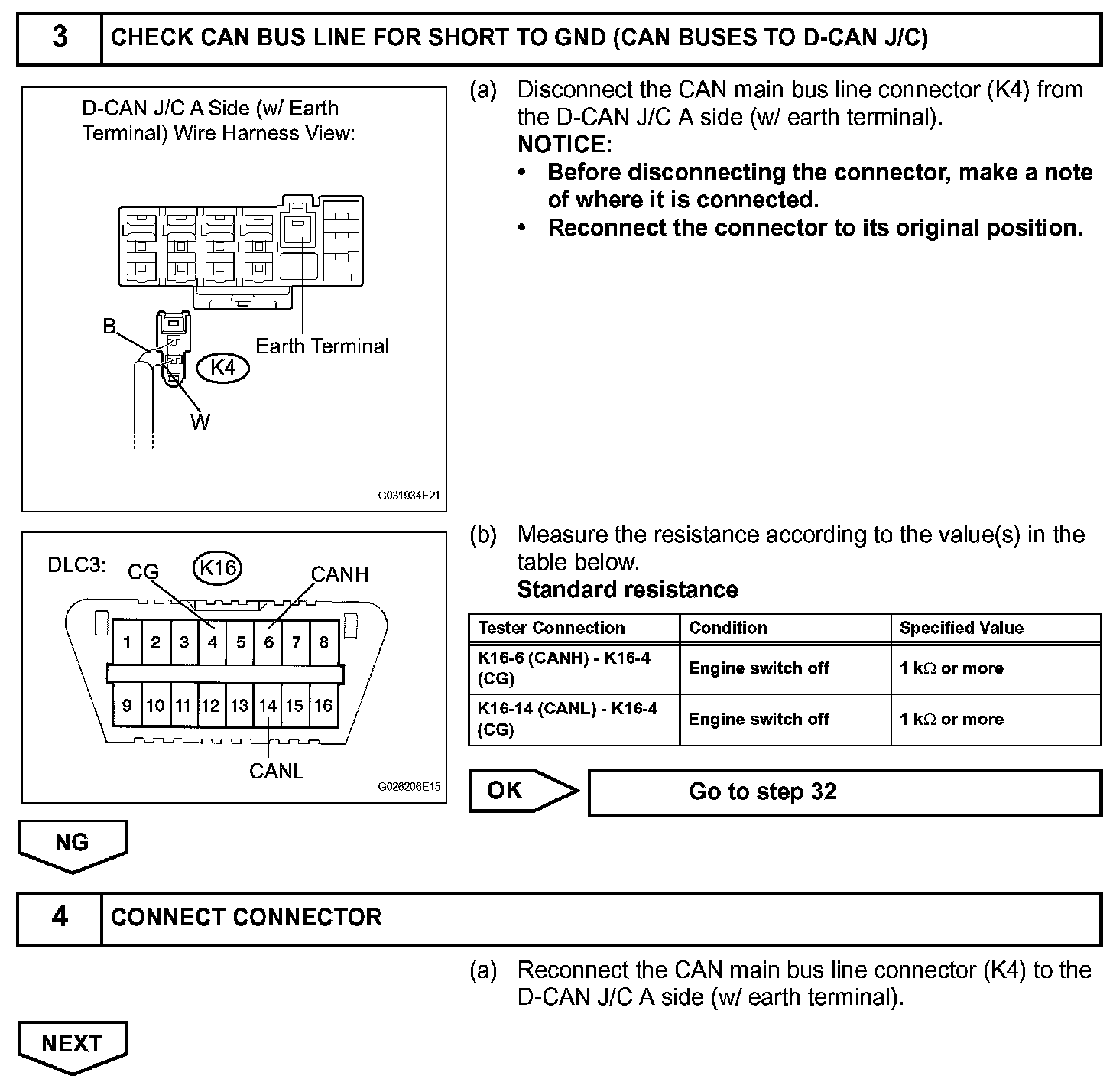

Step 3-4:

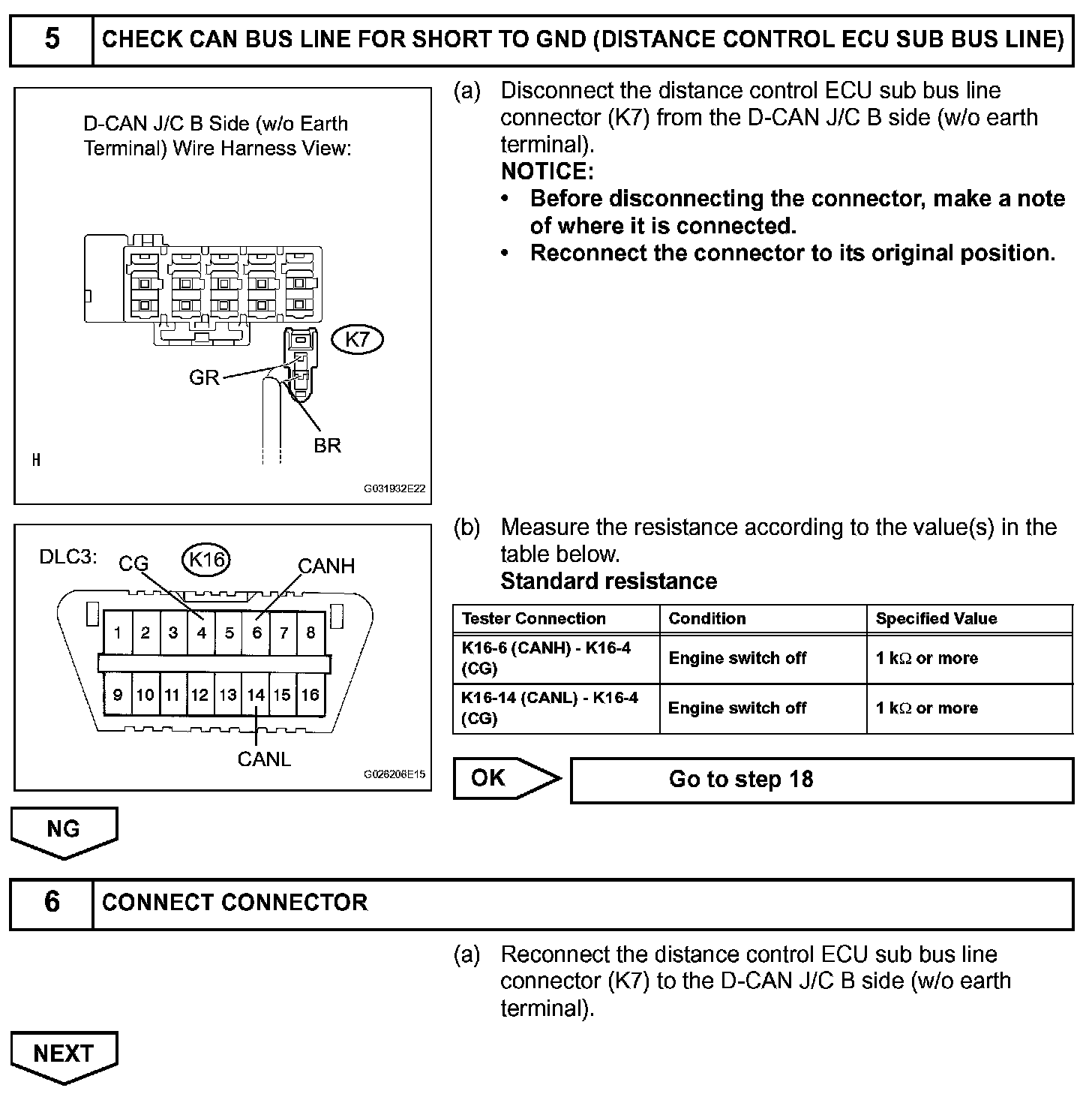

Step 5-6:
Step 7-8:

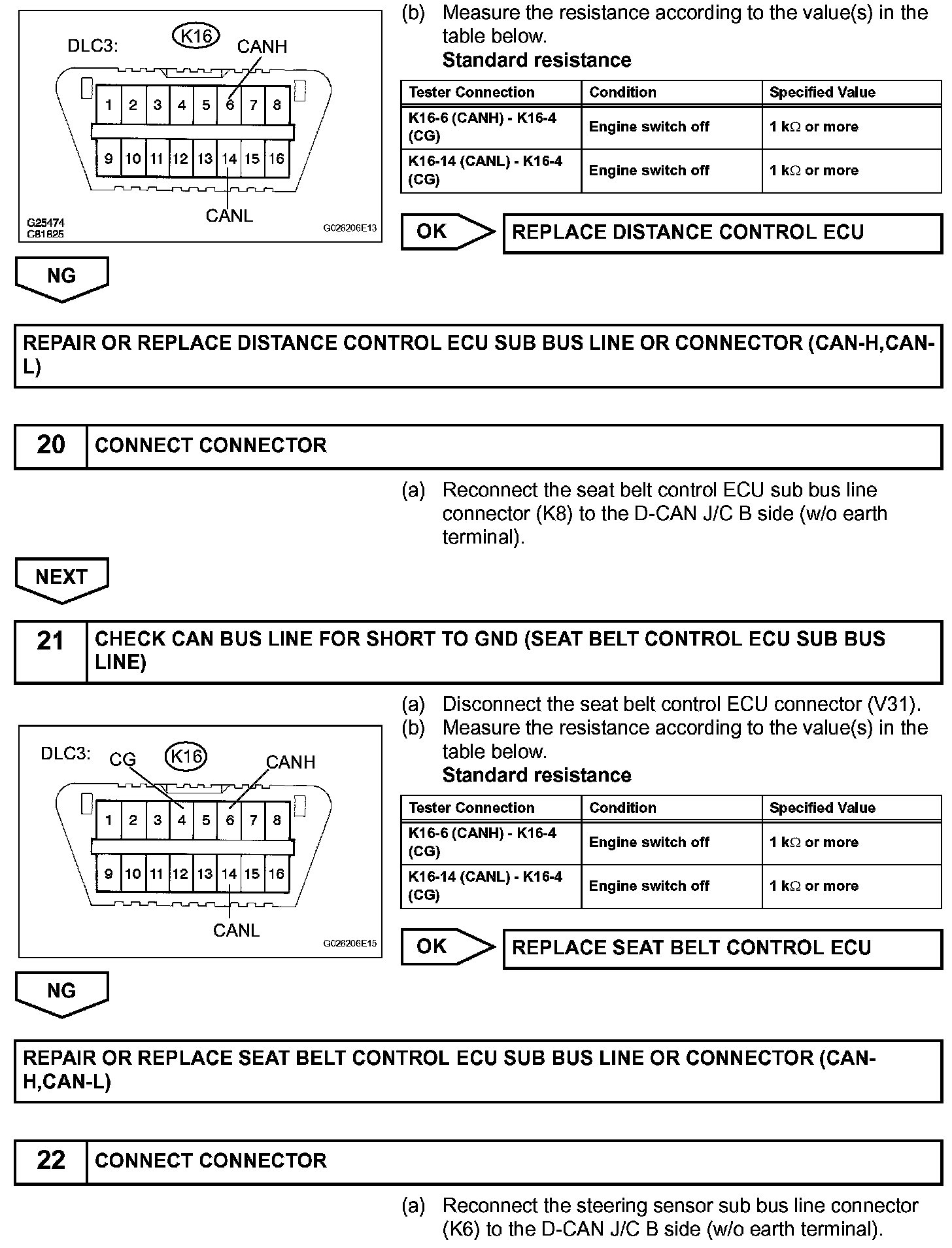

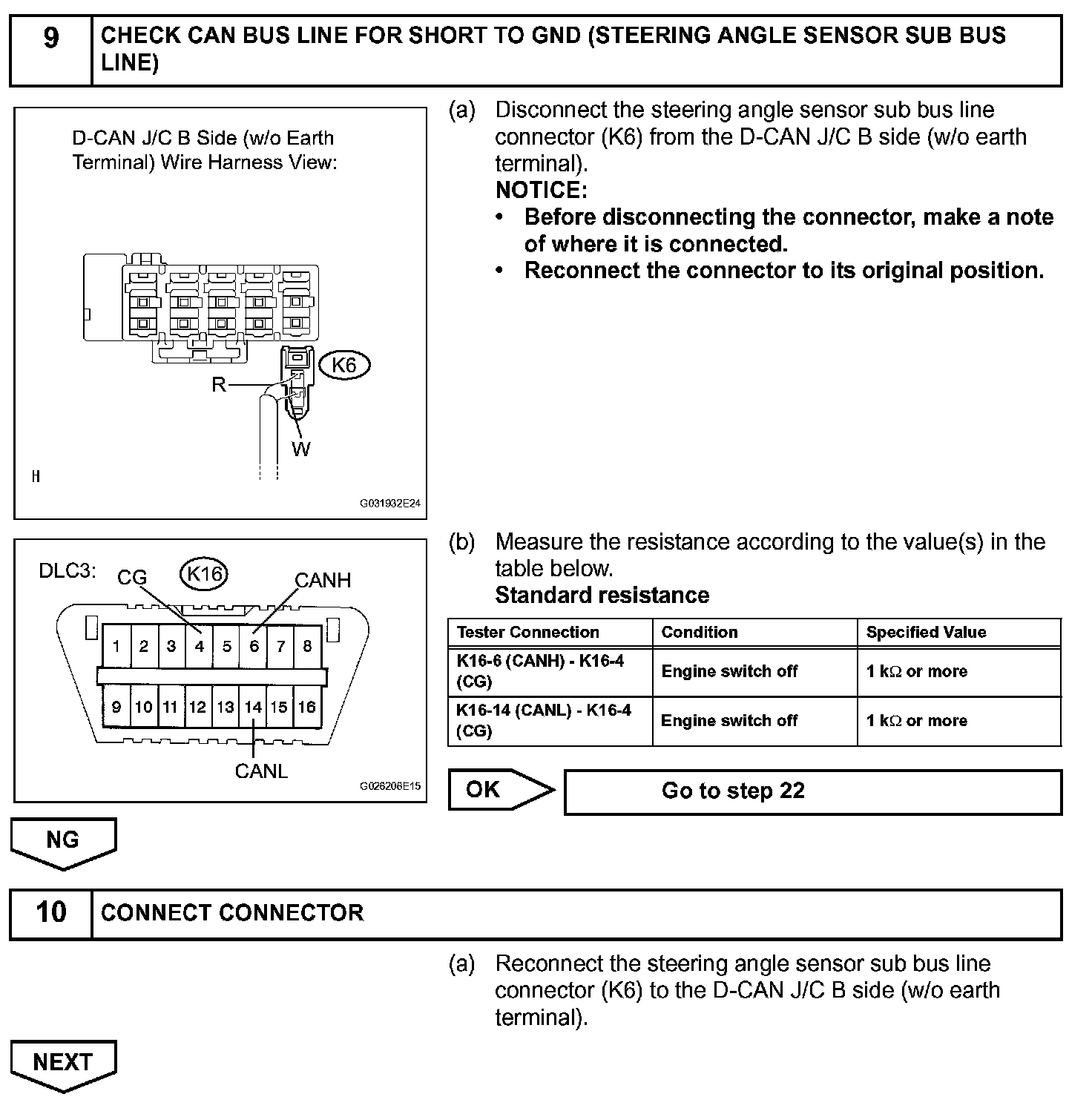

Step 9-10:

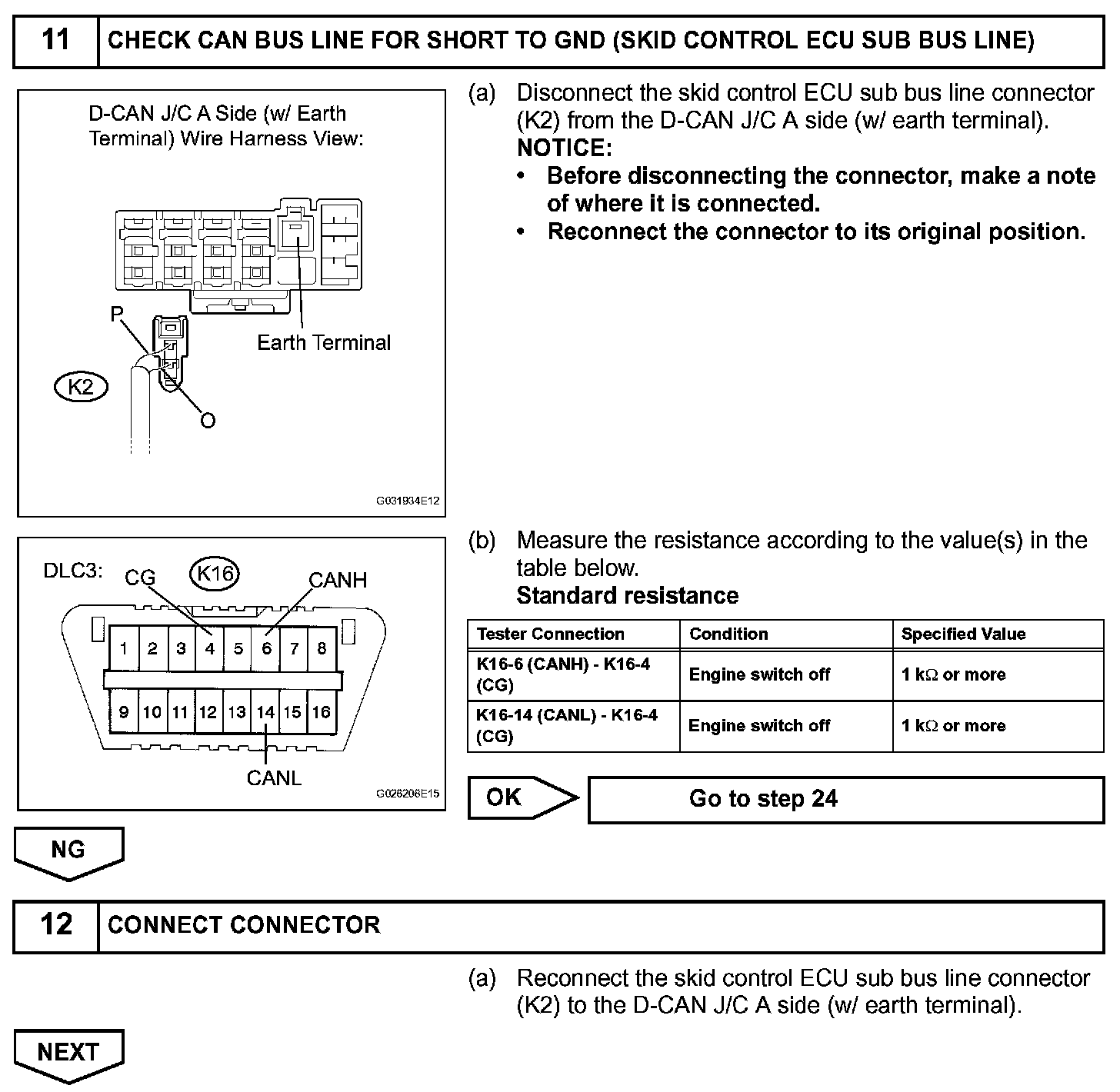

Step 11-12:

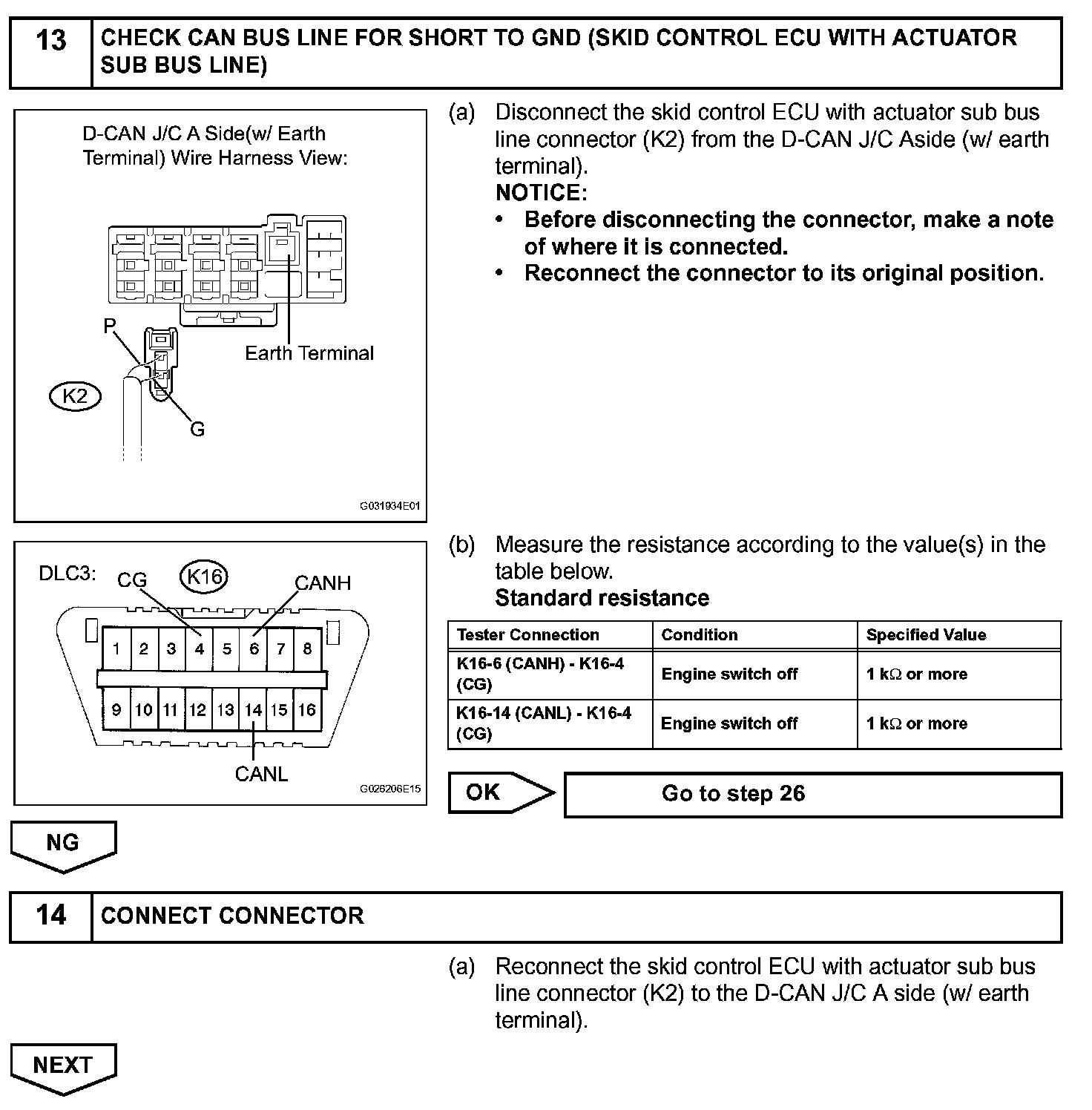

Step 13-14:

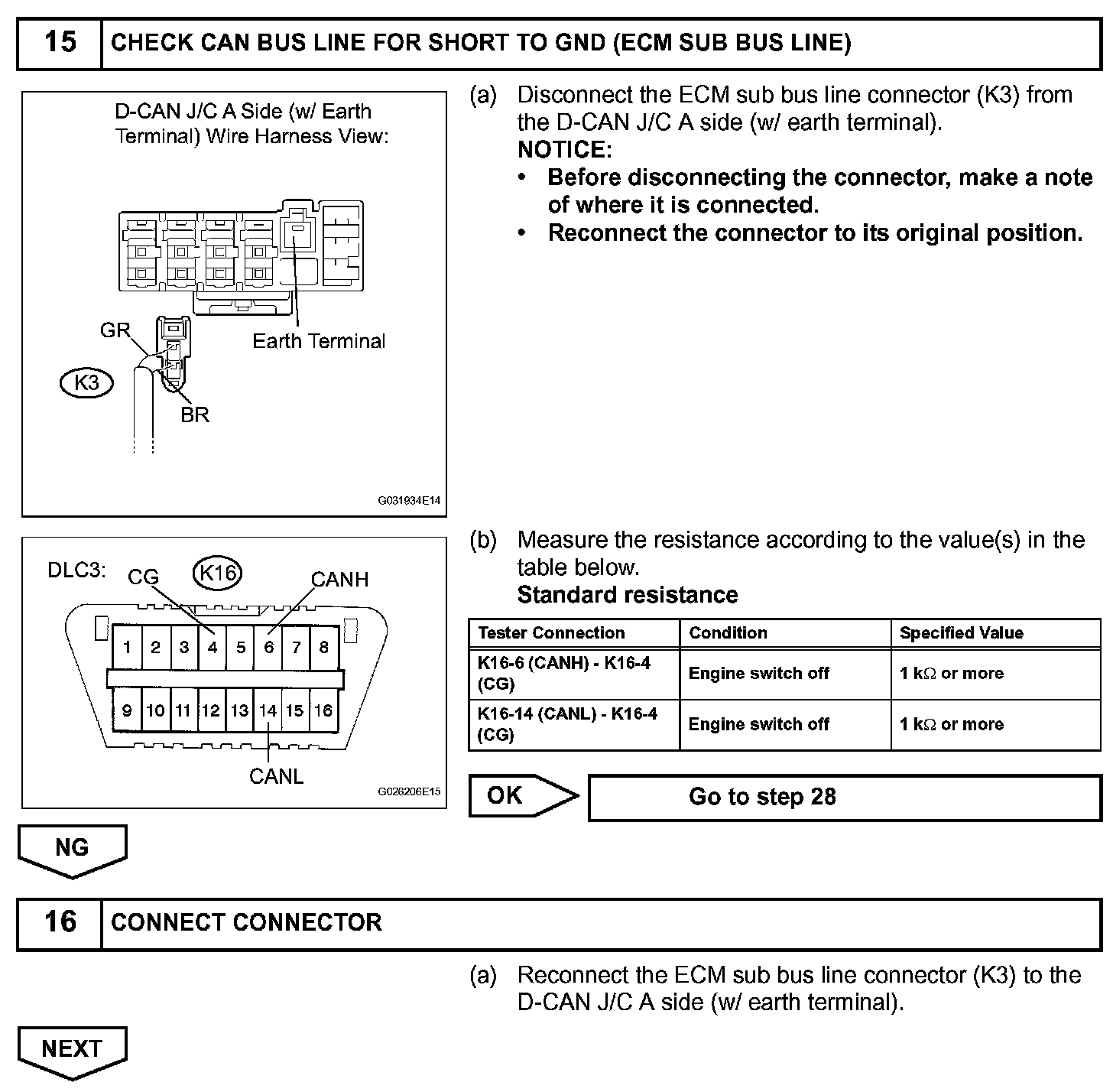

Step 15-16:

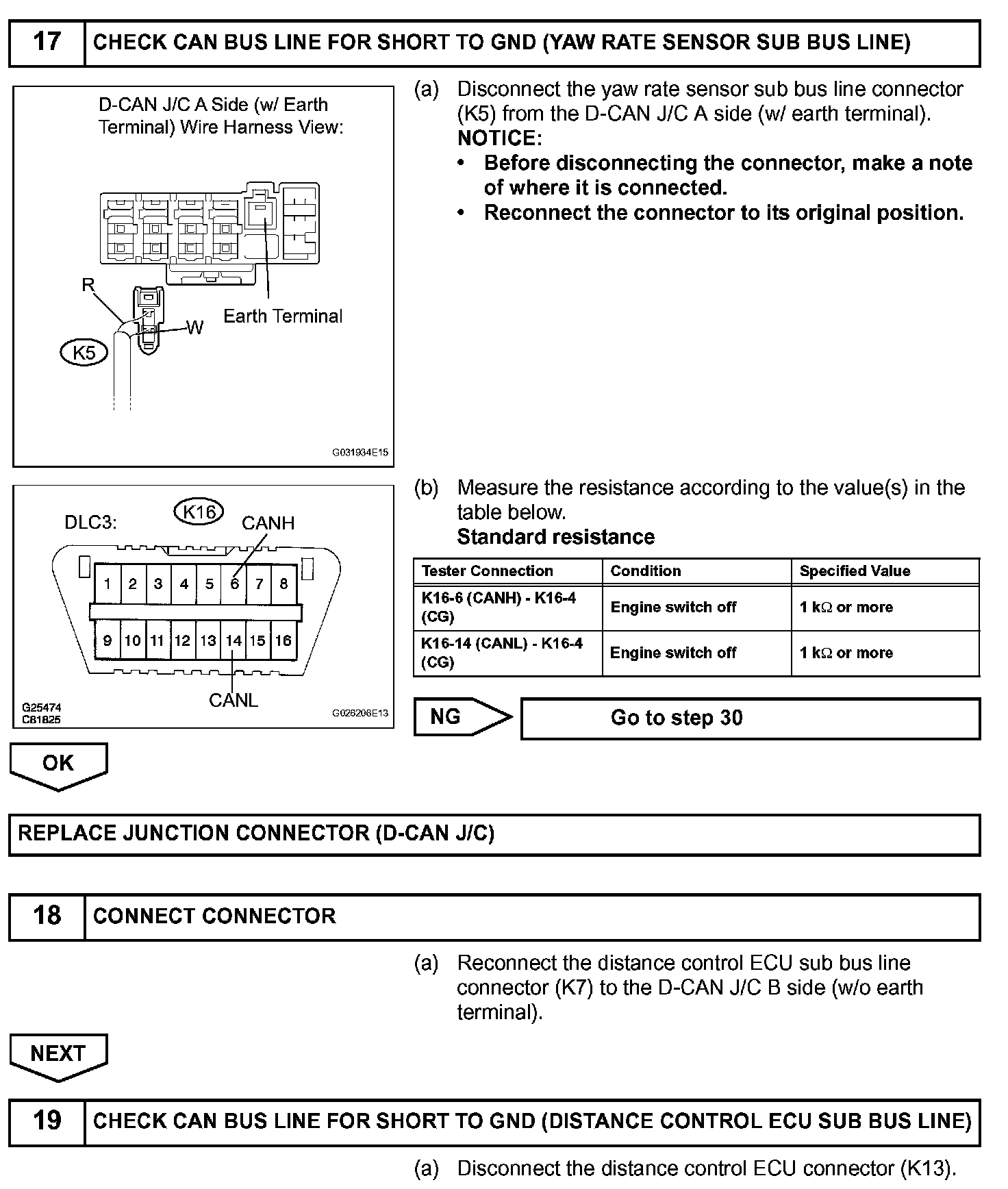

Step 17-19:

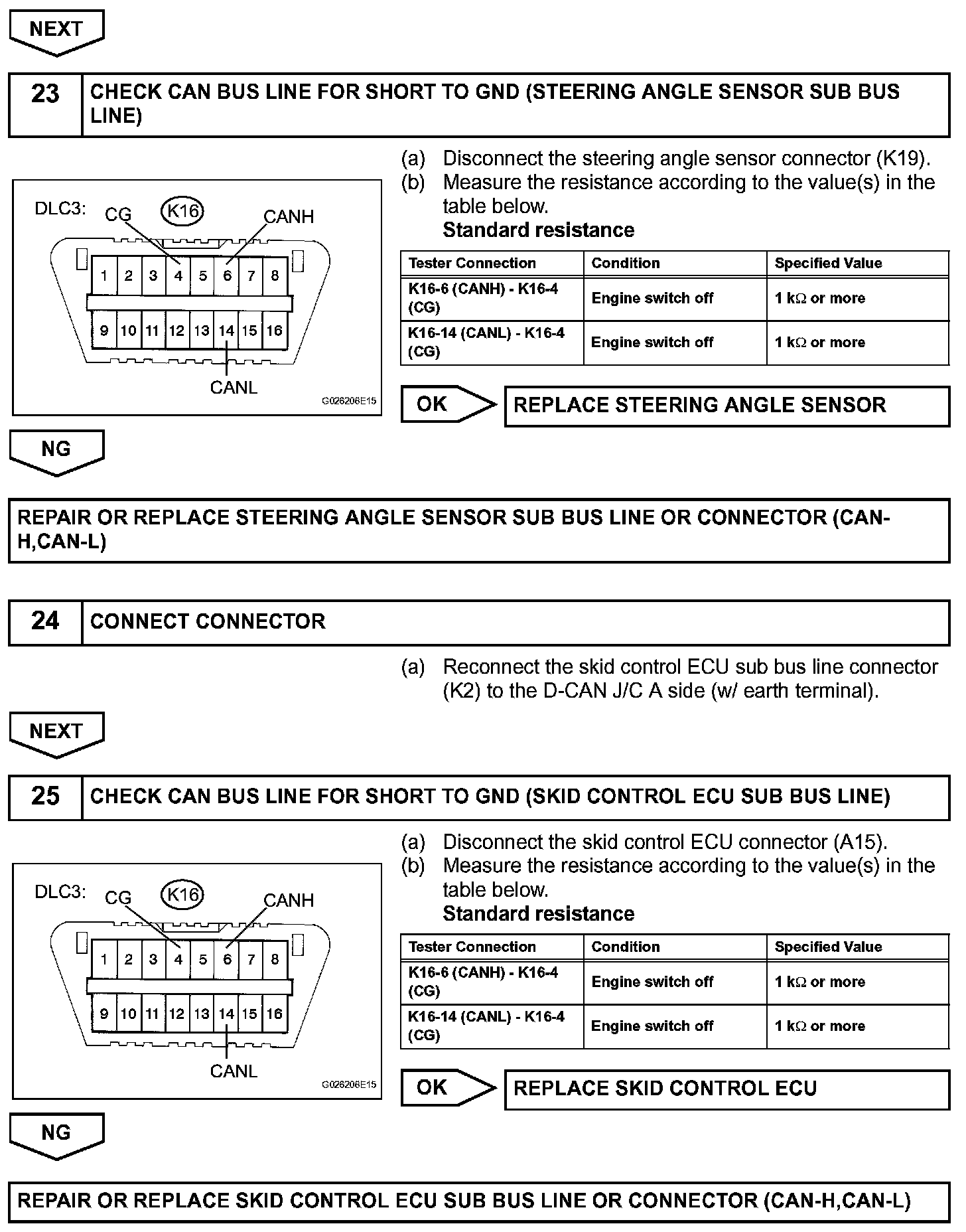

Step 19(continued)-22:
Step 22(continued)-25:

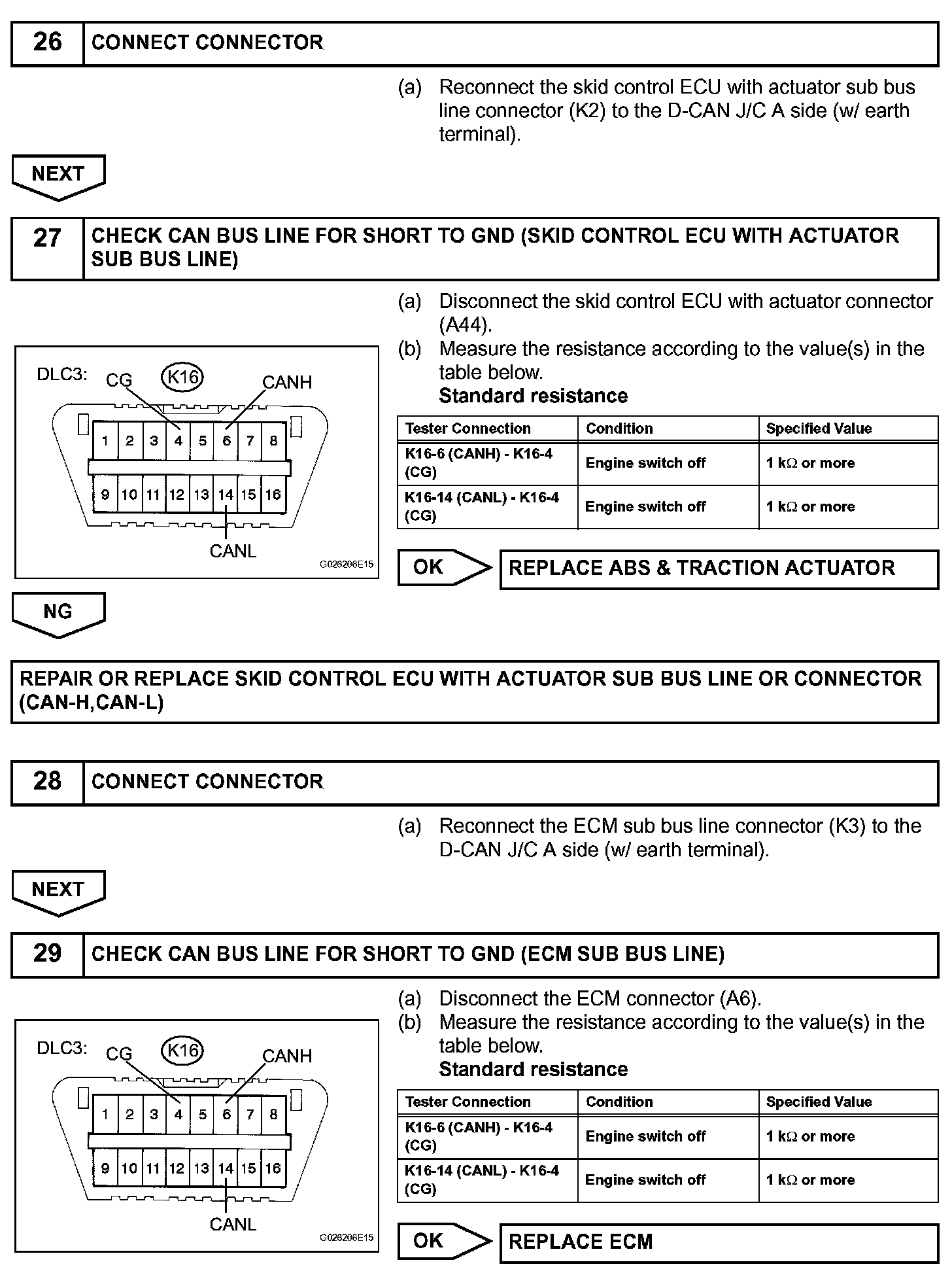

Step 26-29:

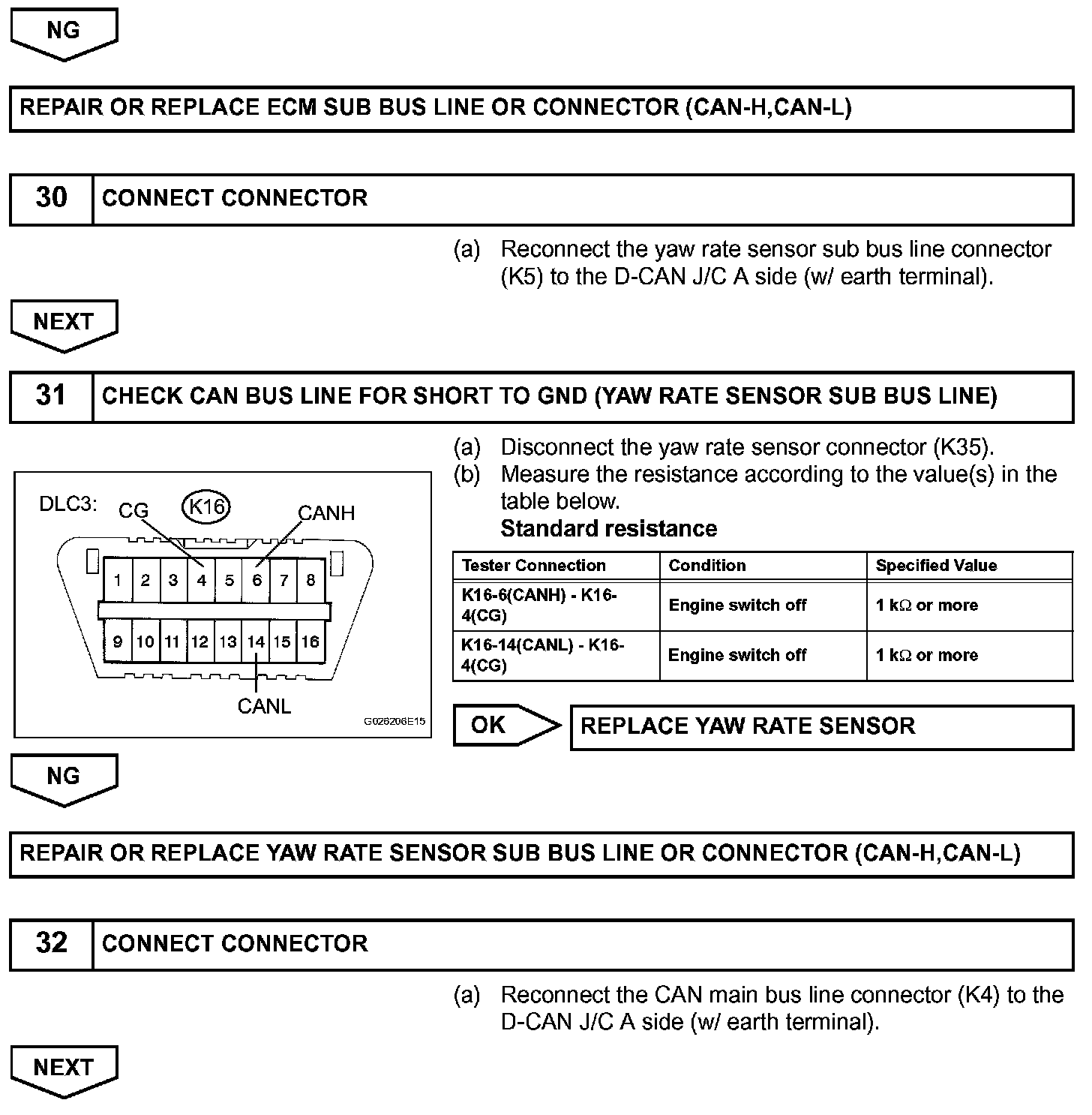

Step 29(continued)-32:

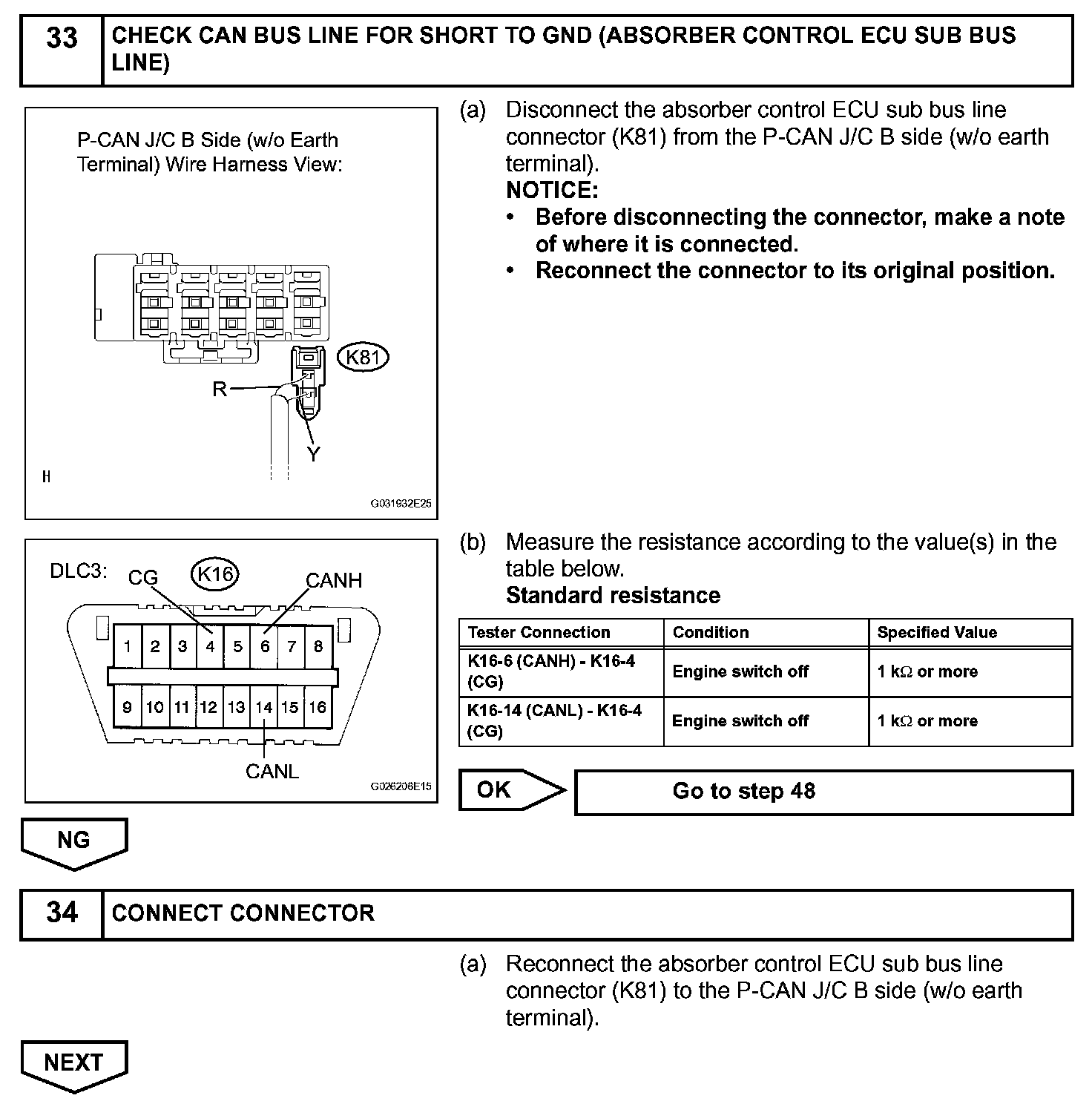

Step 33-34:
Step 35-36:

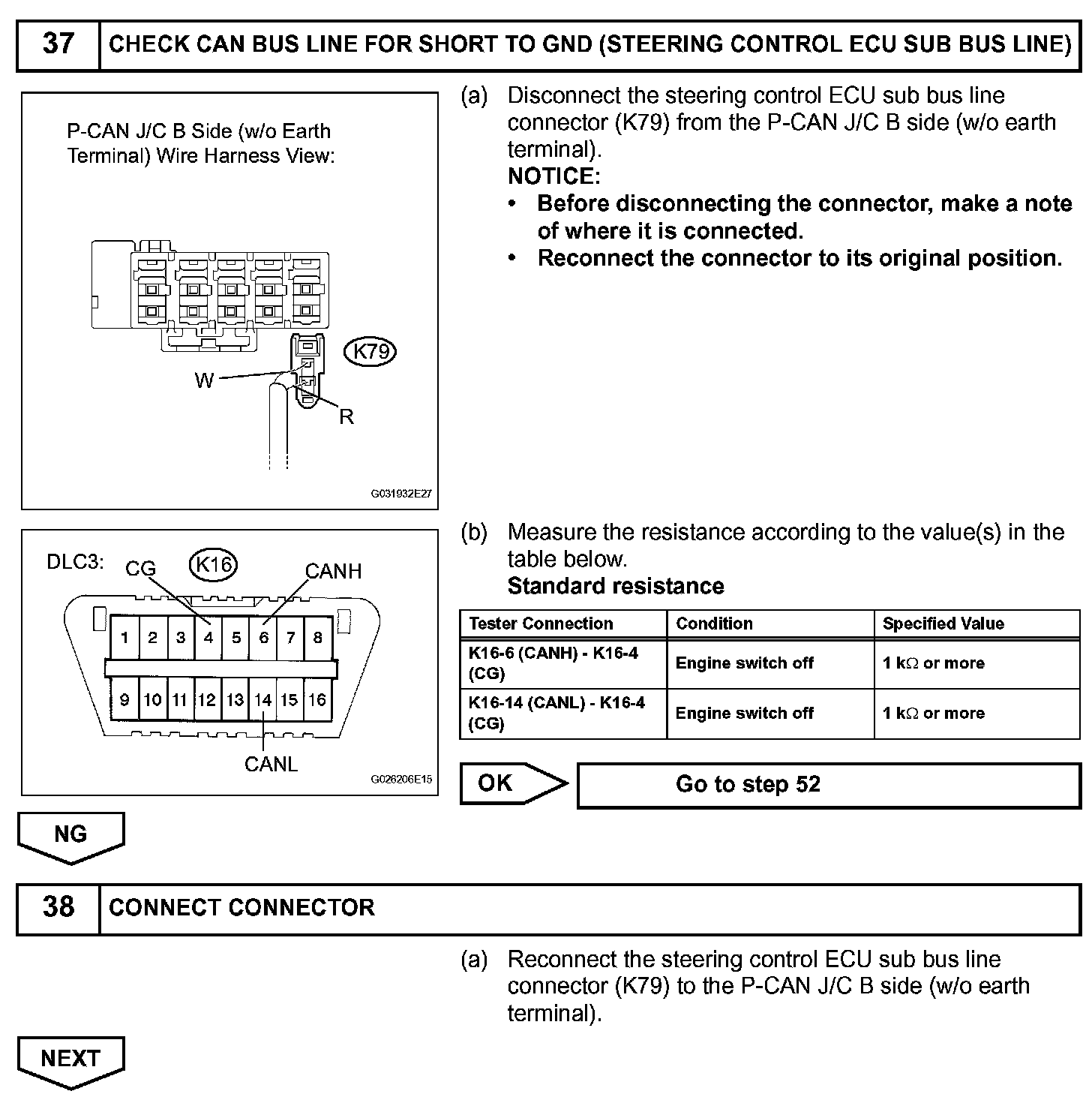

Step 37-38:

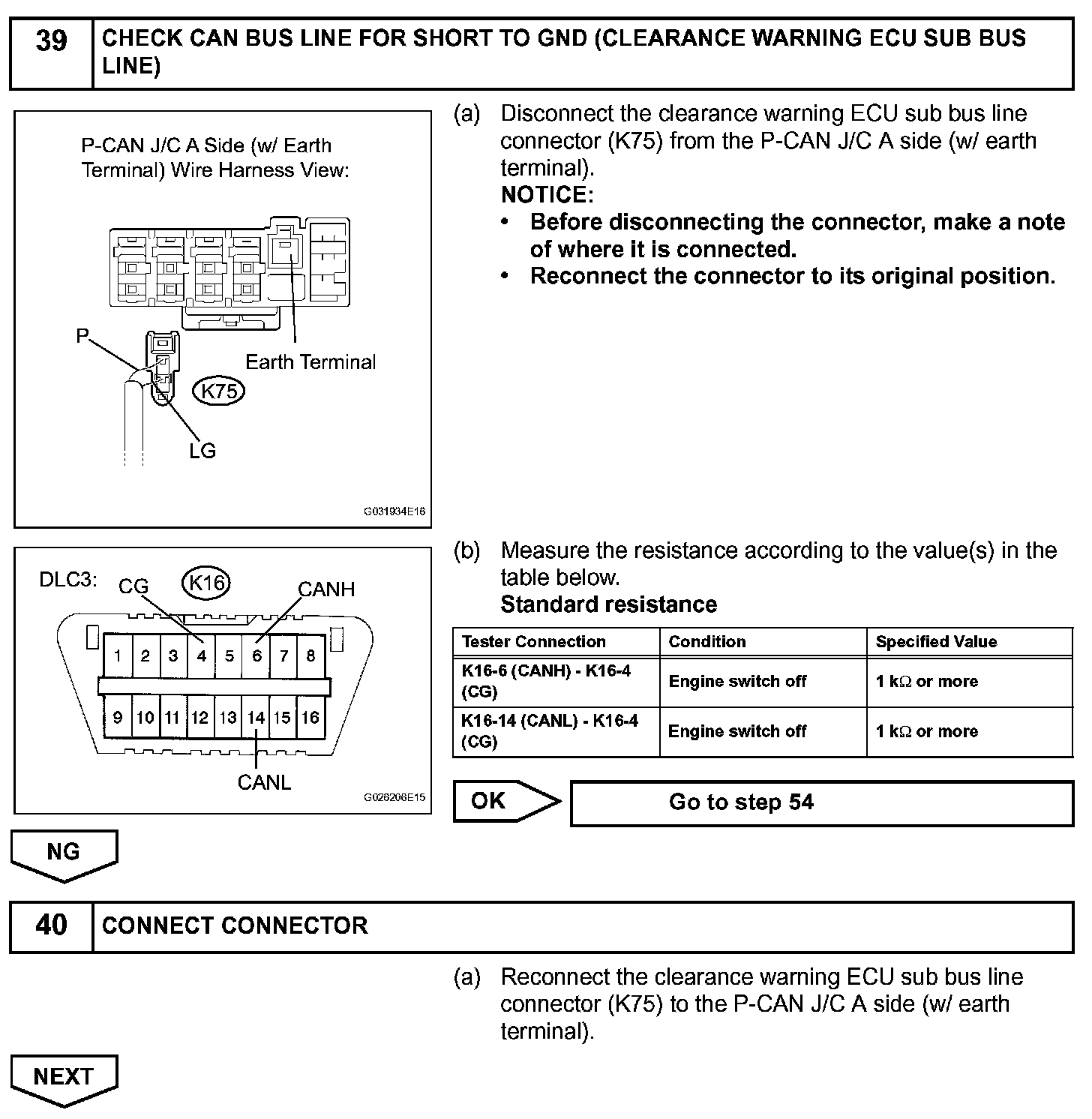

Step 39-40:
Step 41-42:

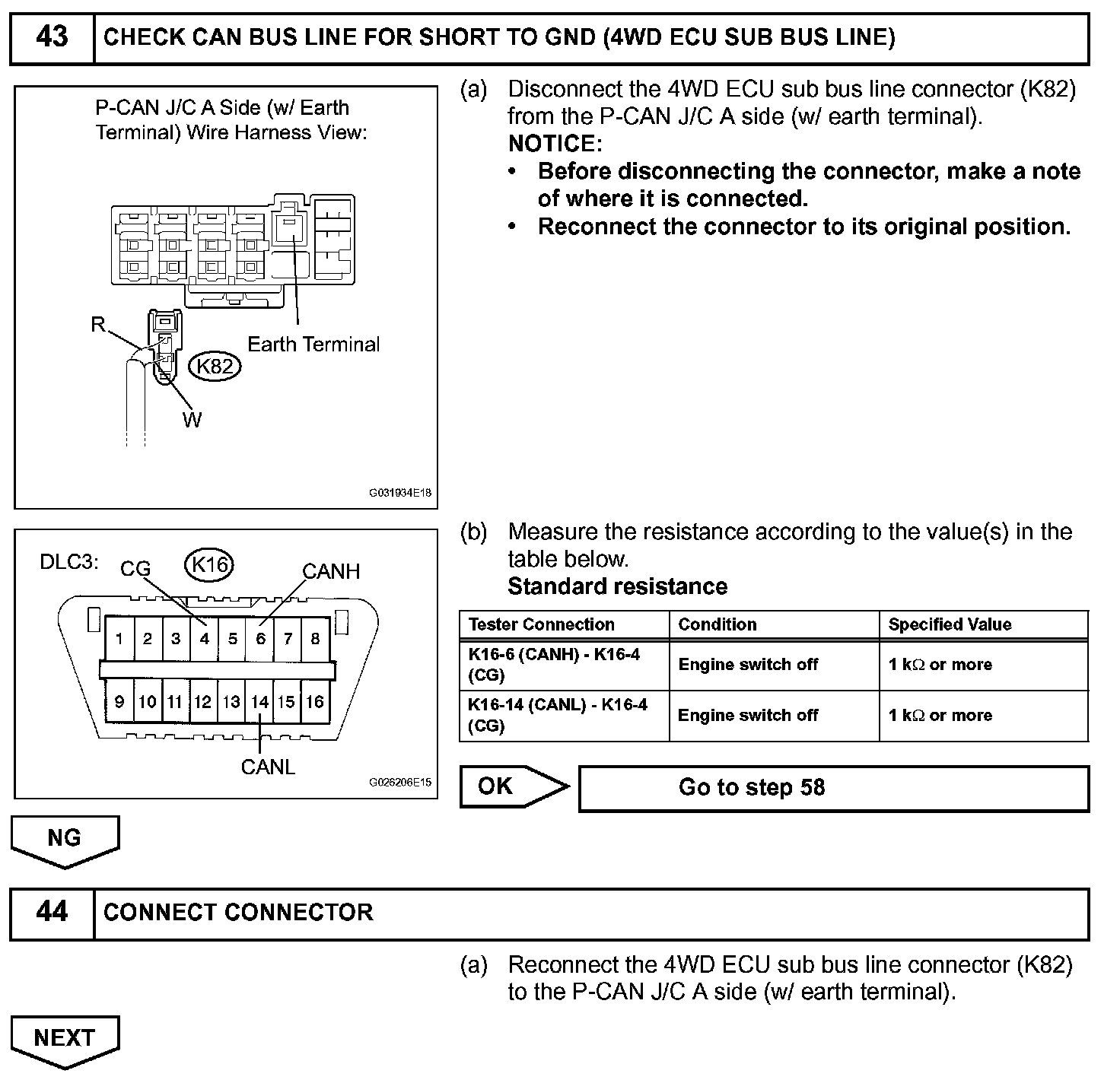

Step 43-44:

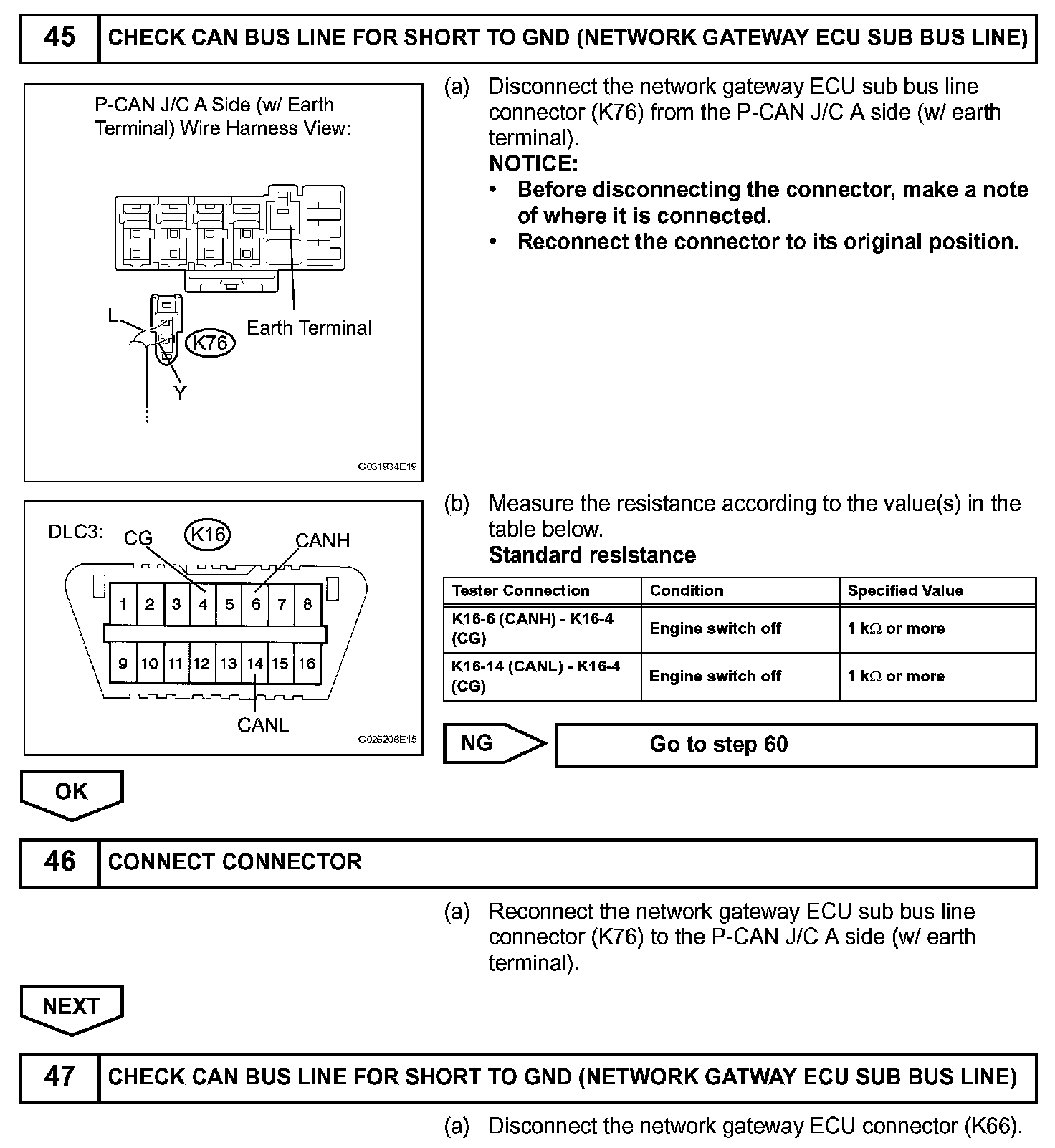

Step 45-47:
Step 47(continued)-50:

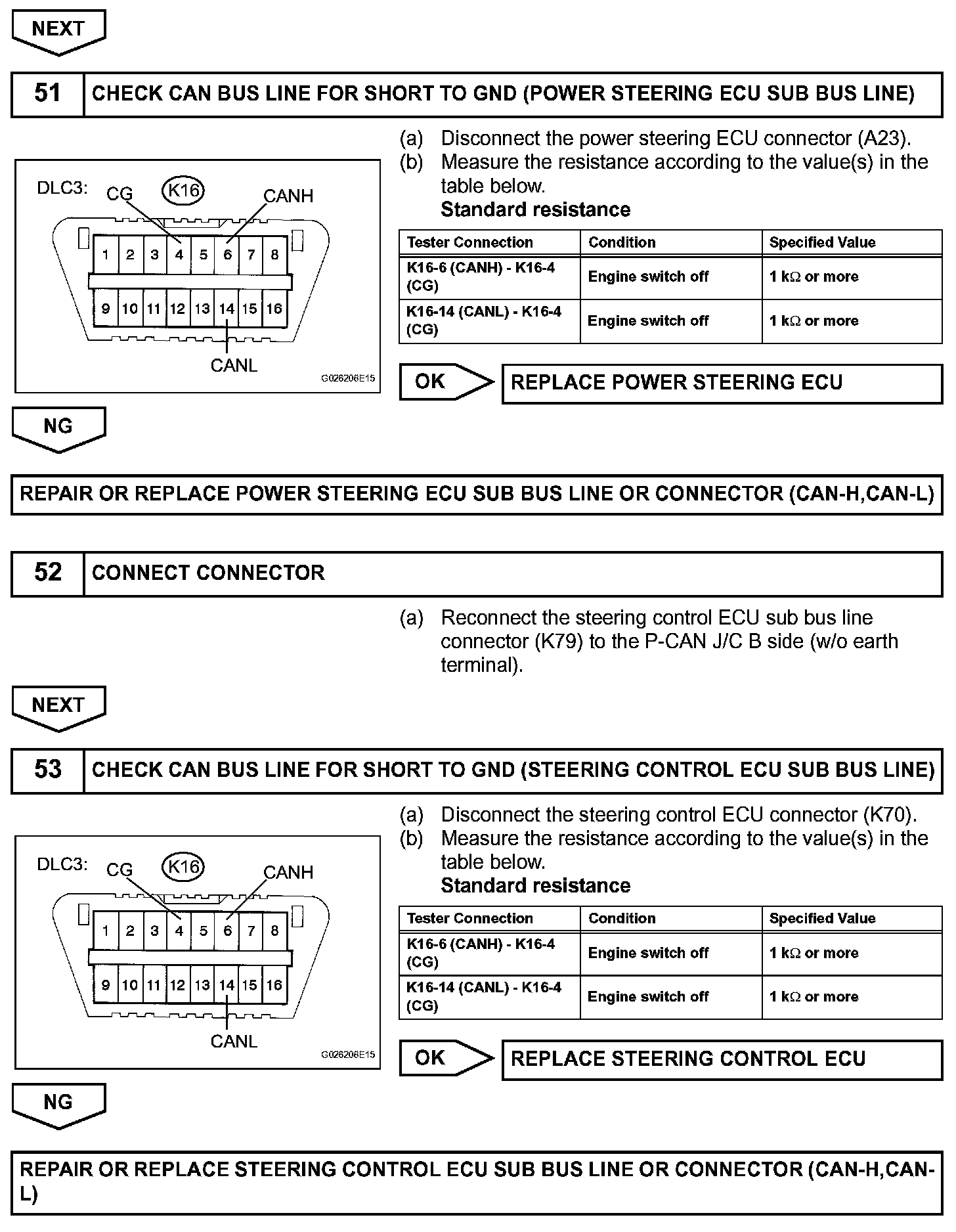

Step 50(continued)-53:

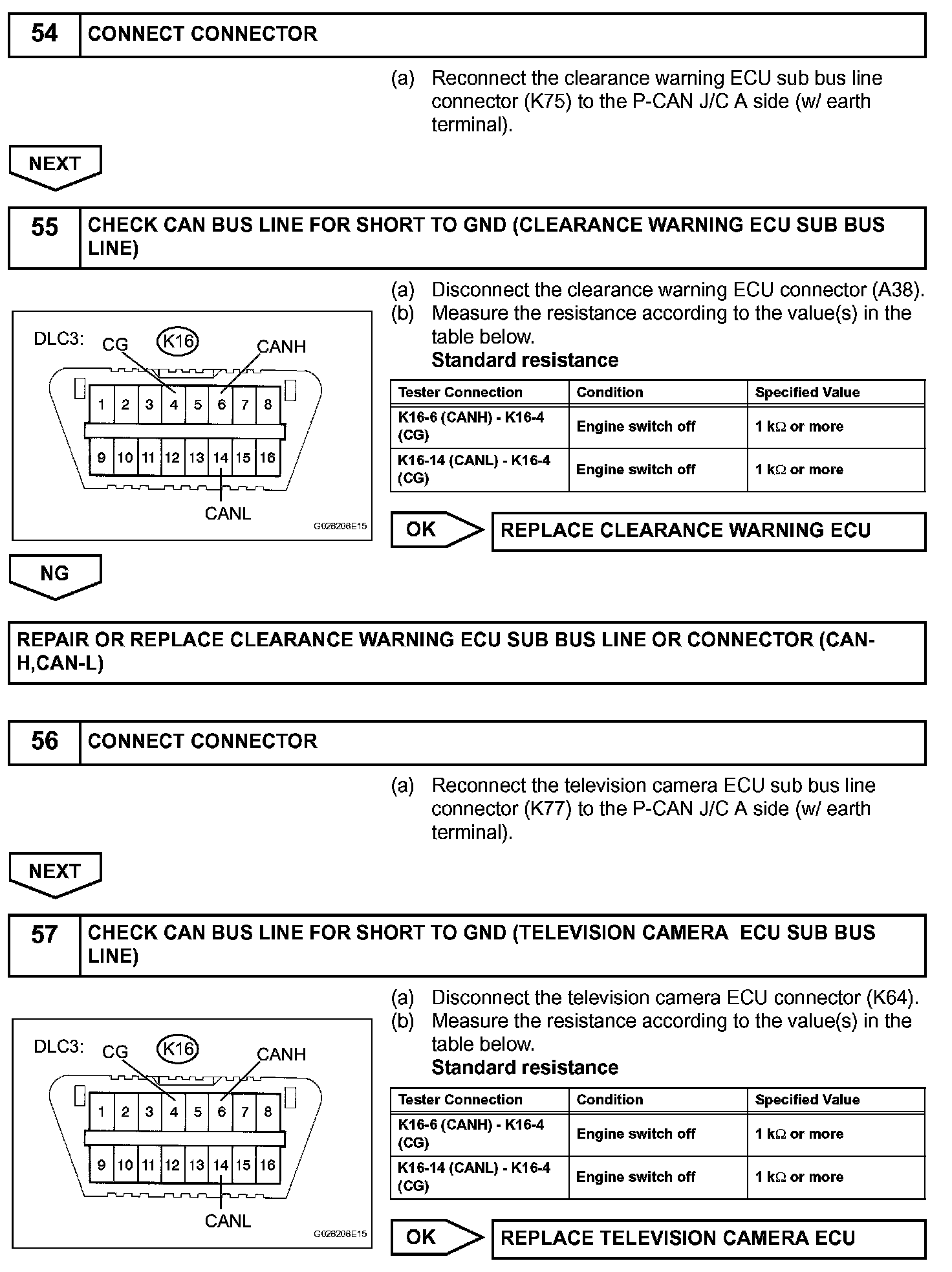

Step 54-57:

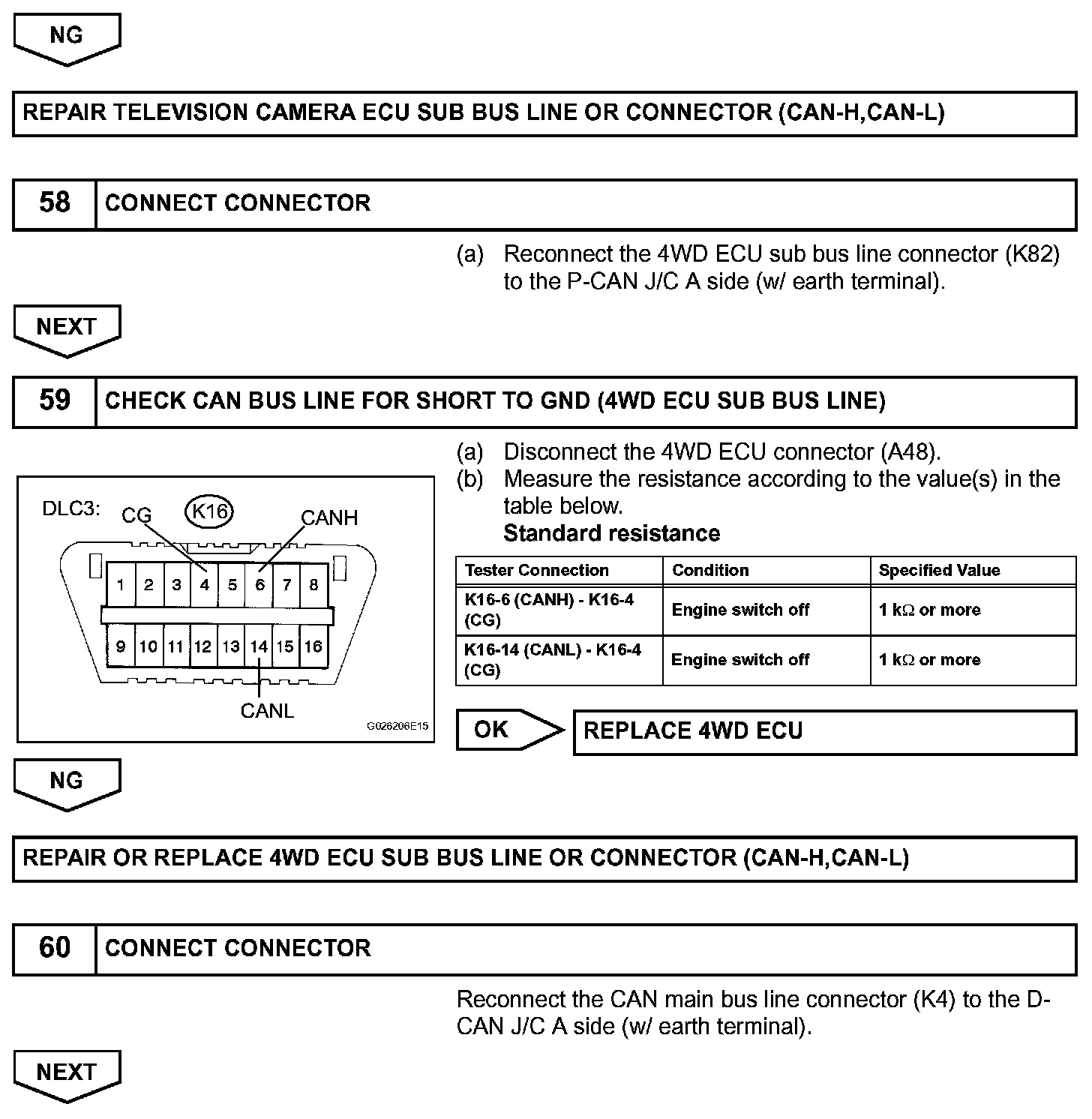

Step 57(continued)-60:

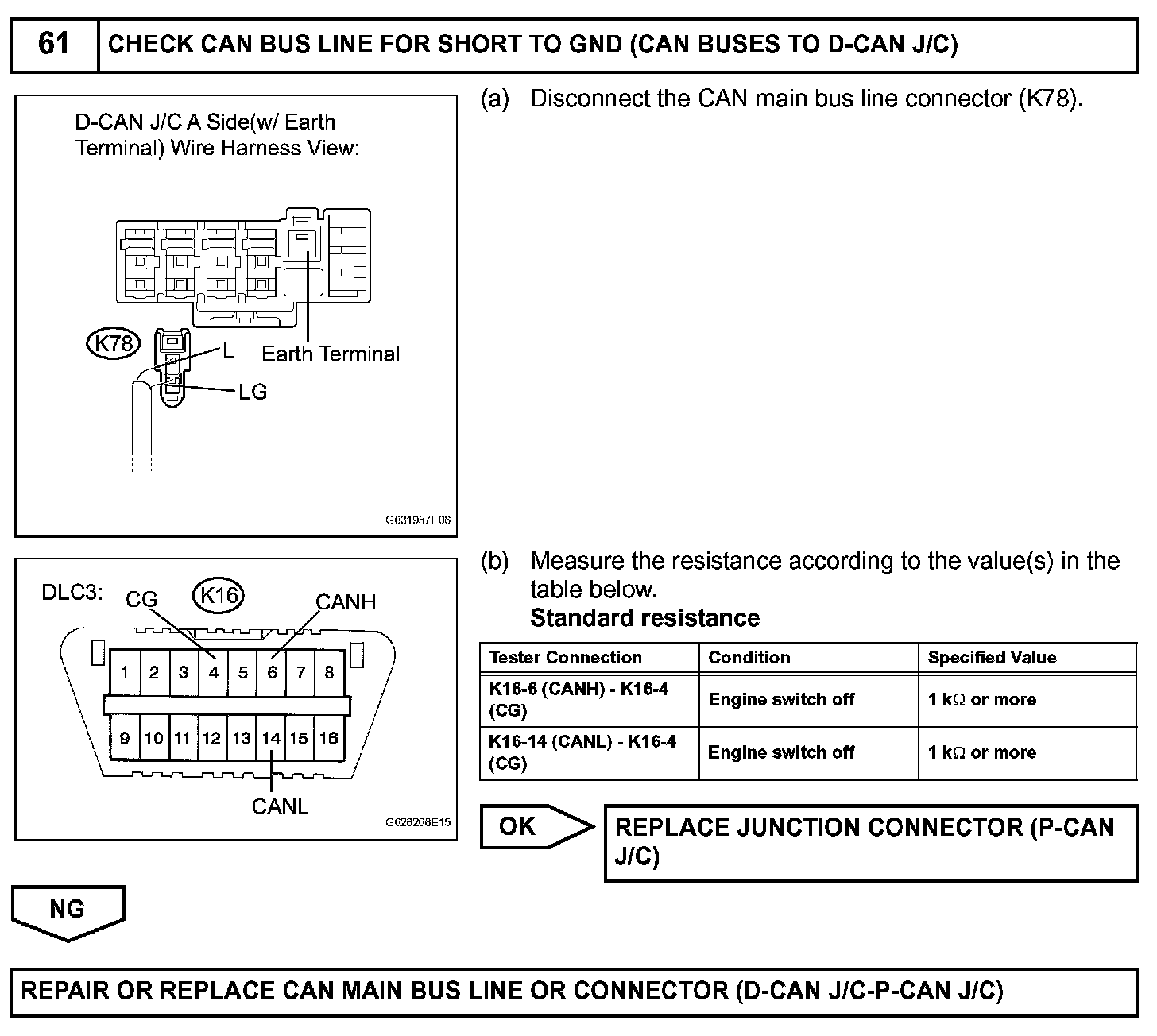

Step 61:
INSPECTION PROCEDURE
