Short to B+ in CAN Bus Line
Short to B+ in CAN Bus LineDESCRIPTION

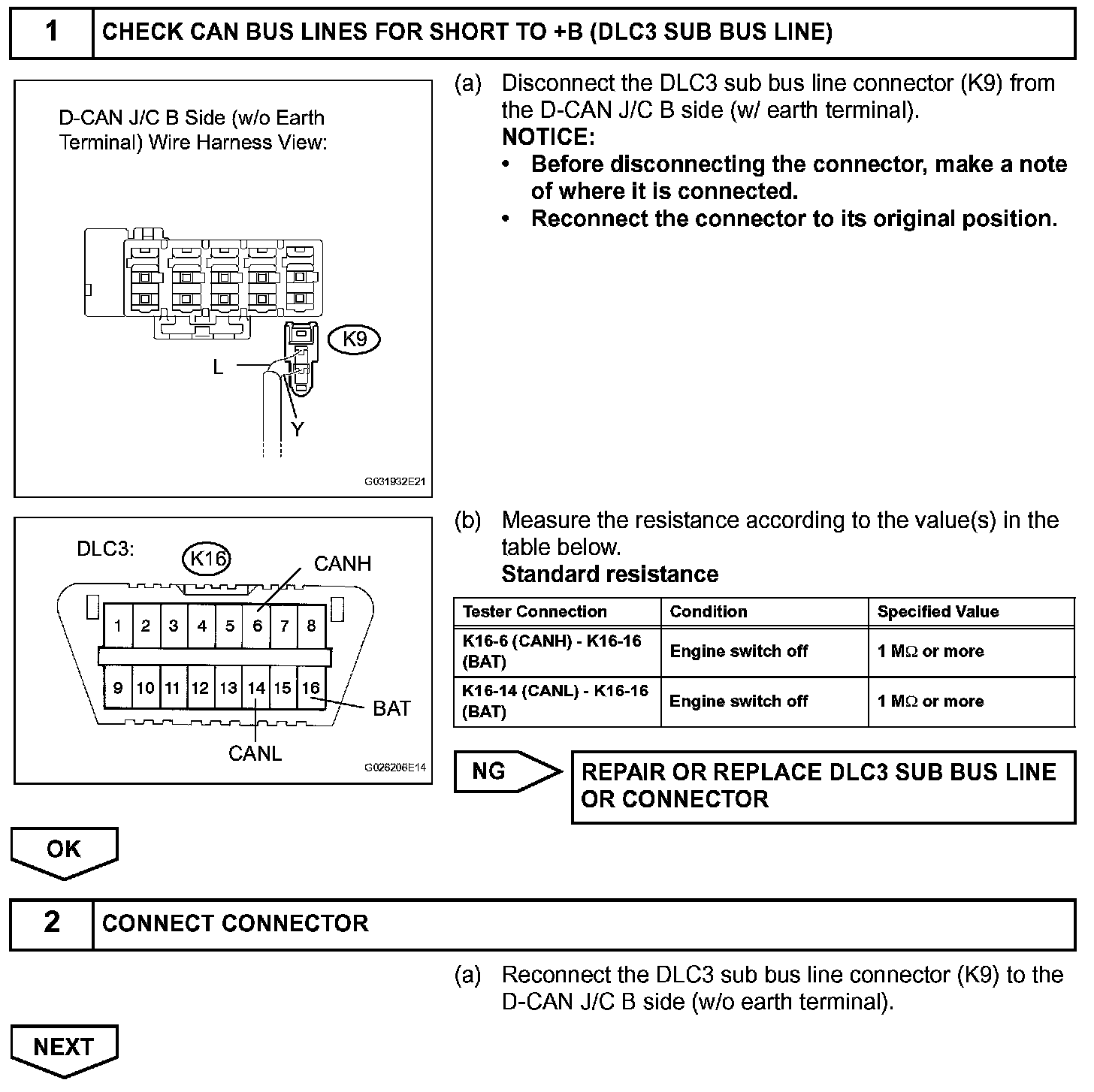

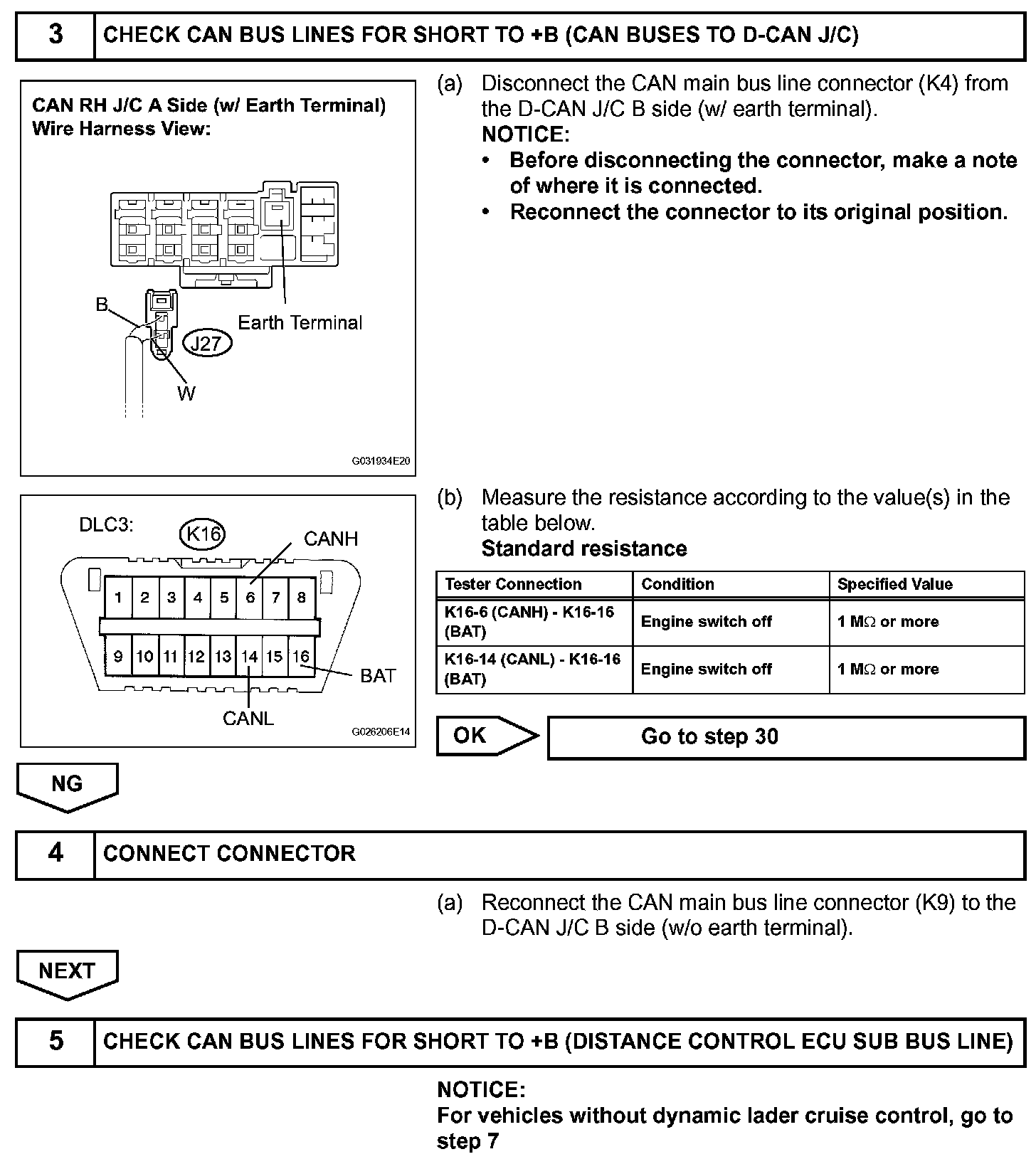

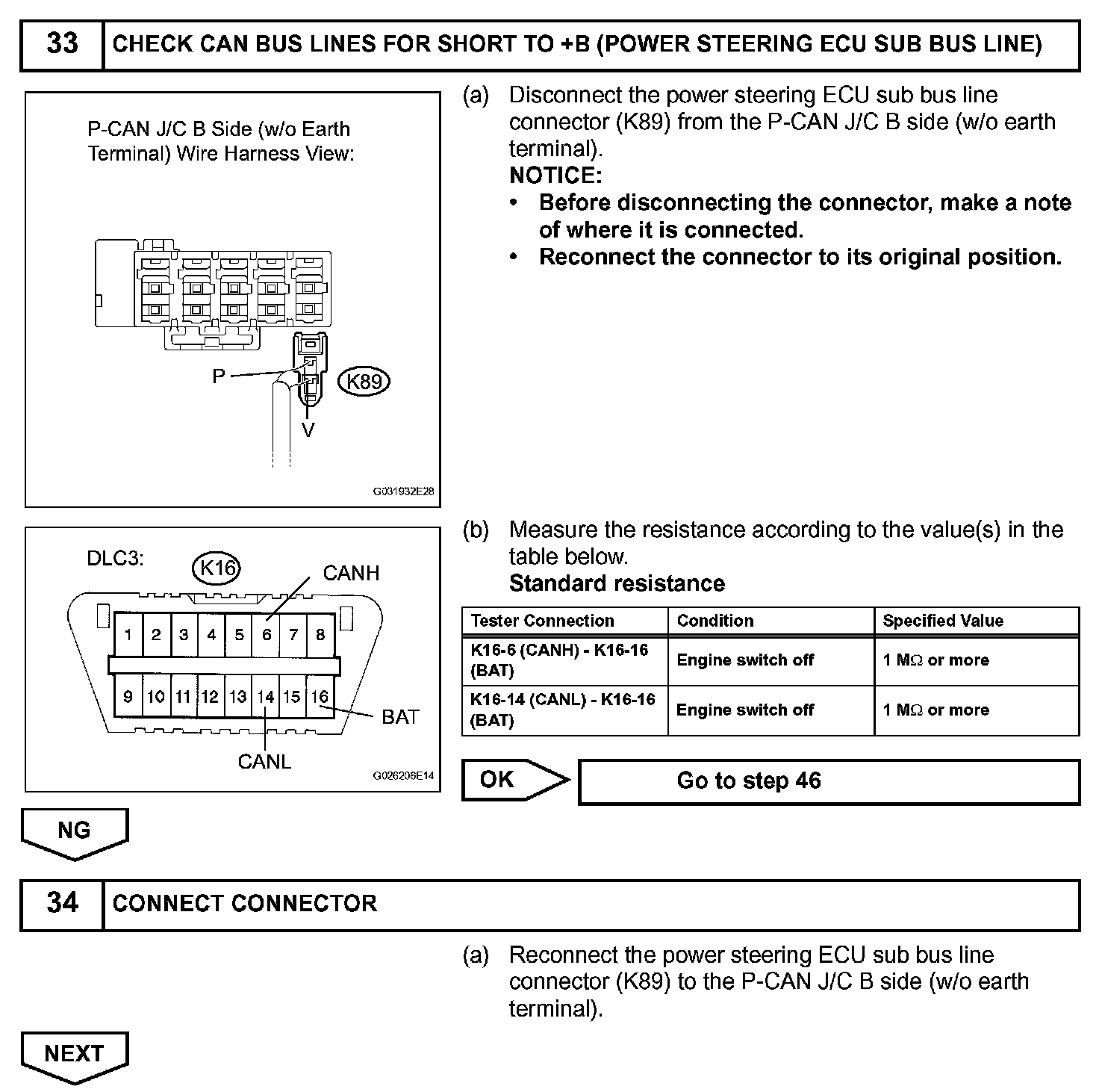

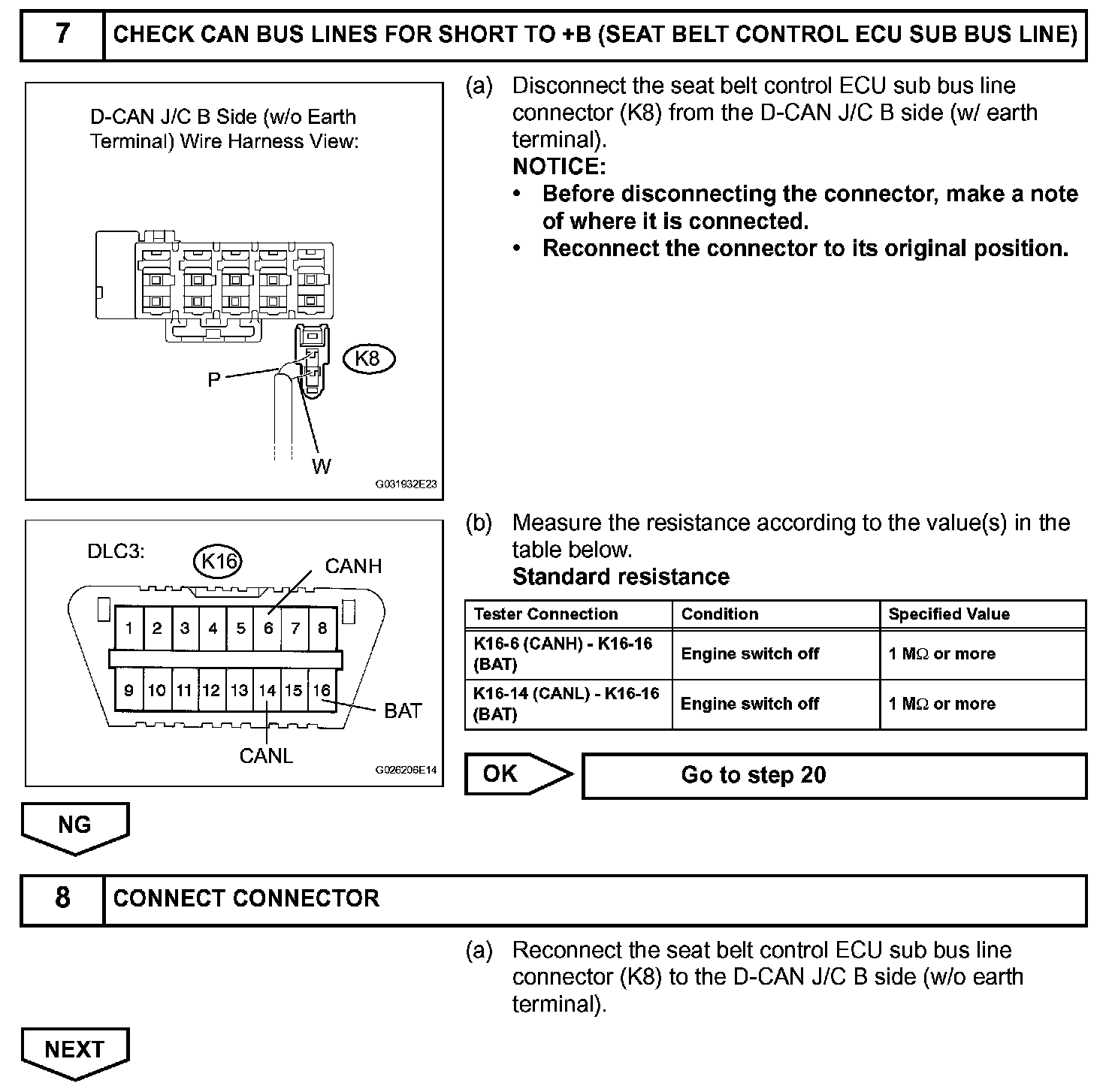

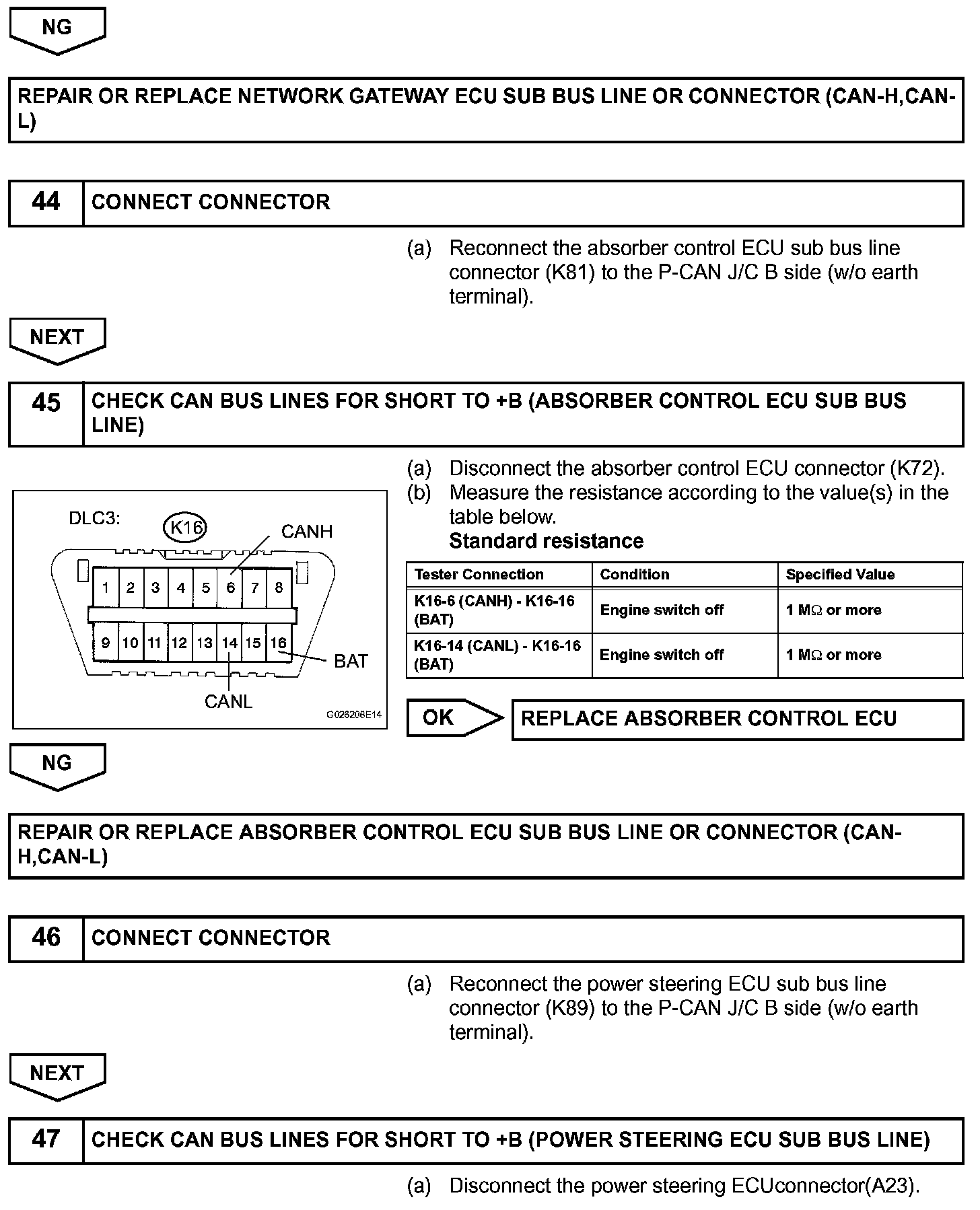

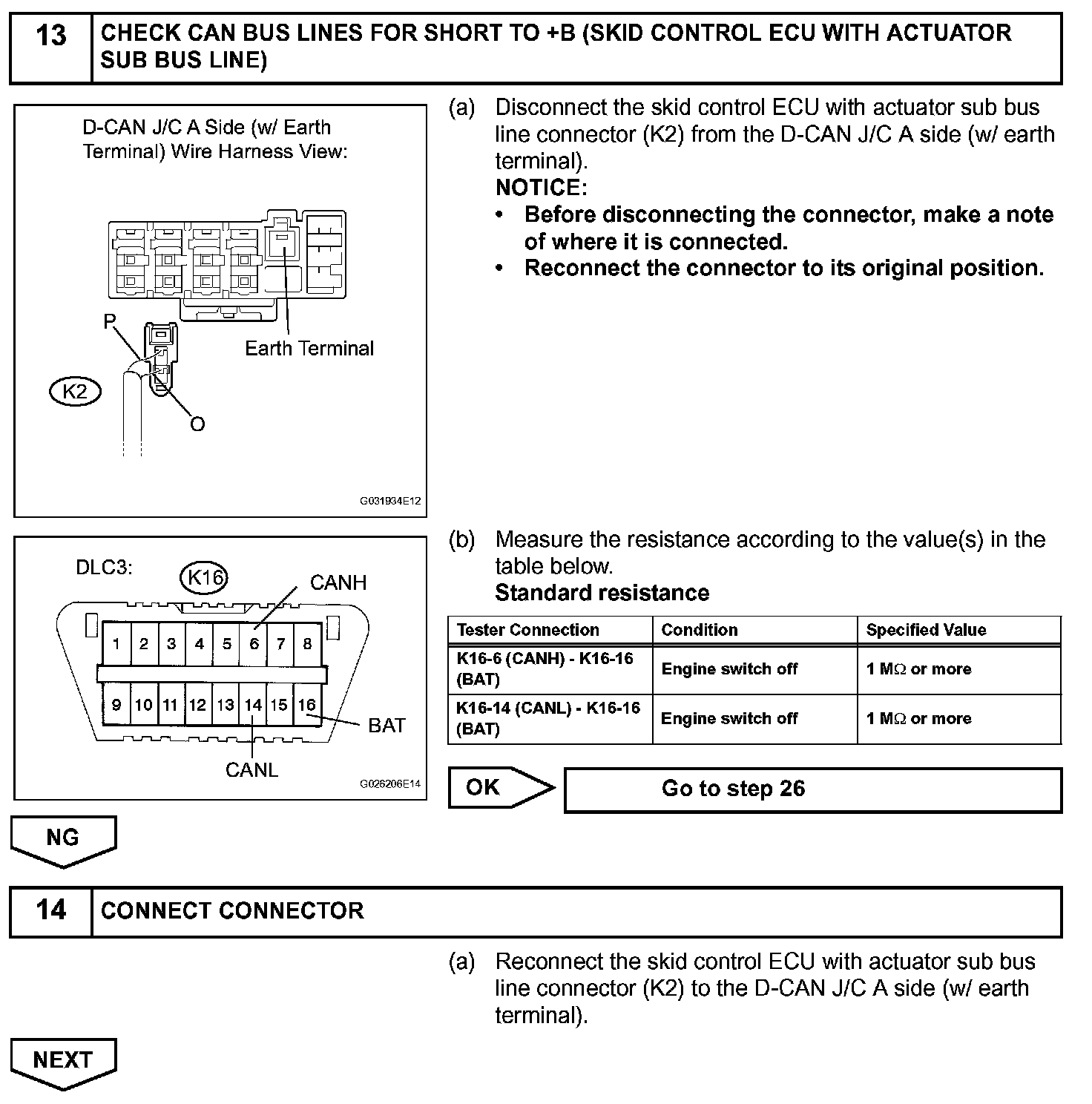

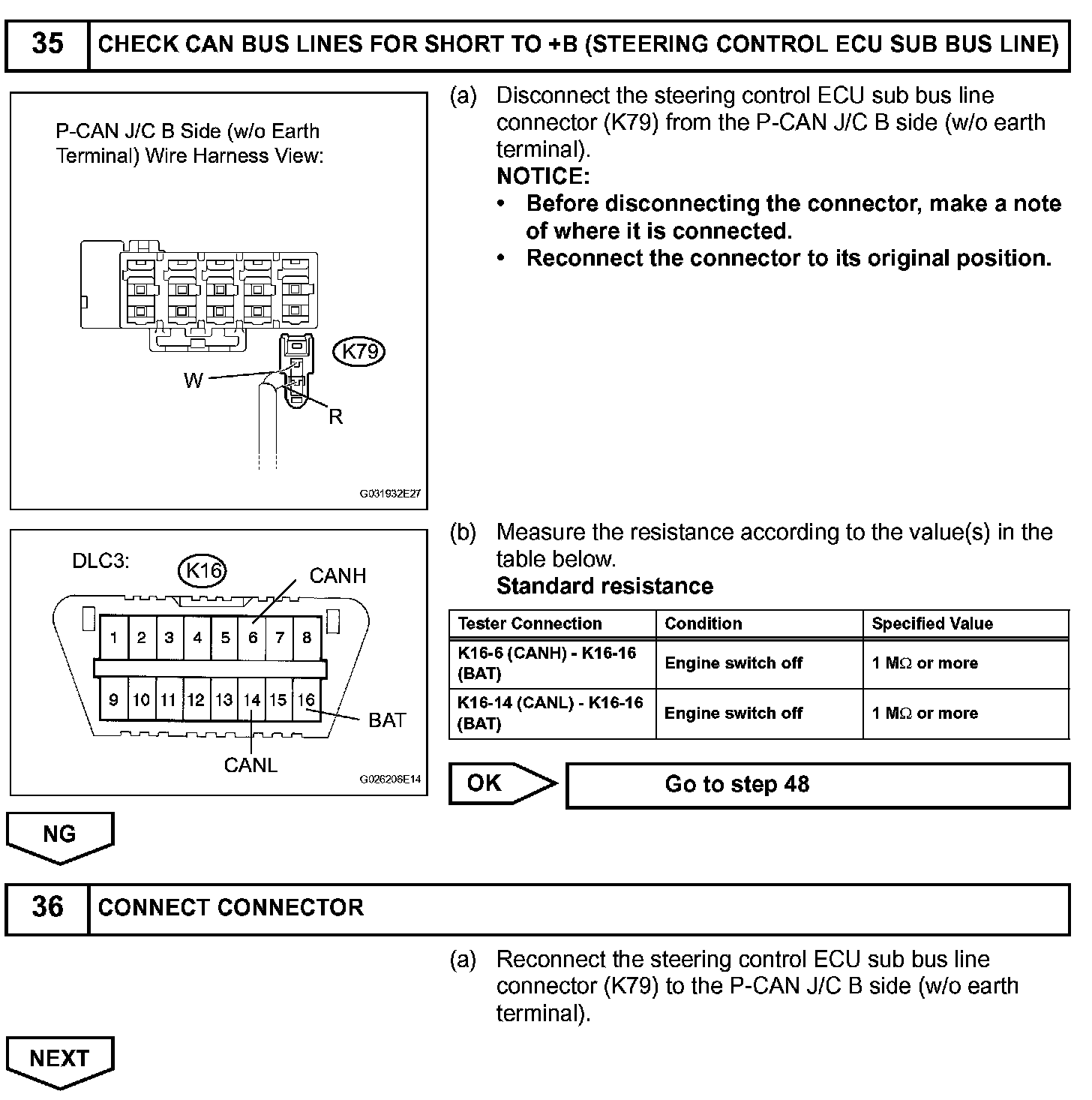

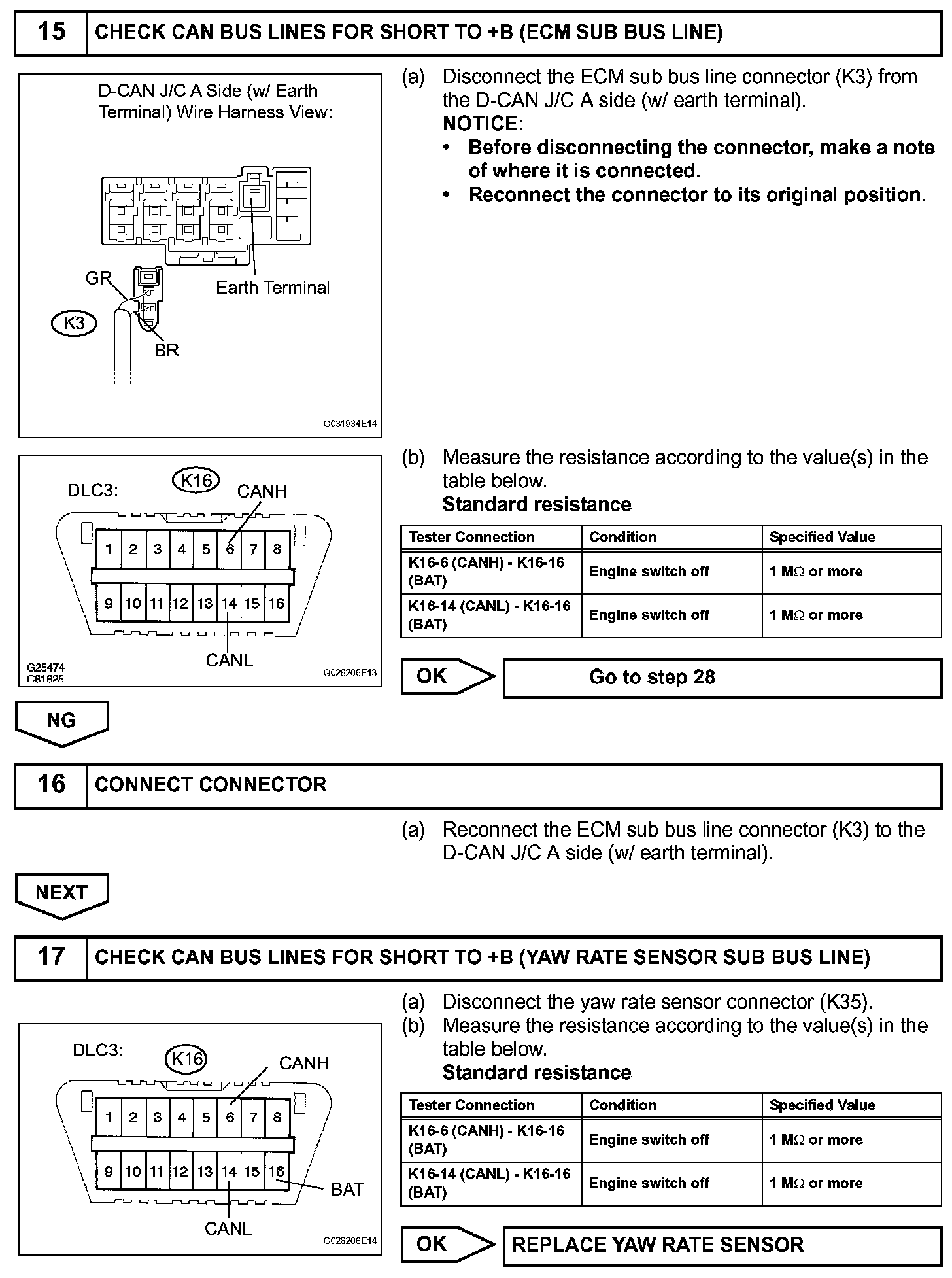

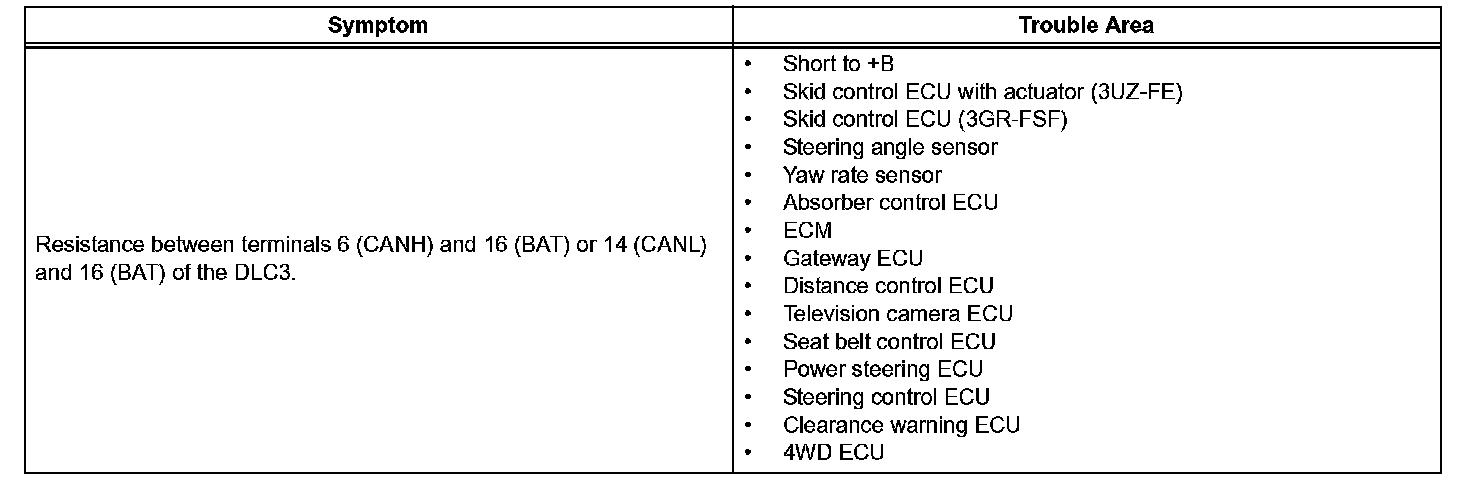

There may be a short circuit between the CAN bus line and +B when the resistance between terminals 6 (CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

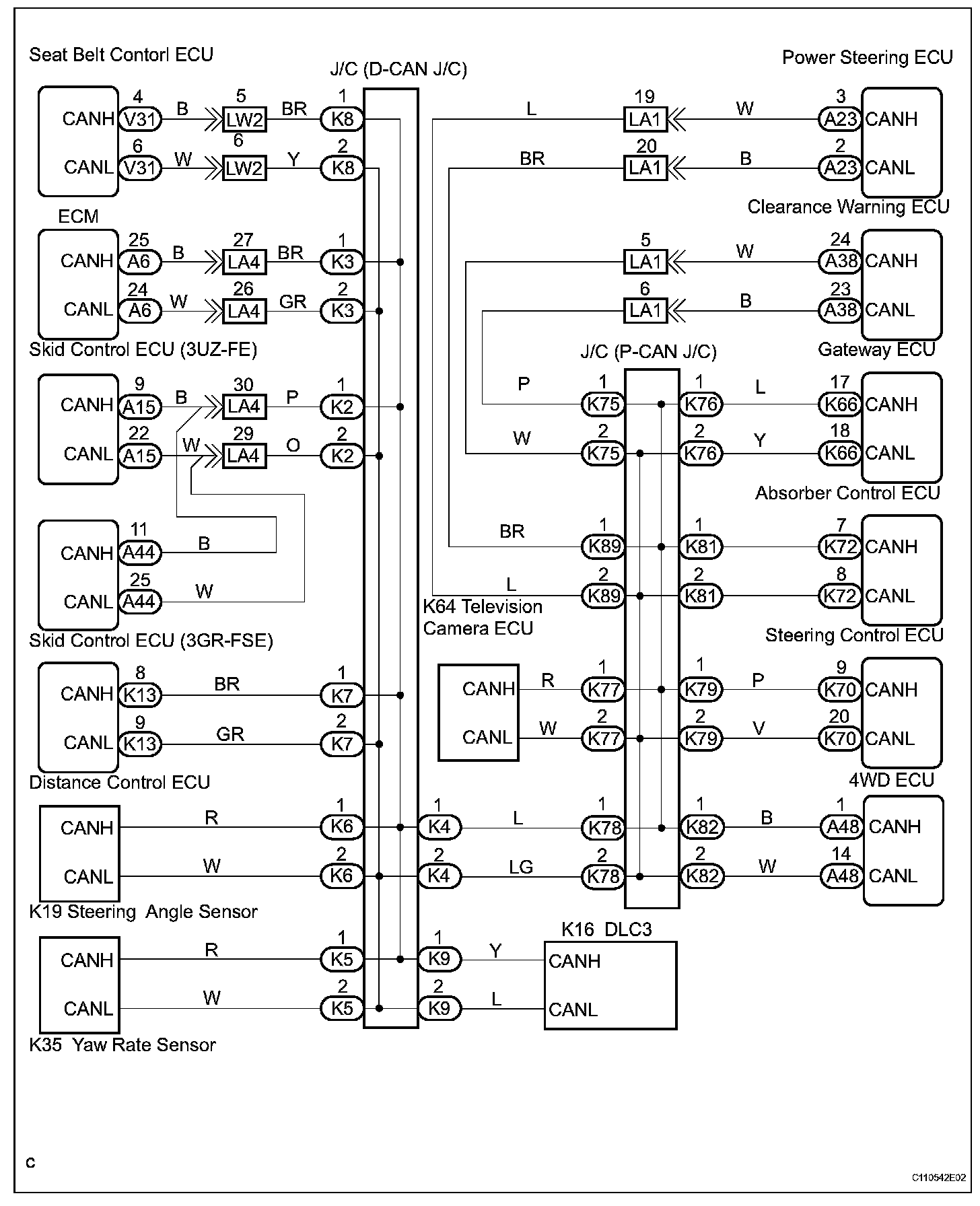

Wiring Diagram:
Step 1-2:
Step 3-5:
Step 5(continued)-6:
Step 7-8:

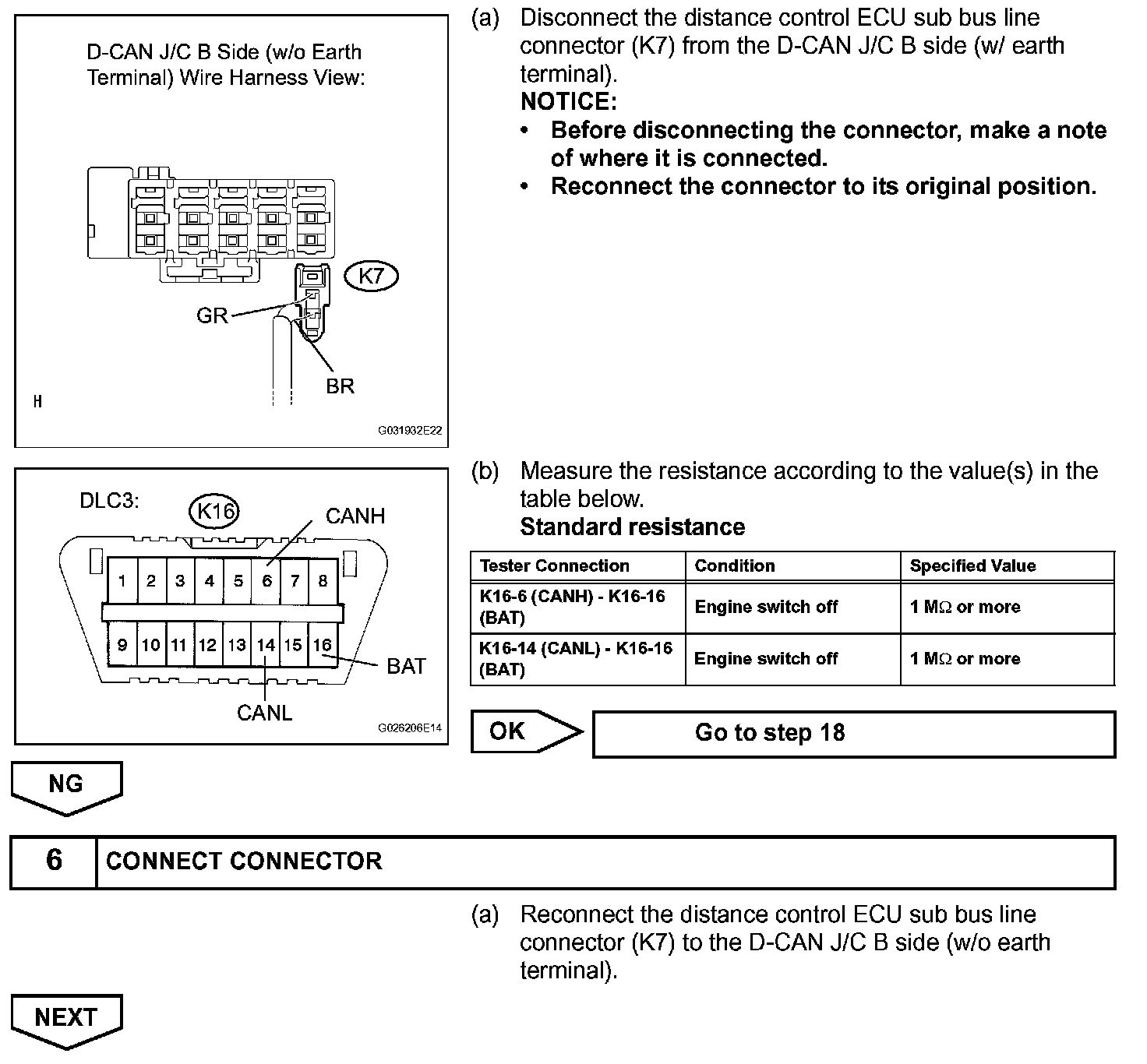

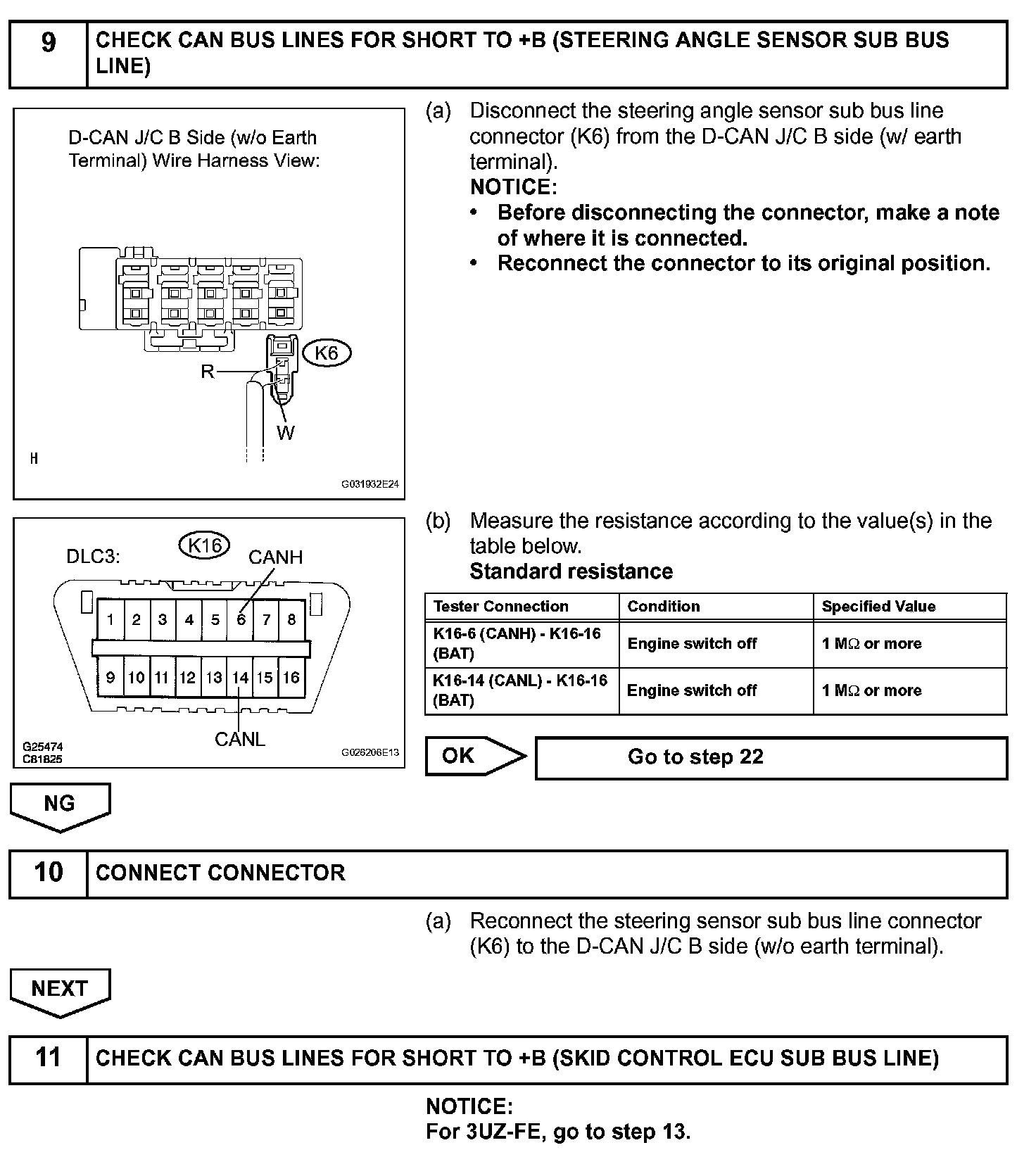

Step 9-11:

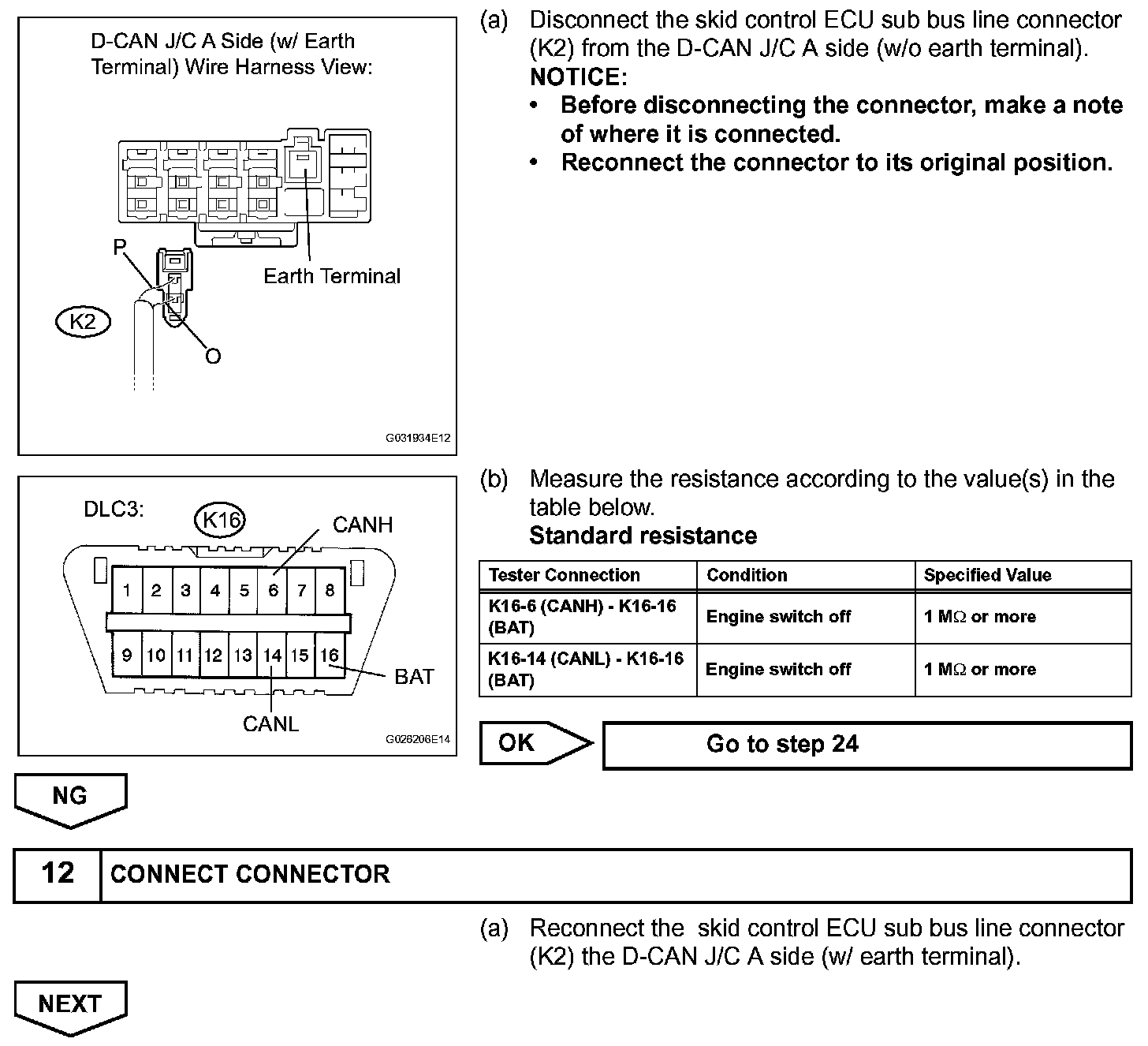

Step 11(continued)-12:
Step 13-14:
Step 15-17:

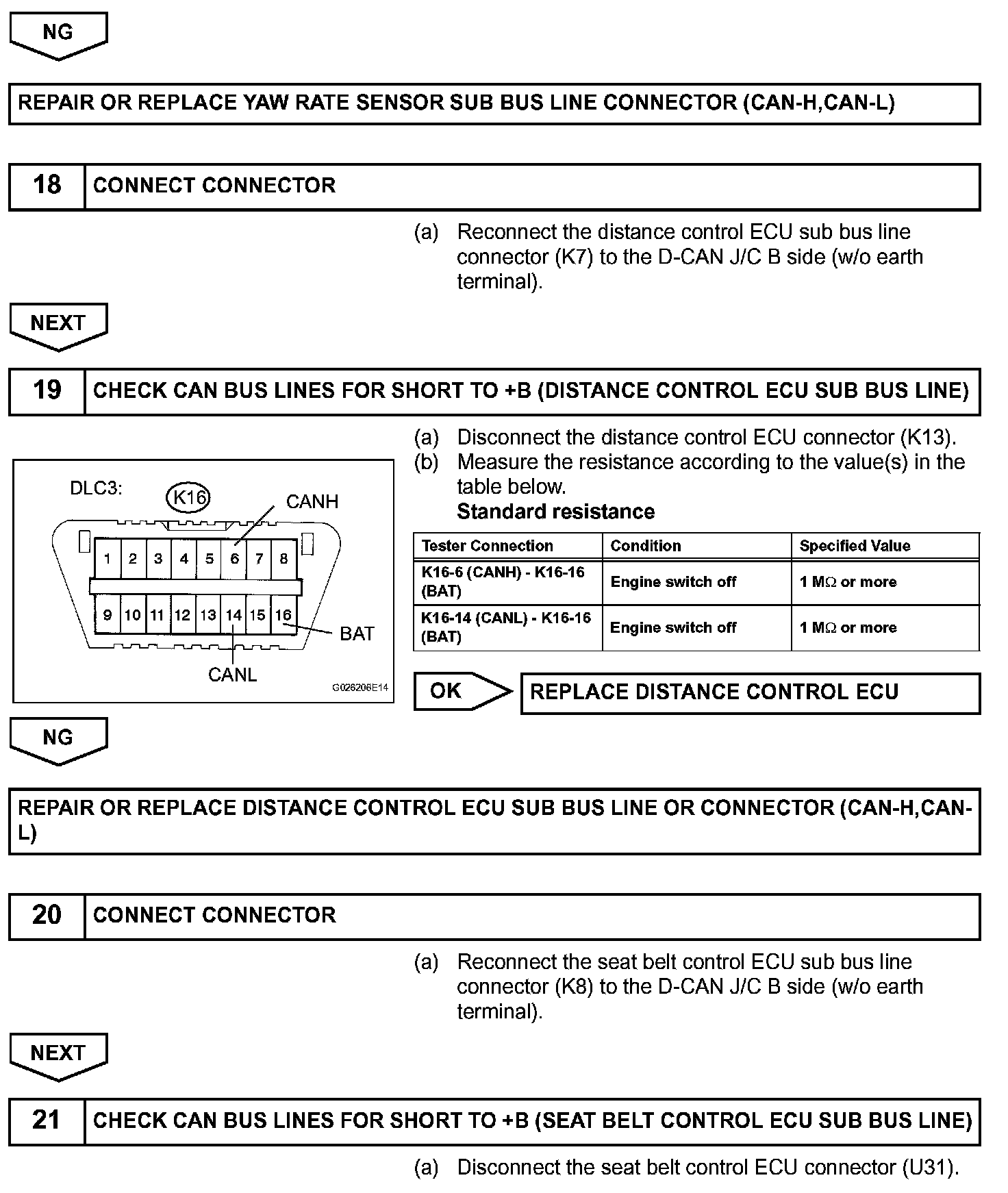

Step 17(continued)-21:

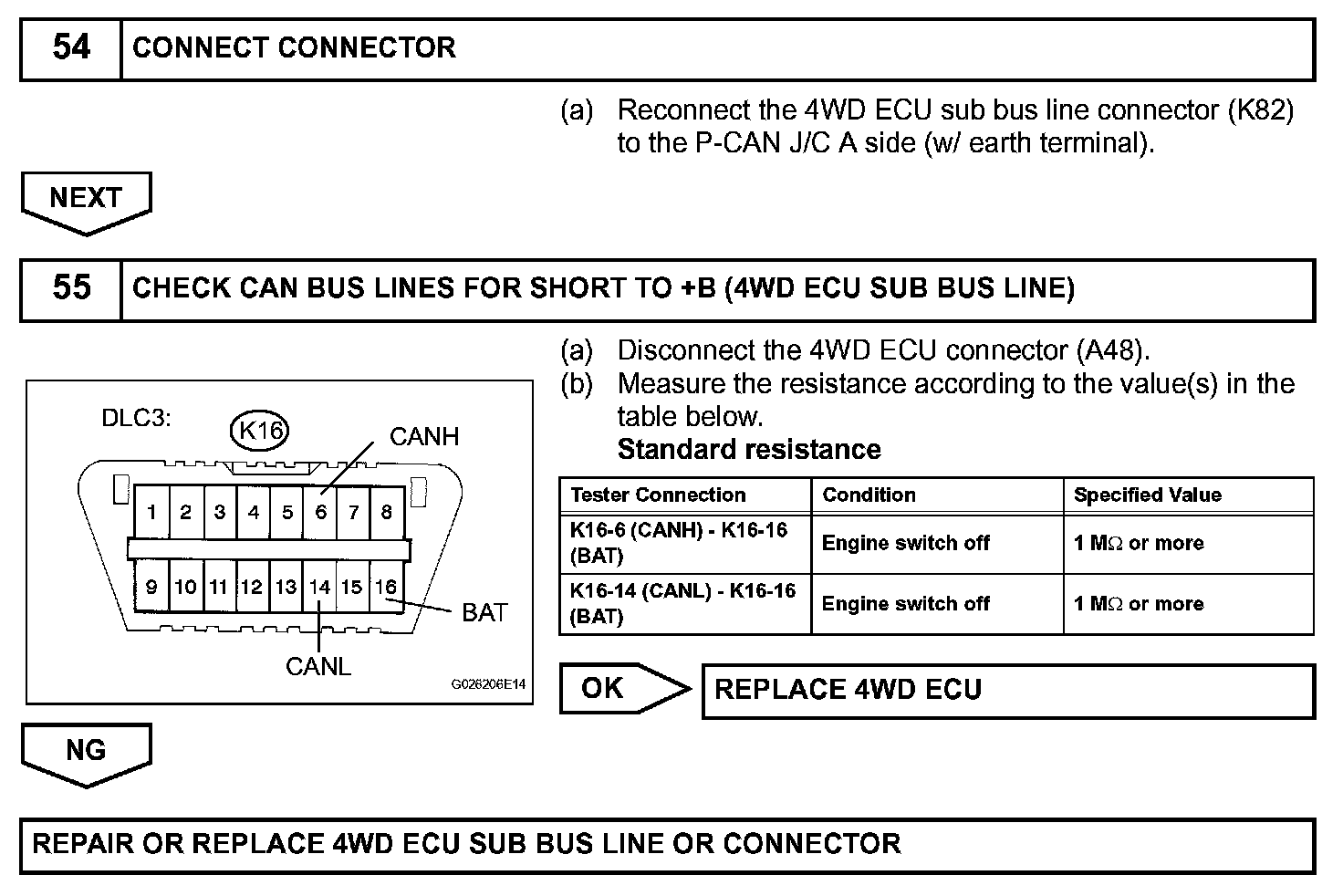

Step 21(continued)-24:

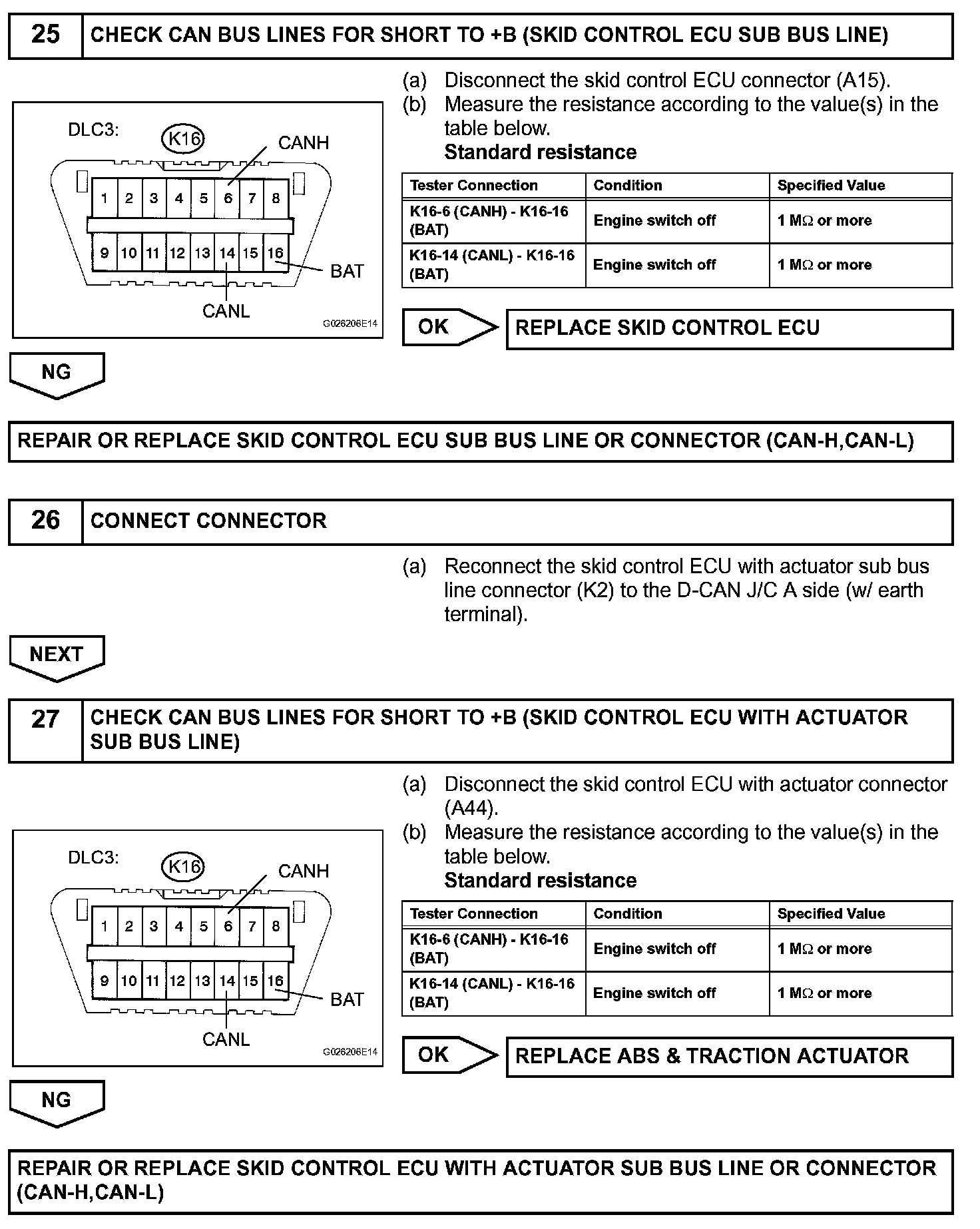

Step 25-27:

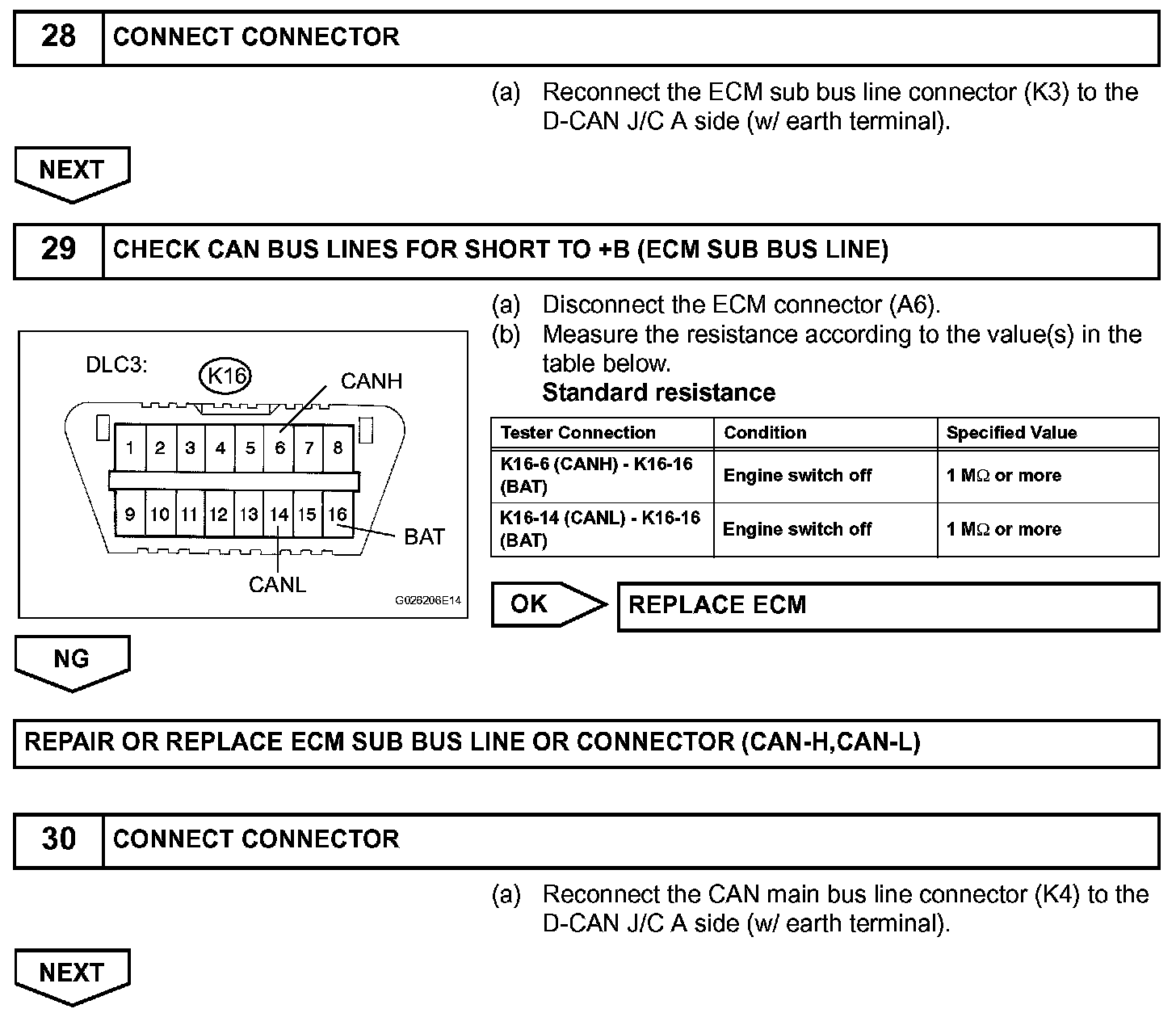

Step 28-30:

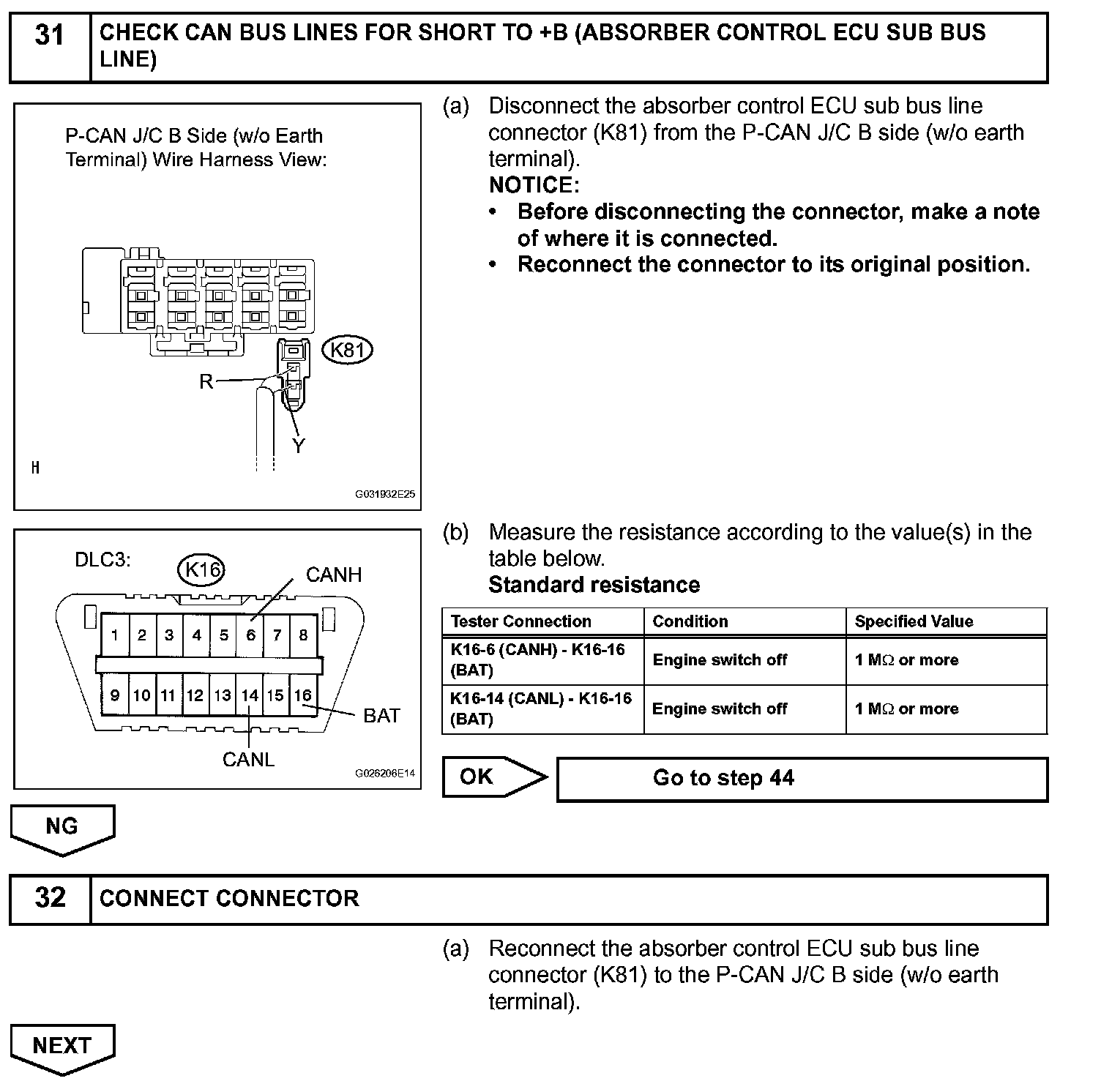

Step 31-32:
Step 33-34:
Step 35-36:
Step 37-38:

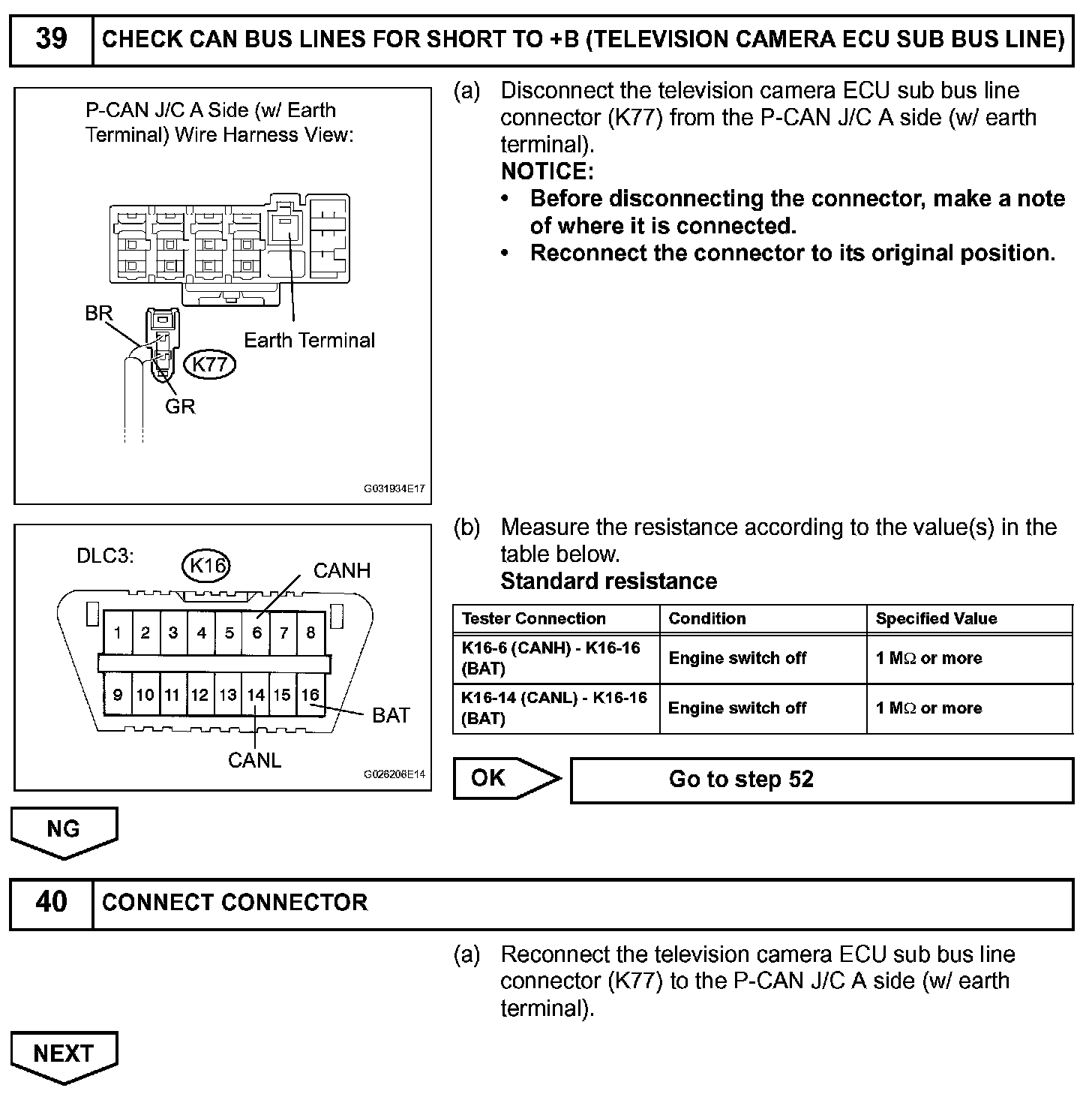

Step 39-40:

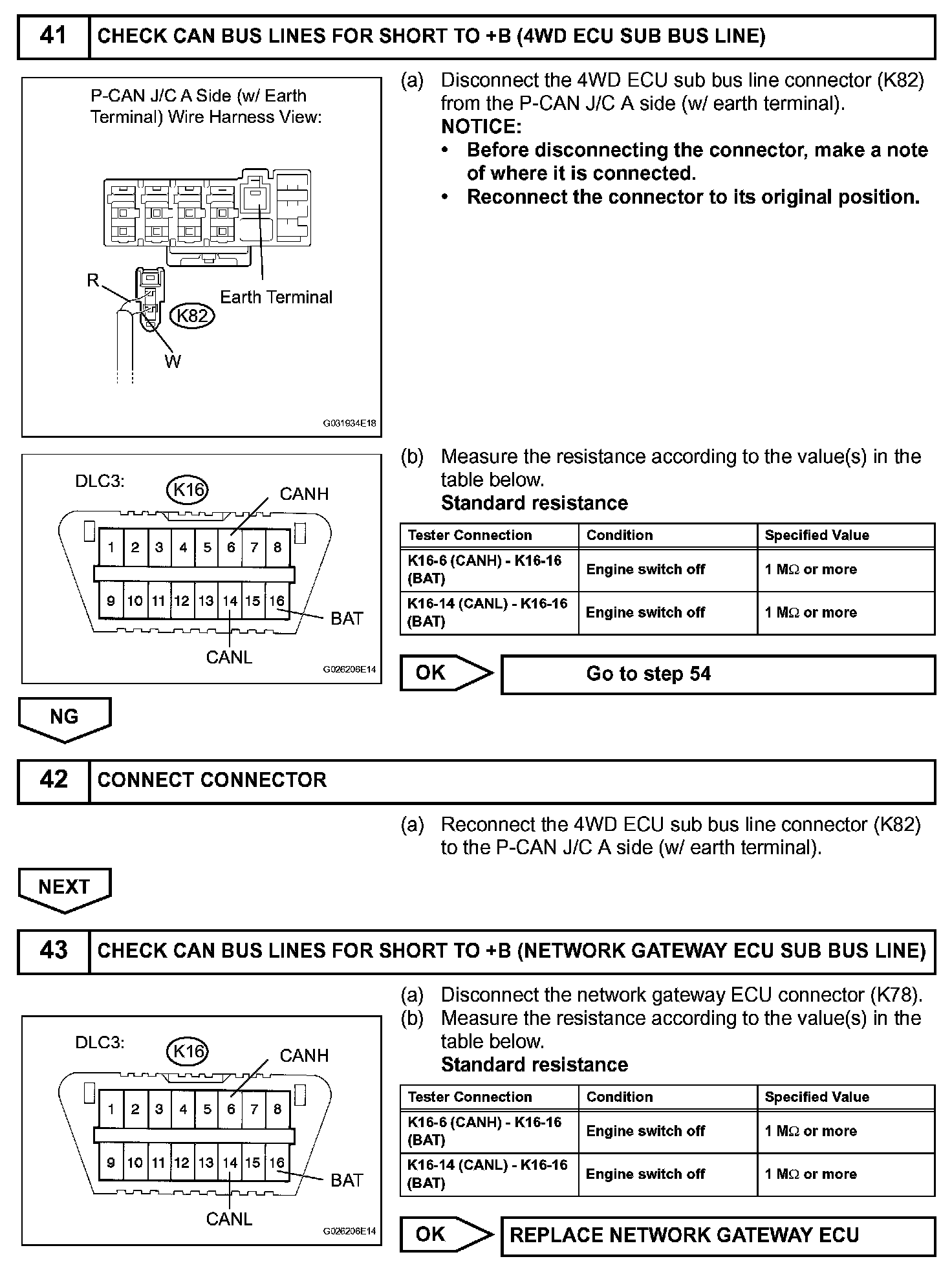

Step 41-43:
Step 43(continued)-47:
Step 47(continued)-50:

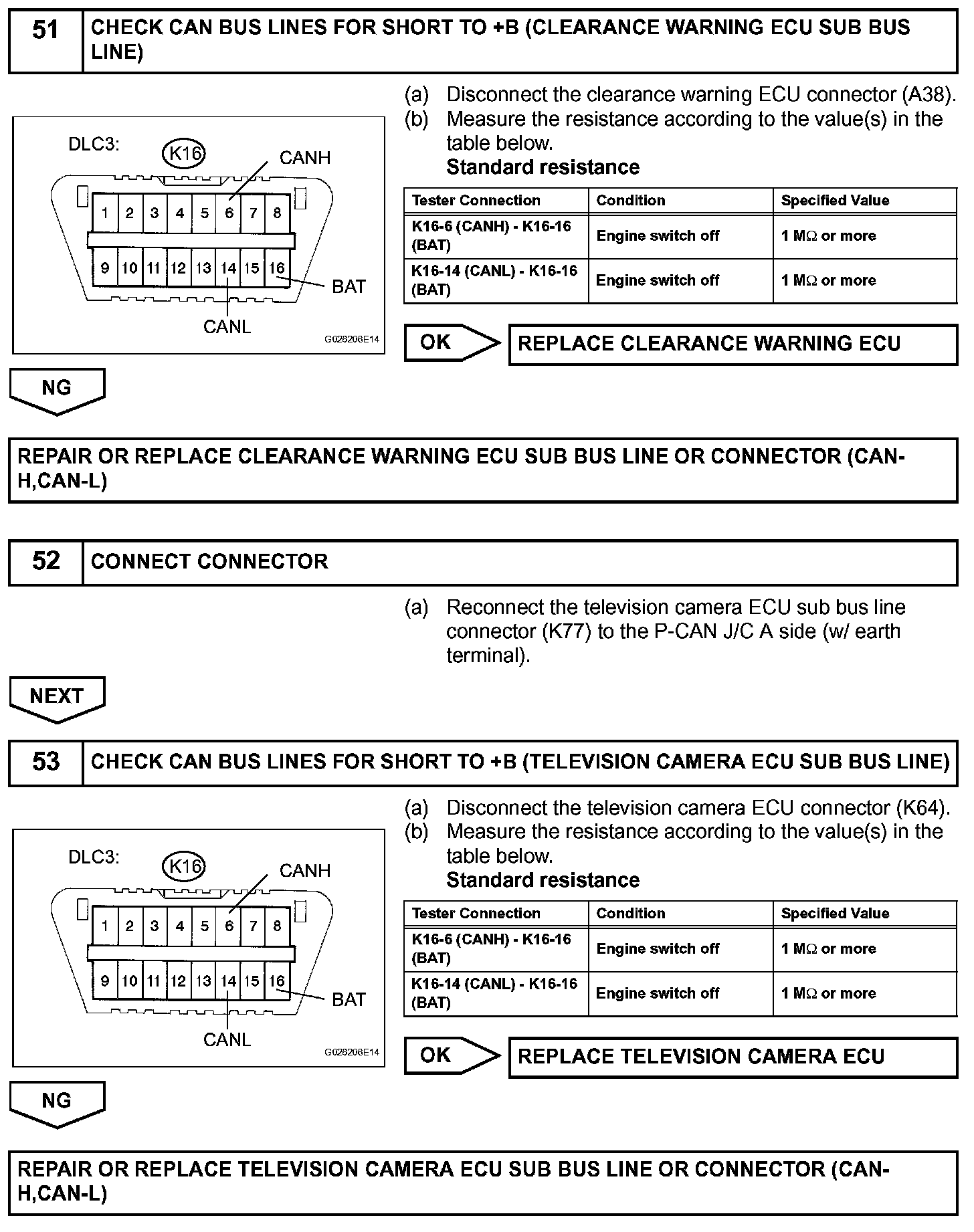

Step 51-53:
Step 54-55:
INSPECTION PROCEDURE
