Short in CAN Bus Lines
Short in CAN Bus LinesDESCRIPTION

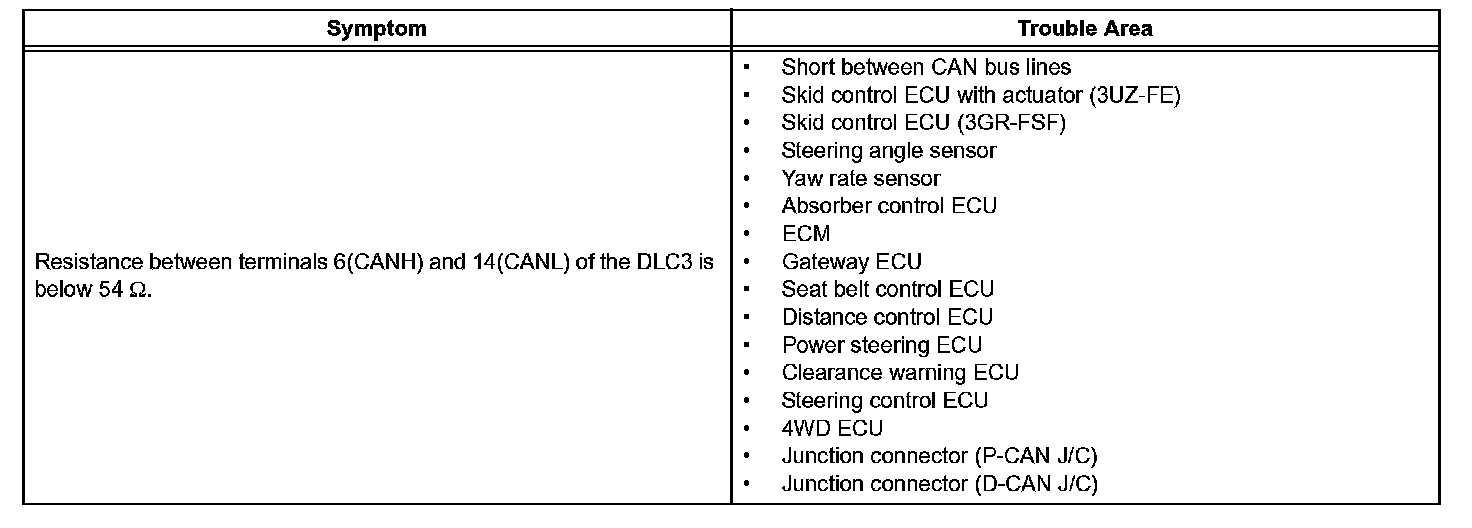

There may be a short circuit between the CAN bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

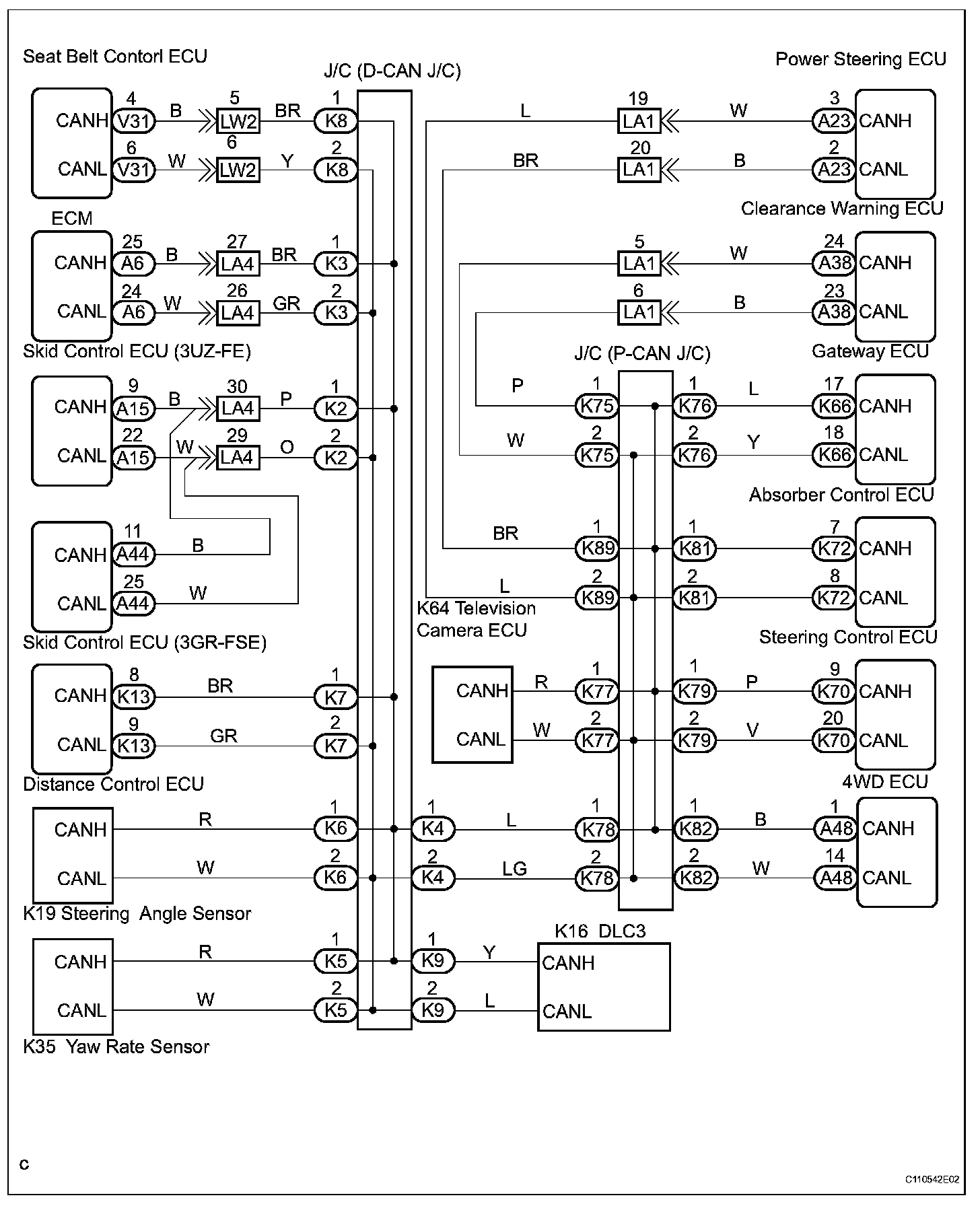

Wiring Diagram:

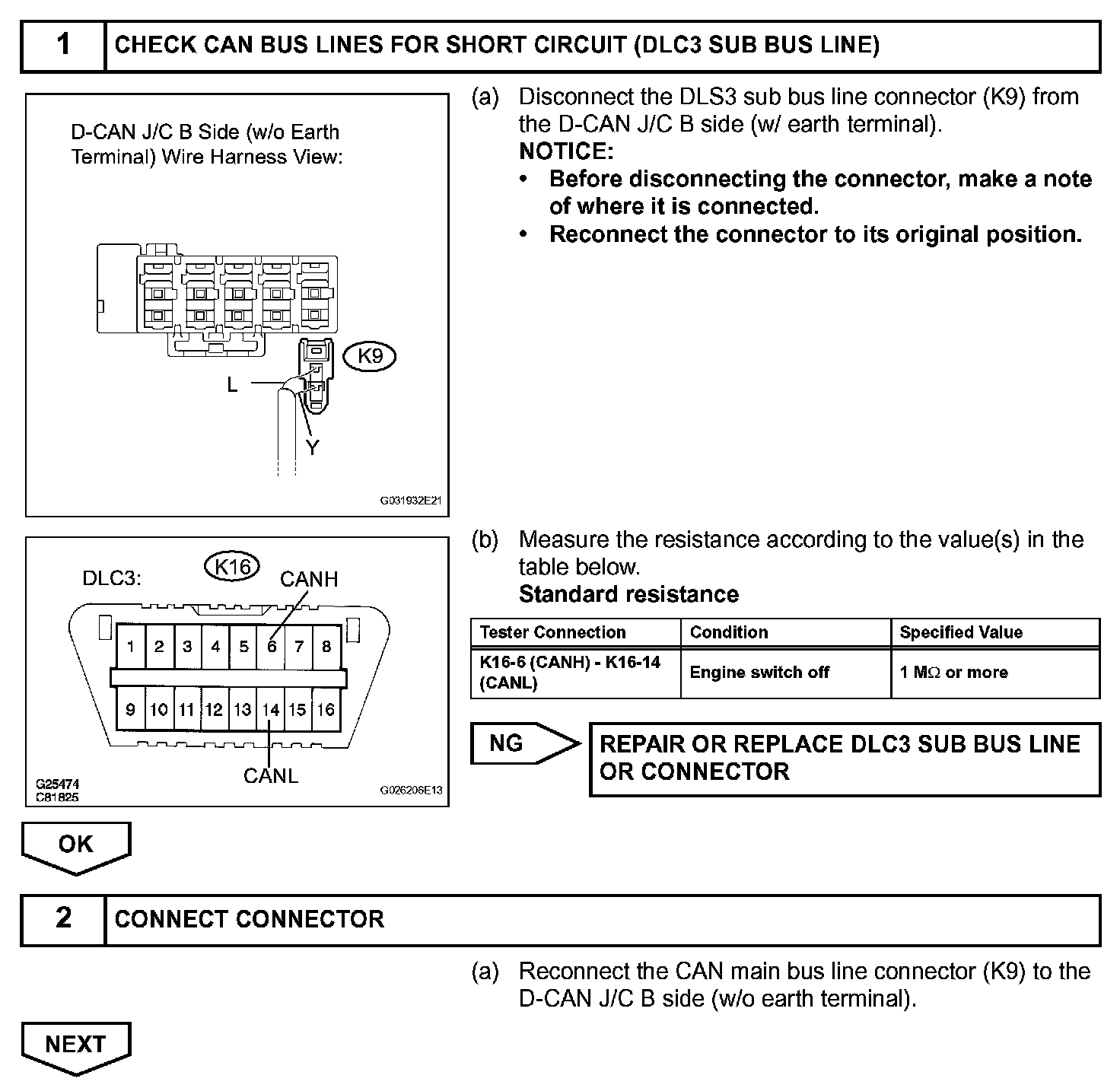

Step 1-2:

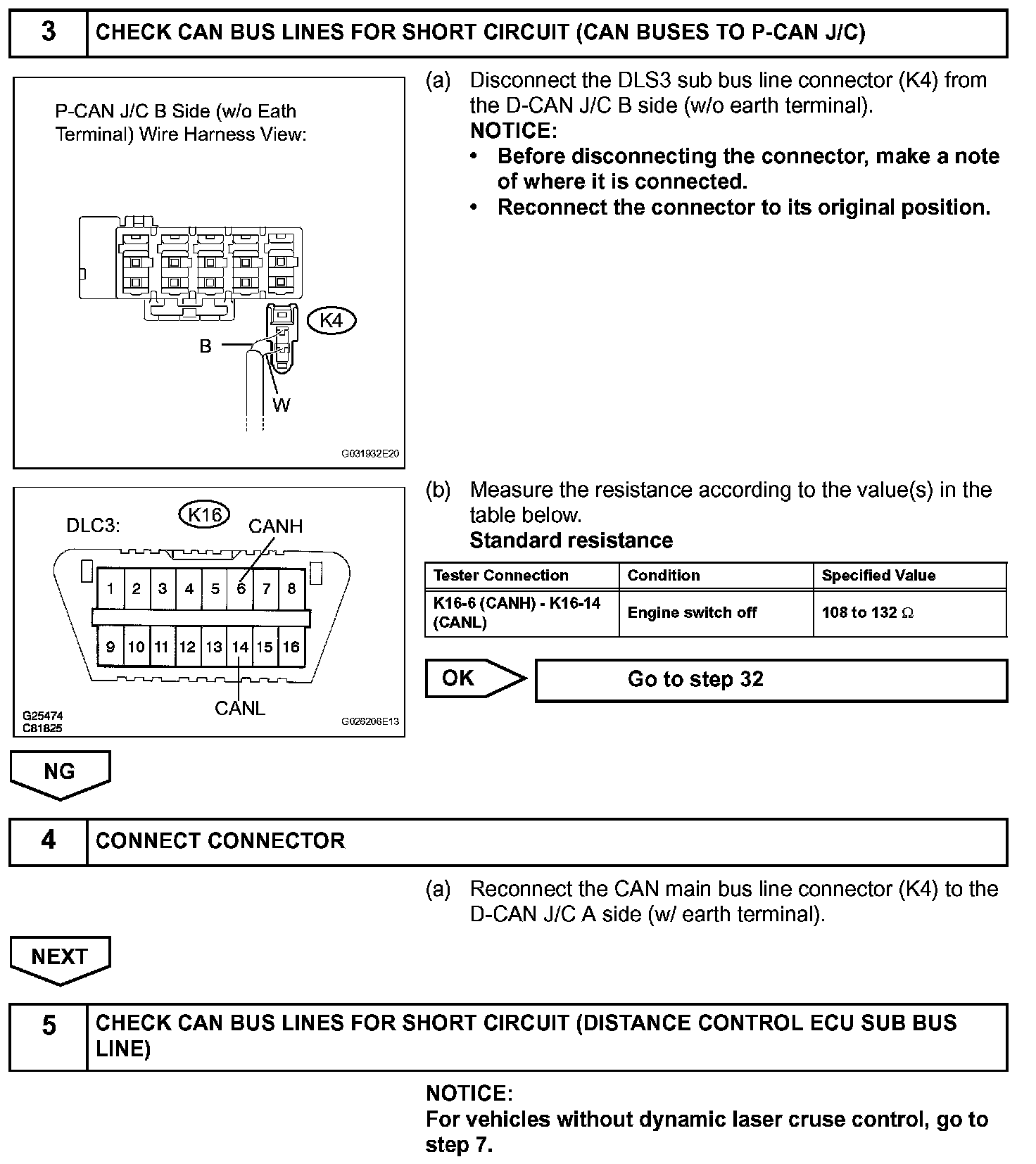

Step 3-5:

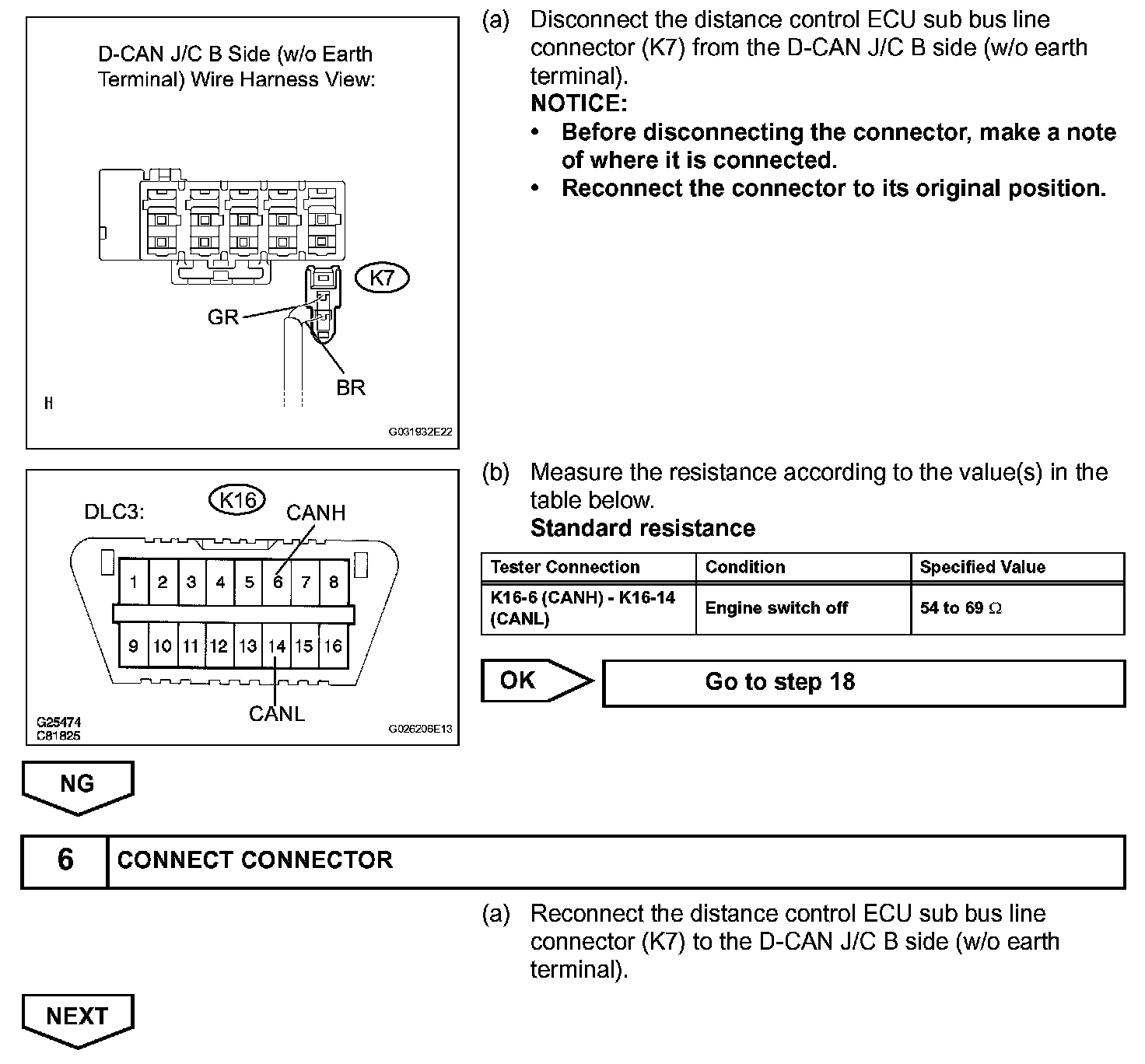

Step 5(continued)-6:
Step 7-8:

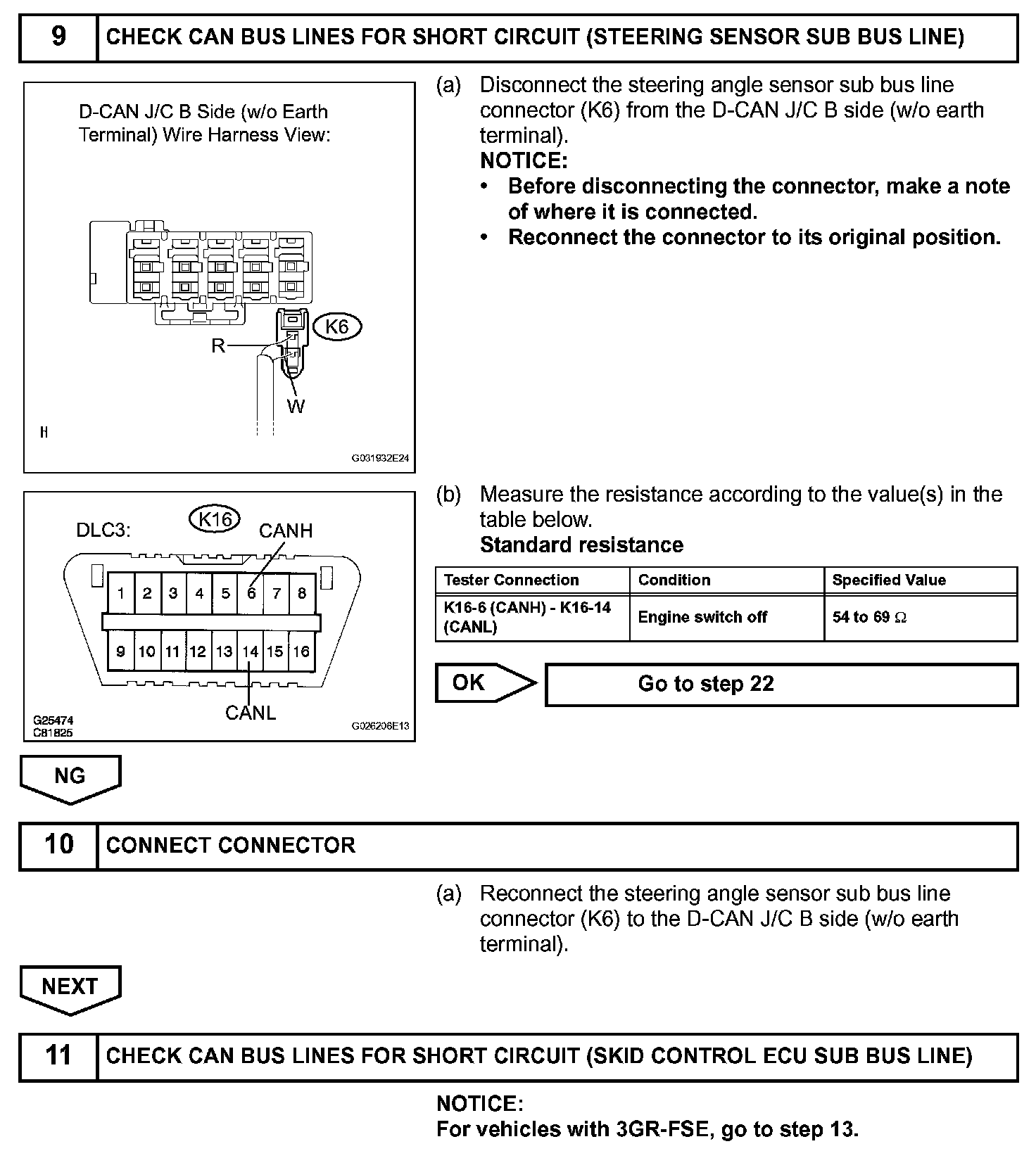

Tep 9-11:
Step 11(continued)-12:

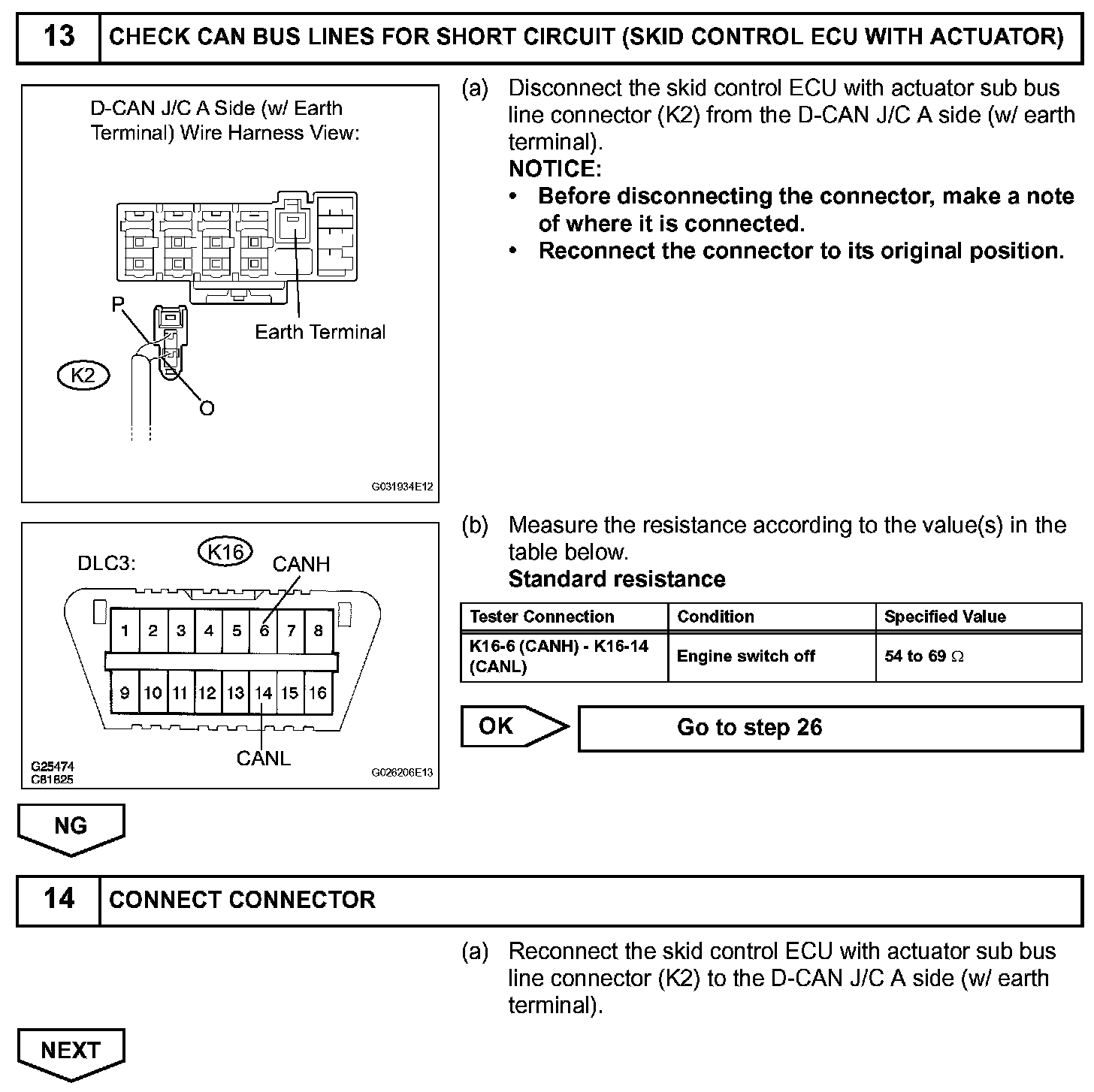

Step 13-14:
Step 15-16:

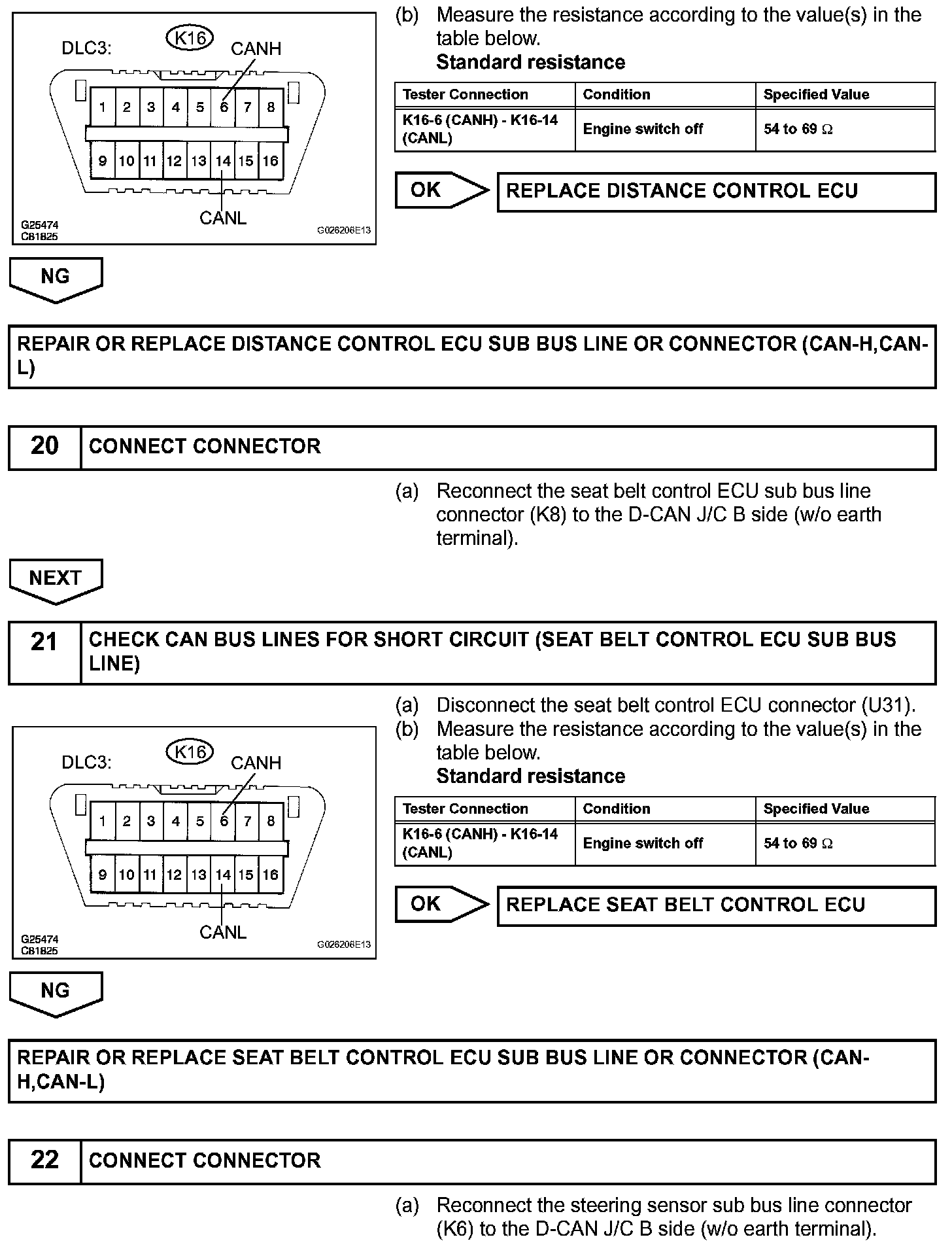

Step 17-19:
Step 19(continued)-22:

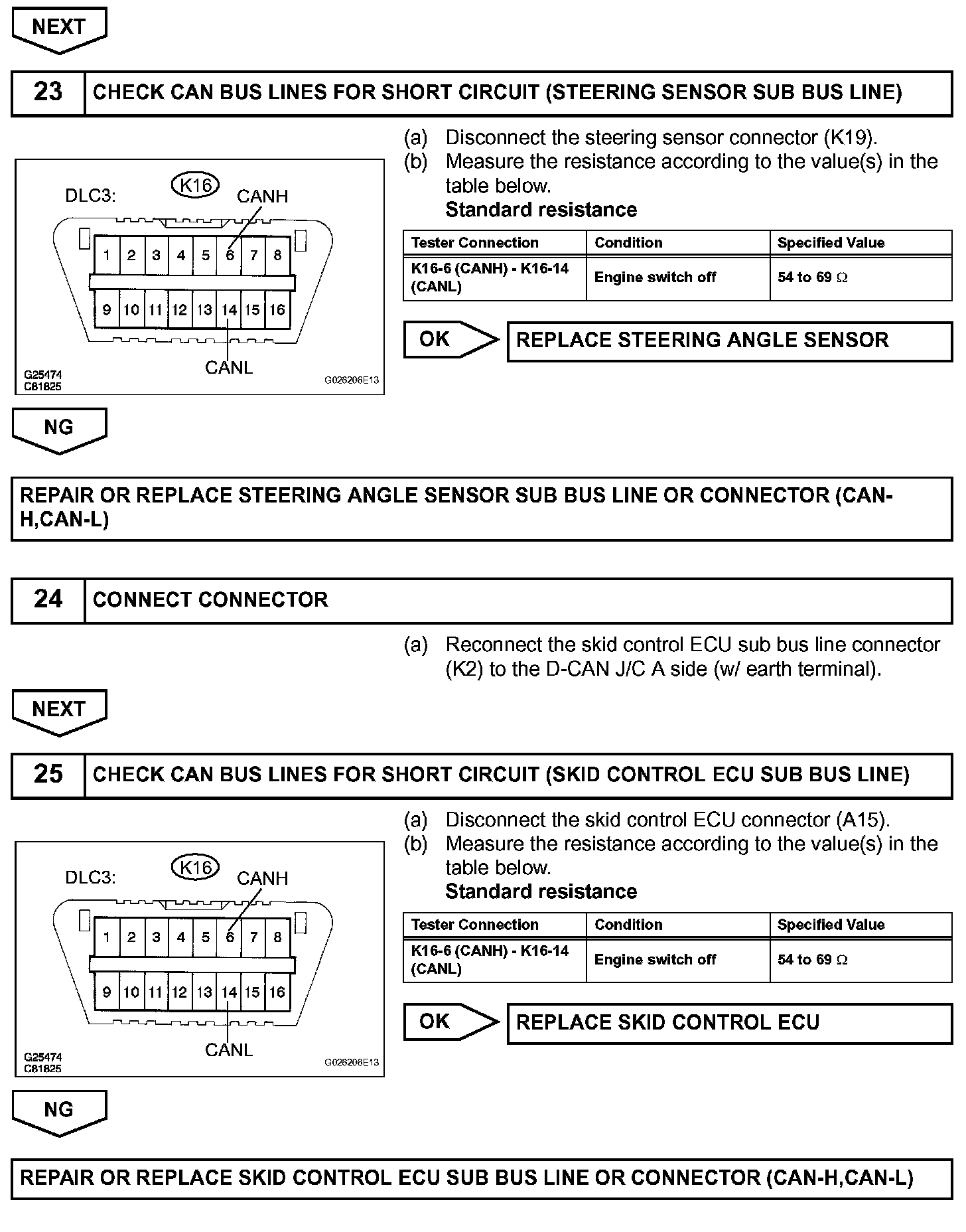

Step 22(continued)-25:

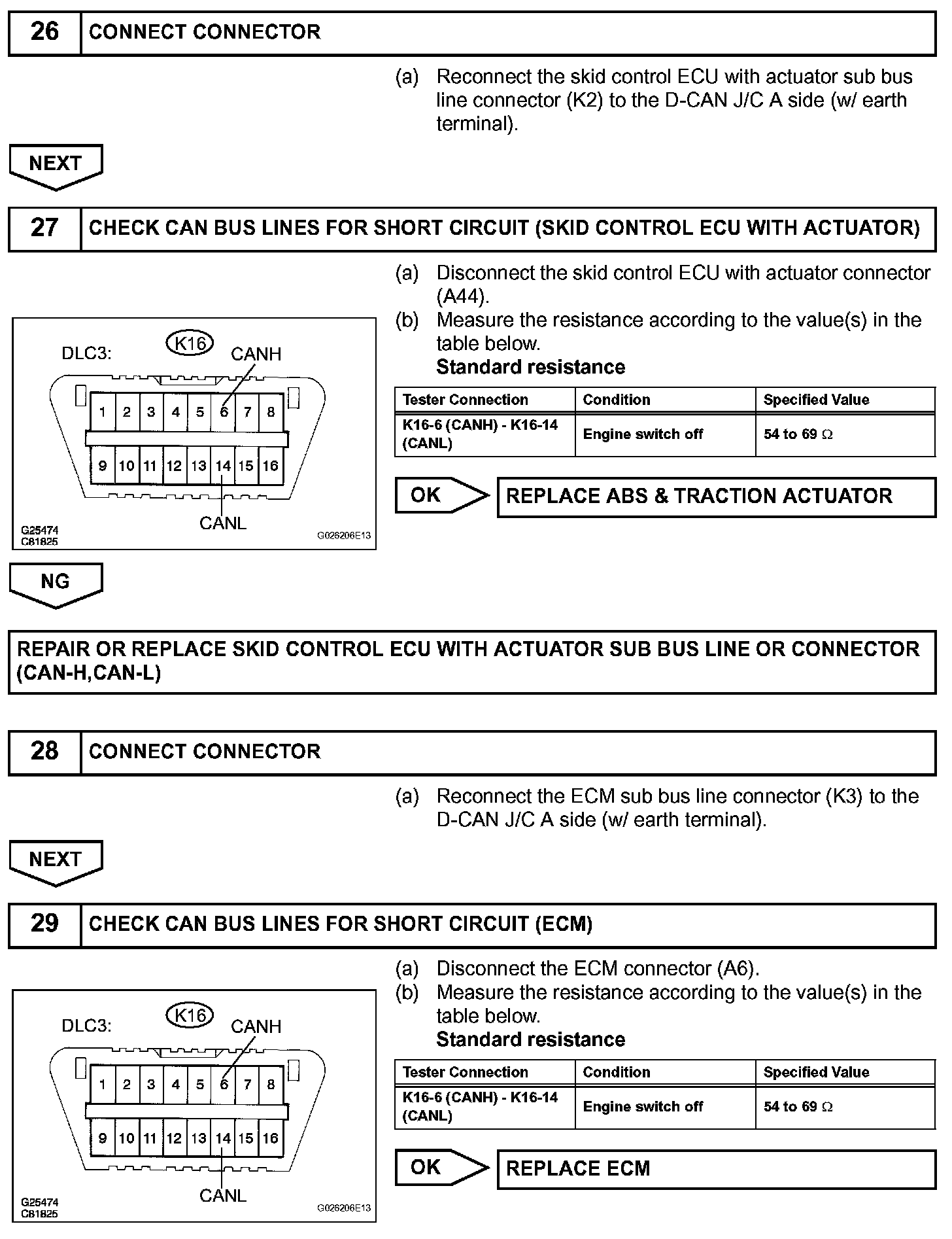

Step 26-29:
Step 29(continued)-32:

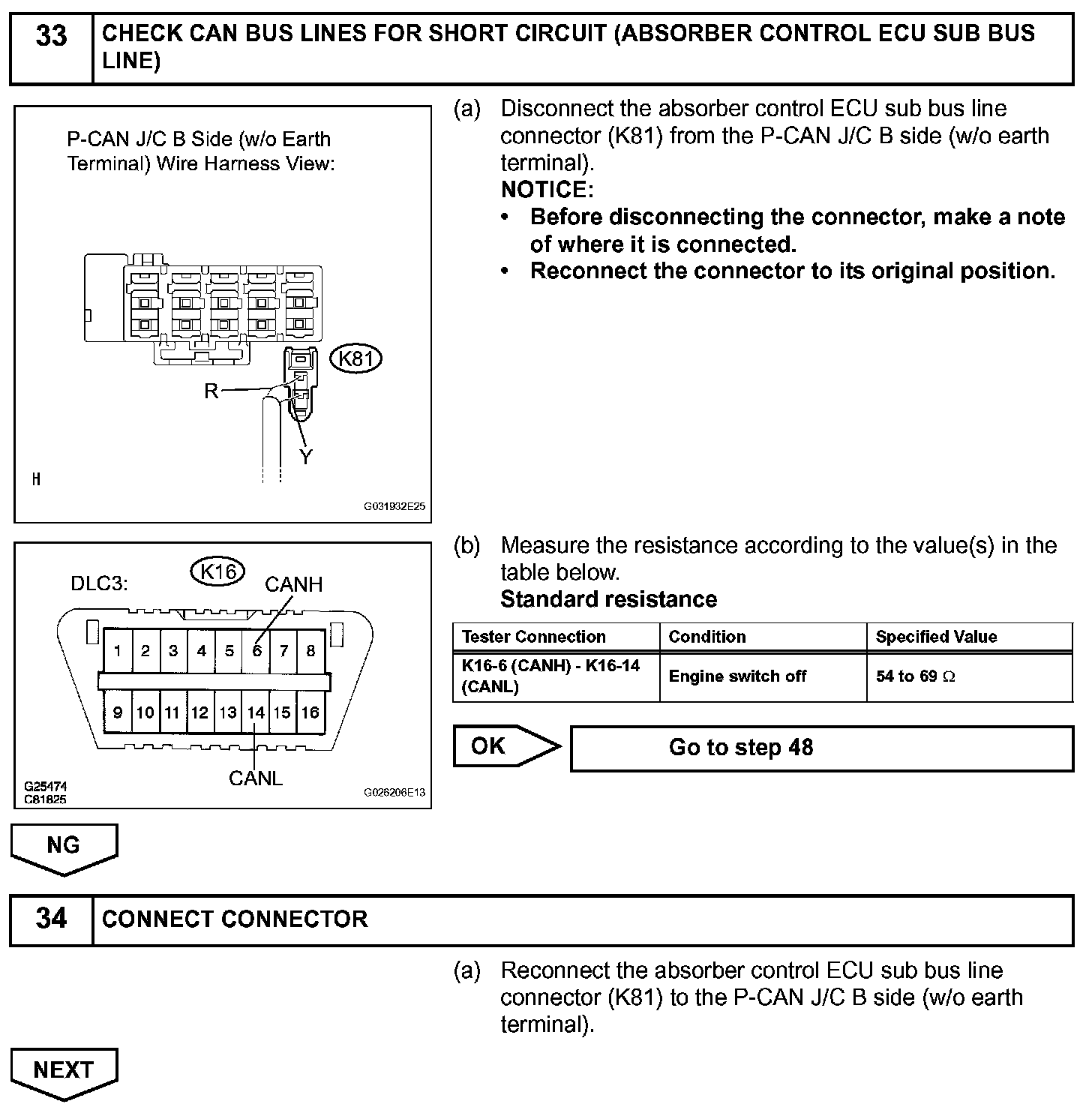

Step 33-34:

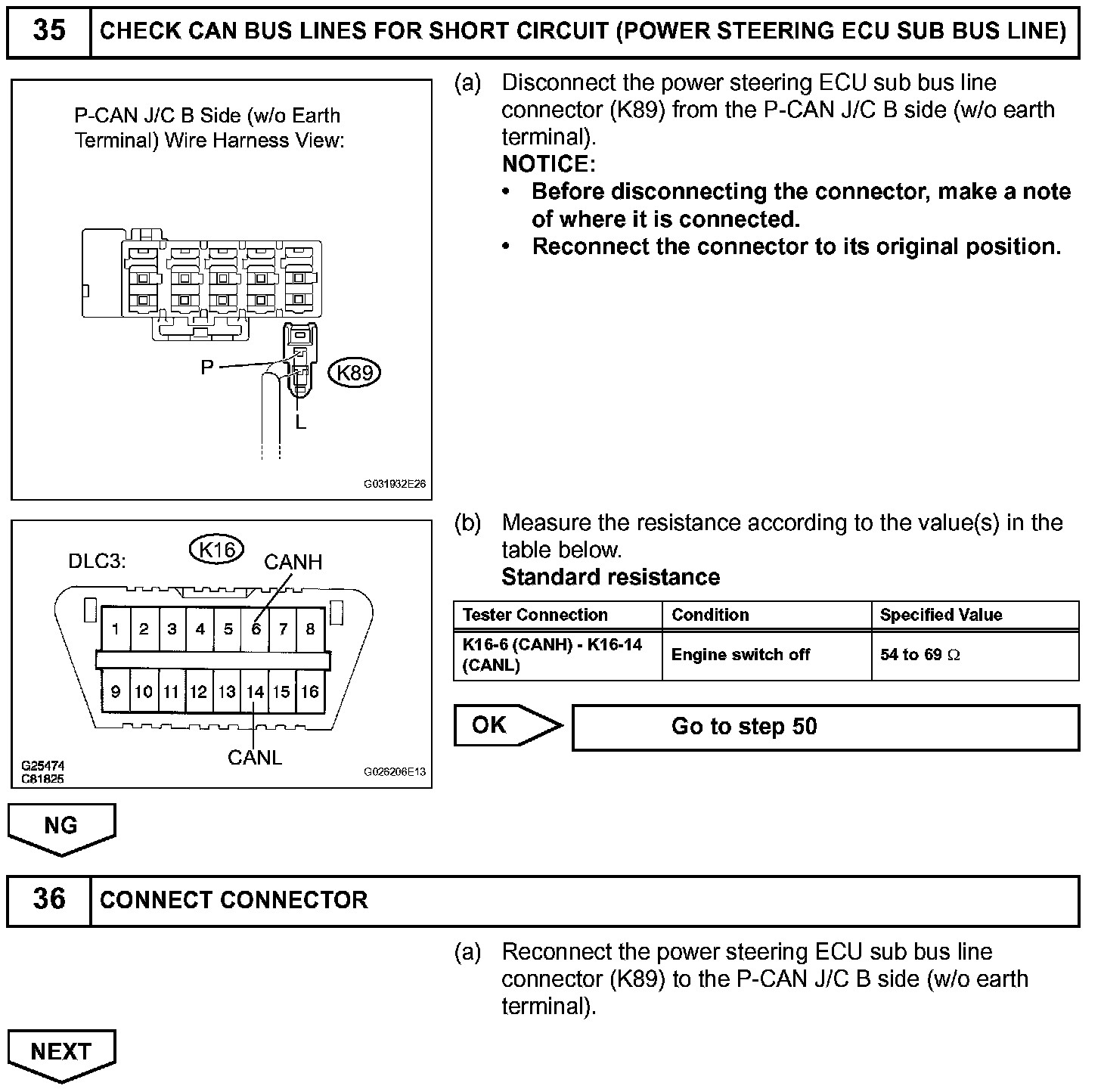

Step 35-36:

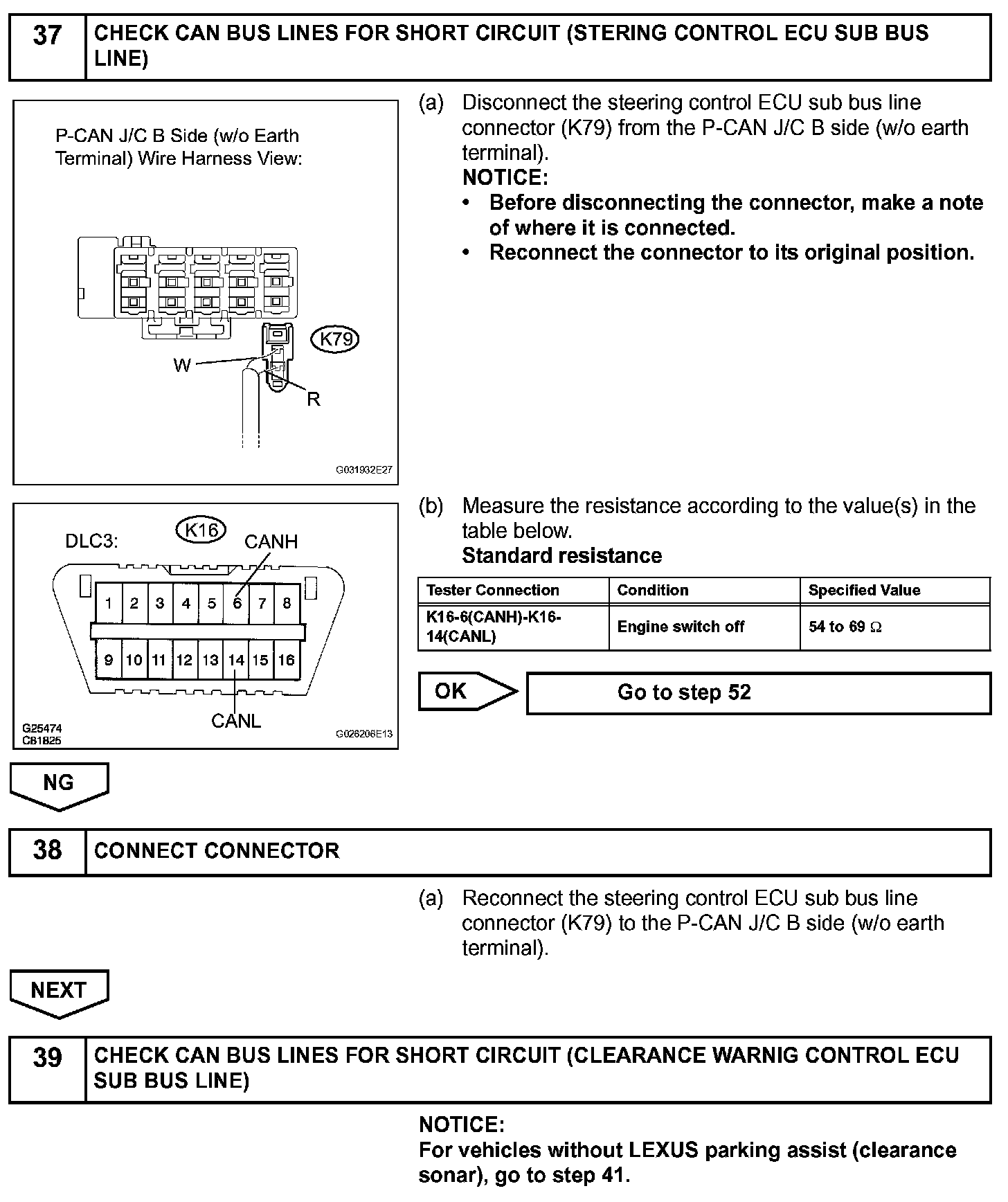

Step 37-39:
Step 39(continued)-41:

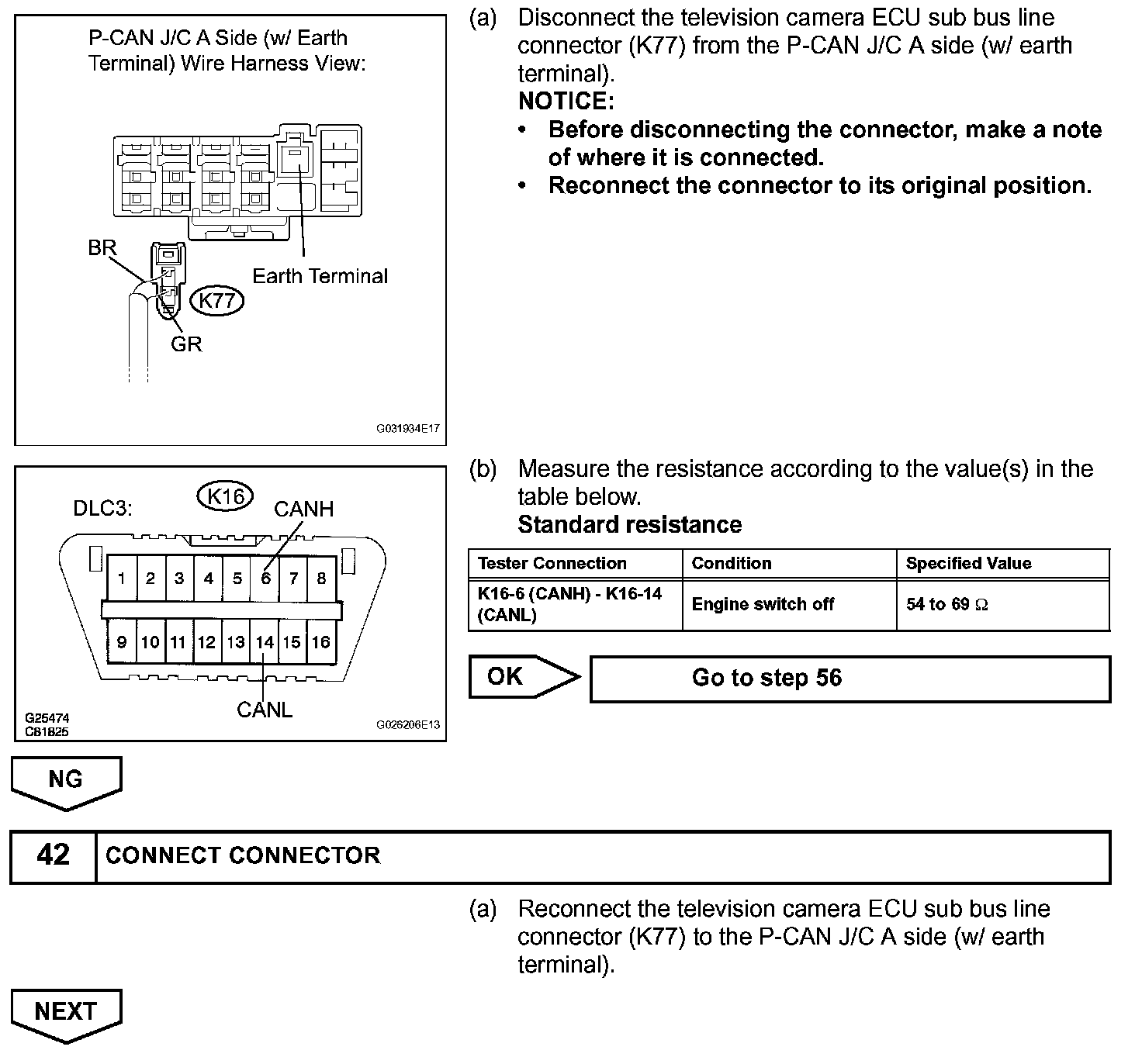

Step 41(continued)-42:

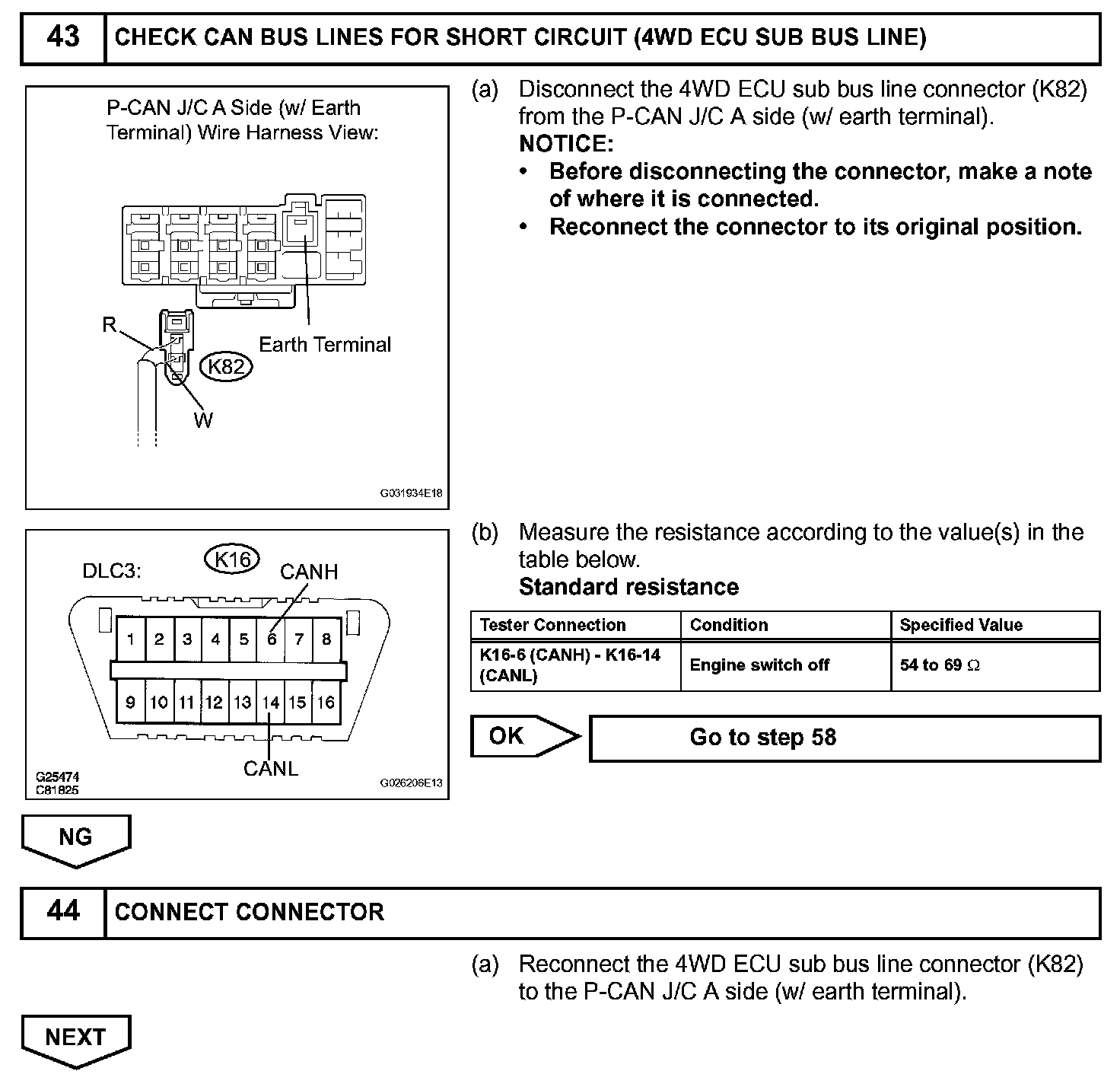

Tep 43-44:

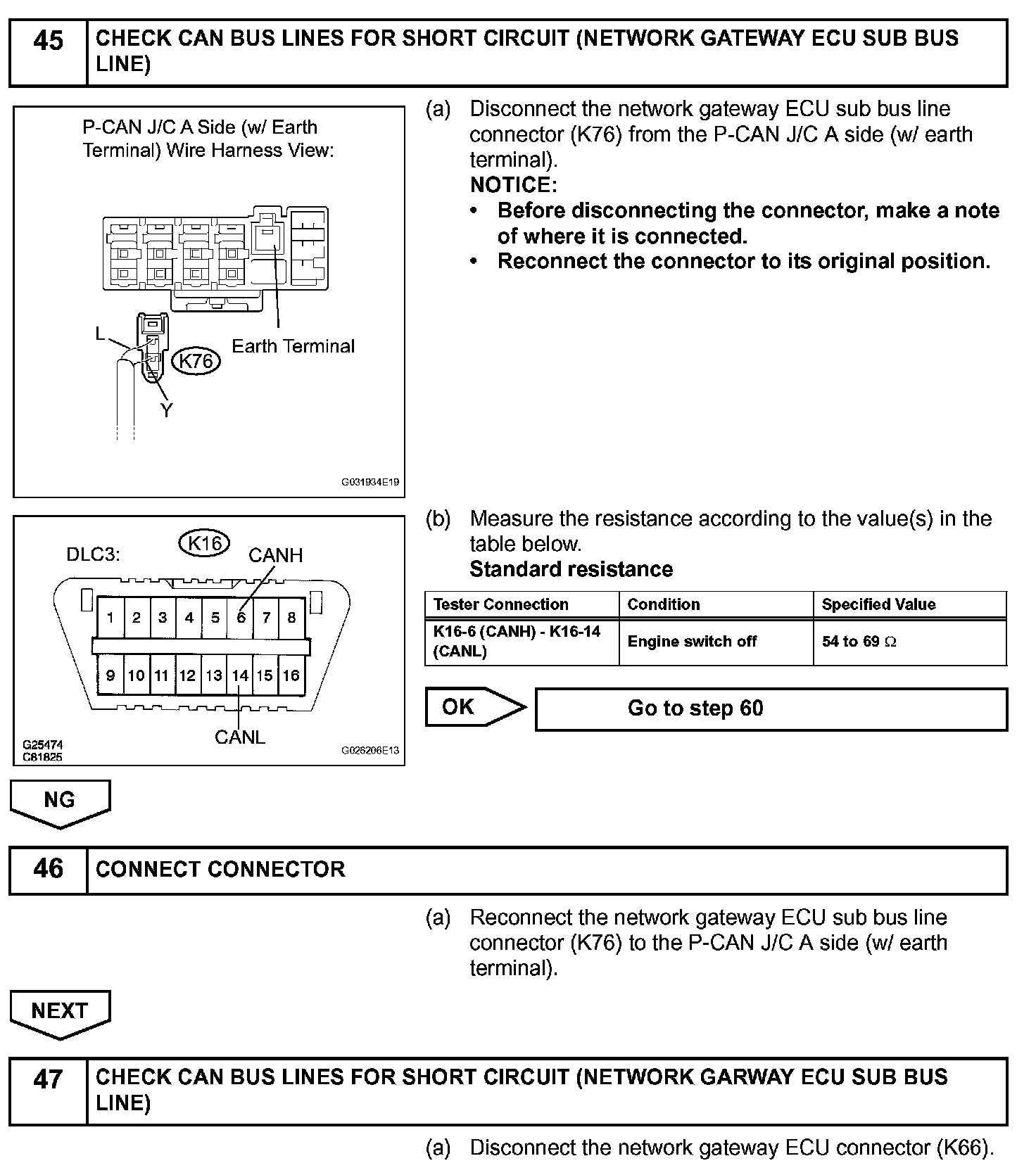

Step 45-47:

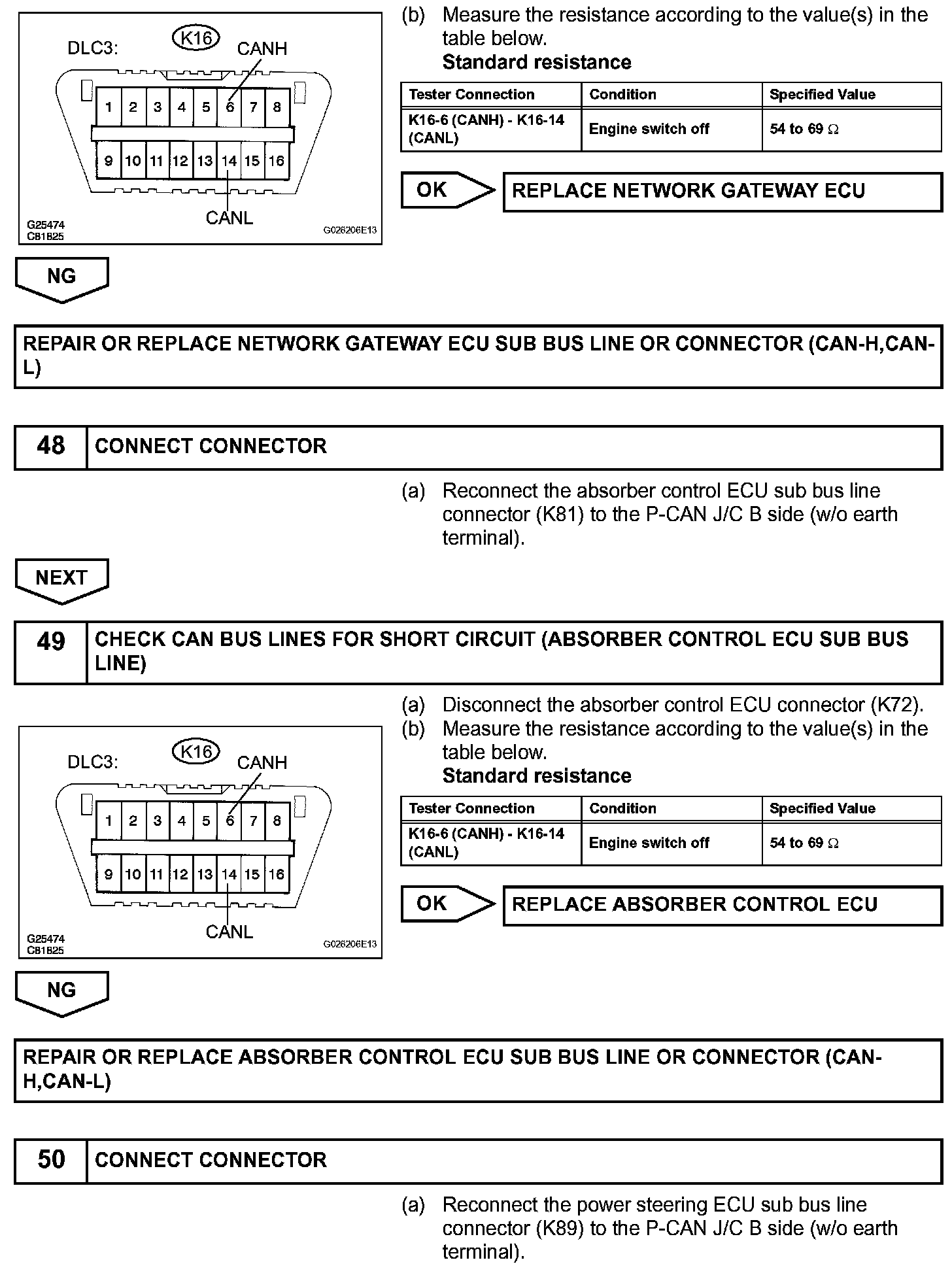

Step 47(continued)-50:

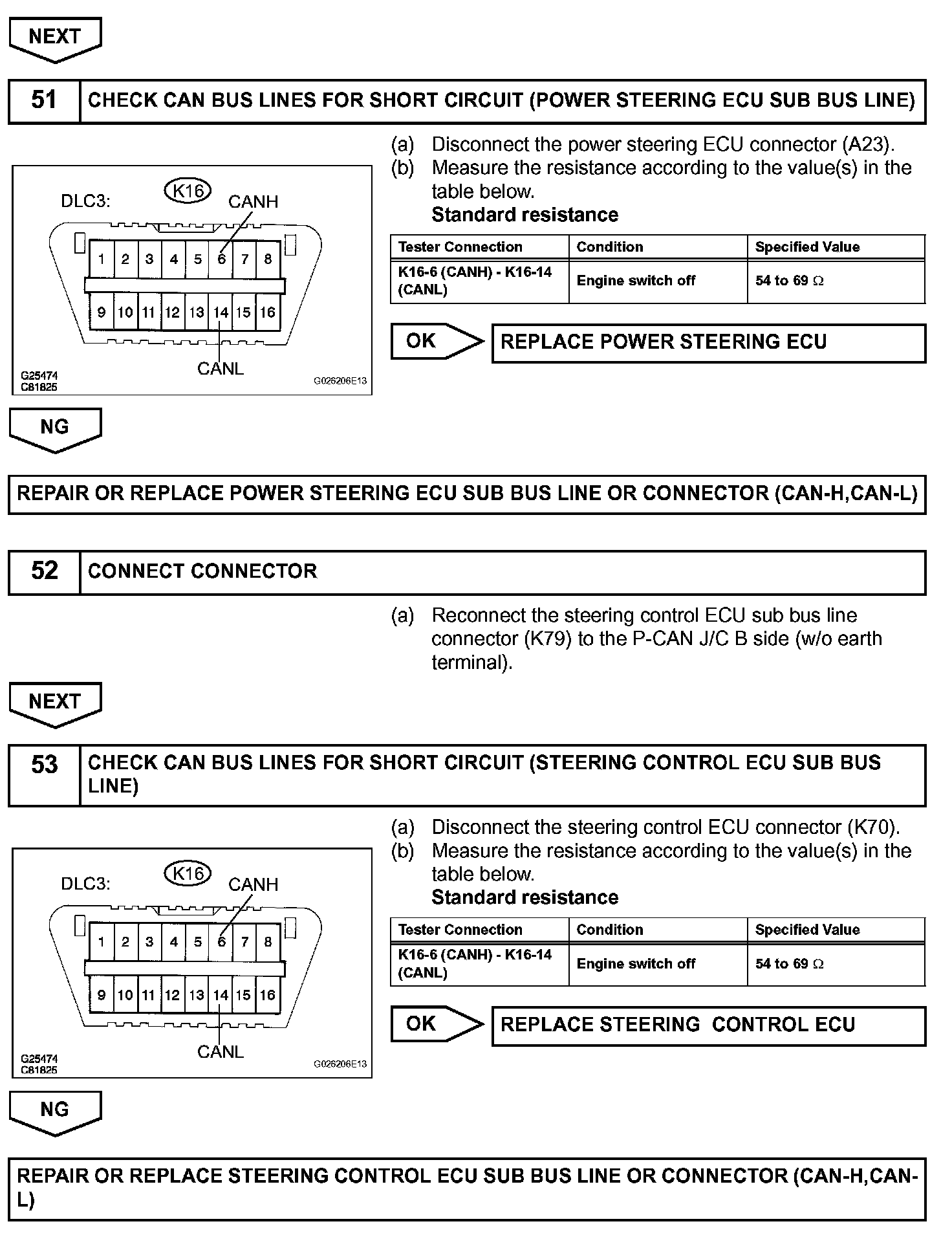

Step 50(continued)-53:

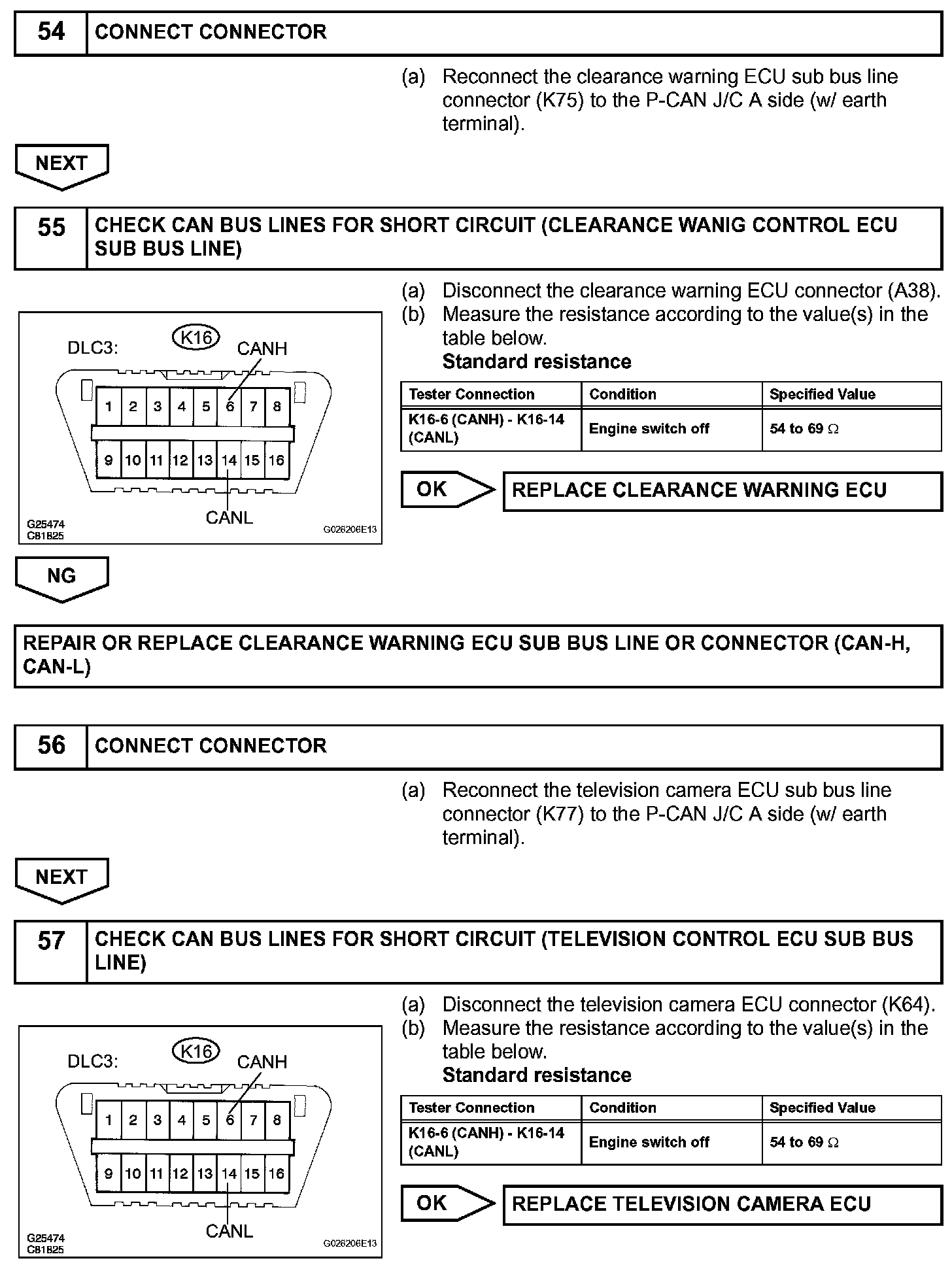

Step 54-57:

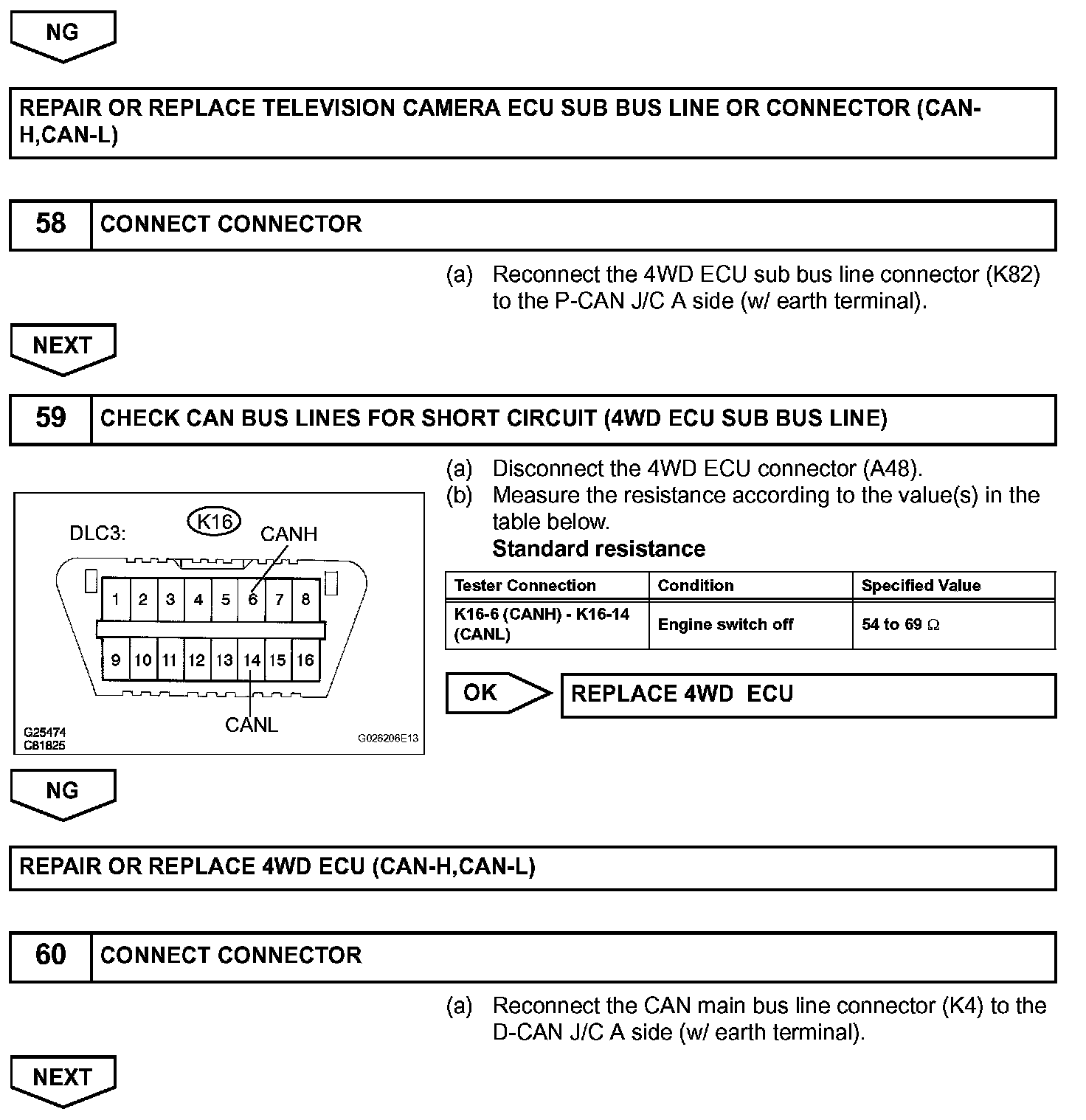

Step 57(continued)-60:

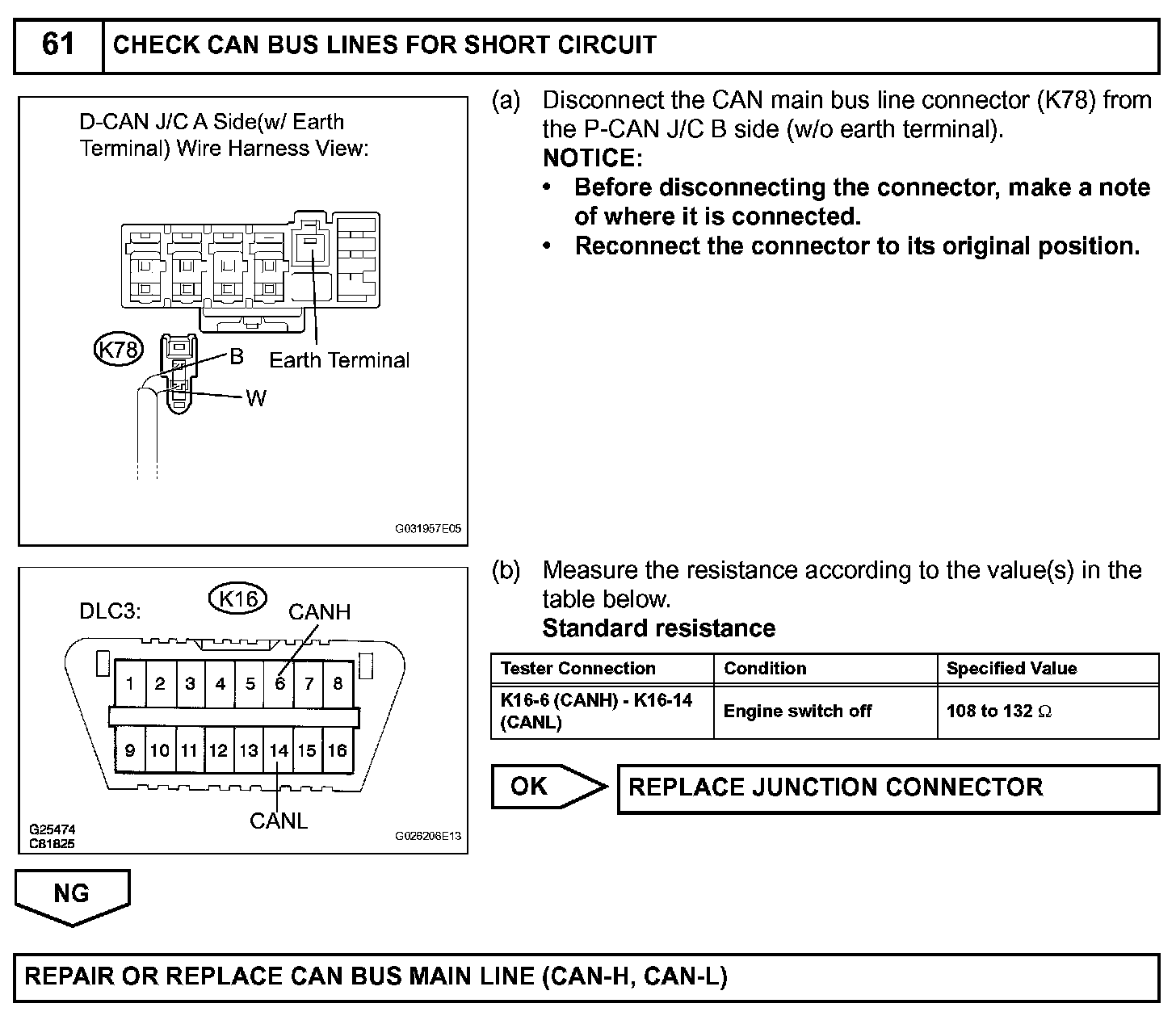

Step 61:
INSPECTION PROCEDURE
