Open in CAN Main Bus Line
Open in CAN Main Bus LineDESCRIPTION

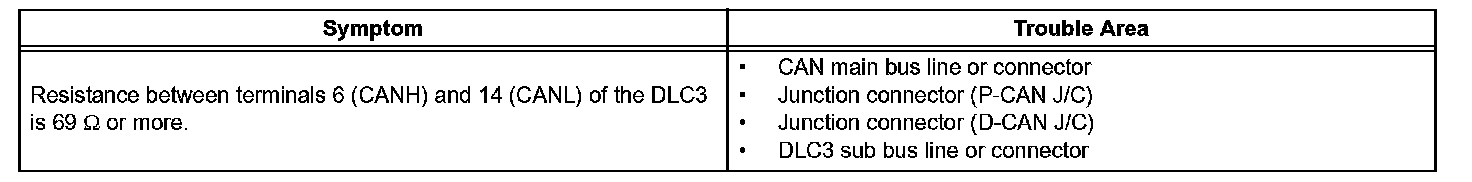

There may open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 Ohms or more.

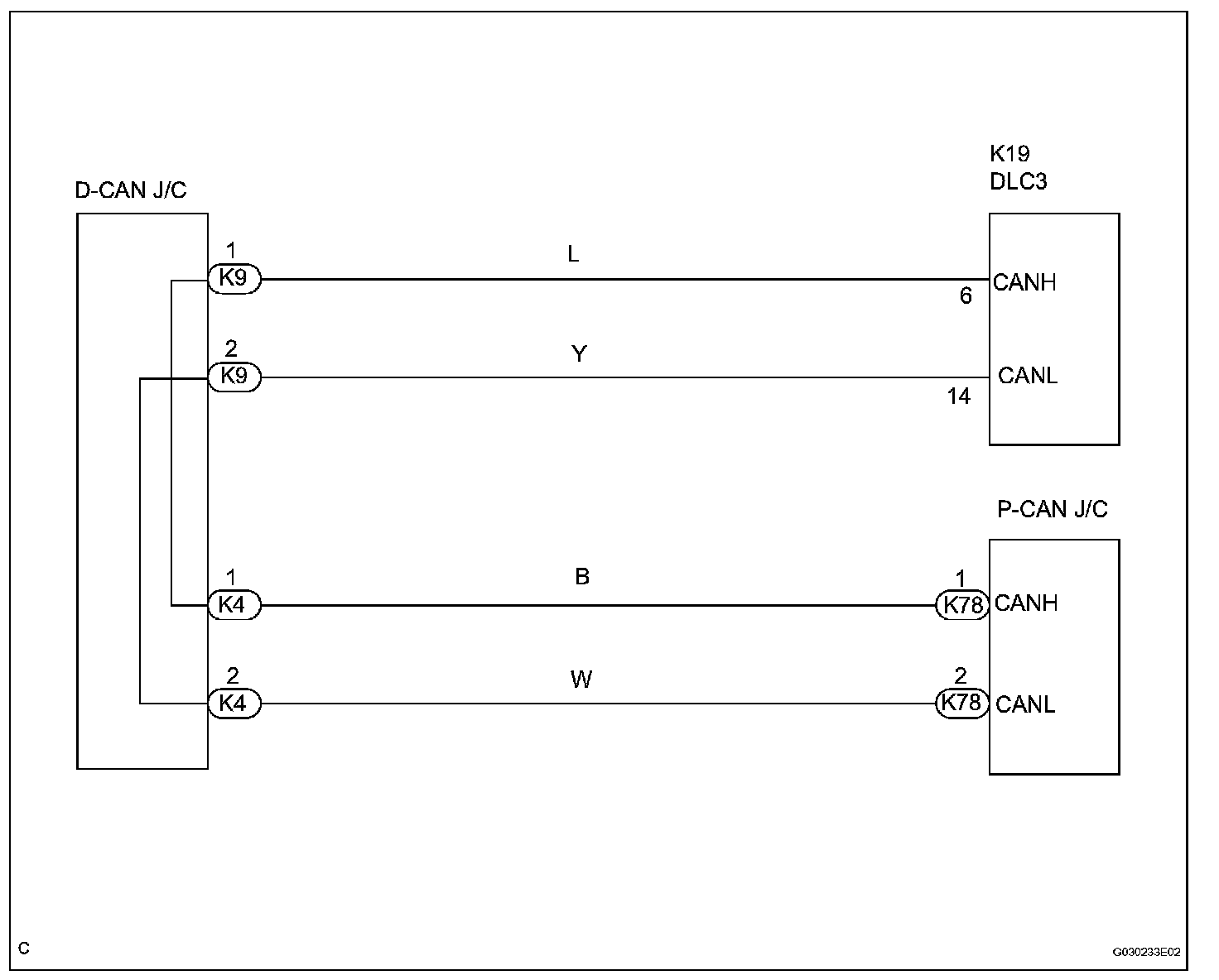

Wiring Diagram:

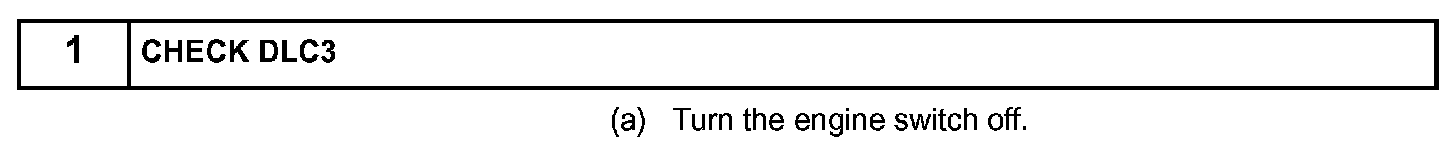

Step 1:
Step 1(continued)-3:

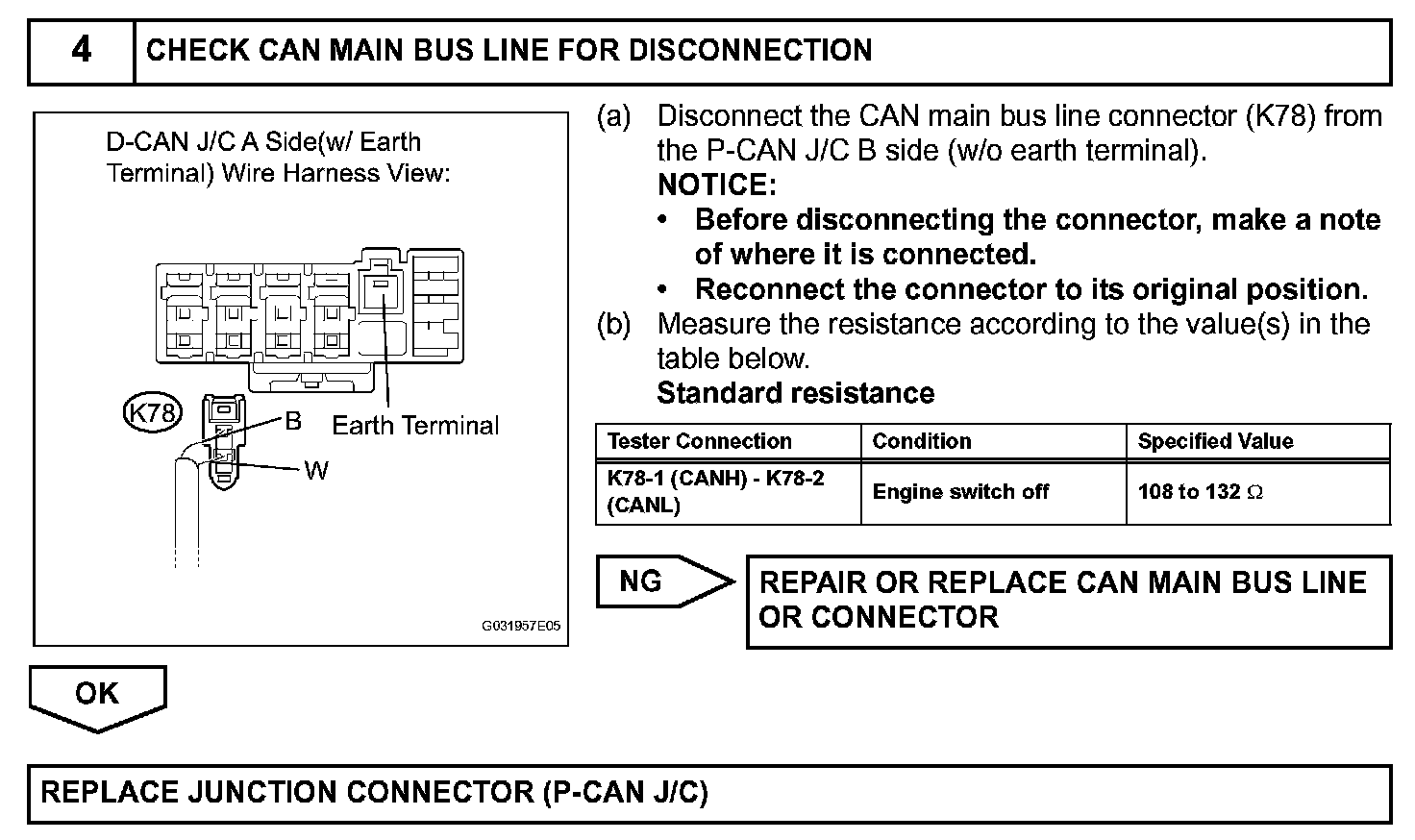

Step 4:
INSPECTION PROCEDURE
