Clearance Warning ECU Communication Stop Mode
Clearance Warning ECU Communication Stop Mode
Clearance Warning ECU Communication Stop Mode

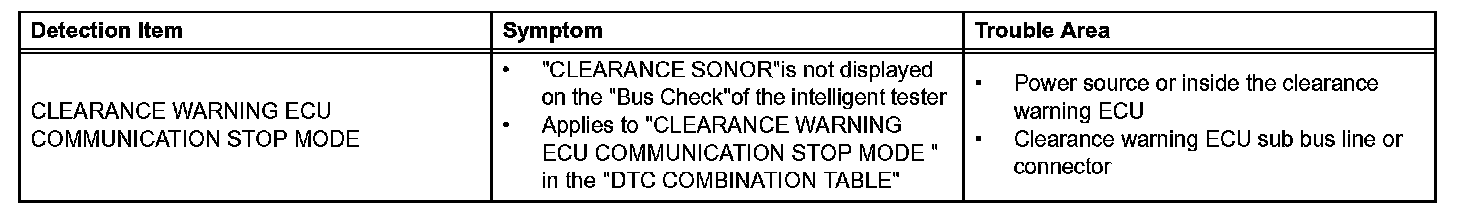

Detection Item:
DESCRIPTION

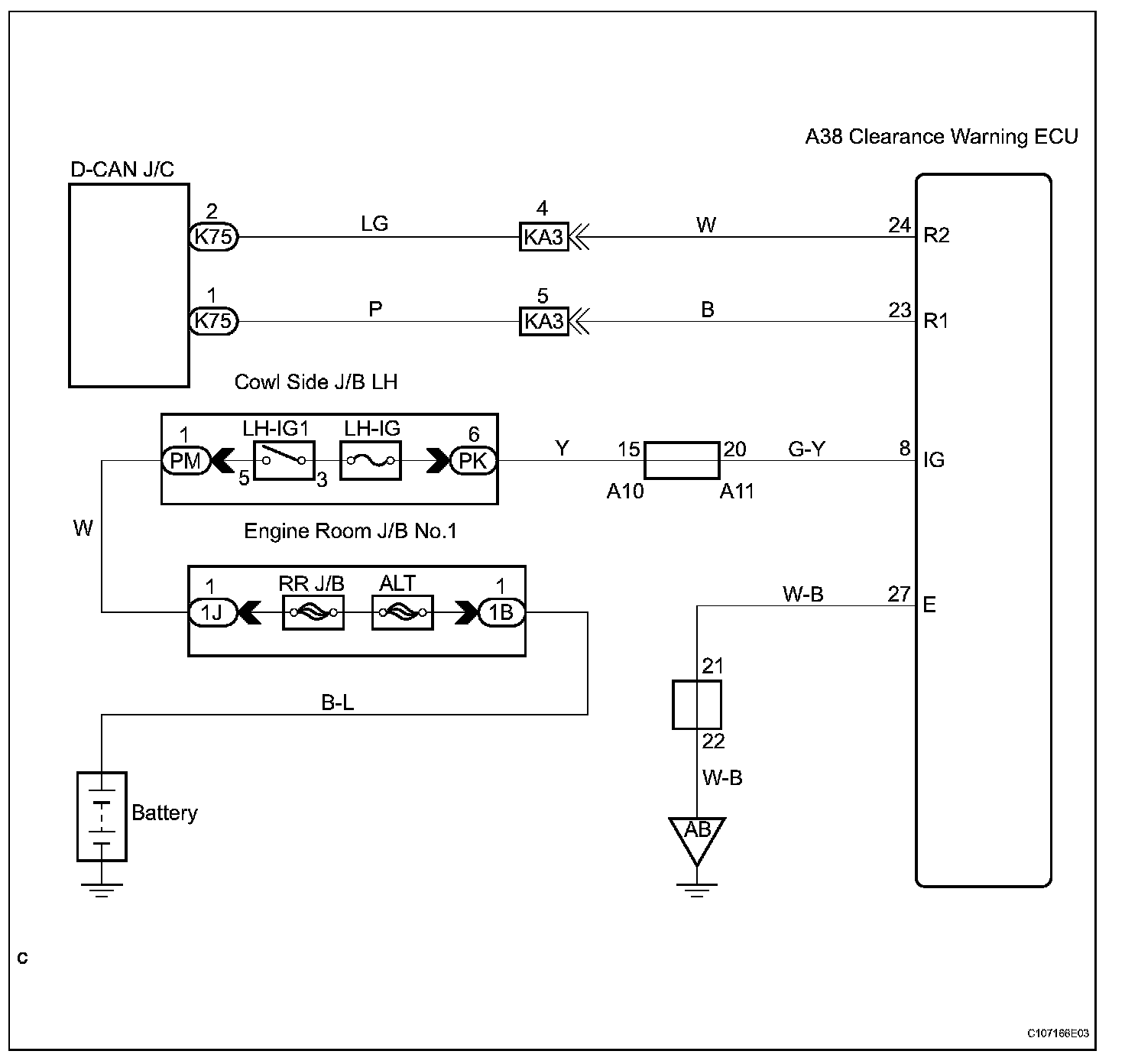

Wiring Diagram:

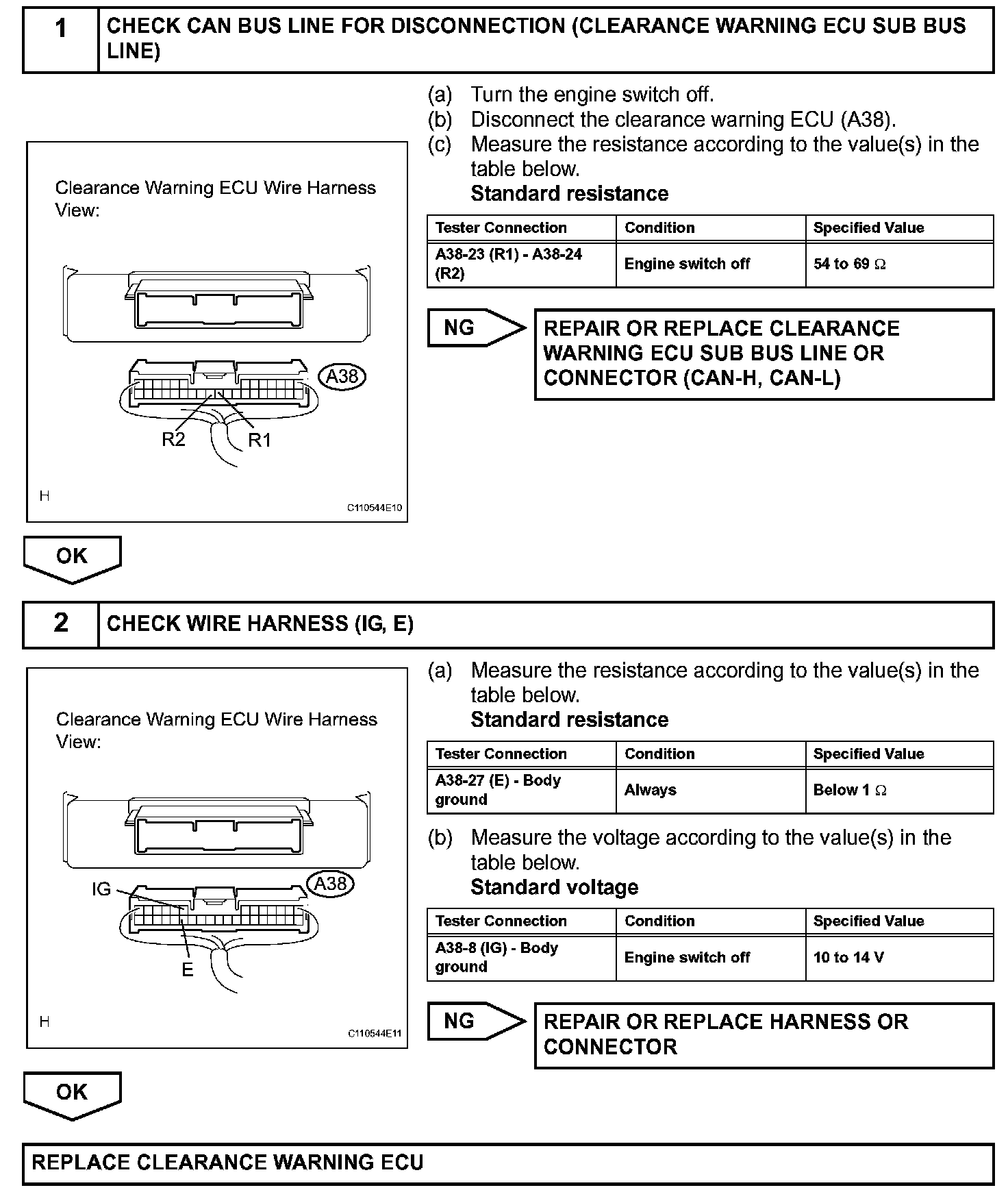

Step 1-2:
INSPECTION PROCEDURE
